VILTROX DC-A1 Camera Monitor 7'' Touchscreen Camera Field Monitor,2800nits 4K HDMI in/Out,DSLR External Monitor Kit Sunshade Hood,Waveform&Vectorscope,Peaking Focus Assist,3D LUT,False Color Function

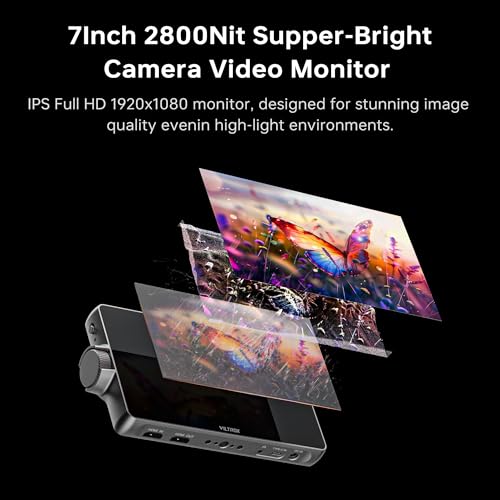

• Ultra-Bright 7” IPS Touchscreen (2800nits): Features a 7-inch Full HD IPS touchscreen with 1920×1080 resolution, 16:9 aspect ratio, and an ultra-bright 2800cd/m² panel. With 170° wide viewing angle, it ensures crystal-clear visibility even under direct sunlight—perfect for outdoor shooting

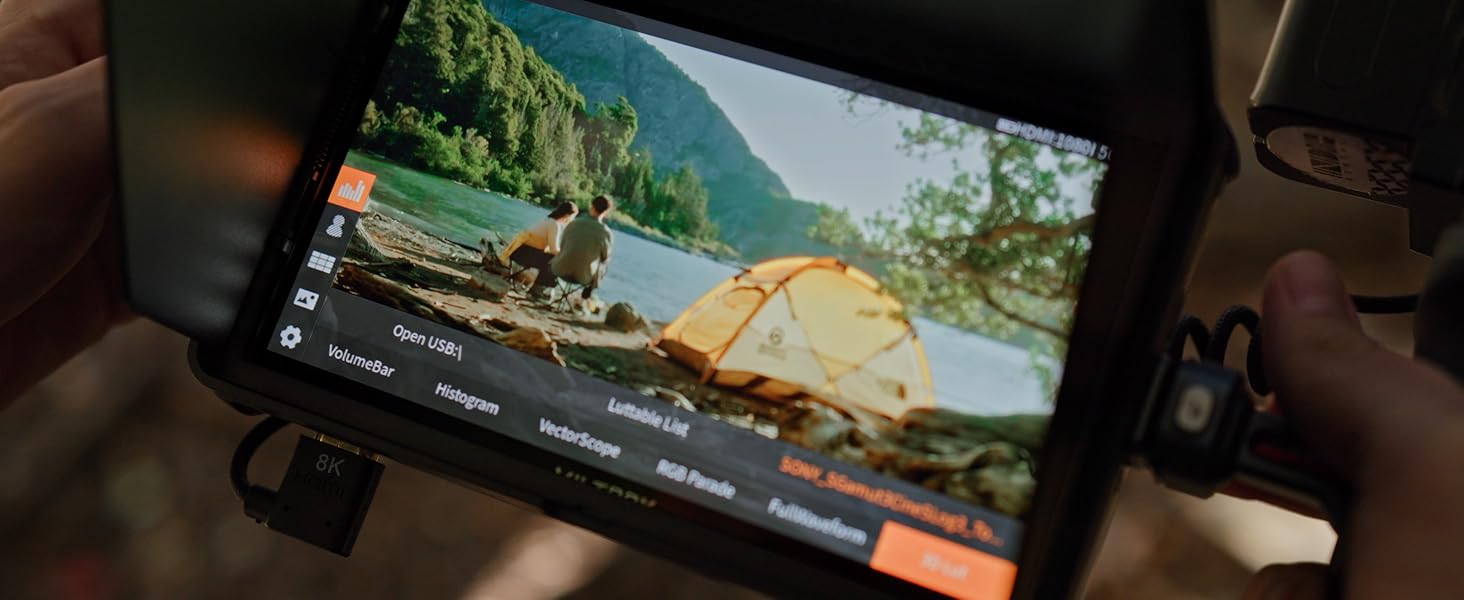

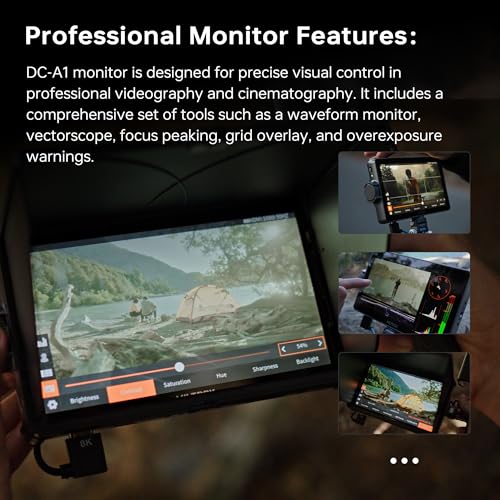

• Advanced Monitoring Tools with 3D LUT Support: Supports up to 20 custom 3D LUTs via USB import for precise color calibration. Includes focus assist, false color, brightness histogram, and de-squeeze functions to help ensure accurate exposure, framing, and color in every shot

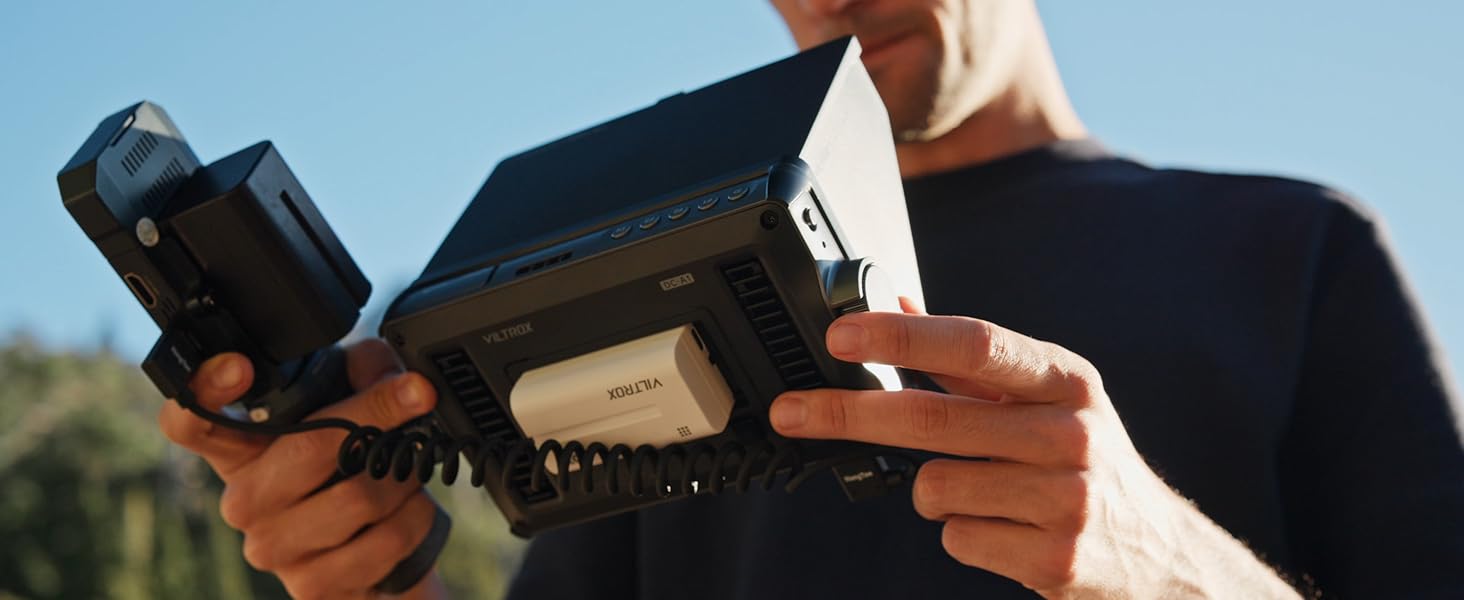

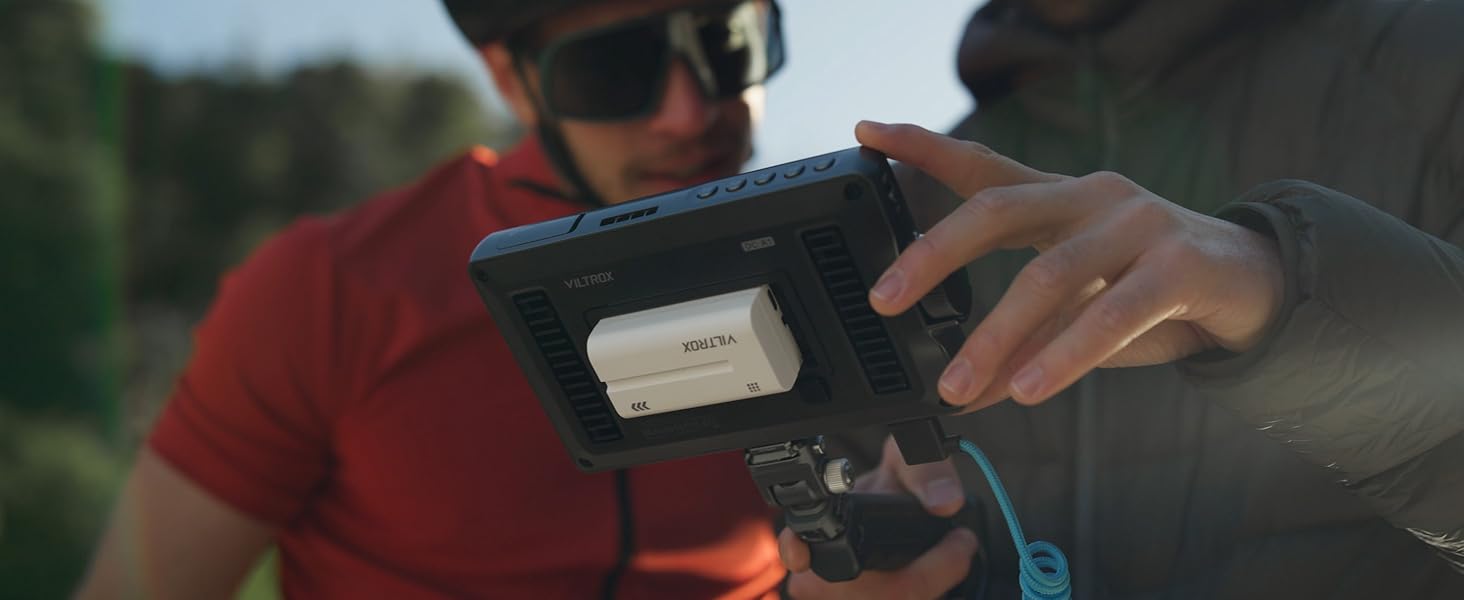

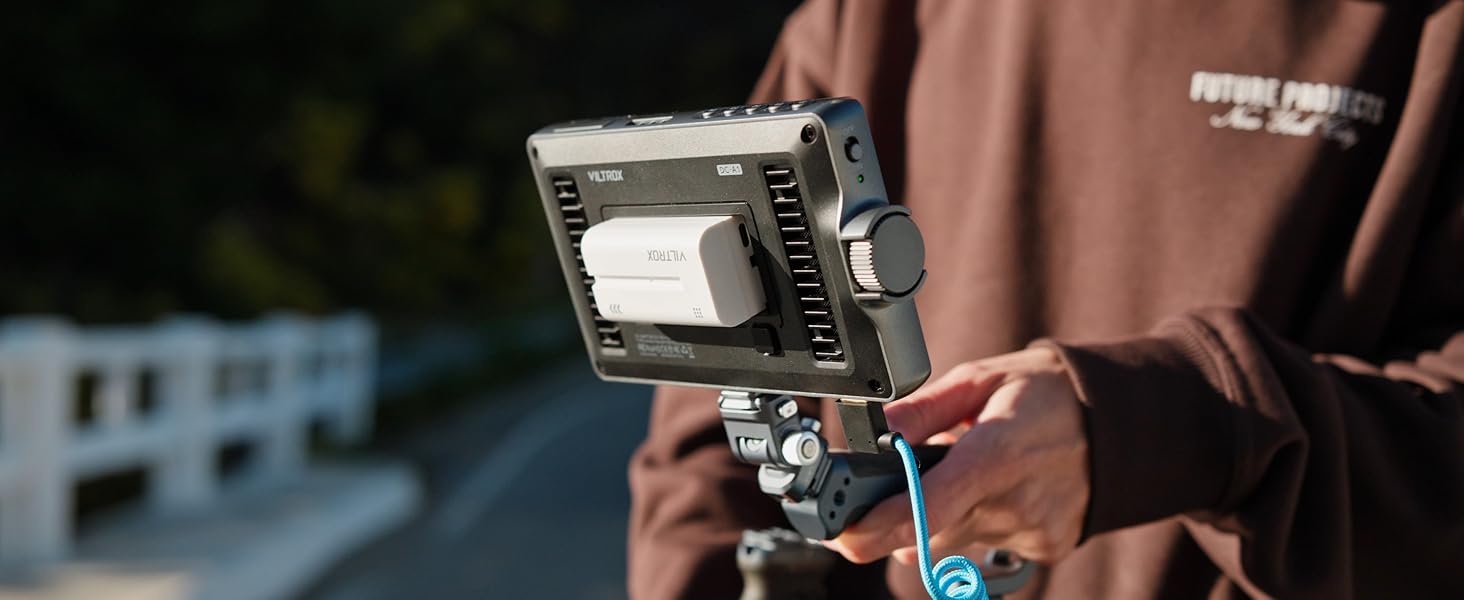

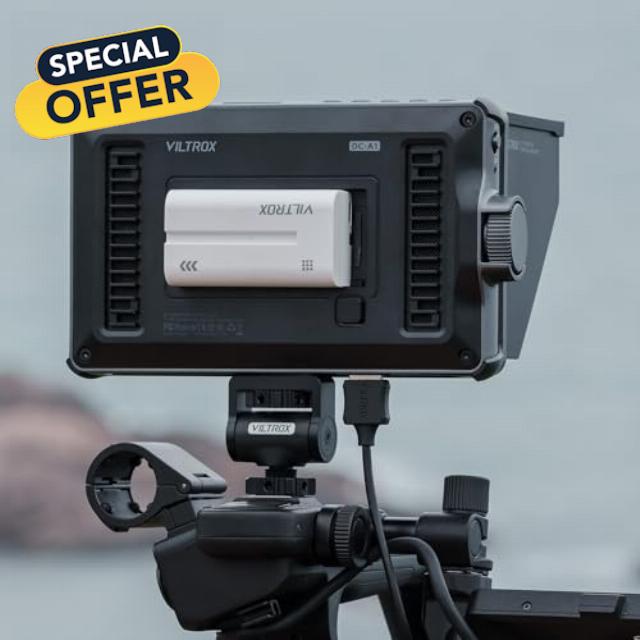

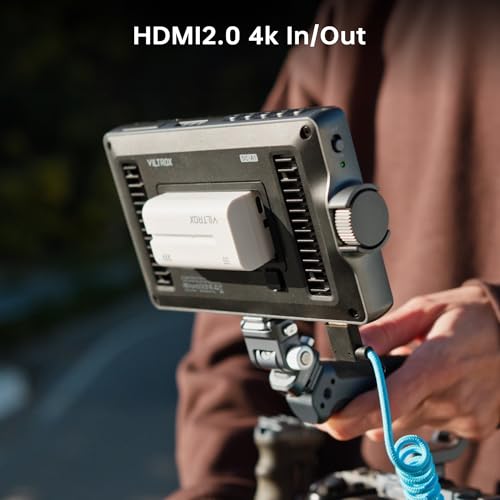

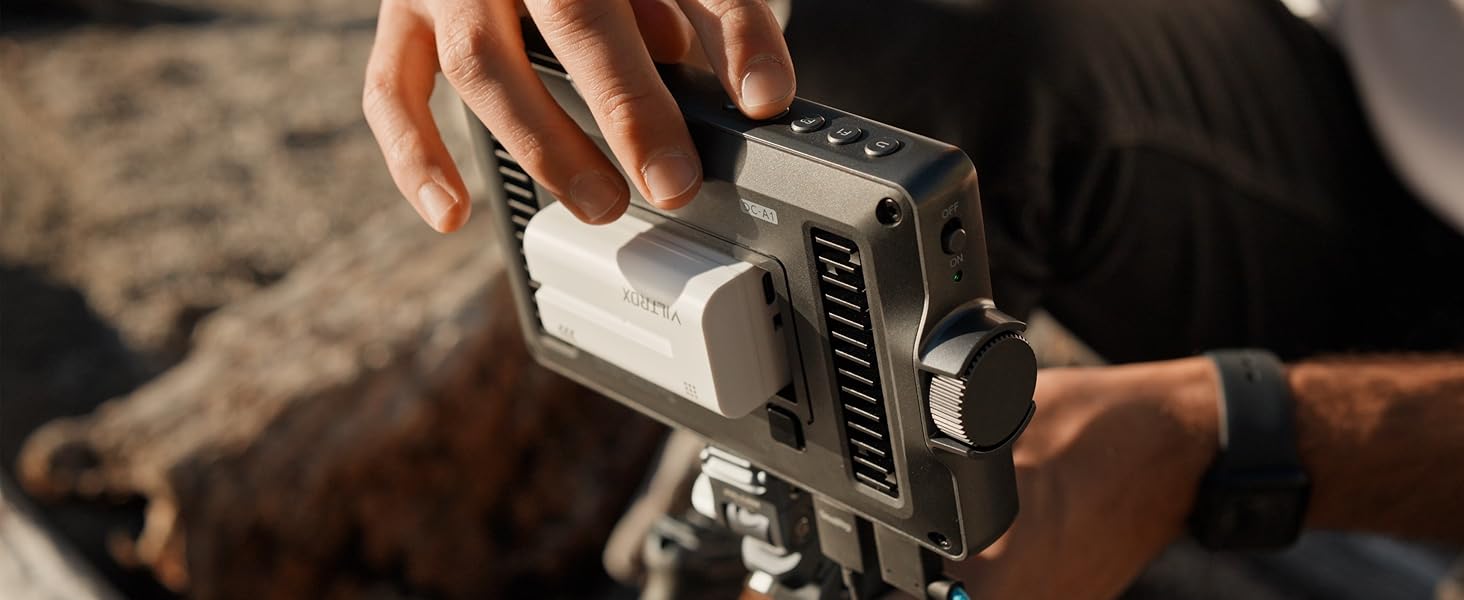

• Professional Connectivity & Power Flexibility: Equipped with HDMI 2.0 input and output (supports up to 4K@60Hz), 3.5mm headphone jack, DC 10V–18V input, and Type-C power input (≥9V 3A). Compatible with NP-F550/F750/F970 batteries—ideal for both studio and field use

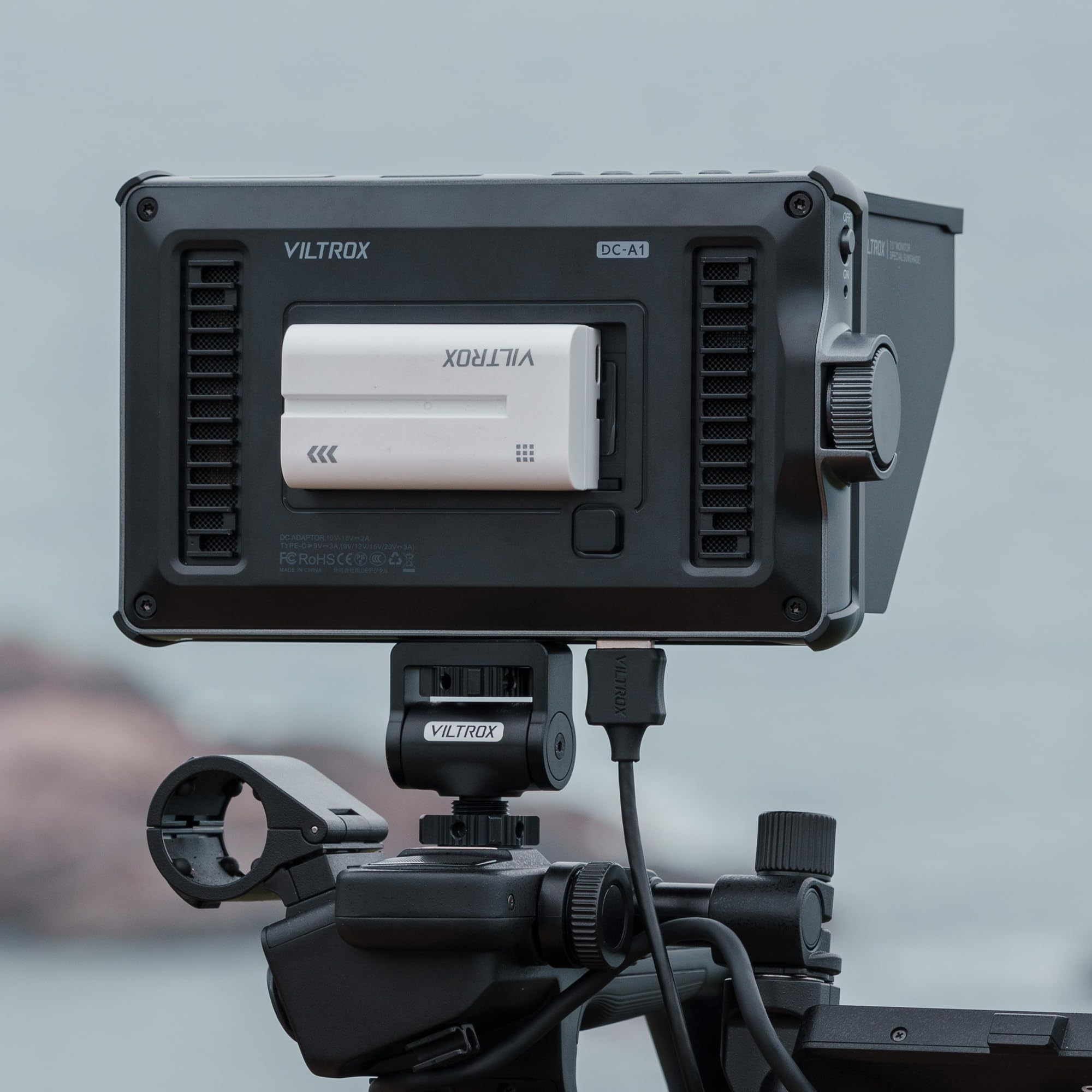

• Durable, Lightweight & Fan-Cooled: Weighs approximately 348g and measures 187.8×110.5×28.5mm. Built-in cooling fan ensures stable performance during extended use. Designed for portability without compromising reliability
• Reliable in Any Environment: Operates smoothly in a wide range of conditions (0°C40°C working temperature; -20°C60°C storage). Perfect for creators who shoot in challenging environments. Firmware upgradeable via USB for long-term usability

›

The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.

VILTROX DC-A1 2800Nit 7inch Camera Monitor

Merchant Video

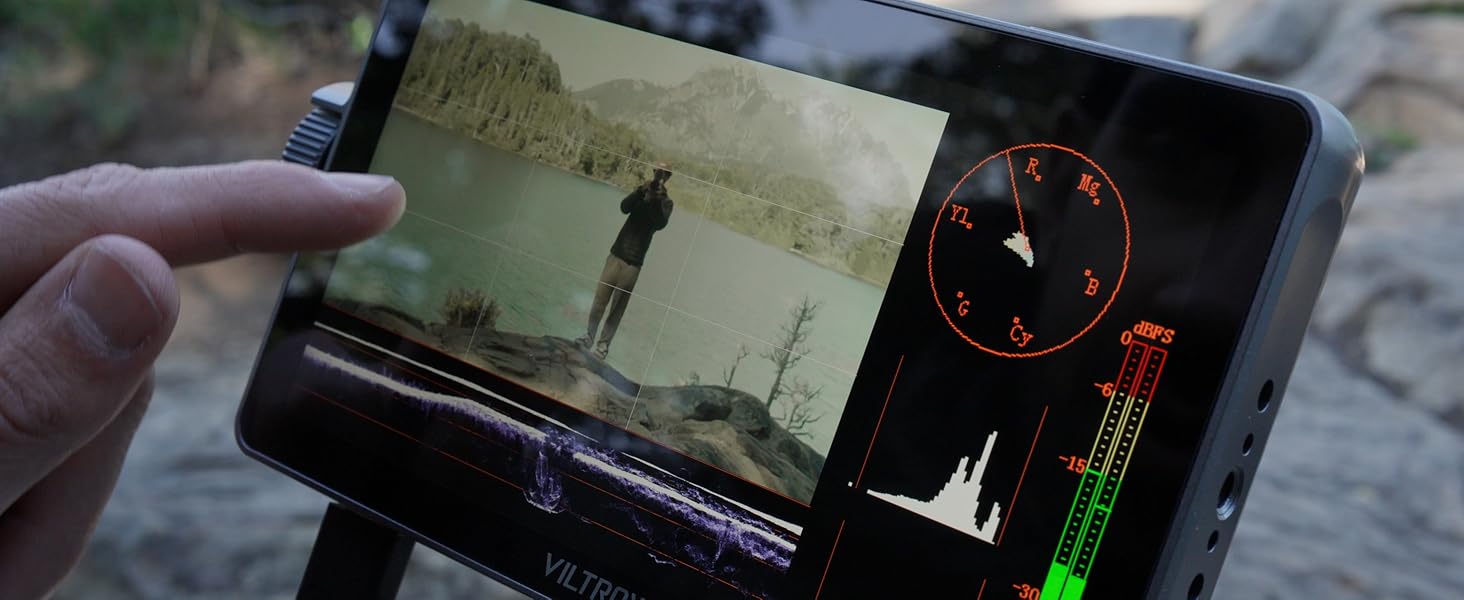

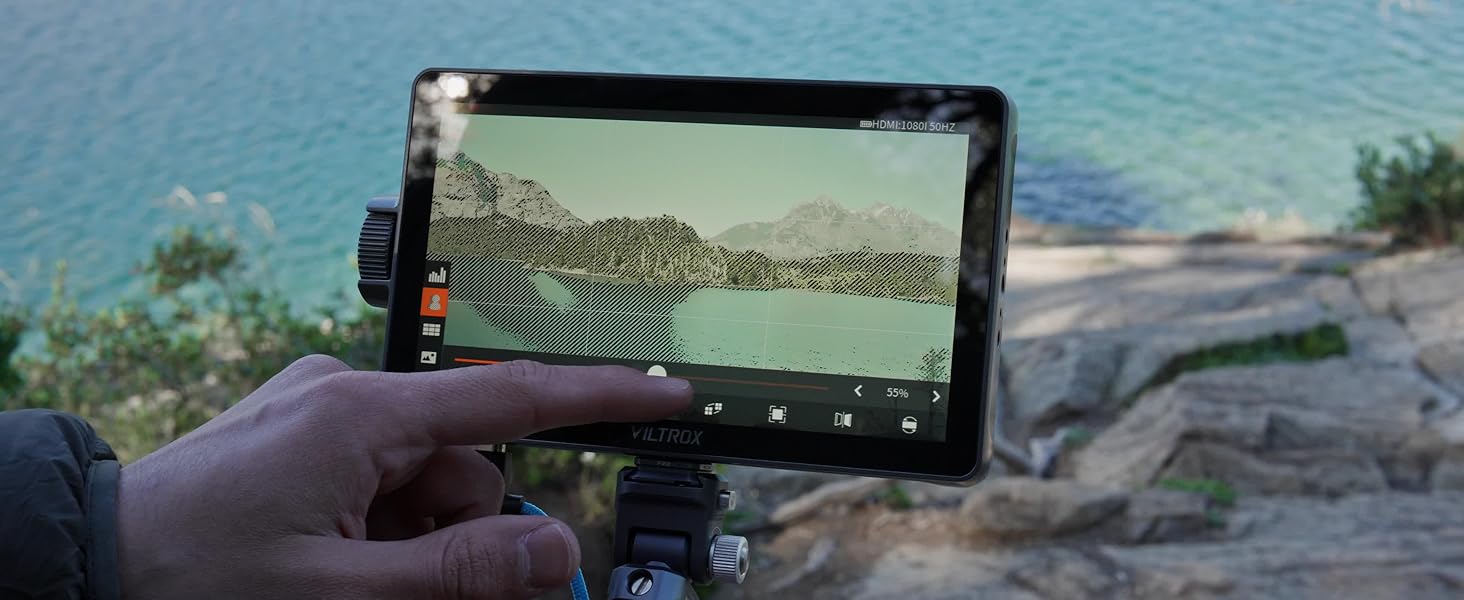

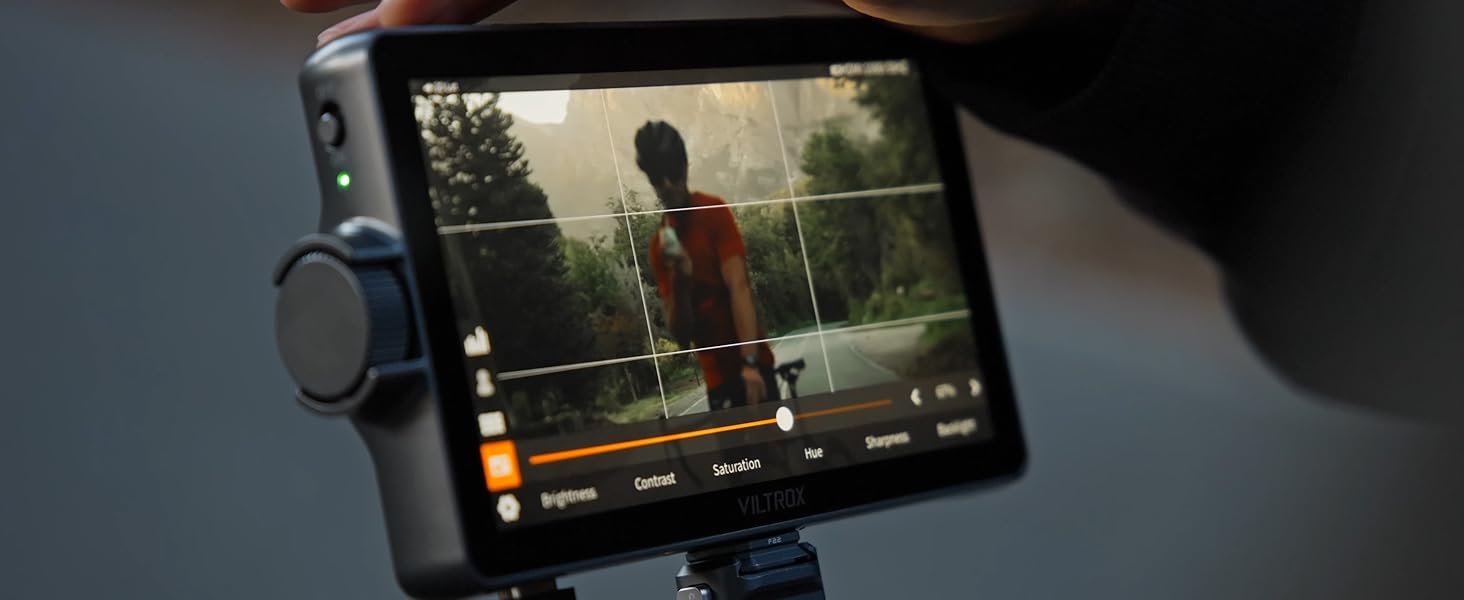

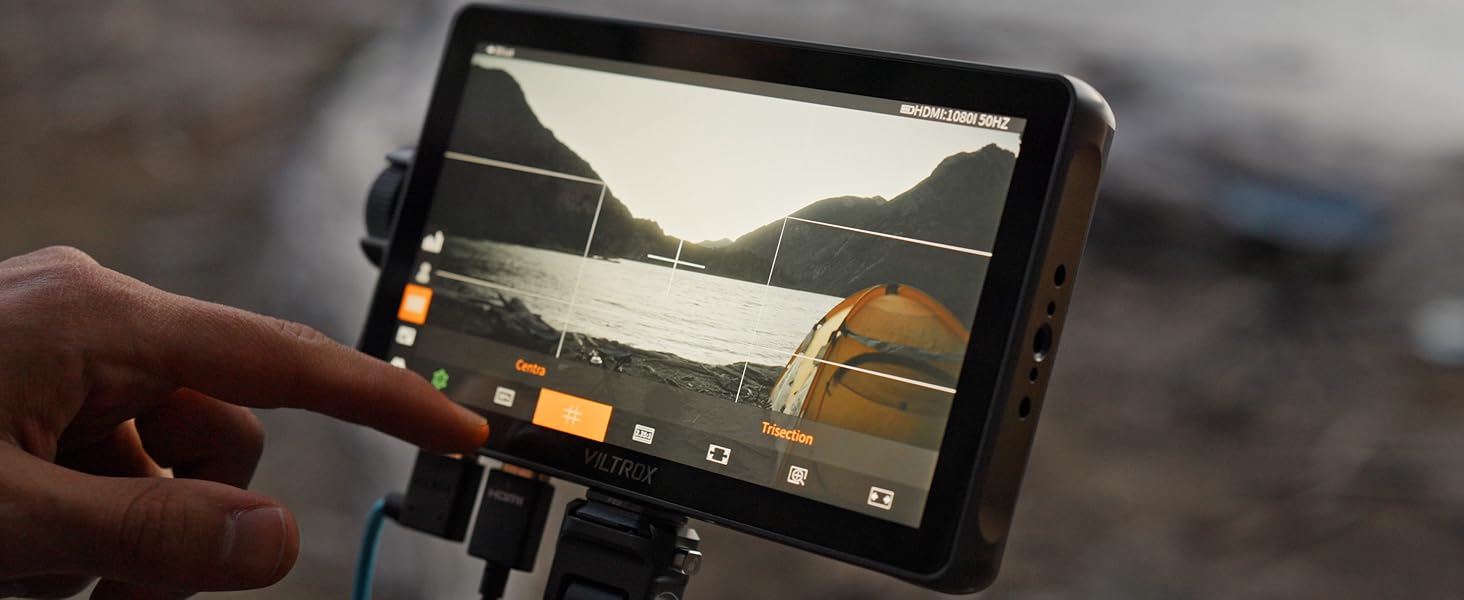

1 FullWaveform 2 Brightness Histogram 3 Exposure Zebra 4 Rule of Thirds Grid 5 Brightness Adjustment

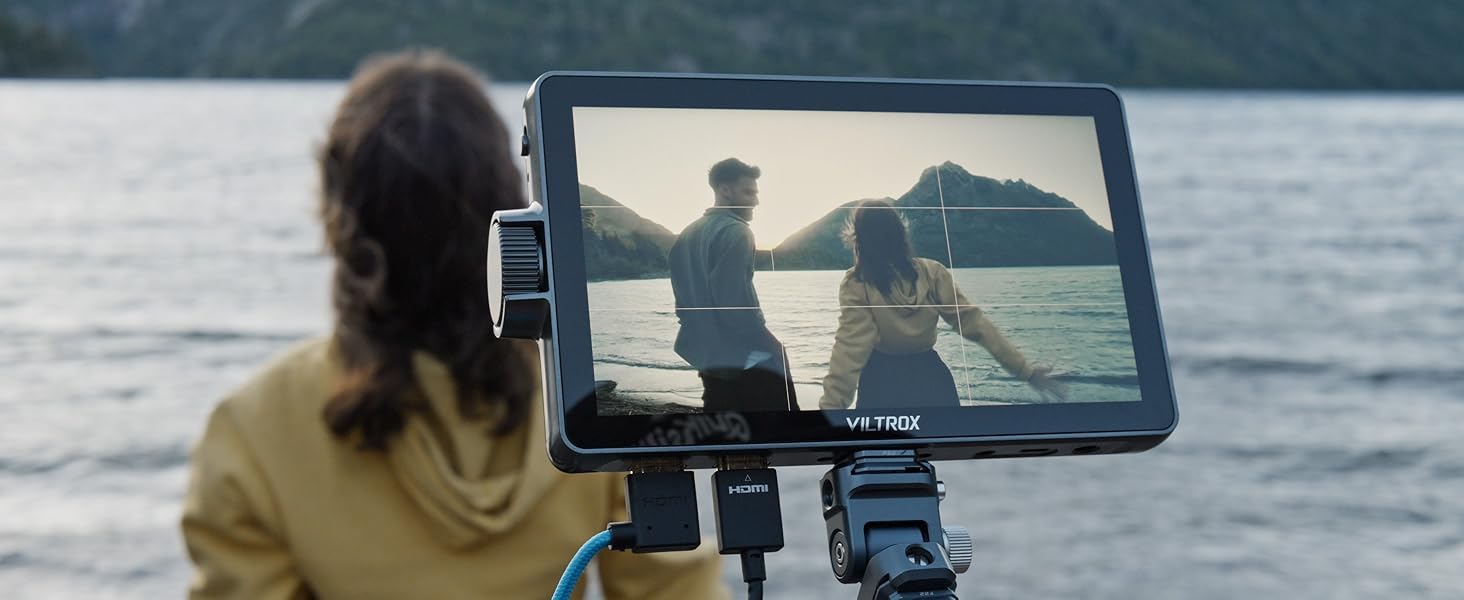

DC-A1 designed for outdoor professionals, clear visibility and accurate color

Specially designed for professional photographers who need a larger size(7 Inch)

1 2 3 4 5 6

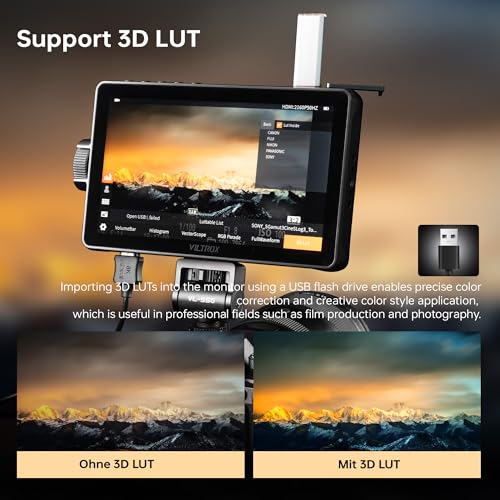

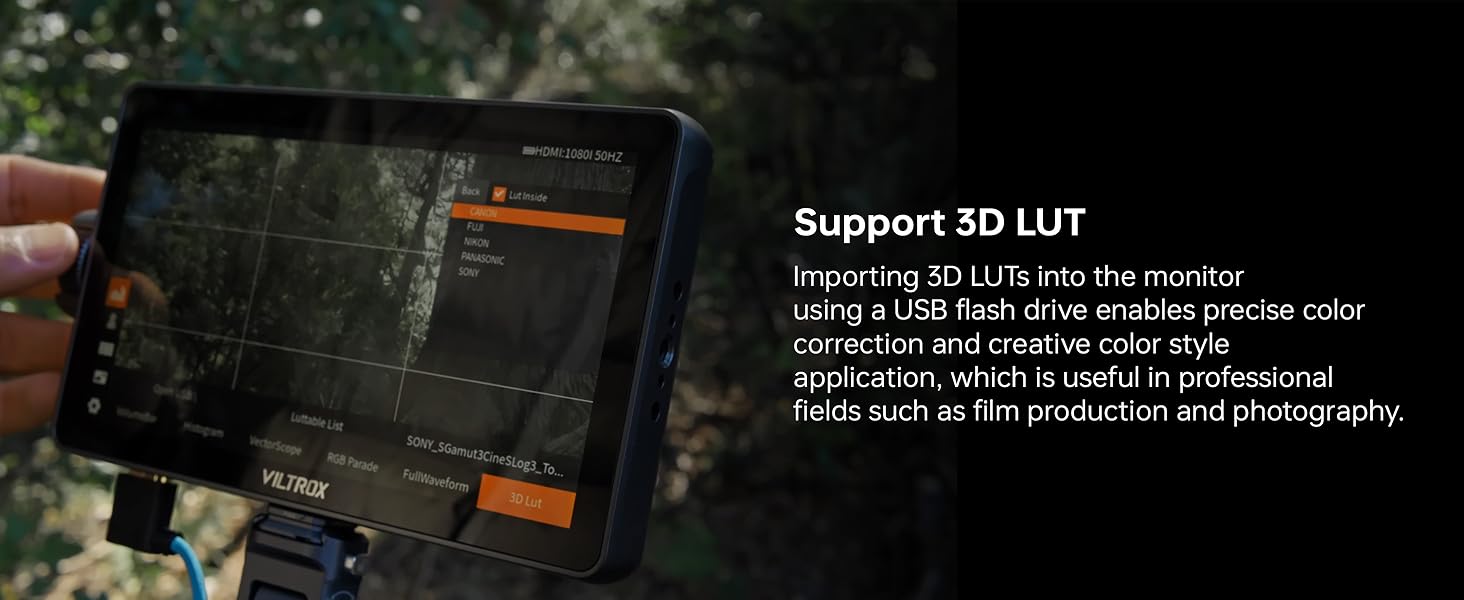

1. Supports up to 20 custom 3D LUTs via USB import for precise color calibration

2. A 170-degree wide-angle camera monitor provides expansive coverage, ideal for surveillance and minimizing blind spots in large areas

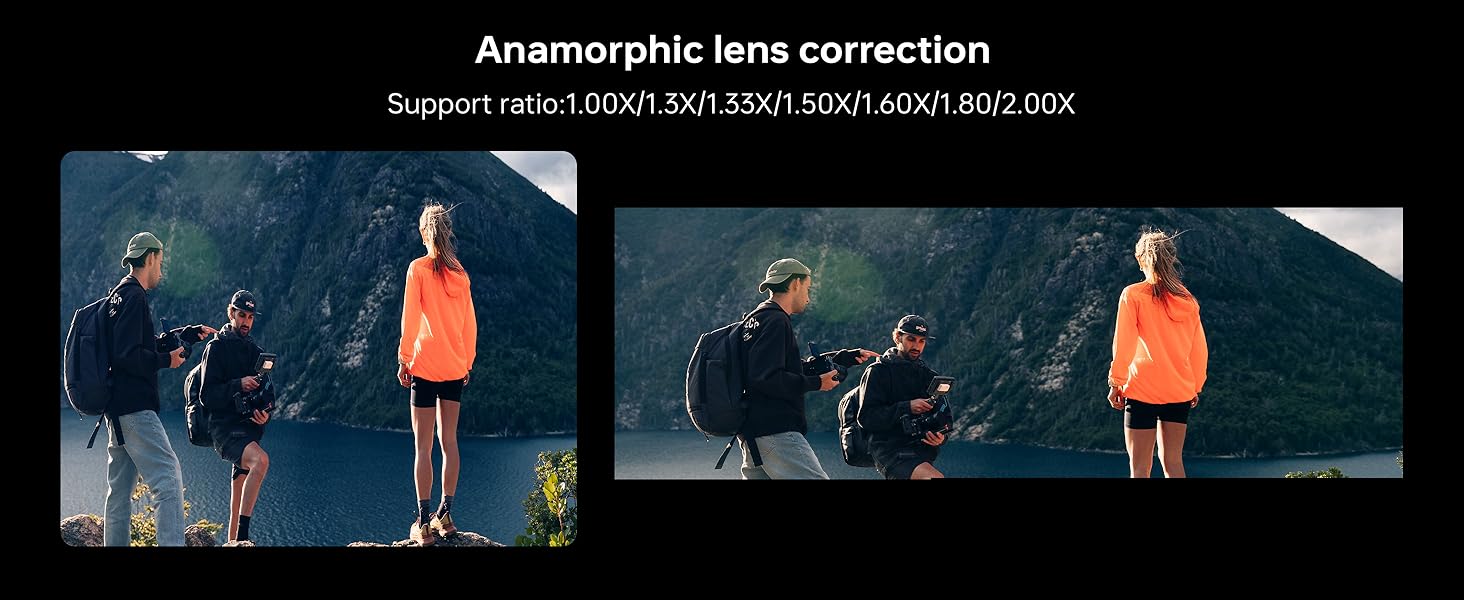

3. Compression distortion is addressed, resulting in accurate aspect ratios and visual consistency in cinematic workflows

VILTROX DC-A1 Camera Monitor Specification

Max brightness	2800 Nits
Screen size	7 Inch
Screen resolution	1920*1080
Pixel density	316PPI
Aspect ratio	16:9
Screen color depth	8-Bit
Screen color gamut	sRGB, Rec.709
Contrast Ratio	1000:1

Refresh Rate	60Hz
Viewing angle	170°
Input/Output	4K HDMI 2.0
Cooling Fan	Three-speed + Auto
Audio interface	3.5mm
Power supply	USB-C (≥9V/3A) , DC 10-18V/2A , NP-F Series Battery
Bare metal weight	348g
Product Size	187.8×110.5×28.5mm
