IC40 Swimming Pool Salt Cell Fit for Pentair IntelliChlor

IC40 Swimming Pool Salt Cell Fit for Pentair IntelliChlor IC40 Replaces EC-520555 520555 - Suitable for up to 40

IC40 Swimming Pool Salt Cell Fit for Pentair IntelliChlor IC40 Replaces EC-520555 520555 – Suitable for up to 40,000-Gallon Saltwater Pool Chlorination Systems – Chlorine Generator

  • ⌛【High-Performance】IC40 Replacement Salt Cell Utilizing advanced electrolysis technology, it efficiently generates 1.4 pounds of chlorine daily, perfectly suitable for pools up to 40,000 gallons, helping you maintain crystal-clear water year-round. Upgrade to professional pool care and enjoy more efficient and cleaner water management.
  • ⌛【Compatibility】This replacement cell is perfectly compatible with Pentair IntelliChlor IC40 systems and automation systems. If you are using the Pentair IntelliChlor IC40 system, this replacement cell is an ideal upgrade choice, providing the same high-quality chlorination production as the original factory part, but at a more affordable price. Replacement part number 520555 EC-520555.
  • ⌛【Durability and Low Maintenance Requirements】Made from high-quality PE material, it offers excellent flexibility and impact resistance, reducing the risk of breakage. Designed for extended lifespan, it requires low maintenance, lowering long-term upkeep costs.
  • ⌛【Smart Saltwater Chlorination】Upgrade to a gentler, safer swimming experience with silky smooth water. Our advanced electrolysis technology eliminates irritating chlorine odors and other harmful substances, providing a healthier pool environment for your family.
  • ⌛【Warm Tips】You have purchased this product from our shop. We provide 2 years warranty
›

★Product Specifications:

  • Brand:Kolasina
  • Condition: 100% New

High-Performance:

  • IC40 Replacement Salt Cell Utilizing advanced electrolysis technology, it efficiently generates 1.4 pounds of chlorine daily, perfectly suitable for pools up to 40,000 gallons, helping you maintain crystal-clear water year-round. Upgrade to professional pool care and enjoy more efficient and cleaner water management.

Compatibility:

  • This replacement cell is perfectly compatible with Pentair IntelliChlor IC40 systems and automation systems. If you are using the Pentair IntelliChlor IC40 system, this replacement cell is an ideal upgrade choice, providing the same high-quality chlorination production as the original factory part, but at a more affordable price. Replacement part number 520555 EC-520555.

Durability and Low Maintenance Requirements:

  • Made from high-quality PE material, it offers excellent flexibility and impact resistance, reducing the risk of breakage. Designed for extended lifespan, it requires low maintenance, lowering long-term upkeep costs.


★Operation Steps:

  1. Chlorine Generation Control:

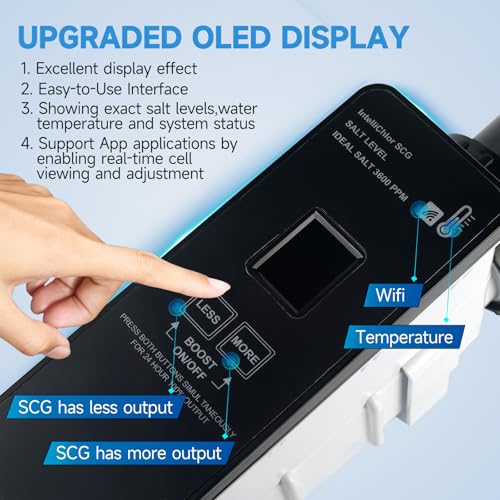

  • Adjust the chlorine output percentage (2%-100%) using the “More” and “Less” buttons on the control panel.
  • The “Boost Mode” can be activated for 24 hours of full power operation (press both “More” and “Less” buttons simultaneously; press both buttons again to turn off “Boost Mode”).

2. Self-Cleaning Function:

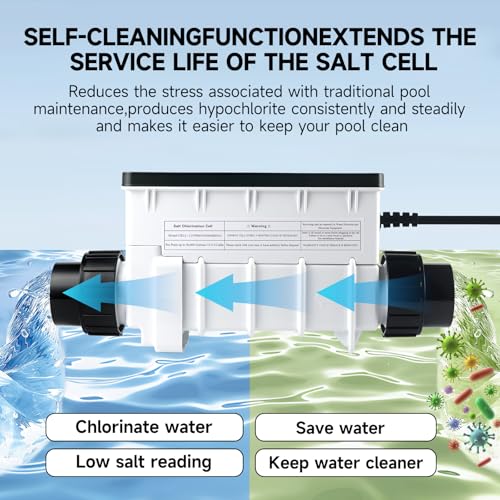

  • The device automatically reverses the electrode polarity every 2 hours to reduce calcium buildup (for the first 30 days), after which it adjusts to every 3 hours.

3. WiFi Connection:

  • Bind the “Smart Life APP” by scanning the QR code to monitor water flow, temperature, salt concentration, and device status in real-time.

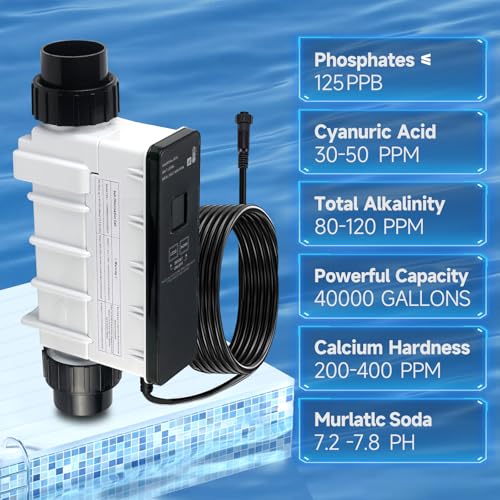

4. Salt Concentration Requirement: 2800-4500 ppm (ideal value 3600 ppm)


★APP Installation Steps:

  1. Download and install the “Smart Life” APP (scan QR code 1 on page 8 of the manual);
  2. Click the “+” button in the upper right corner of the “Smart Life” APP home page and scan QR code 2;
  3. After finding the “Salt Chlorinator,” click to add it, then enter the WiFi name and password you want to connect to (Note: Ensure that the phone’s Bluetooth is turned on and WiFi is connected);
  4. On the completion page, click “Welcome to use the Salt Chlorinator” to check, and after checking, click “Confirm”;
  5. On the completion page, click “Finish.”


★Common Issues and Solutions:

1. Salt Chlorinator unable to start

  • Check if the power outlet is energized and ensure the power cord is securely connected.
  • Confirm that the power supply is connected to the load side of the water pump (it needs to run in sync with the water pump).

2. Abnormal chlorine generation

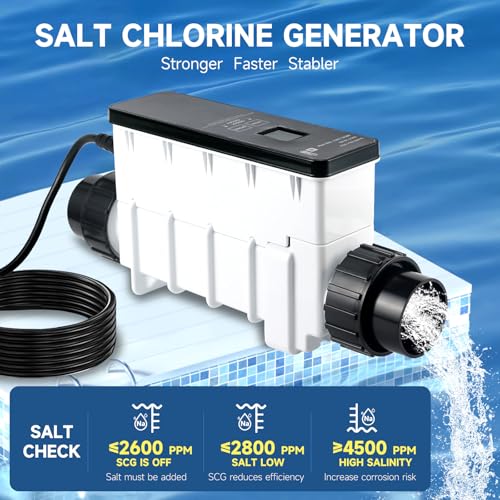

  • If the salt concentration is below 2800 ppm or above 4500 ppm, the device will alert and stop working; adjust the salt concentration to the normal range;
  • If the water temperature is too low (

    SKU: B0F28MSDKM
    Weight: 6.89 pounds

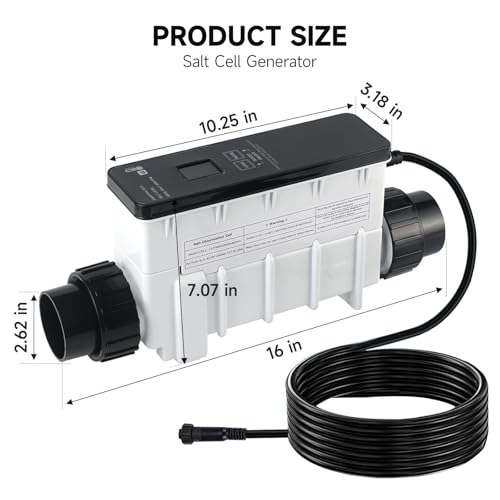

    Dimensions: 6.5 x 17 x 6.5 inches
    Model: EC-520555
    Manufacture: Kolasina
    Origin: China
