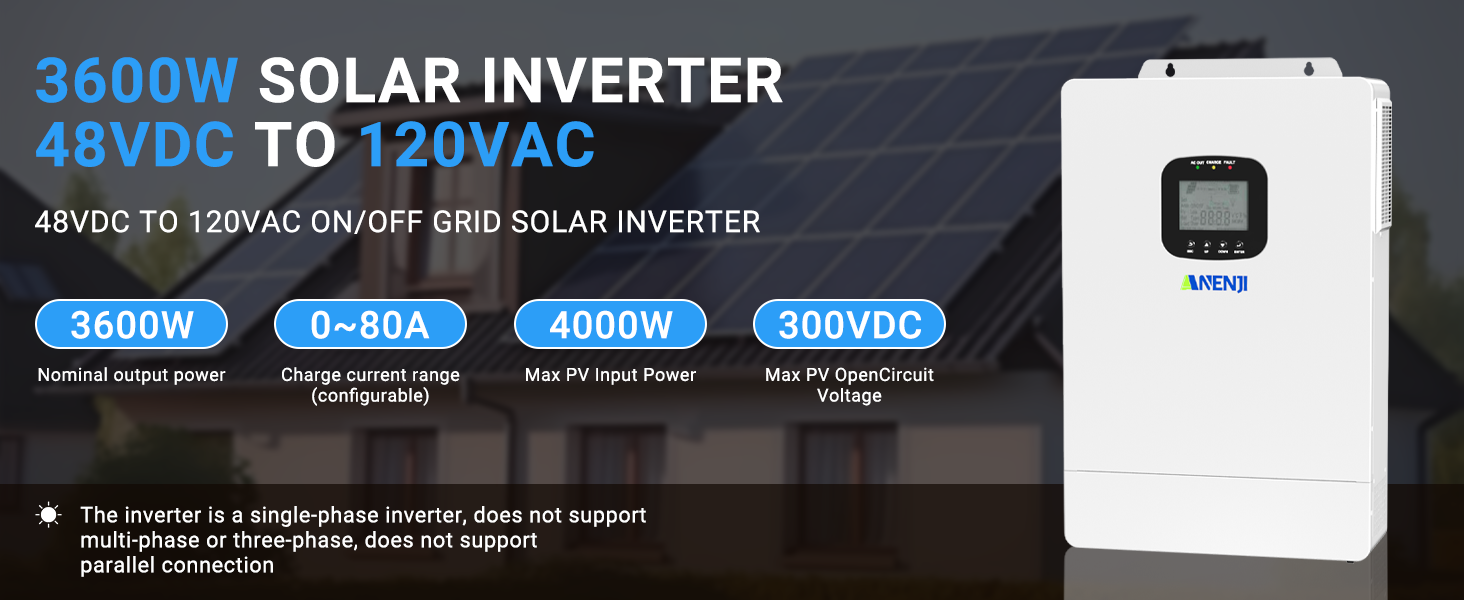

3600W Solar Inverter, Pure sine Wave Inverter, 48V to 110V/120V, Built-in 60A MPPT Controller, Suitable for Homes, RVs, and can be Used with Lithium Lead-Acid Gel Battery Off-Grid Systems

• 𝐀𝐋𝐋-𝐈𝐍-𝐎𝐍𝐄 𝐒𝐎𝐋𝐀𝐑 𝐂𝐇𝐀𝐑𝐆𝐄 𝐈𝐍𝐕𝐄𝐑𝐓𝐄𝐑:Aninerel 3.6KW DC 48V Pure Sine Wave Solar Inverter Combined with Max 40A battery charging, 2 MPPT Solar controller inbuilt, Max. Voltage of Open Circuit: 300VDC,Single phase (120v) output. Wifi module is included, which allows the user to view the operating status and parameters of the inverter via the mobile phone APP.
• 𝐒𝐓𝐀𝐁𝐋𝐄 𝐀𝐂 𝐎𝐔𝐓𝐏𝐔𝐓 𝐀𝐍𝐃 𝐒𝐌𝐀𝐑𝐓 𝐏𝐑𝐎𝐓𝐄𝐂𝐓𝐈𝐎𝐍:Rated Output Power:3600W, Max Peak Power:7,200VA, Max. PV open circuit voltage:300Vdc,PV operate voltage range:80-300Vdc,MPPT voltage range:90-260Vdc,Battery voltage range: 40-60Vdc.PV input over-voltage/current protection, AC input over-voltage protection, Battery over-voltage protection, Over-load protection and so on.
• 𝐅𝐎𝐔𝐑 𝐂𝐇𝐀𝐑𝐆𝐈𝐍𝐆 / 𝐎𝐔𝐓𝐏𝐔𝐓 𝐌𝐎𝐃𝐄𝐒:Hybrid Charging / Utility Priority Charging / Solar Priority Charging / Only Solar Charging, 4 output modes: Utility Priority / Solar and Utility Hybrid / Solar Priority / Inverter Priority to meet your different requirements.
• 𝐓𝐈𝐌𝐄-𝐒𝐋𝐎𝐓 𝐂𝐇𝐀𝐑𝐆𝐈𝐍𝐆/𝐃𝐈𝐒𝐂𝐇𝐀𝐑𝐆𝐈𝐍𝐆 𝐅𝐔𝐍𝐂𝐓𝐈𝐎𝐍:The ANJ series 3600W DC 48 volts inverter charger is equipped with a time-slot charging and discharging function, which allows users to set different charging and discharging periods according to the local peak and valley tariffs, so that the utility power and PV energy can be used rationally.

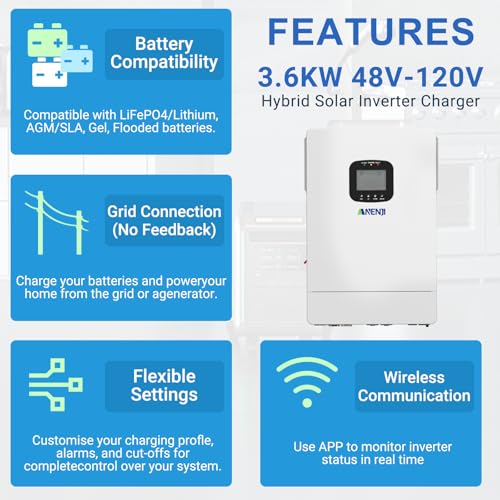

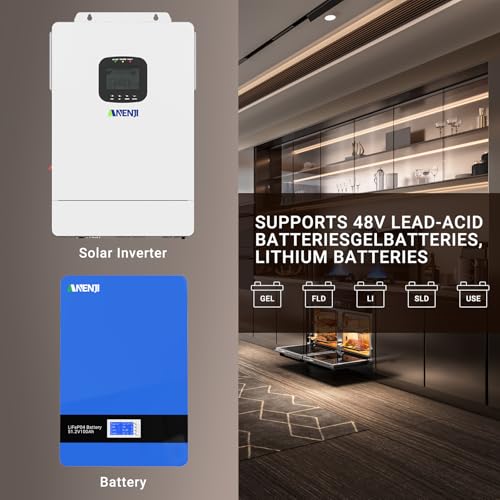

• 𝐁𝐀𝐓𝐓𝐄𝐑𝐘 𝐓𝐘𝐏𝐄:Aninerel 3600W DC 48V solar inverter is compatible with 48V AGM/Sealed, Gel, Flooded, Lithium batteries and a User Mode to work with all battery types. And supports battery-free. When the lithium battery is dormant, the shore power and photovoltaic can activate the lithium battery. The 48v split phase inverter supports CAN, USB and RS485 communication with ANENJI batteries.

›

Note: If the inverter is connected separately from the solar PV panels to power a household load (not connected to the batteries or the utility grid), the PV output must not be less than 130 volts DC.

Parameter Comparison

Add to Cart Add to Cart Add to Cart Add to Cart

Customer Reviews	5.0 out of 5 stars2	5.0 out of 5 stars2	—	—
Price	$459.95$459.95	$499.95$499.95	$759.95$759.95	$1,299.00$1,299.00
Nominal output power(W)	3600W	3600W	6500W	12000W
Nominal input voltage	120Vac±5%	120Vac±5%	120Vac±5%	120(L1/N, L2/N)/240Vac(L1/L2)
Nominal output voltage (Vac)	120Vac	120Vac	120Vac	120Vac/240Vac
Nominal battery input voltage	48V ( Min. start voltage 44V)	48V ( Min. start voltage 44V)	48V ( Min. start voltage 44V)	51.2V( Min. start voltage 44V)
Max. charge current	40A (configurable)	40A (configurable)	120A (configurable)	160A (configurable)
Charge voltage range	40-60Vdc	40-60Vdc	40-60Vdc	40-60Vdc
Max. PV open circuit voltage	300Vdc	300Vdc	300Vdc	500Vdc
PV operate voltage range	80-300Vdc	80-300Vdc	80-300Vdc	90Vdc~500Vdc
MPPT voltage range	90-260Vdc	90-260Vdc	90-260Vdc	90Vdc~450Vdc
Battery voltage range	40-60Vdc	40-60Vdc	40-60Vdc	40-58.6Vdc
Max. PV input power/current	4000W/22A	4000W/22A	4500W*2 / 22A*2	6000W*2/22A*2
Max. hybrid charge current	0-80A (configurable)	0-80A (configurable)	0-150A (configurable)	0-220A (configurable)
