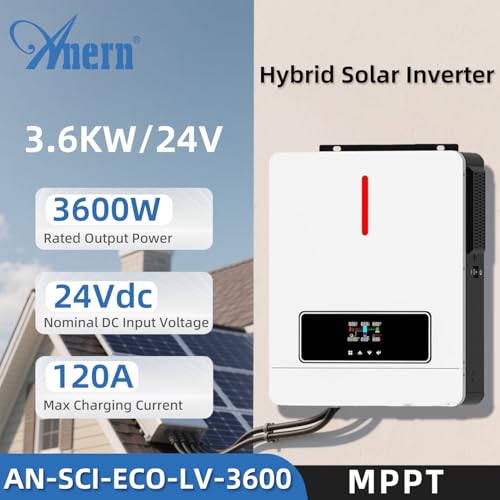

3600W Solar Inverter 24VDC to 110V/120VAC All in One, Pure Sine Wave Hybrid Inverter with 120A Mppt Solar Controller, Two AC Output, Max PV Power 4200W with Lead Acid and Lithium Batteries

• All-in-one solar inverter: The 3600W solar inverter has a built-in 120A MPPT charge controller and operates from 24V to 110V/120V AC. With an efficiency of up to 98%, the solar charge module uses the most recent optimized MPPT tracking technology, fit for 24V Lead-Acid (Seal, AGM,Gel, Flooded) and Lithium battery.

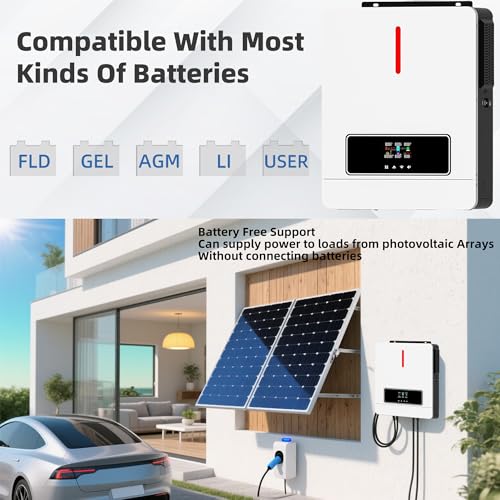

• Smart battery charger design for optimized battery performance: technology to convert 24V DC to 110V/120V AC, 50Hz/60Hz frequency (auto detection) MAX. PV array power: 4200W, Peak power: 7200W, Max DC Voltage: 500VDC; It offers a no-battery operation mode and features built-in lithium activation and comprehensive battery compatible with 24V Lead-Acid (seal, AGM, gel, and flooded) and Lithium batteries.
• Multiple Operating Modes: The solar inverter offers 4 charging modes: only solar, mains supply priority, solar priority, and a combination of mains supply and solar charging. 2 output modes: power bypass and inverter output; continuous power supply caters to diverse application needs.
• LCD Display and Real-time Monitoring: LCD display design 3 LED indicators for dynamic display of system data and operating status, Configurable battery charging current, AC/solar charger priority, and Load Supply Priority via LCD setting. Support WIFI remote monitoring, available for IOS and Android, users can monitor the status of the PV system from the mobile phone or from the website anytime anywhere. (Not included)

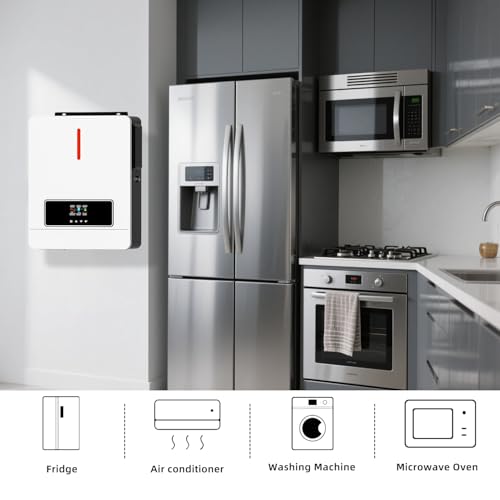

• Wide Range Of Applications: This solar hybrid inverter adopts advanced pure sine wave technology, 24V Inverter with Smart battery charger design for optimized battery performance; Compatible with mains voltage or generator power; Can be accessed to a variety of household and office loads, including refrigerators, lamps, televisions, fans, air conditioning and other loads

Off-Grid 3600W Solar Inverter Pure Sine Wave 24V Built in 120A MPPT Controller

• Full digital voltage and current double closed loop control, advanced SPWM technology, output of pure sine wave.
• Lithium battery activation by PV solar or mains, allowing access of lead-acid battery and lithium battery.
• Available in 4 charging modes: Only Solar, Utility Priority, PV Priority, Utility & Solar hybrid charging, and two output modes are available, i.e. Inverter and Mains, to meet different application requirements.
• Advanced MPPT technology with an efficiency of 98%. Built in 80amp MPPT controller
• Designed with a LCD screen and 3 LED indicators for dynamic display of system data and operating status.
• Power saving mode available to reduce no-load loss.
• Intelligent variable speed fan to efficiently dissipate heat and extend system life.
• ON/OFF rocker switch for AC output control.
• Complete protections, including short circuit protection, over-voltage and under-voltage protection, overload protection, reverse protection, etc.
• The PV starting voltage needs to be greater than 150V, and the maximum electrical current input from PV to the inverter is 13A, so all solar panels need to be connected in series.
