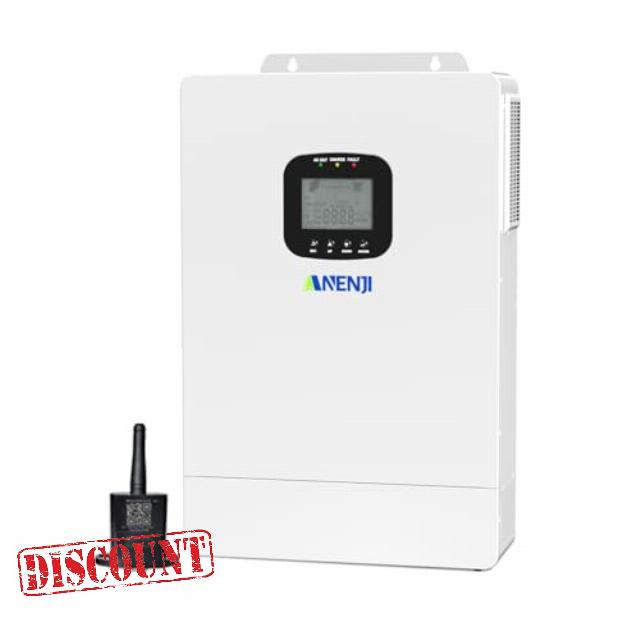

3600W DC 48V Split Phase Solar Inverter,120V/240V AC Input/Output (settable), Built-in 2 MPPT Solar Controllers, Max. 40A Battery Charging, Inverter Charger Support Parallel

• – – :Aninerel 3.6KW DC 48V Pure Sine Wave Solar Inverter, combined with up to 40A battery charging, built-in 2 MPPT solar controllers, max. power: 3.6KW. open circuit voltage 300VDC, split phase (120V/240V) or single phase (120V) output. Split-phase requires a minimum of two devices.
• :Rated Output Power:3600W, Max Peak Power:7,200VA, Max. PV open circuit voltage:300Vdc,PV operate voltage range:80-300Vdc,MPPT voltage range:90-260Vdc,Battery voltage range: 40-60Vdc.PV input over-voltage/current protection, AC input over-voltage protection, Battery over-voltage protection, Over-load protection and so on.

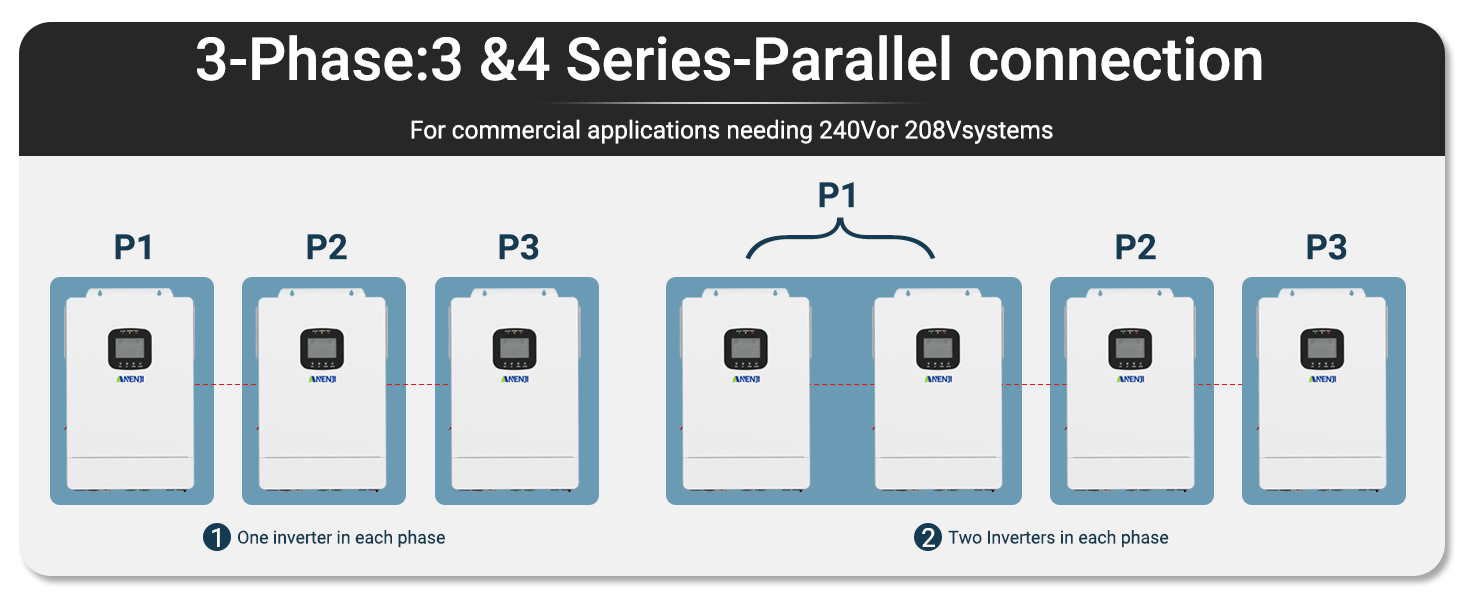

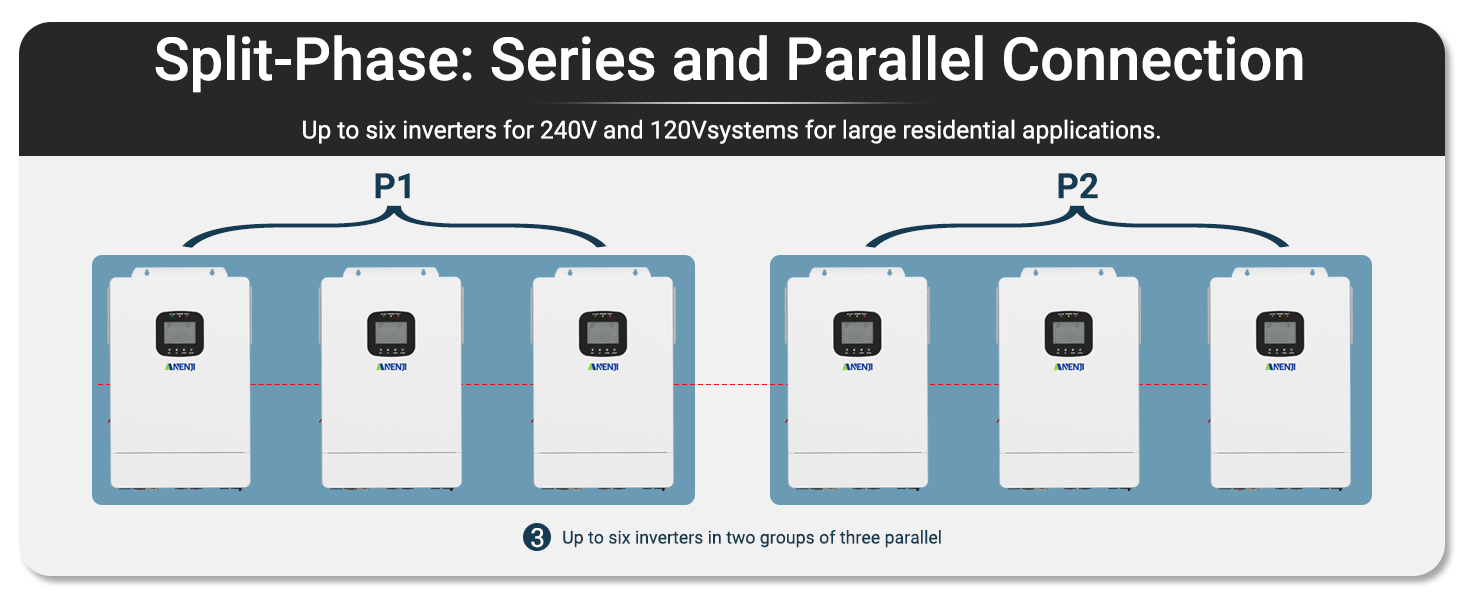

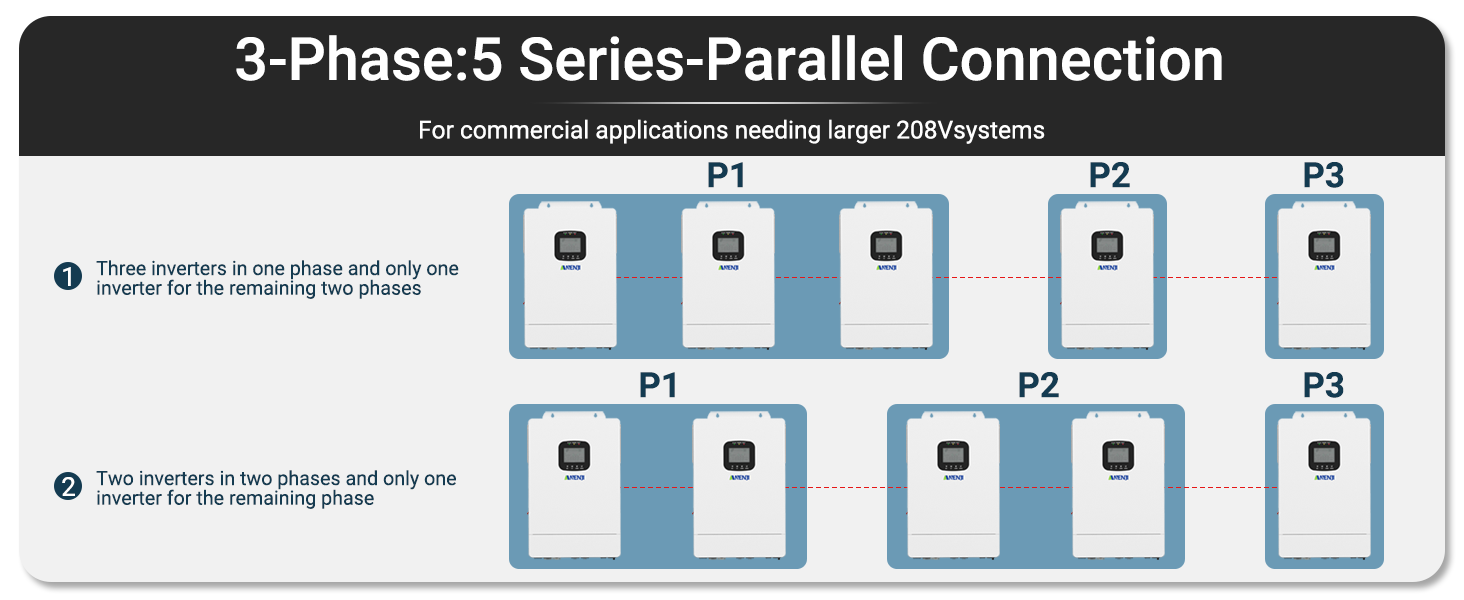

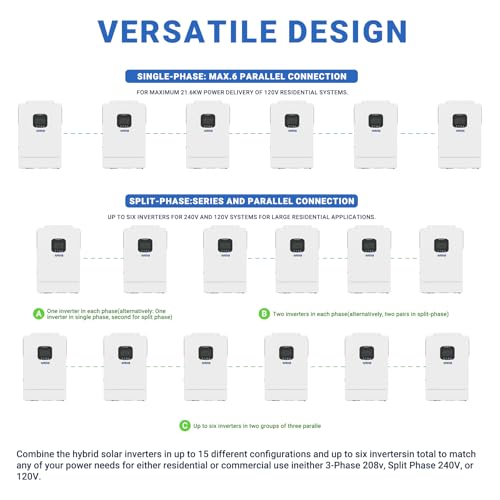

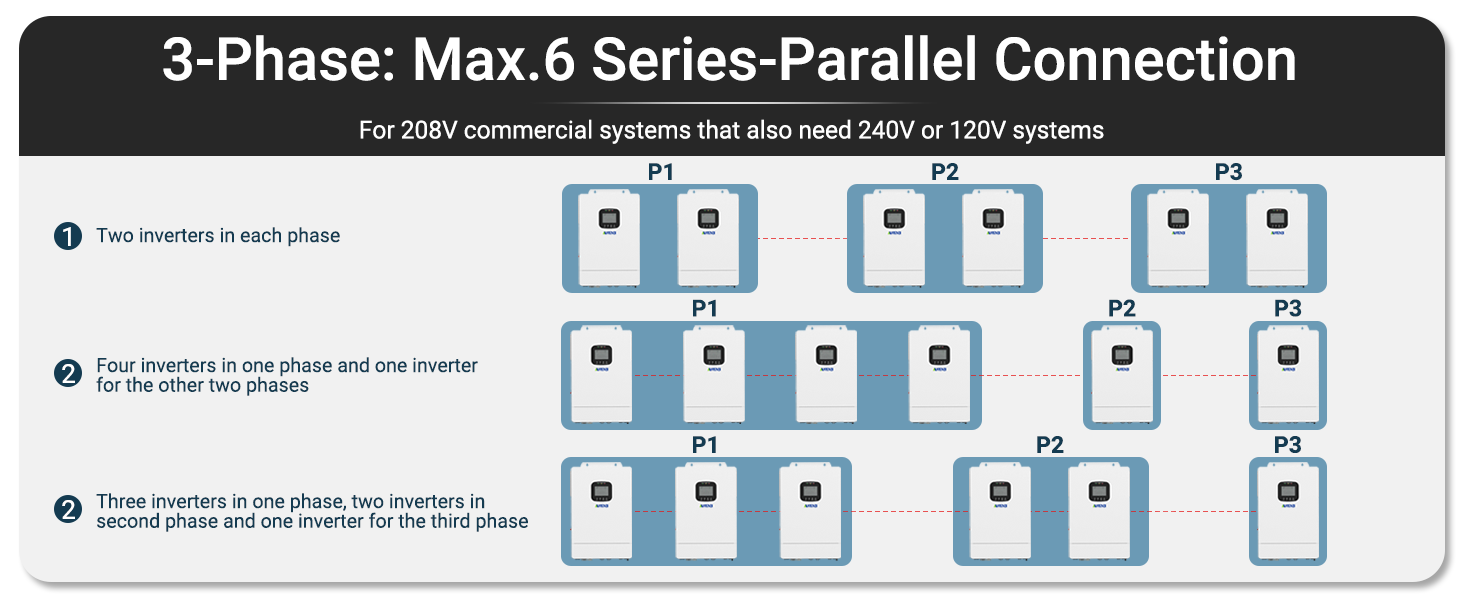

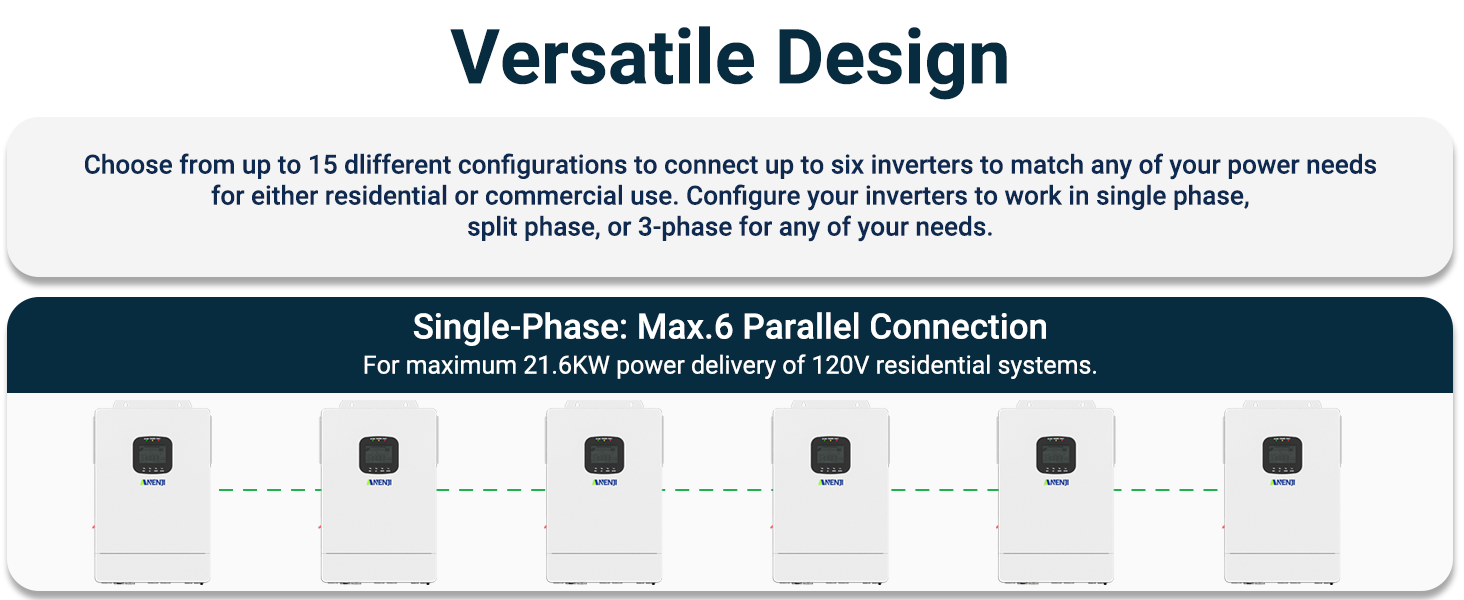

• :Aninerel 3600W solar inverter supports parallel connection of 6 units, the maximum output power can be up to 21.6KW, a single unit can get 120V single-phase output; two units can get 120V/240V split-phase output; and three units can get 208V three-phase output, and the parallel connection can increase the inverter's power and surge capacity.

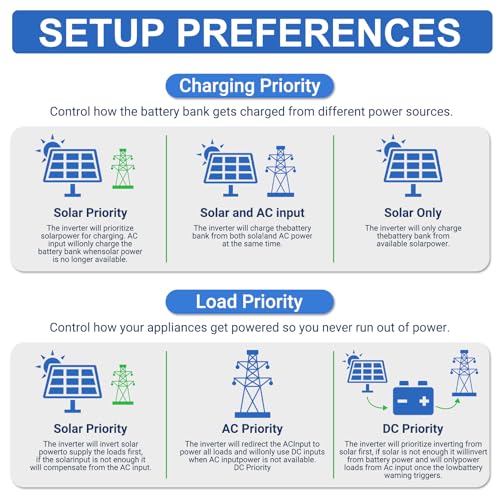

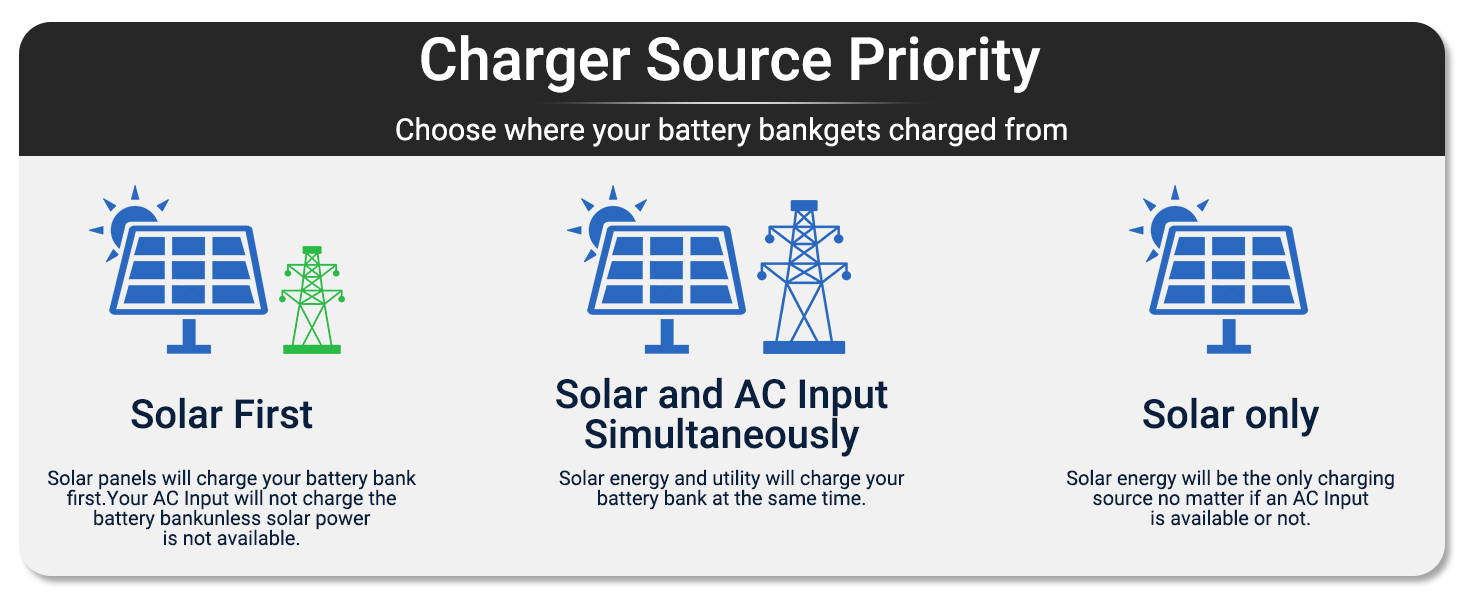

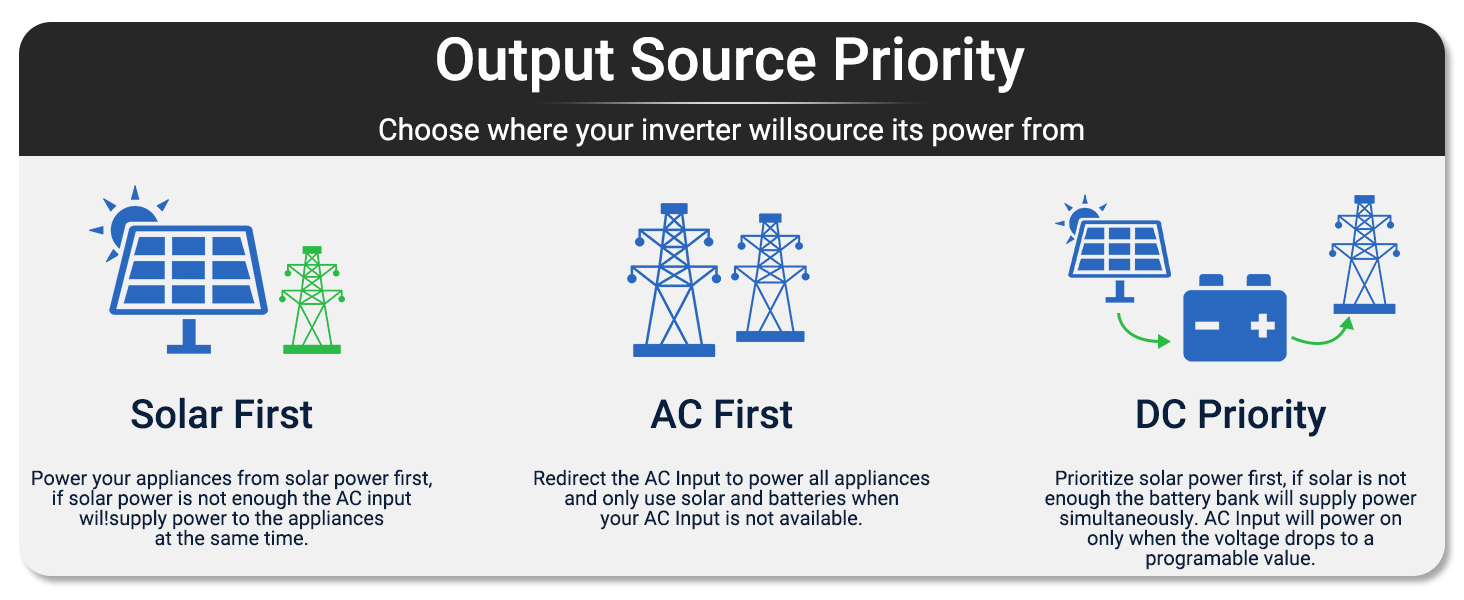

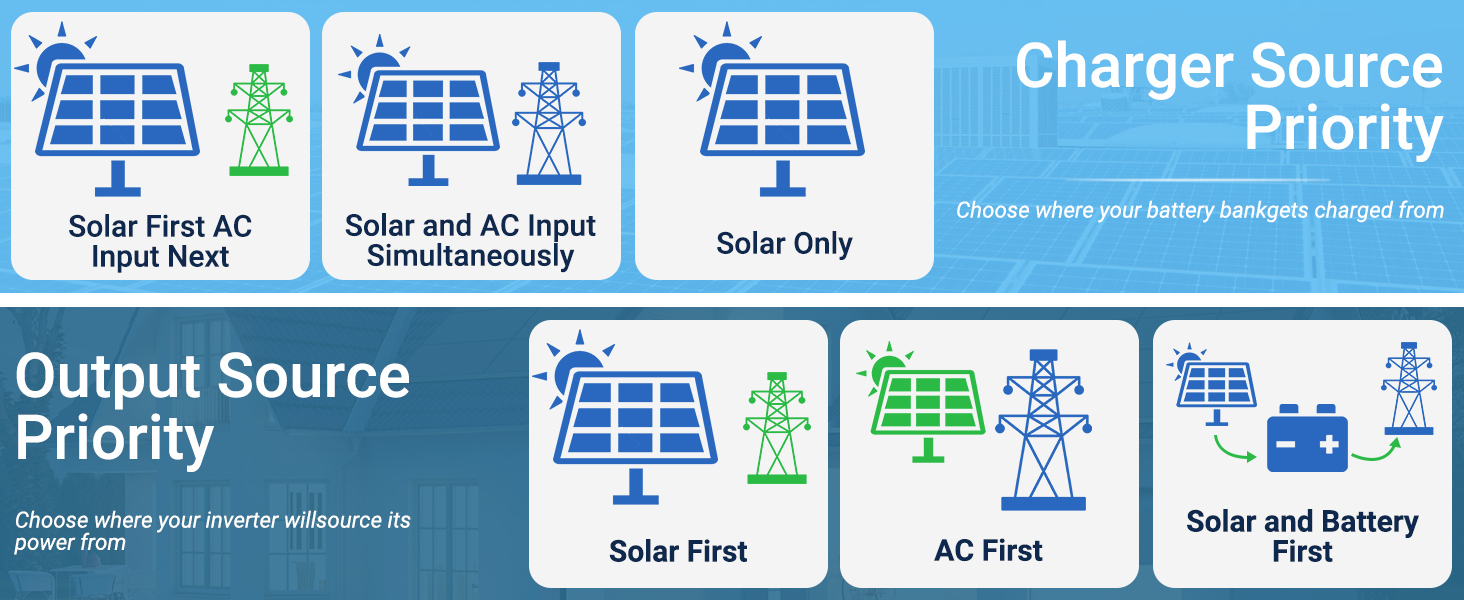

• / :Hybrid Charging / Utility Priority Charging / Solar Priority Charging / Only Solar Charging, 4 output modes: Utility Priority / Solar and Utility Hybrid / Solar Priority / Inverter Priority to meet your different requirements.
• – / :The ANJ series 3600W DC 48 volts inverter charger is equipped with a time-slot charging and discharging function, which allows users to set different charging and discharging periods according to the local peak and valley tariffs, so that the utility power and PV energy can be used rationally.

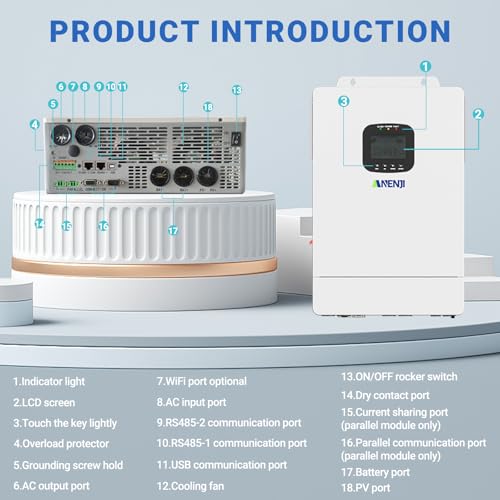

• :Aninerel 3600W DC 48V solar inverter is compatible with 48V AGM/Sealed, Gel, Flooded, Lithium batteries and a User Mode to work with all battery types. And supports battery-free. When the lithium battery is dormant, the shore power and photovoltaic can activate the lithium battery. The 48v split phase inverter supports CAN, USB and RS485 communication with ANENJI batteries.

›

Note: If the inverter is connected separately from the solar PV panels to power a household load (not connected to the batteries or the utility grid), the PV output must not be less than 130 volts DC.

Parameter Comparison

Add to Cart Add to Cart Add to Cart Add to Cart

Customer Reviews	5.0 out of 5 stars2	5.0 out of 5 stars2	5.0 out of 5 stars2	5.0 out of 5 stars2
Price	$459.95$459.95	$499.95$499.95	$759.95$759.95	$1,299.00$1,299.00
Nominal output power(W)	3600W	3600W	6500W	12000W
Nominal input voltage	120Vac±5%	120Vac±5%	120Vac±5%	120(L1/N, L2/N)/240Vac(L1/L2)
Nominal output voltage (Vac)	120Vac	120Vac	120Vac	120Vac/240Vac
Nominal battery input voltage	48V ( Min. start voltage 44V)	48V ( Min. start voltage 44V)	48V ( Min. start voltage 44V)	51.2V( Min. start voltage 44V)
Max. charge current	40A (configurable)	40A (configurable)	120A (configurable)	160A (configurable)
Charge voltage range	40-60Vdc	40-60Vdc	40-60Vdc	40-60Vdc
Max. PV open circuit voltage	300Vdc	300Vdc	300Vdc	500Vdc
PV operate voltage range	80-300Vdc	80-300Vdc	80-300Vdc	90Vdc~500Vdc
MPPT voltage range	90-260Vdc	90-260Vdc	90-260Vdc	90Vdc~450Vdc
Battery voltage range	40-60Vdc	40-60Vdc	40-60Vdc	40-58.6Vdc
Max. PV input power/current	4000W/22A	4000W/22A	4500W*2 / 22A*2	6000W*2/22A*2
Max. hybrid charge current	0-80A (configurable)	0-80A (configurable)	0-150A (configurable)	0-220A (configurable)
