OSD ACE800ST 8″ Trimless 70V in-Ceiling Speaker 20W, 10W
OSD ACE800ST 8″ Trimless 70V in-Ceiling Speaker 20W, 10W, 5W, 2.5W / 8Ohm 100W (Single)
- High-Performance 8-Inch Woofer – Experience crystal-clear audio with an 8-inch polypropylene woofer delivering powerful sound for commercial spaces like offices, retail stores, and restaurants.

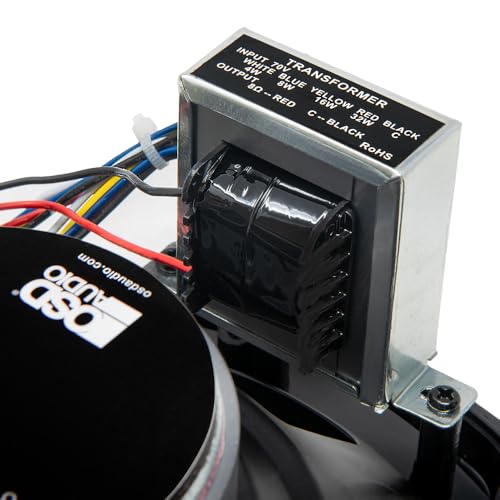

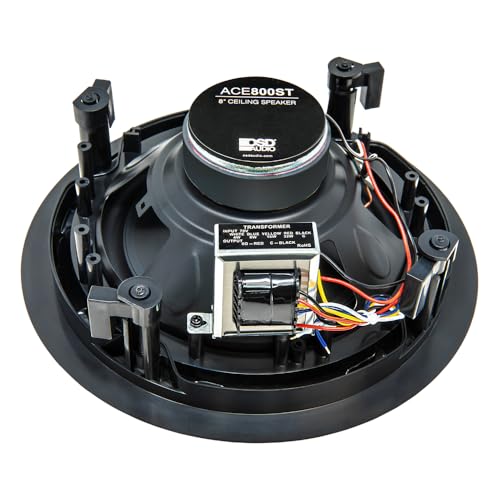

- Flexible 70V Transformer Settings – Choose from 32W, 16W, 8W, and 4W tap settings to match various amplifier configurations and optimize audio output in multi-speaker setups

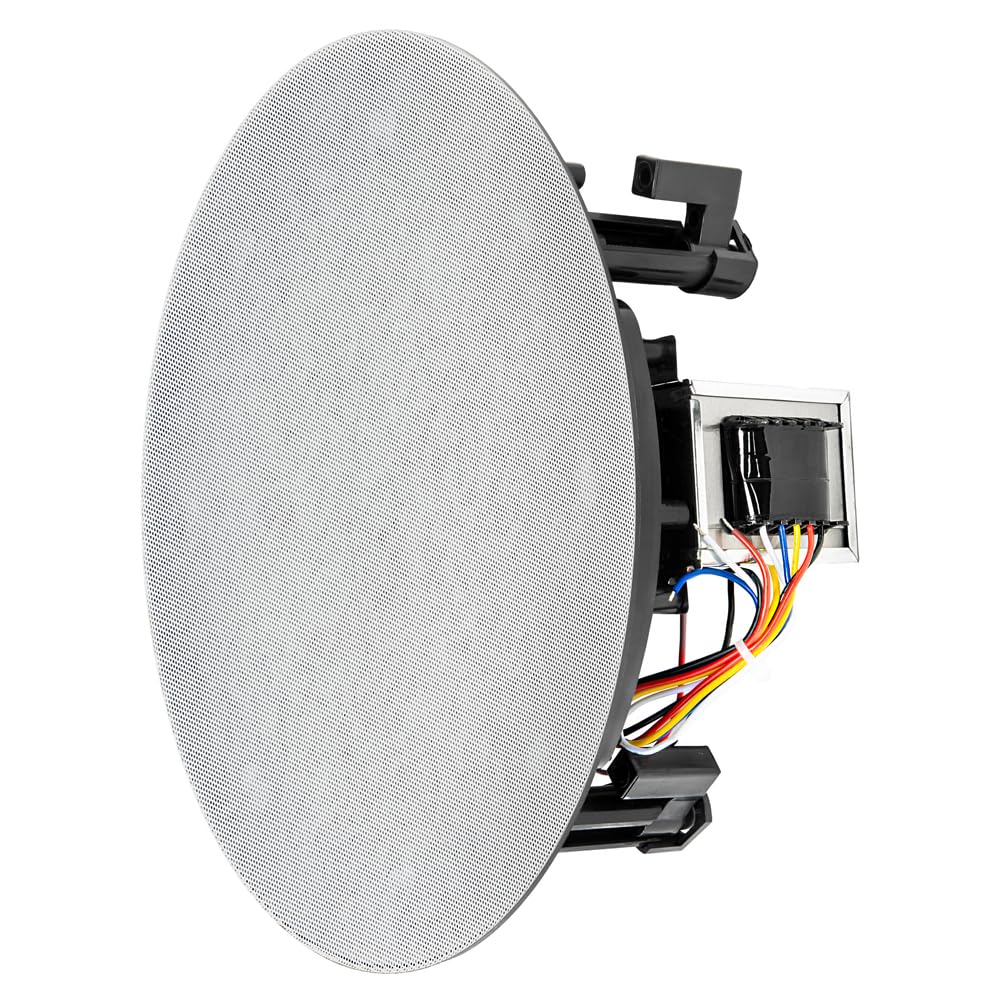

- Sleek Trimless Design – The low-profile grille seamlessly blends into ceilings, providing a modern and professional look while ensuring durability and lasting performance.

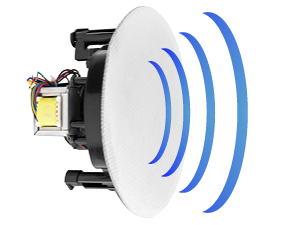

- Wide Sound Dispersion – Designed for commercial installations, this speaker ensures even sound coverage across large rooms, reducing audio dead zones and enhancing customer experiences.
- Easy Installation for Installers – Built-in dog-ear brackets and a paintable grille simplify installation for both professional and DIY setups, making it perfect for new or retrofit projects.
| SKU: | B0DTS9WT4W |
| Weight: | 5 pounds |
| Dimensions: | 4.41"D x 10.79"W x 10.79"H |
| Model: | ACE800ST |
| Pack Quantity: | 1 |
| Manufacture: | OSD Audio |
| Quantity: | 1 |
Product Description

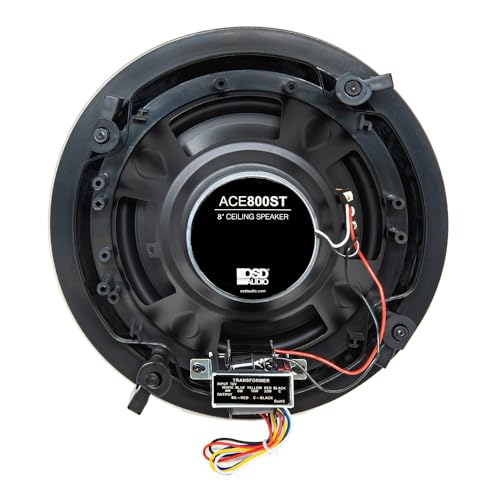

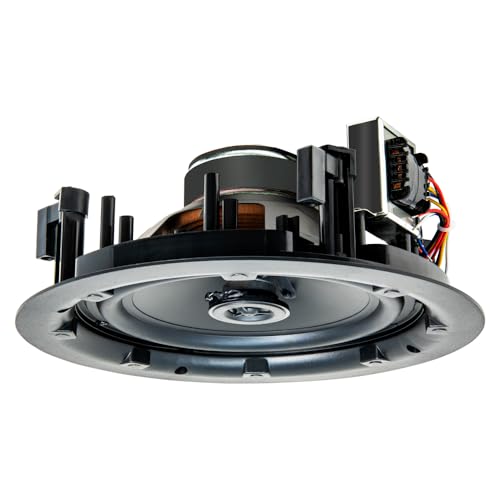

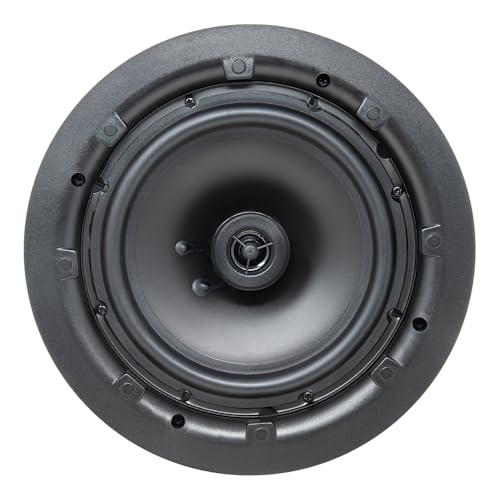

OSD 8″ Trimless Ceiling Speaker w/ 70V Tap, ACE800ST

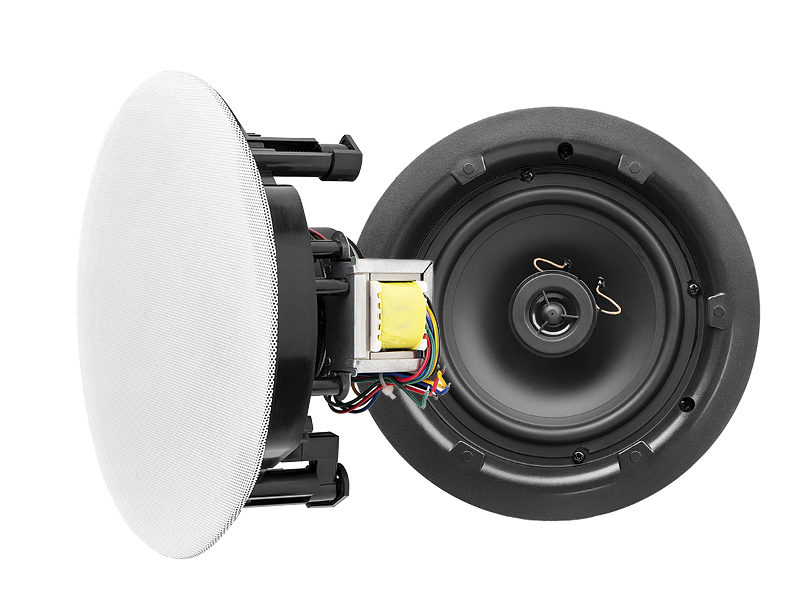

Introducing the ACE800ST, an exceptional 8-inch trimless in-ceiling speaker, making it a go-to choice for commercial applications. With a remarkable power handling capability of up to 120W, this 70V/8 Ohm speaker excels at broadcasting sound across vast distances while maintaining minimal power loss and preserving sound quality. Its seamless integration into ceilings makes it the perfect ceiling speaker for a wide range of venues, including restaurants, malls, museums, and other large venues.
OSD Audio 70V Commercial Ceiling Speakers
Our 70V in-ceiling commercial speakers are engineered to deliver exceptional audio performance in a variety of commercial settings. Their sleek, unobtrusive design blends seamlessly into any indoor environment, providing sound clarity and a professional appearance. The 70V function enables easy installation in large spaces and daisy-chaining for extensive coverage, making them ideal for background music, public announcements, and other audio solutions in any business setting.
The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.
High Clarity Sound

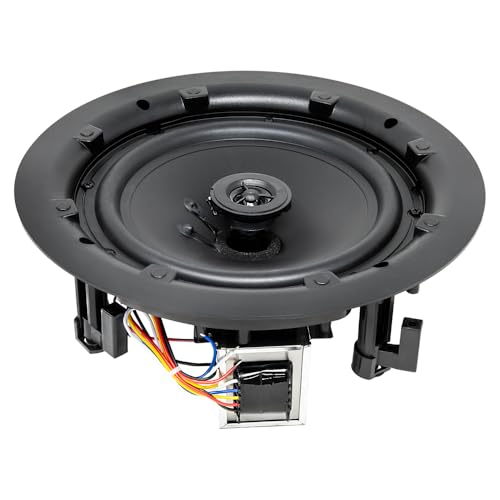

Our ACE800ST features a 8″ driver, delivering high-quality audio and capturing a wide range of frequencies for a rich and deep sound experience.
OSD Audio 70V Commercial Ceiling Speakers
 ACE800ST |  ACE600ST |  ICE630ST |  ICE830ST |  OSD-C1070V |  OSD-C1090VK | |
|---|---|---|---|---|---|---|
| Customer Reviews | 4.4 out of 5 stars104 | 4.4 out of 5 stars104 | 4.4 out of 5 stars104 | 5.0 out of 5 stars1 | 4.4 out of 5 stars104 | 4.4 out of 5 stars104 |
| Price | $108.99 | $76.29 | $108.99 | $141.69 | $43.59 | $54.49 |

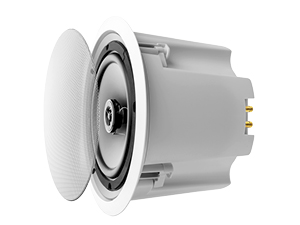

| Speaker Type | In-Ceiling | In-Ceiling | In-Ceiling w/ Back Can | In-Ceiling w/ Back Can | In-Ceiling | In-Ceiling w/ Volume Control |
| Woofer | 8″ Polypropylene Cone | 6.5″ Polypropylene Cone | 6.5″ Polypropylene Cone | 8″ Polypropylene Cone | 8″ Dual Cone | 8″ Dual Cone |
| Connectivity | Wired | Wired | Wired | Wired | Wired | Wired |
| Power Handling | 120W | 100W | 100W | 60W | 20W | 20W |
| Frequency Response | 35Hz – 20kHz | 50Hz – 20kHz | 60Hz – 22kHz | 45Hz – 22kHz | 40Hz – 20kHz | 40Hz – 20kHz |
| Sensitivity & Impedance | 89 dB, 8 Ohms/ 70V | 89 dB, 8 Ohms/ 70V | 88 dB, 8 Ohms/ 70V | 89 dB, 8 Ohms/ 70V | 90 dB, 8 Ohms/ 70V | 90 dB, 8 Ohms/ 70V |
| Wattage Taps | 32W, 16W, 8W, 4W | 20W, 10W, 5W, 2.5W | 30W, 15W, 7.5W | 30W, 15W, 7.5W | 5W, 2.5W, 1.25W, 0.63W & 0.32W | 5W, 2.5W, 1.25W, 0.63W & 0.32W |
| Transformer | Dual 70V/25V | Dual 70V/25V | Dual 70V/8Ohm | Dual 70V/8Ohm | Dual 70V/25V | Dual 70V/25V |
| Dimensions (Diameter x Depth) | 10.75″ x 4.1″ | 8.86″ x 3.54″ | 9.5″ x 5.5″ | 11″ x 7″ | 12.91″ x 3.15″ | 12.91″ x 3.15″ |
| Cutout Diameter | 9.3″ | 7.80″ | 7.875″ | 9.75″ | 10.24″ | 10.24″ |
| Weight | 5 Lbs | 4 Lbs | 5 Lbs | 6 Lbs | 4 Lbs | 4 Lbs |
| Sold As | Single | Single | Single | Single | Single | Single |
