CWWK S8 N355 Mini PC (Upgraded N305) Firewall Appliance, 2x 10GbE SFP+ Mini Computer with 2 x i226-V 2.5GbE LAN, OPNsense Micro PC Barebone DDR5 NO RAM/SSD/OS, USB-C, TF, 2-Display

• 2025 New Gen. N355 Processer: The CWWK S8 Mini PC features the new model Twin Lake Core 3 N355 CPU (upgrade of the Core i3 N305), with 8 cores 8 threads, up to 3.9GHz, 6MB cache, TDP9-15W. The multi-core architecture and high performance of the N355 excels in handling complex, demanding tasks. The N355 supports the official Unison-App, enabling seamless collaboration between the PC and smartphone

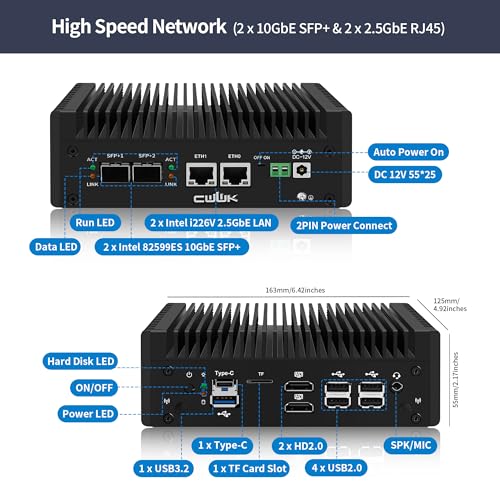

• 2 x 10Gbit + 2 x 2.5Gbit High-Speed LAN: The S8 Mini PC features 2 x 82599ES 10Gbps SFP+ ports and 2 x i226V 2.5Gbps RJ45 Ethernet ports, delivering exceptional bandwidth and enhanced network performance. It supports a wide range of open-source software router system as well as WinOS, Linux, and PVE

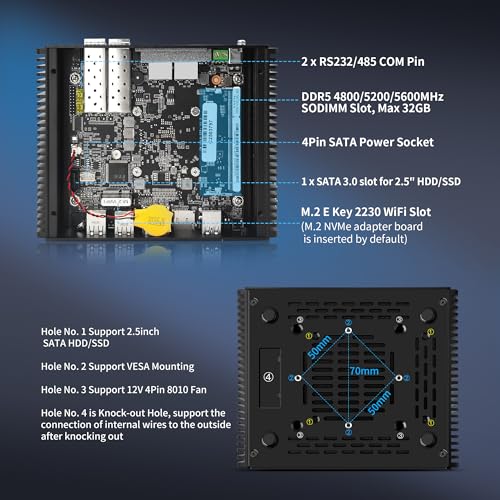

• Support DDR5 RAM and NVMe SSD: Equipped with 1 x DDR5 SO-DIMM 4800MHz RAM slot, up to 32GB of memory, it includes 2 x M.2 M-key slots (PCIe 3.0 x1) for 2280-sized NVMe SSDs, along with 1 x SATA 3.0 port for installing SATA SSDs or HDDs. And when removing the front NVMe adapter board, the 1 x M.2 E-Key slot can be used to expand a WiFi/BT wireless module
• Various External I/O Port: 2 x HD2.0 ports, supporting dual-screen displays with 4K@60Hz. The processor's integrated UHD Graphics (1.35GHz, 32EUs) enables hardware-accelerated 4K video output. Includes 1 x USB3.2 Type-A, 1 x USB Type-C, 4 x USB2.0 Type-A ports, and 1 x Micro SD card slot
• Support for Active and Passive Cooling: The system fans maintain performance under heavy load. For quiet or low-load situation, the advanced passive cooling design efficiently dissipates heat without generating noise, making it suitable for home or office use

CWWK S8 Dual 10GbE Dual 2.5GbE Network Port Mini-PC

CPU Options: Twin Lake N150 / Core 3 N355 /Alder Lake N100 / Core i3 N305

Memory: 1 x SO-DIMM DDR5 RAM slot, up to 48GB (max. 4800 MHz)

Storage Options: 2 x M.2 2280 NVMe SSD slots (PCIe3.0 x1), 1 x SATA3.0 port, and 1 x TF card slot

Network Controller: 2 x 82599ES 10GbE SFP+ optical port, 2 x i226-V 2.5GbE RJ45 port

WiFi/BT Support: 1 x M.2 E-Key WiFi slot, supports WiFi6/BT5.2 expansion (after removing the E-Key to M-Key adapter)

Display Ports: 2 x HD2.0 port, supports up to 4K@60Hz

USB Ports: 1 x USB 3.2 Type-A, 1 x USB 3.2 Type-C, 4 x USB 2.0 Type-A

Internal Pins: COM pin, GPIO pin

Case: Full aluminum alloy case

Cooling Type: Active and passive cooling

VESA Adapter: Supported

Fan Installation: Supports an additional 1 x 12V 4-pin 8010 fan

Power Supply: DC 12V

Storage Temperature: 0°C ~ 70°C

Operating Temperature: 0°C ~ 70°C

Humidity: 5%~85% relative humidity, non-condensing

Size: 16.2 x 12.5 x 5.3 cm / 6.38 x 4.92 x 2.09 inches

Weight: 1.2 kg / 2.65 lb

Package Contents: CWWK S8 Mini PC, power adapter, SATA adapter cable, fan adapter cable, screws, thermal paste

Official Support: The user manual, various driver files, and other product-related documents are available on the official website

Features: Supports AES-NI, Auto Power On, Wake-on-LAN, PXE boot

Operating System: Supports Software Router System, Win OS, Linux, PVE, ESXi

External Cable Connections: Supports external connections. Open design with removable front and back panels. The bottom can be removed for cable connections, especially for external 3.5″ SATA HDDs.
