Accsoon CineView Master 4K Wireless Video Transmitter

Accsoon CineView Master 4K Wireless Video Transmitter

Accsoon CineView Master 4K Wireless Video Transmitter, 2.4Ghz+5Ghz+6GHz Tri-Band 8202ft Range 25 ms Latency, SDI HDMI Video Transmission System, 4K 60FPS 1 Wired iOS+4 App Monitoring(1 Transmitter)

  • 4K UHD Video Transmission:CineView Master 4K supports video input/output formats up to (3840×2160) 24/25/30/50/60 fps via HDMI port, and 1080P via SDI/ HDMI, perfect for monitoring, recording, live-streaming and any other video productions
  • Powerful Master 4K: CineView Master 4K integrates 2.4GHz+5GHz+6GHz frequencies, enabling intelligent dynamic adjustment of audio and video data across three bands, significantly reducing latency from input to output to only 25ms while maintaining 2.5km long transmission distances

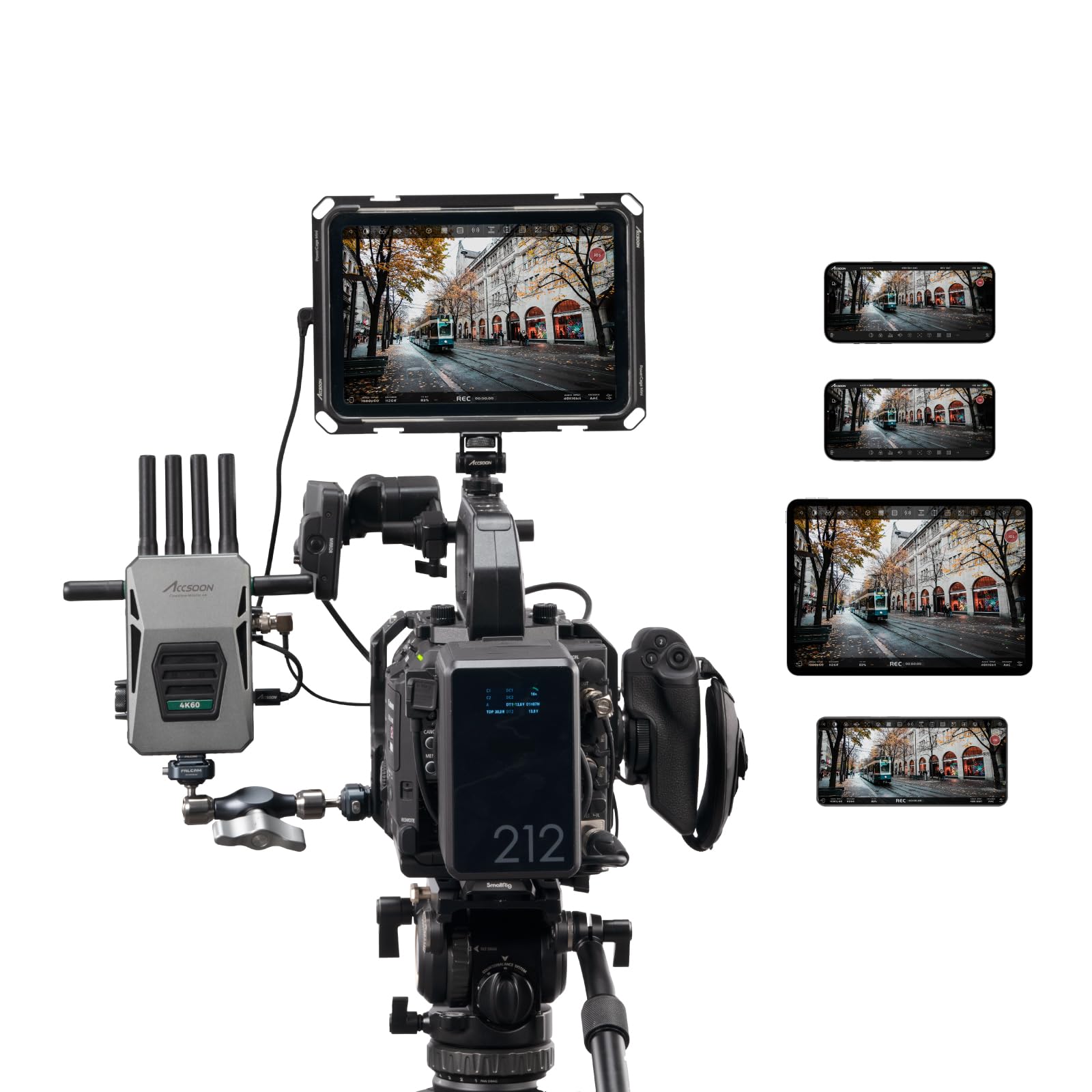

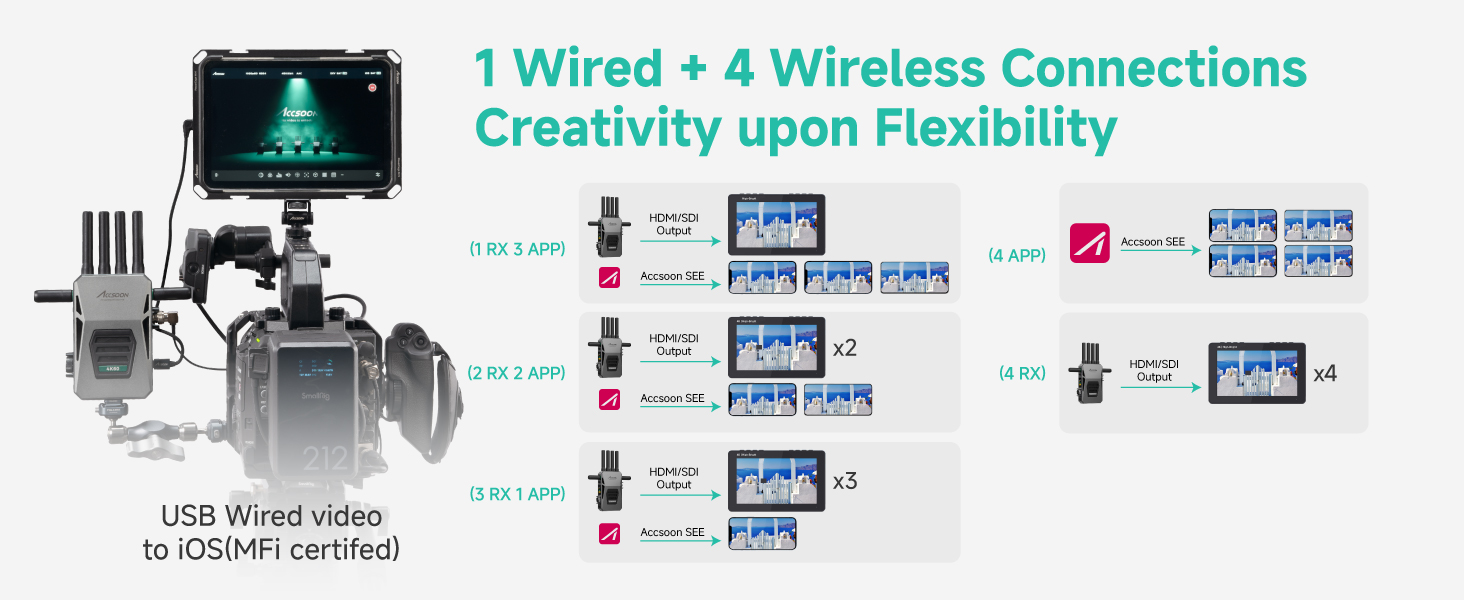

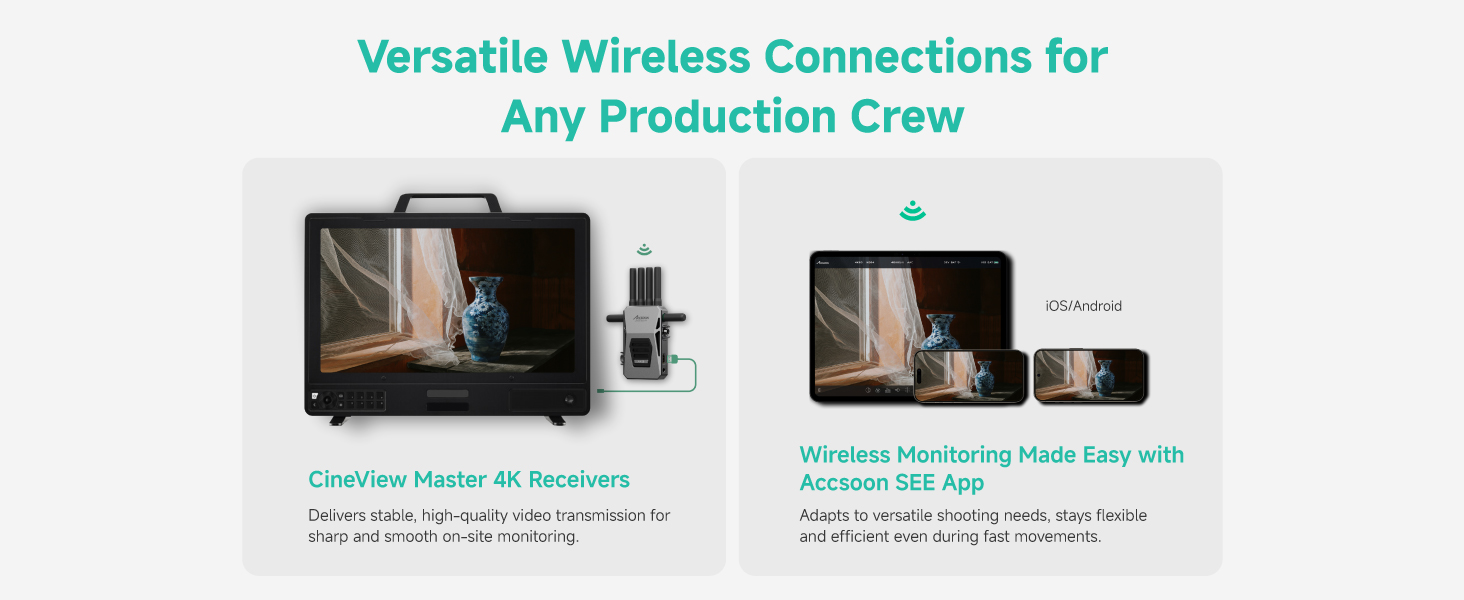

  • Up to 5 Receivers Monitoring: Accsoon CineView Master 4K can transmit to up to 5 devices simultaneously: a combination of 1 wired connection and 4 wireless connections. The transmitter includes a USB-C Video Out port that can transmit both video and audio signals to iOS devices
  • Accsoon developed the proprietary RTMS 4.0 protocol to work with the new High-Performance A/V Processor with 8K capabilities. In combination the protocol and the processor represent a remarkable 400% increase in processing capabilities

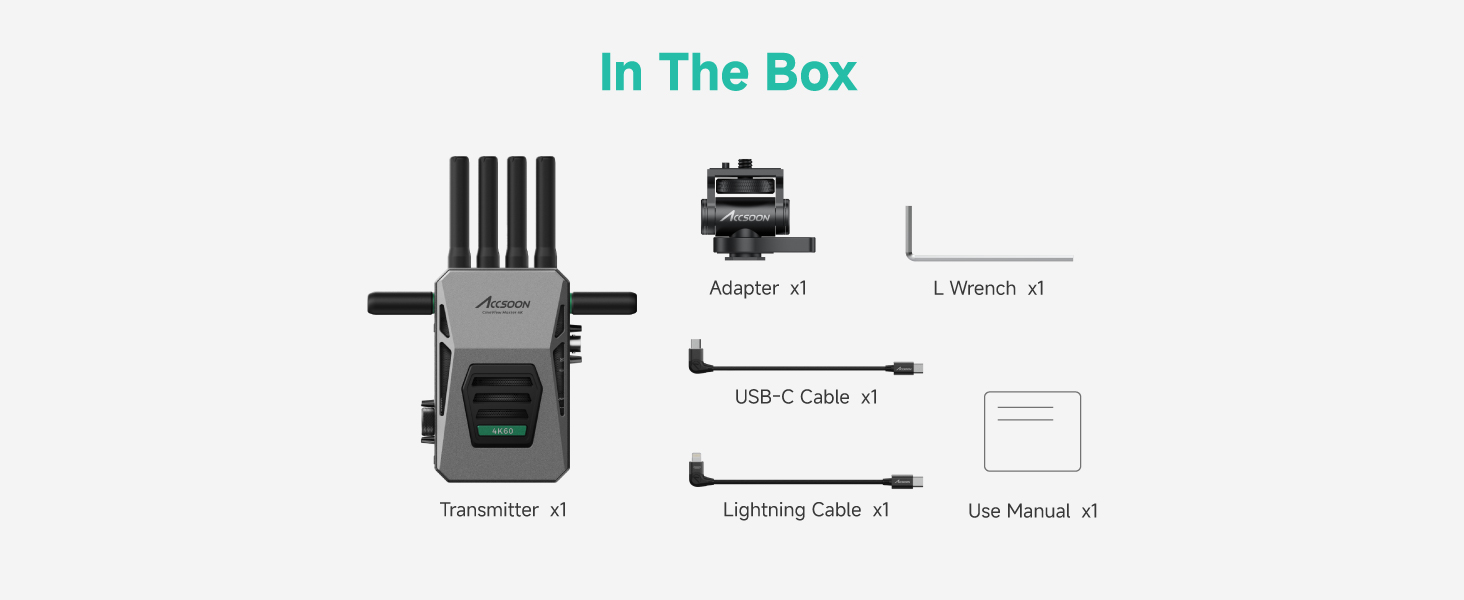

  • In the Package: There is one CineView Master Transmitter, one cold shoe adapter, one L wrench,one USB-C cable, one lightning cable and a use manual (Note: battery not included)

Accsoon CineView Master 4K SDI HDMI Video Transmission System


2.4Ghz+5Ghz+6GHz Tri-Band 8202ft Range 25 ms Latency, SDI HDMI Video Transmission System, 4K 60FPS 1 Wired iOS+4 App Monitoring

The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.

video

Merchant Video
  1. Details Come to Life, End-to-End True 4K60 Video

    From input to output, this end-to-end 4K60 solution offers stunning 4K resolution at a fluid 60 frames per second,perfect for monitoring, recording, live-streaming and any other video productions.

Optimal Stability Performance

Accsoon Proprietary RTMS 4.0 Protocol

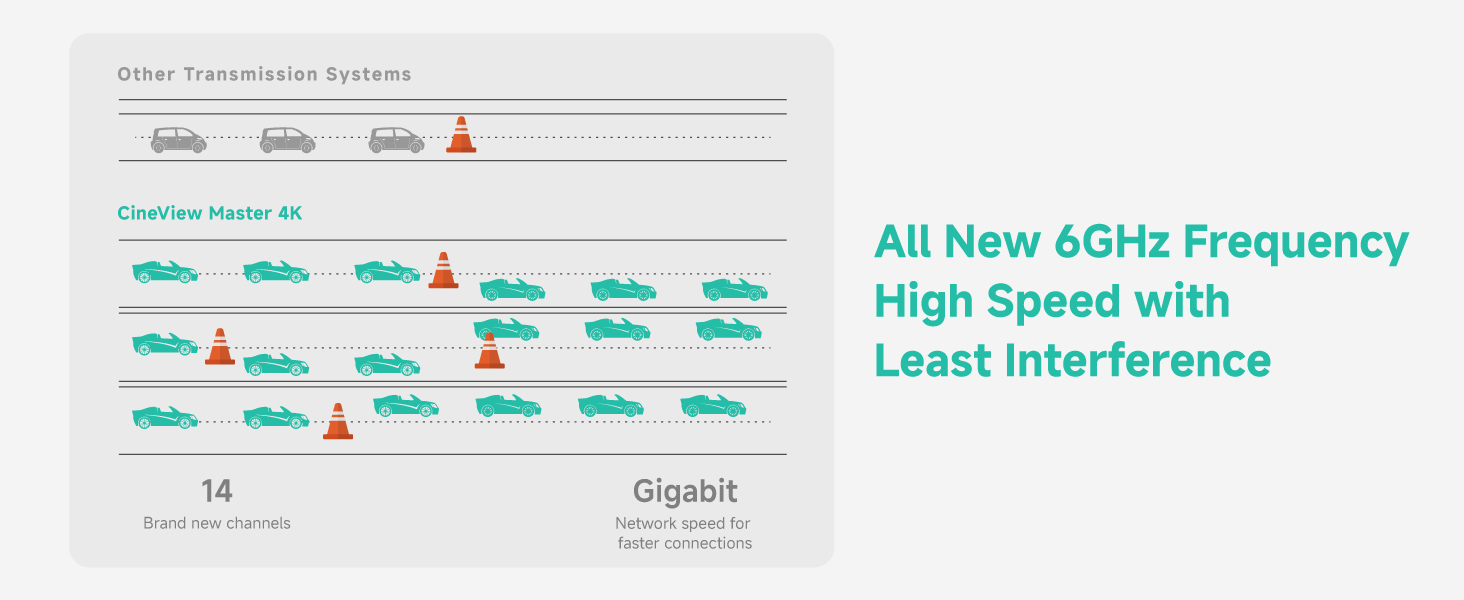

Intelligently utilizing 6GHz, 5GHz and 2.4GHz frequencies seamlessly

The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.

video

Merchant Video

CineView Master 4K Transmitter Specifications

A/V Processor8K High Performance Processor
ProtocolProprietary RTMS 4.0 protocol developed by Accsoon

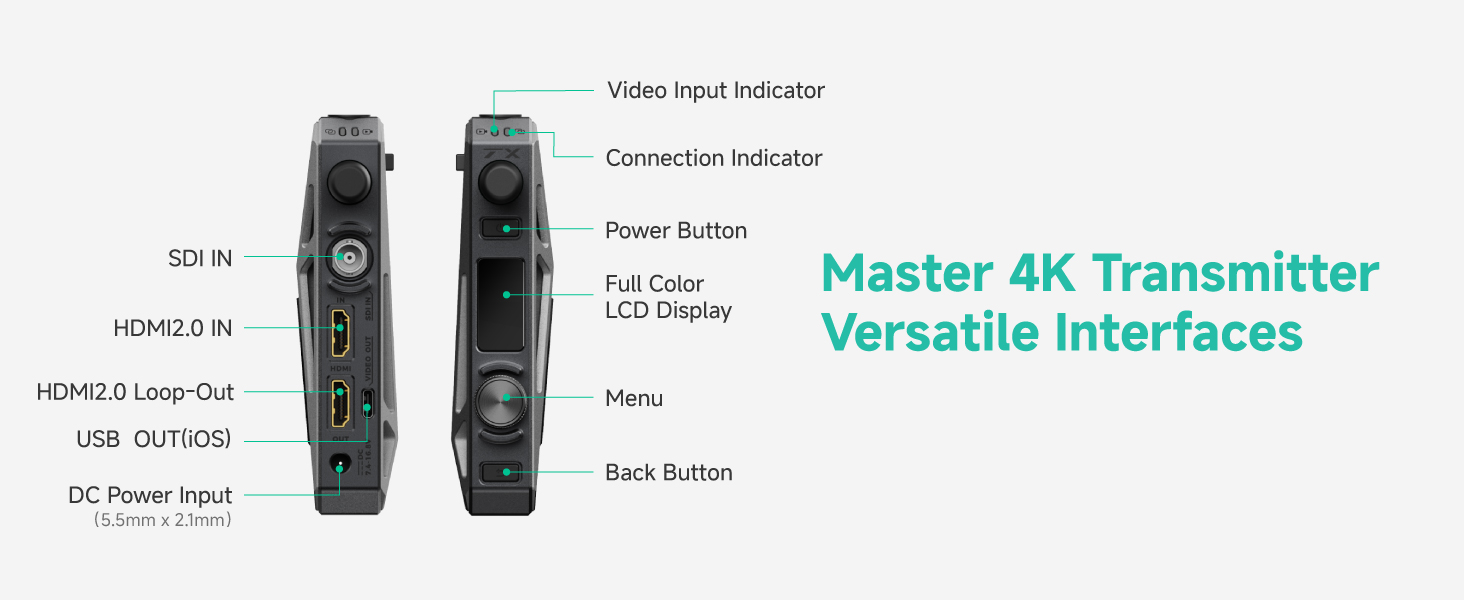

Video InputTransmitter-HDMI, 3G SDI
Video OutputTransmitter-HDMI Loop-Out USB Video Out (to iOS)
Transmitter-SDI Input Format1080p: 23.98/24/25/29.97/30/50/59.94/60fps Level A/B 1080i: 50/59.94/60i
Transmitter-HDMI Input Format4K (3840*2160): 23.98/24/25/29.97/30/50/59.94/60p 1080p: 23.98/24/25/29.97/30/50/59.94/60p 1080i: 50/59.94/60i
Transmitter-HDMI Loop-outIdentical to the HDMI video input
BatteryCompatible with NP-F550, NP-F750, NP-F970 battery (Purchase Separately)
DC Input7.4~16.8V (DC Cable Purchase Separately)
Power ConsumptionTransmitter-6.5W average *Without powering other devices
Transmission Range≥ 2.5 km (No obstacles, no interference)
Latency1080p60 <25ms/ 4K60 <35ms (Camera latency not included)
Compatible IOS DeviceiPhone 12 above and later; iPad Pro 12.9-inch Gen 3 above and later; iPad Pro 11-inch Gen 3 above and later; iPad Gen 9 above and later; iPad Air Gen 4 above and later; iPad mini 6
Dimensions130mm x 95mm x 32 mm
Weight(Antennas not included)322g
In the PackageThere is a Master 4K Transmitter,a cold shoe adapter, a usb-c cable, a lightning cable and a use manual

SKU: B0DJ2VV41R
Weight: 1.76 pounds
Dimensions: 7.4 x 5.1 x 2.75 inches
Manufacture: Accsoon

Product Description

Accsoon CineView Master 4K SDI HDMI Video Transmission System


2.4Ghz+5Ghz+6GHz Tri-Band 8202ft Range 25 ms Latency, SDI HDMI Video Transmission System, 4K 60FPS 1 Wired iOS+4 App Monitoring

The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.

video

Merchant Video
  1. 1
  2. 1

    Details Come to Life, End-to-End True 4K60 Video

    From input to output, this end-to-end 4K60 solution offers stunning 4K resolution at a fluid 60 frames per second,perfect for monitoring, recording, live-streaming and any other video productions.

  3. 1
  4. 1

Optimal Stability Performance

Accsoon Proprietary RTMS 4.0 Protocol


Intelligently utilizing 6GHz, 5GHz and 2.4GHz frequencies seamlessly

The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.

video

Merchant Video

CineView Master 4K Transmitter Specifications

A/V Processor 8K High Performance Processor
Protocol Proprietary RTMS 4.0 protocol developed by Accsoon
Video Input Transmitter-HDMI, 3G SDI
Video Output Transmitter-HDMI Loop-Out USB Video Out (to iOS)
Transmitter-SDI Input Format 1080p: 23.98/24/25/29.97/30/50/59.94/60fps Level A/B 1080i: 50/59.94/60i
Transmitter-HDMI Input Format 4K (3840*2160): 23.98/24/25/29.97/30/50/59.94/60p 1080p: 23.98/24/25/29.97/30/50/59.94/60p 1080i: 50/59.94/60i
Transmitter-HDMI Loop-out Identical to the HDMI video input
Battery Compatible with NP-F550, NP-F750, NP-F970 battery (Purchase Separately)
DC Input 7.4~16.8V (DC Cable Purchase Separately)
Power Consumption Transmitter-6.5W average *Without powering other devices
Transmission Range ≥ 2.5 km (No obstacles, no interference)
Latency 1080p60 <25ms/ 4K60 <35ms (Camera latency not included)
Compatible IOS Device iPhone 12 above and later; iPad Pro 12.9-inch Gen 3 above and later; iPad Pro 11-inch Gen 3 above and later; iPad Gen 9 above and later; iPad Air Gen 4 above and later; iPad mini 6
Dimensions 130mm x 95mm x 32 mm
Weight(Antennas not included) 322g
In the Package There is a Master 4K Transmitter,a cold shoe adapter, a usb-c cable, a lightning cable and a use manual
