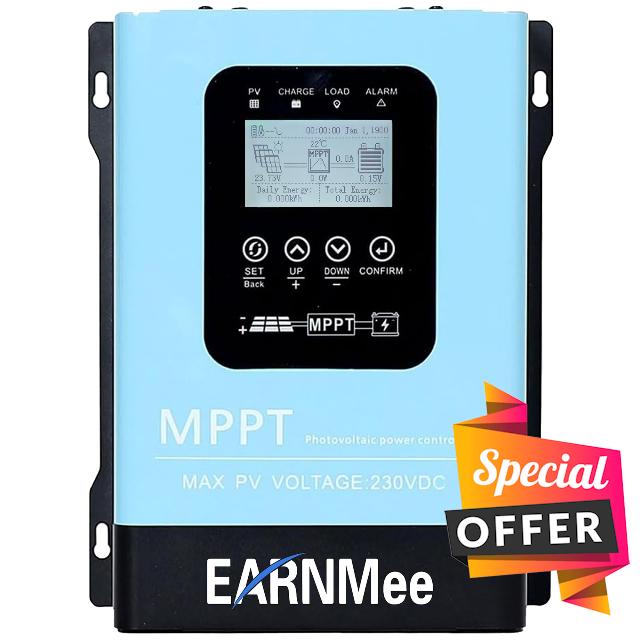

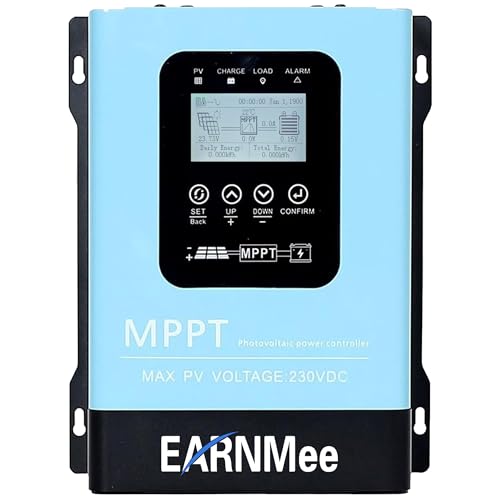

60A MPPT Solar Charge Controller,12V 24V 36V 48V 60V 72V 84V 96V Solar Battery Regulator PV Max 230V for Sealed Lead Acid Gel and Lithium Battery (60A)

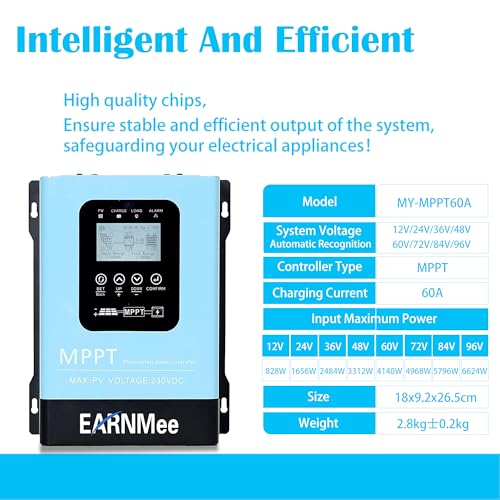

• 【Technical parameters】EARNMee 60A solar charge controller can automatically detect system voltage.12V battery:PV max 720W;24V battery:PV max 1440W;36V battery:PV max 2160W;48V battery:PV max 2880W;60V battery:PV max 3600W;72V battery:PV max 4320W;84V battery:PV max 5040W;96V battery:PV max 5760W;PV input voltage (VOC) up to 230V.
• 【Compatible with multiple battery types】The solar controller is compatible with 12V/24V/36V 48V/60V/72V/84V/96V lithium-ion and lead-acid batteries, including GEL, LiFePO4, Li-ion, user. Wide coverage of battery voltage, whether it is as low as 12V or as high as 96V battery type, can be perfectly adapted. Extremely versatile, it can realize multi-purpose use and fully meet the requirements of different stages and various scenarios.
• 【Advantages】 MPPT controller is equipped with full power input function to provide stable and sufficient power for the equipment, which has obvious advantages in high-power and complex power demand scenarios.

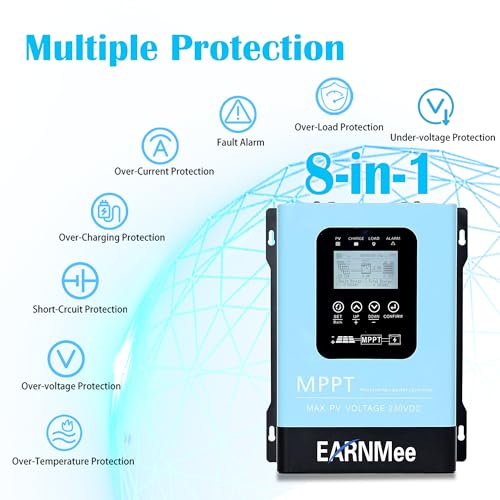

• 【Multiple Protection】Solar voltage regulator has overcharge protection, overcurrent protection, overheating protection, short circuit protection.Lithium battery activation can effectively activate lithium batteries that may be in a low-activity state and restore them to a good working condition, thus extending the service life of lithium batteries.
• 【Quality check, after-sales service】We will quality check all MPPT Solar Charge Controller before shipment to make sure you receive the product in good condition. The package includes 1*MPPT solar charge controller, 1*User manual. We provide 12 months maintenance service, if you have any questions, please feel free to contact us, we will reply you within 24 hours.

• EARNMee controller is used in solar off-grid power generation systems to automatically regulate battery charging and discharging. It has an advanced tracking algorithm to obtain the maximum power of the solar module to charge the battery; at the same time, its Low Voltage Disconnect (LVD) function prevents the battery from over-discharging and causing damage.
• The MPPT controller's comprehensive self-test function and electronic protection function can avoid damage caused by installation errors and system failures.

Basic Function:

• Innovative maximum power point tracking technology, can significantly improve the solar energy system energy utilization, conversion efficiency up to 97%;

• Rapidly scanning the entire IーV curve, efficiently tracking the maximum power point;
• Sealed, gel, open three types of lead-acid batteries and lithium batteries series of charging programs can be selected;

• With overcharge, overdischarge, overload, short circuit automatic protection function;
• RS485 communication interface, can be multi-computer communication, convenient to view the controller's operating parameters.

Six advantages of choosing us:

• 1、Self-contained lithium battery activation function
• 2、Support 0-230V ultra-wide voltage access
• 3、12-96V battery universal
• 4、With a large screen display
• 5、Can be charged even in cloudy and rainy days
• 6、Parameters can be adjusted

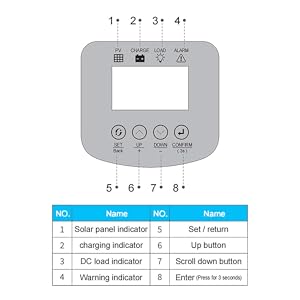

Key operation instructions

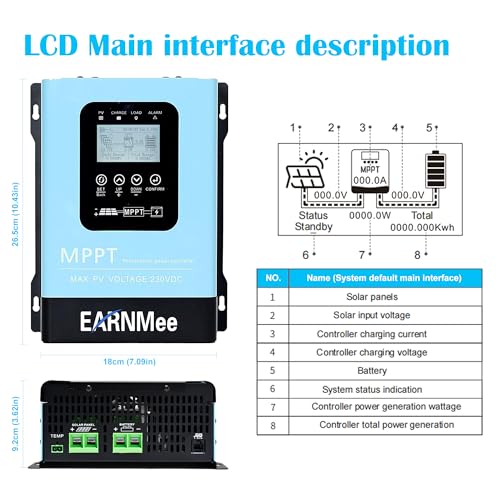

LCD screen description

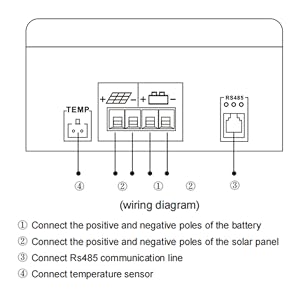

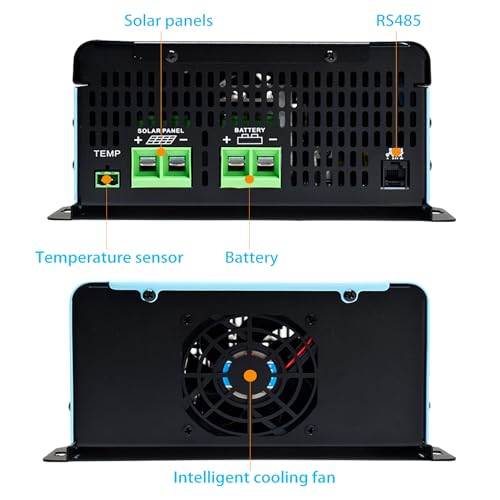

Side panel description

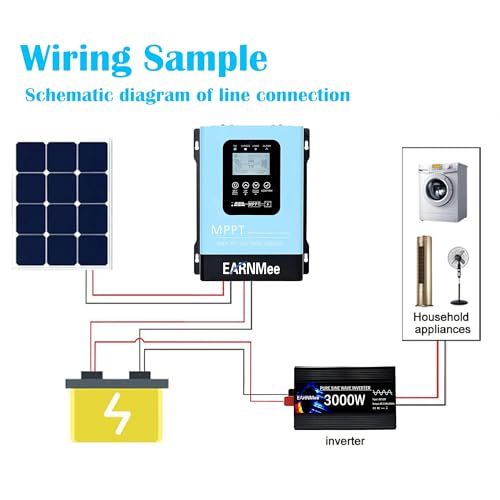

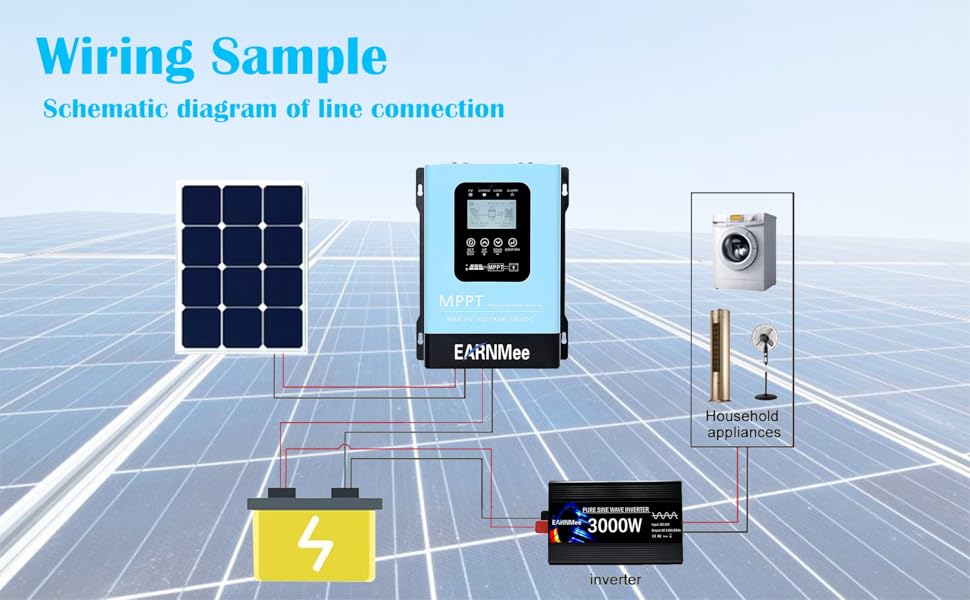

Controller adjustment must be matched with the battery type, solar panel maximum voltage input 230V, battery and inverter input volts should be the same.

---

Product Description

Controller adjustment must be matched with the battery type, solar panel maximum voltage input 230V, battery and inverter input volts should be the same.
