0.55KW/0.75KW/1.1KW/1.5KW/2.2KW/3KW/4KW Single-Phase AC Motor, 220V Single-Phase Asynchronous Motor,Single-Phase Dual-Value Capacitor Motor(1.5KW,1400 RPM)

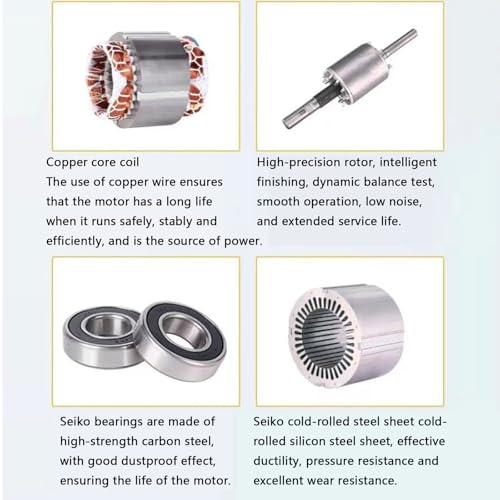

• 1. Adopt copper core coil, use high-quality copper wire to ensure the safe, stable and efficient operation of the motor as the main power source, and extend the service life.
• 2. Adopt high-precision rotor, after intelligent finishing and dynamic balancing test, it runs smoothly, has low noise and long service life.

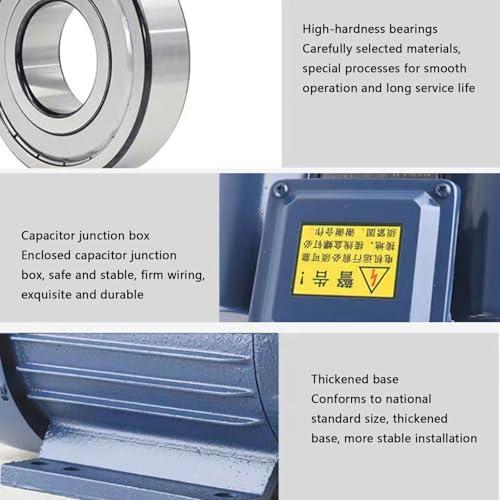

• 3. Adopt precision bearings, made of high-strength carbon steel, with excellent dustproof ability, which can extend the service life of the motor.
• 4. Made of precision cold-rolled silicon steel sheet, it has effective ductility, compression resistance and high-quality wear resistance, and excellent performance.
• 5. Efficient design adopts advanced materials and processes to improve efficiency, save energy and reduce long-term operating costs by optimizing the core diameter, core length, stator slot size and increasing the weight of copper wire.

Name: Single-phase motor
Power: 0.55KW/0.75KW/1.1KW/1.5KW/2.2KW/3KW/4KW
Voltage: 220V
Current type: AC
Motor type: Single-phase asynchronous motor
Power: 0.55KW/0.75KW
Speed: 1400 rpm-4th level/2800 rpm-2nd level
Shaft diameter: 19mm
Base hole spacing: 125*100mm
Center height: 80mm
Coil material: pure copper wire
Weight: 11-12kG
Dimensions: 29.5*20.5*20.5cm
Power: 1.1KW/1.5KW/2.2KW
Speed: 14 00 rpm-4th level/2800 rpm-2nd level
Axis diameter: 24mm
Base hole distance: 142*125mm
Center height: 90mm
Coil material: pure copper wire
Weight: about 17-20kg
Dimensions: 34*21*23cm

Power: 3KW/4KW
Speed: 1400 rpm-4th level/2800 rpm-2nd level
Axis diameter: 24mm
Base hole distance: 160*140mm
Center height: 100mm
Coil material: pure copper wire
Weight: 24-28kg
Dimensions: 38*22*24cm

Note: Due to the heavy weight of the package, I will use sea transportation, and the transportation time is about 30 days.
