TJCXELE 4K120Hz HDMI KVM Switch 2 Monitors 2 Computers USB 3.0 KVM Switch Dual Monitor Share 2 Monitors and 4 USB Ports Support Extended and Copy With 2 USB 3.0 Cables & Desktop Controlle

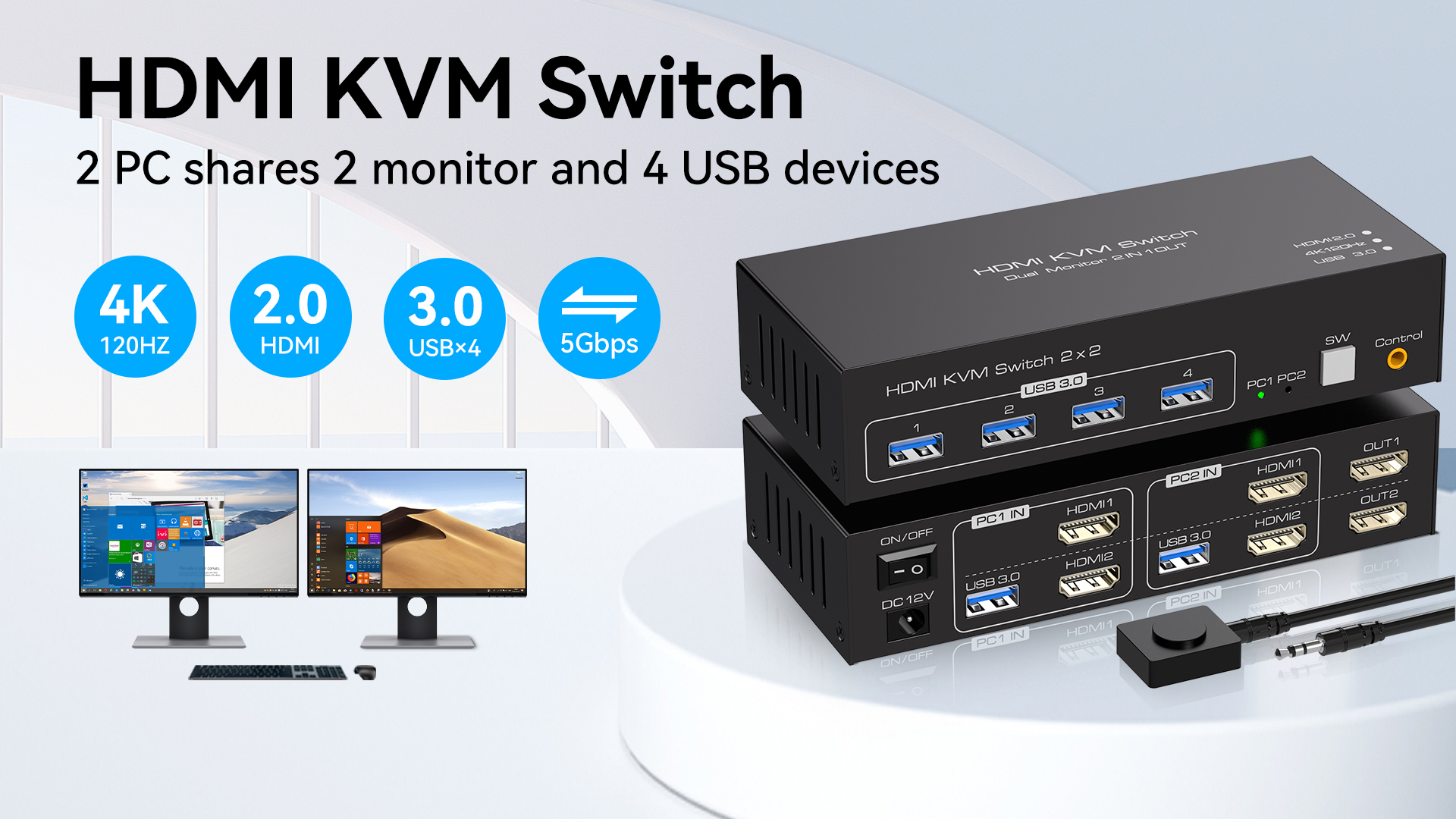

- 【KVM Switch 2 Monitors 2 Computers】KVM switch allows you to control 2 computers with just 1 set of keyboard and mouse, and sharing 2 monitors. Distributes the HDMI 1 and HDMI 2 input ports on the upper and lower levels, optimising vertical space allocation while significantly improving performance. To use the Dual Screen feature, the HDMI 1 and HDMI 2 ports on the product must be connected to the same computer. Meet your need to switch easy between work computers and personal computers.
- 【Stunning Visual Effects】This HDMI KVM Switches support resolution up to 3840*2160@120Hz (4K@120Hz) and is backward compatible with 4K@60Hz, 4K@30Hz, 1440P@60Hz, and 1080P@60Hz, which makes the image display more detailed and realistic, clear and stable, and it can bring excellent visual experience. Note: If you need to output 4K@120Hz resolution, please make sure your HDMI cable, computer and monitor support 4K@120Hz.

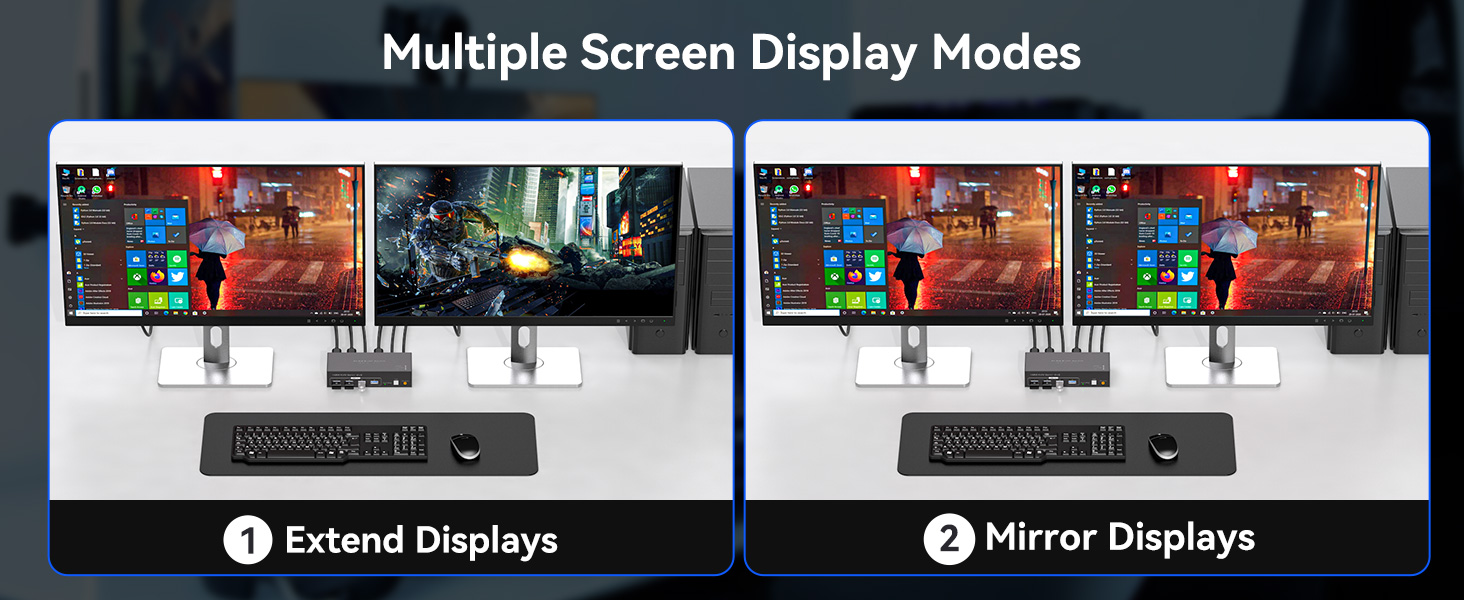

- 【Extended and Copy Mode Support】Extended mode expands your desktop across multiple screens and provides ample space for efficient multitasking, while copy mode duplicates content across all connected displays, ideal for presentations and collaborative work environments. These display modes can be tailored to your unique workflow requirements, allowing you to enjoy unrivalled versatility and productivity. Click "Windows+P" to select the display mode.
- 【USB 3.0 KVM Switcher】This HDMI KVM Switch is equipped with 4 USB 3.0 ports that can reach a maximum data transfer rate of up to 5Gbps, devices such as printers, cameras, scanners or USB sticks can be shared between two computers. Lets you effortlessly transfer data and files between your connected devices. Note: If you want to use high performance USB devices such as cameras or hard disk drive etc, please contact our customer service to clarify if this is possible.
- 【Button and Desktop Controller Switching】You can switch between 2 computers through press the button on the HDMI KVM Switch or through the desktop controller. Desktop controller also hides the KVM for a tidier desktop. The KVM Switch 2 Monitors plug-and-play, it is simple and easy to install. LED indicate the active computer. NOTE: Keyboard shortcuts (hotkeys) toggles are not supported.

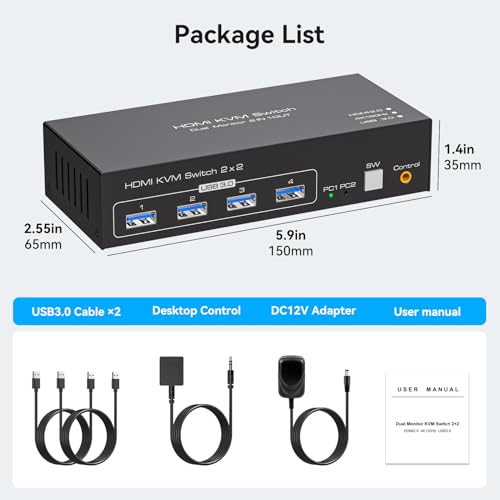

- 【Powerful KVM Switch】KVM switch dual monitor is equipped with a 12V/1A DC power adapter. With the external power design, USB devices can obtain a stable working environment through the switch. In addition to the KVM switch, the scope of delivery includes a desktop controller, two 1 metre USB 3.0 cables, a power supply unit and instructions. Without the power supply and the KVM switch may not work stably! Please do not hesitate to contact us if you have any problems.
| SKU: | B0D9BMMXY1 |
| Weight: | 550 g |
| Size: | 4K120Hz HDMI 2 PC 2 Monitor |
| Dimensions: | 20 x 14.5 x 5.5 cm; 550 g |
| Part: | SW271-UK |
| Batteries Required: | No |
| Manufacture: | TJCXELE |
| Reference: | SW271-UK |
| Size: | 4K120Hz HDMI 2 PC 2 Monitor |
Product Description
The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.4K120Hz HDMI KVM Switch 2 Monitors 2 Computers
- To use two monitors, each computer must be connected to the KVM with 2 HDMI and the computer itself should support the display of two monitors.
- If the USB device is not recognised or disconnected, try swapping the ends of the USB cable between the computer and the KVM.
- The KVM switcher is only used to switch the signal source and the two monitors will only display the screen of the same computer.
- If the monitor flickers or has other display problems after connecting to the KVM, please try swapping a shorter HDMI cable for the connection, it is not recommended to use an adapter cable.
- The KVM switch does not support the use of hotkeys to switch sources.

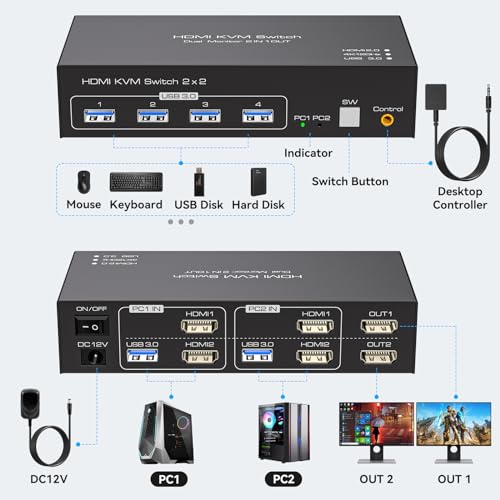

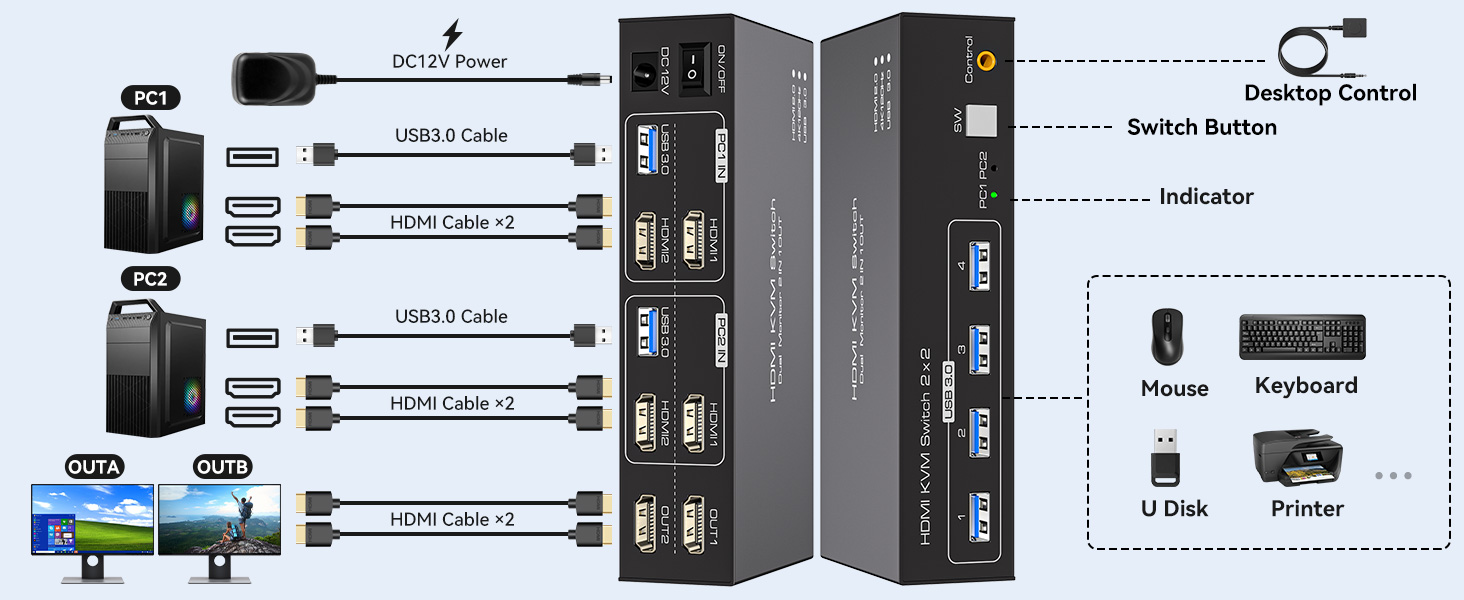

Connection step 2The 2 HDMI ports and the USB port of PC1 are connected to PC1 IN of the KVM; the 2 HDMI ports and the USB port of PC2 are connected to PC2 IN of the KVM.
” data-position=”triggerHorizontal” />Connection step 4Connect devices such as mice and keyboards to the front USB ports. 2 computers can share up to 4 USB devices, plug-and-play, no need to plug and unplug frequently.
” data-position=”triggerHorizontal” />

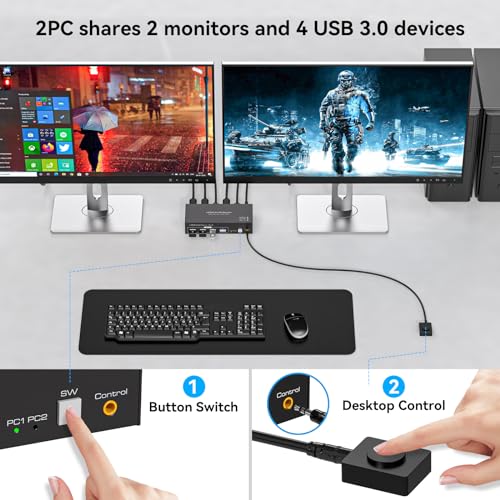

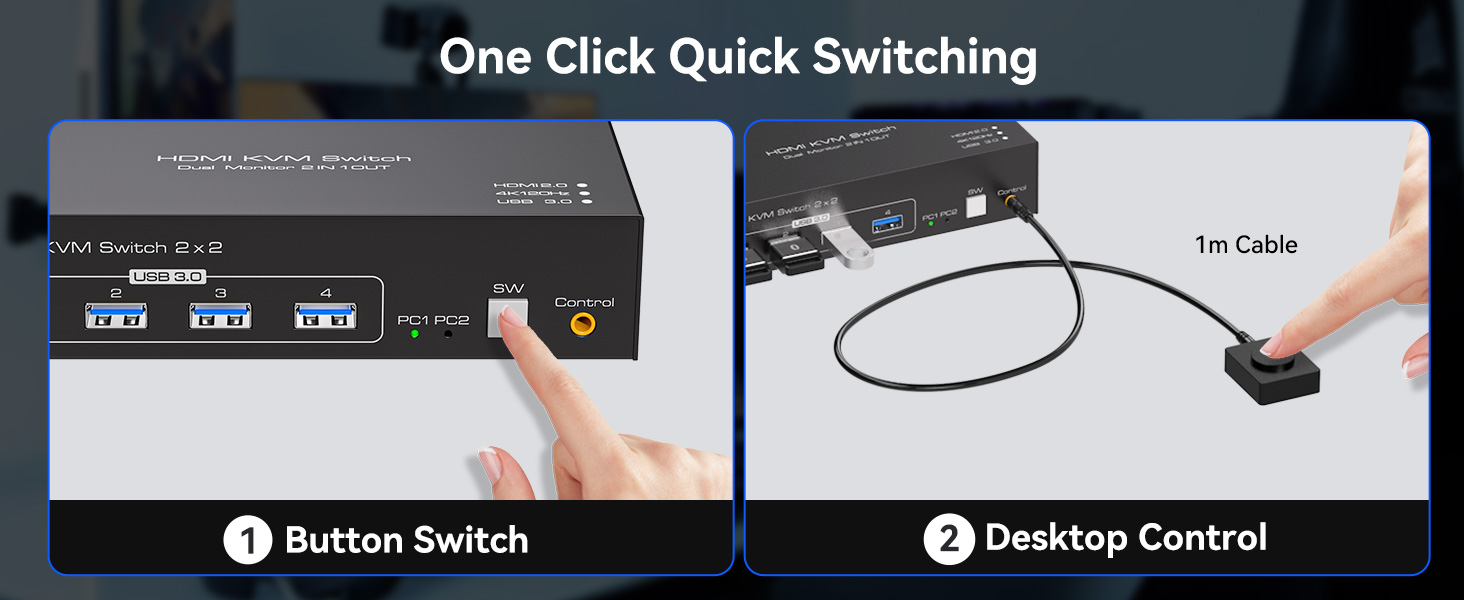

In addition to the switch buttons on the device, there is also a desktop controller that allows you to hide the KVM for a tidy desk.

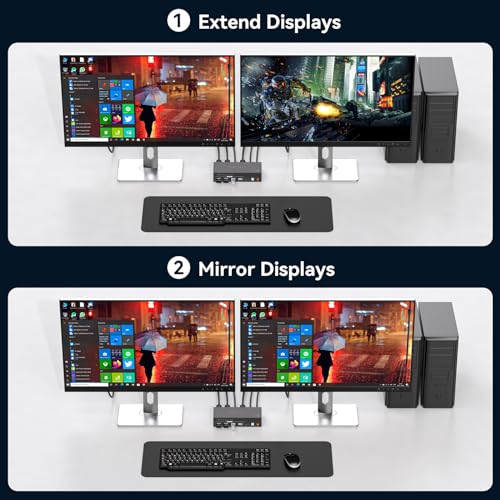

Click on “Windows+P” to select the “Mirror” or “Extend” mode.
4K@120Hz Resolution
The transfer speed of USB 3.0 is 10 times faster than that of USB 2.0, and the USB 3.0 interface is compatible with USB 2.0, so you don't have to worry about compatibility issues.
KVM Switch
 8K HDMI 2 PC 2 Monitor |  4K HDMI 2 PC 2 Monitor |  4K HDMI 3 PC 2 Monitor |  4K HDMI+DP 2 PC 2 Monitor |  8K HDMI+DP 2 PC 3 Monitor |  4K HDMI+DP 3 PC 2 Monitor |  8K HDMI+DP 3 PC 3 Monitor | |
| Customer Reviews | 4.5 out of 5 stars 132 | 4.6 out of 5 stars 136 | 4.5 out of 5 stars 132 | 4.6 out of 5 stars 136 | 4.6 out of 5 stars 136 | 4.5 out of 5 stars 132 | 4.5 out of 5 stars 132 |
| Price | £99.99 | £59.99 | £109.99 | £89.99 | £99.99 | £129.99 | £149.99 |
| USB standard | USB 3.0*4 | USB 2.0*4 | USB 3.0*4 | USB 3.0*4 | USB 3.0*4 | USB 3.0*4 | USB 3.0*4 |
| Input | Per Pc :HDMI2.0*2+USB3.0 | Per Pc :HDMI1.4*2+USB2.0 | Per Pc :HDMI2.0*2+USB3.0 | Per Pc :HDMI2.0+DP1.2+USB3.0 | Per Pc :DP1.4*2+HDMI2.1+USB3.0 | Per Pc :HDMI2.0+DP1.4+USB3.0 | Per Pc :HDMI2.1+DP1.4*2+USB3.0 |
| Output | HDMI2.0*2 | HDMI1.4*2 | HDMI2.0*2 | HDMI2.0+DP1.2 | HDMI2.1+DP1.4*2 | HDMI2.0+DP1.4 | HDMI2.1+DP1.4*2 |
| Quantity of signal sources | 2 Computers | 2 Computers | 3 Computers | 2 Computers | 2 Computers | 3 Computers | 3 Computers |
| Maximum resolution | 4K120Hz | 4K30Hz | 4K60Hz | 4K60Hz | 8K60Hz | 4K60Hz | 8K60Hz |
| Features | 2 PC share 2 monitor | 2 PC share 2 monitor | 3 PC share 2 monitor | 2 PC share 2 monitor | 2 PC share 3 monitor | 3 PC share 2 monitor | 3 PC share 3 monitor |
| Wired Controller & IR Remote | Wired Controller | Wired Controller | IR Remote | Wired Controller | Wired Controller | IR Remote | IR Remote |
| EDID Simulation | ✘ | ✘ | ✔ | ✘ | ✘ | ✘ | ✘ |
| Plug and Play | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| 12V (Includ) | 5V(Self-purchase) | 12V (Includ) | 12V (Includ) | 12V (Includ) | 12V (Includ) | 12V (Includ) |
