Portkeys HS8 Camera Field Monitor 8″ 1100nit Brightness Dual

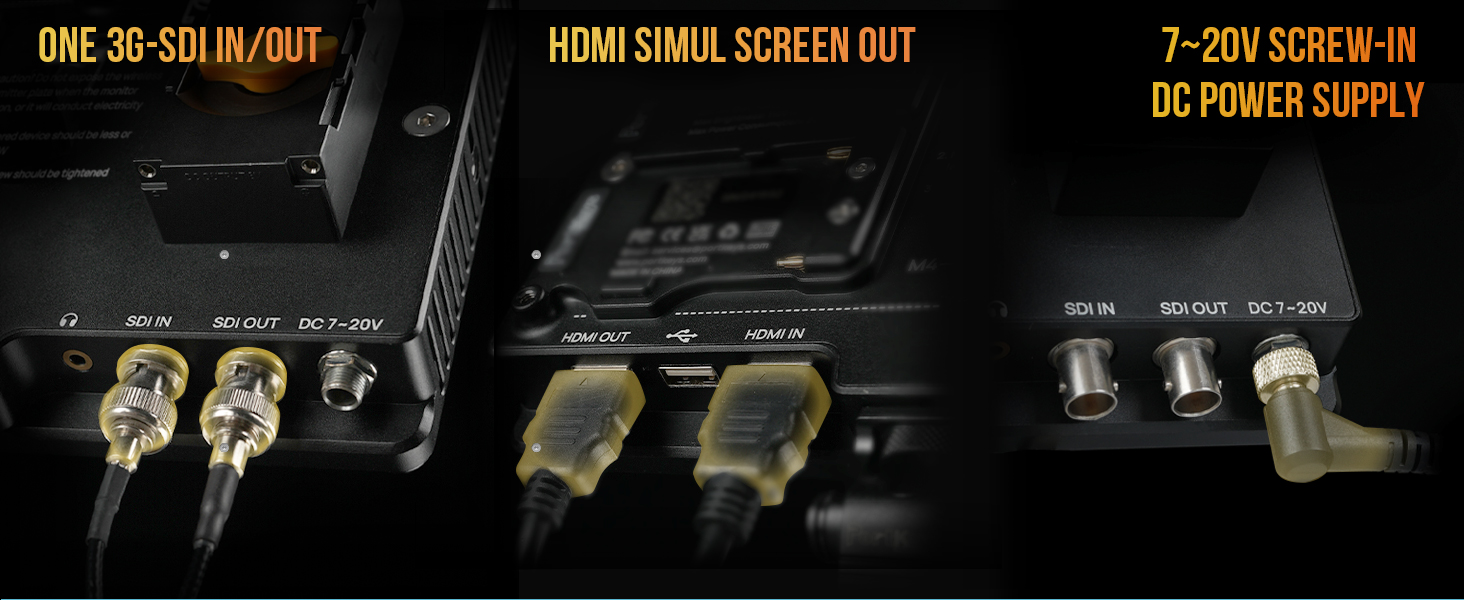

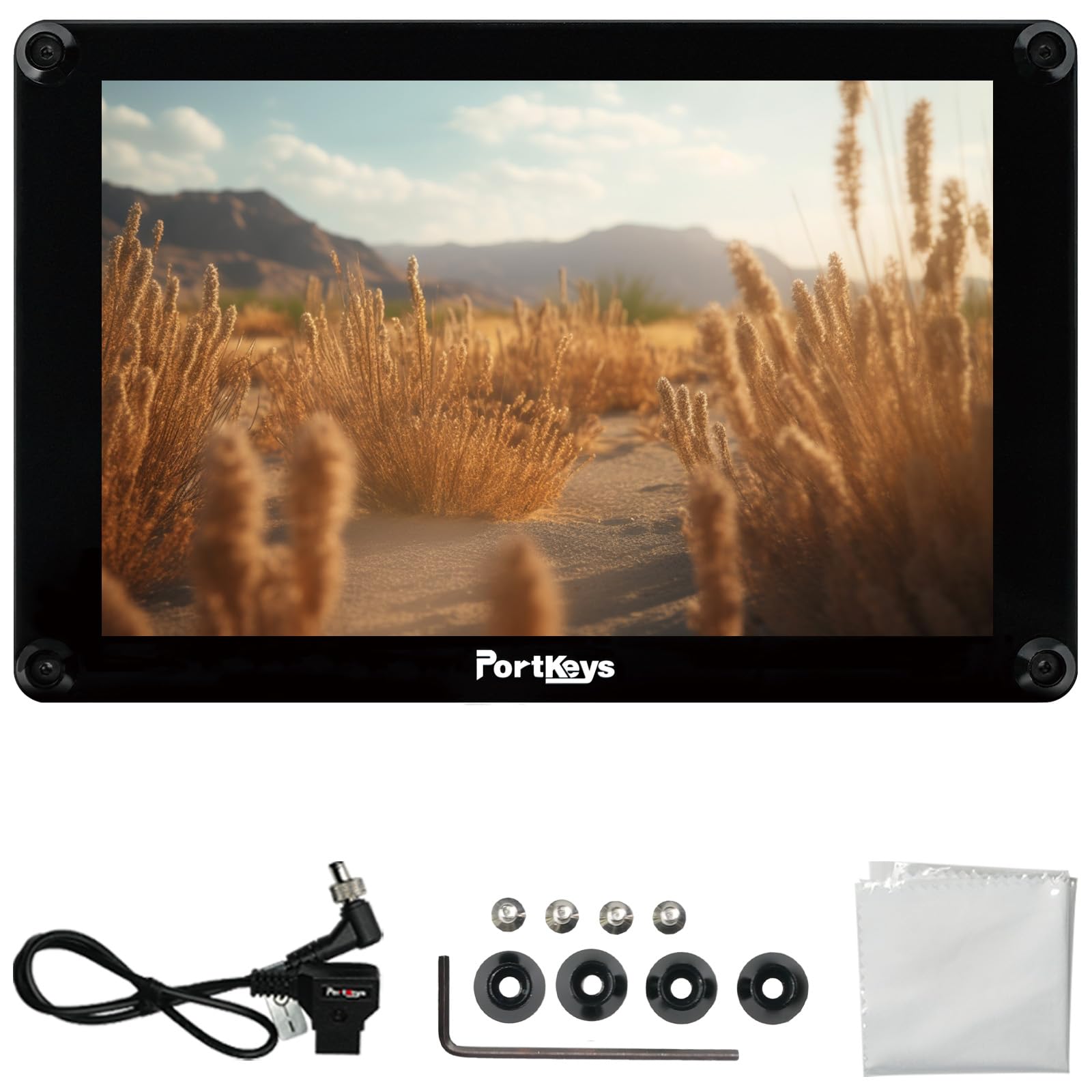

Portkeys HS8 Camera Field Monitor 8″ 1100nit Brightness Dual NP-F Battery Plates 3D LUT 4K HDMI Input 3G SDI in/Out Aluminum Housing, VESA 100 x 100 Mounting Points

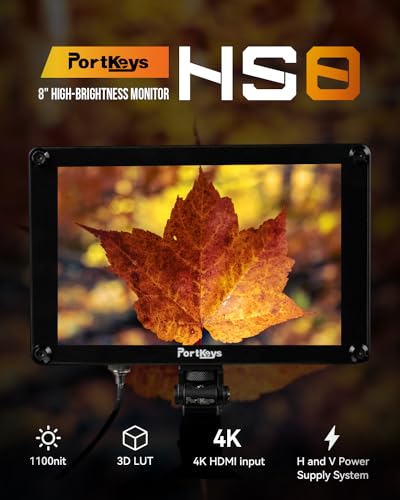

- 1100nits brightness in maximum, 8 inch 10-bit (8+2 FRC) panel with a resolution of 1920*1200, 1000:1 contrast ratio.

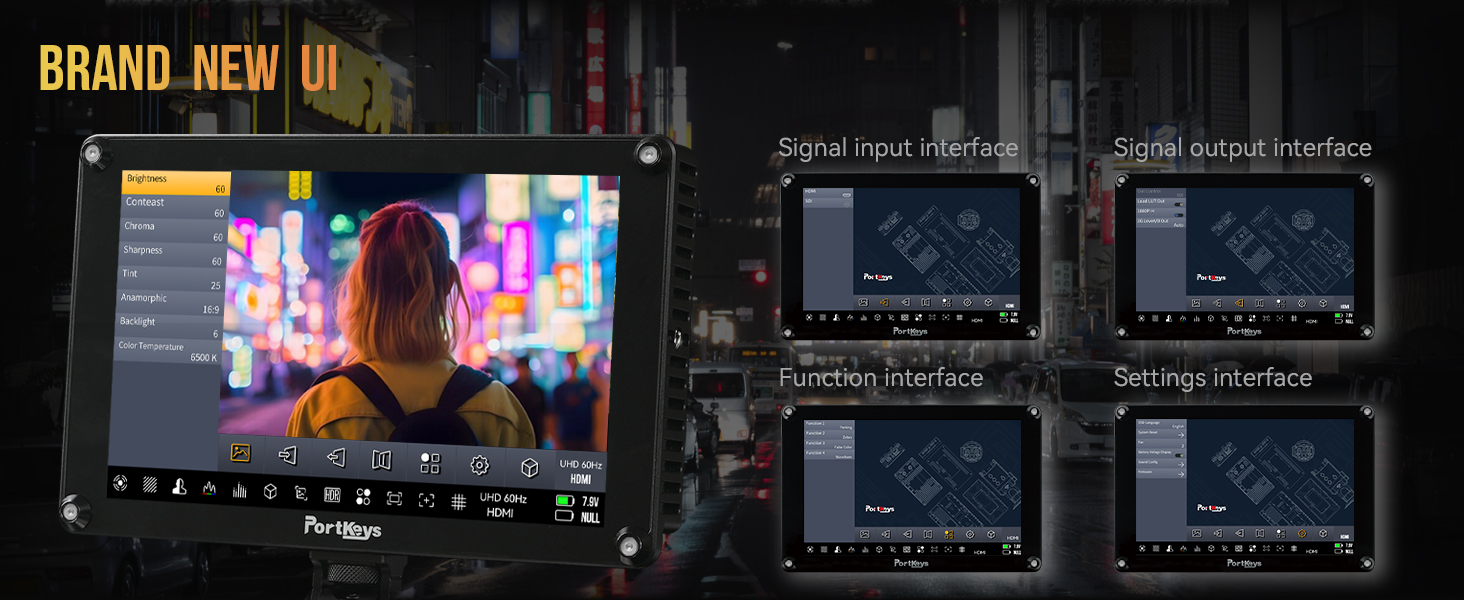

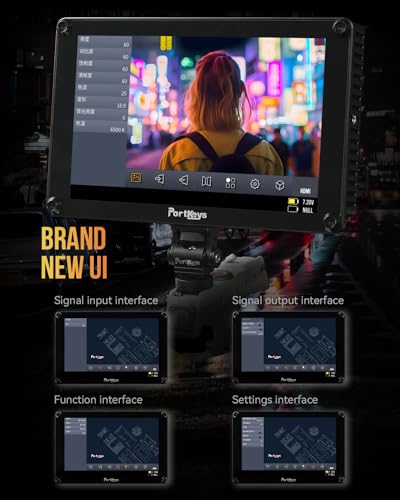

- Custom Operating System. Professional monitoring tools: Waveform, Histogram, Zebra, Peaking, False Color, Anamorphic image de-squeeze, Audio Meters.

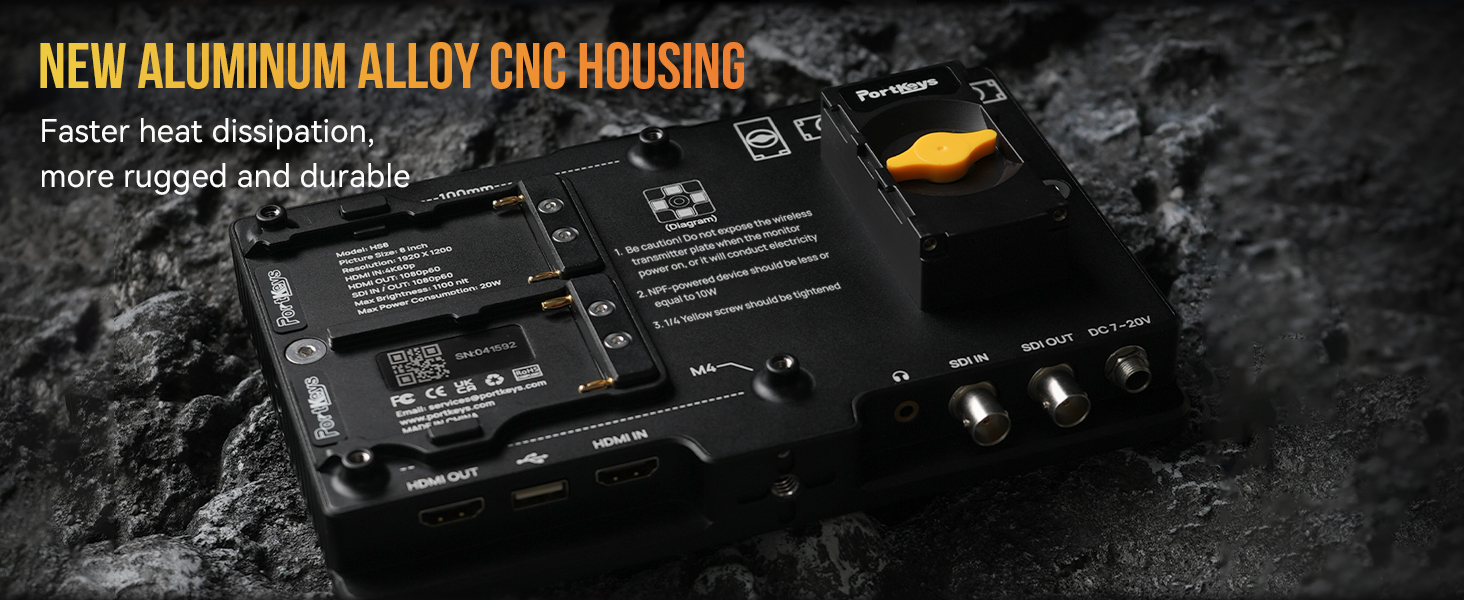

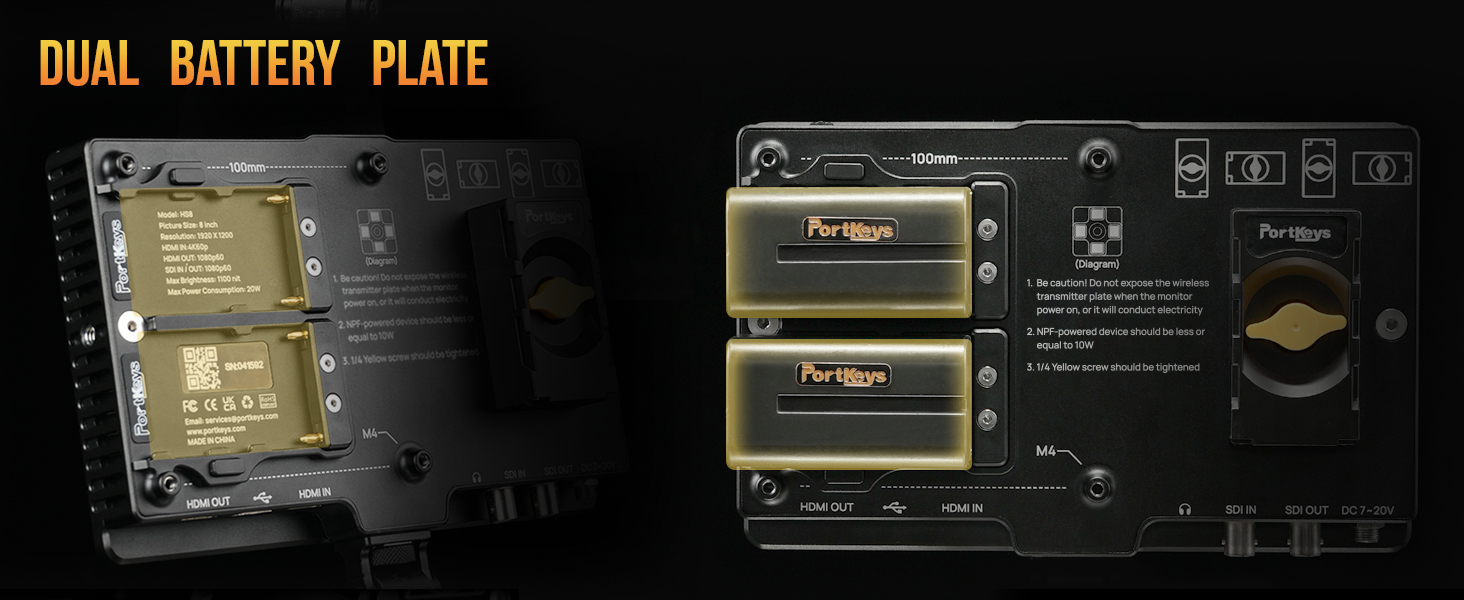

- Rugged all-aluminum housing, only 675g/1.48 lbs. Built-in dual Sony NP-F style battery plates.

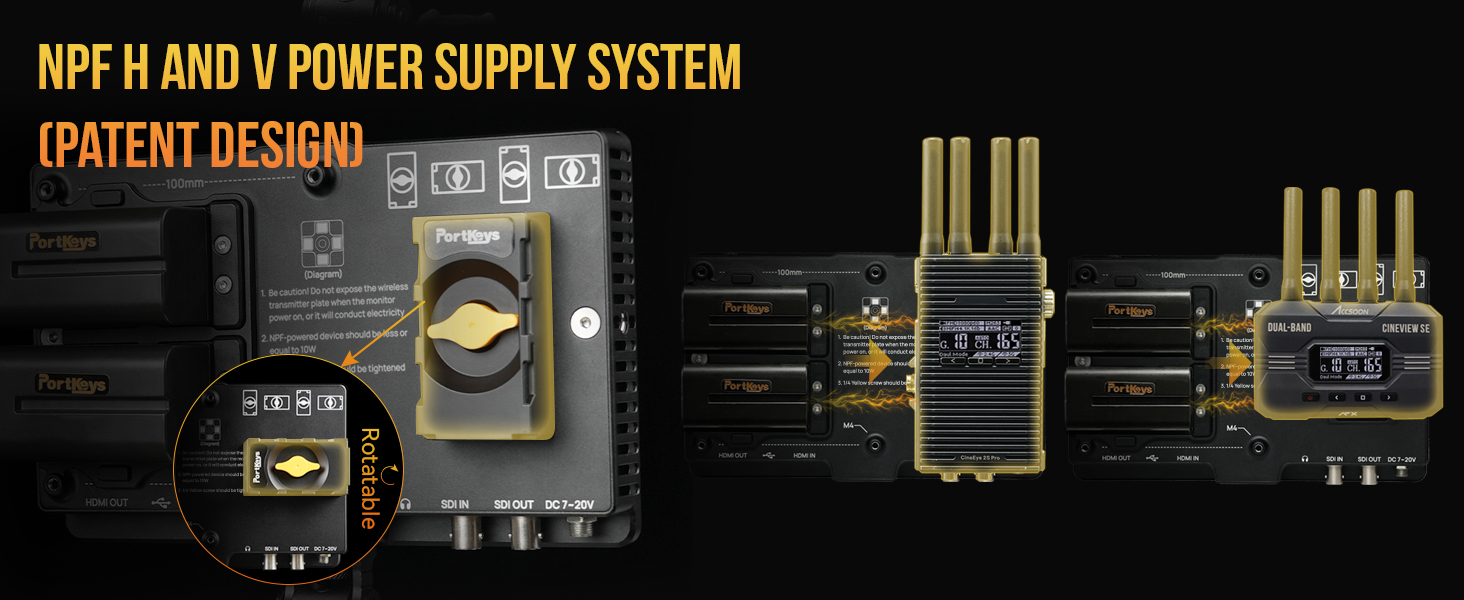

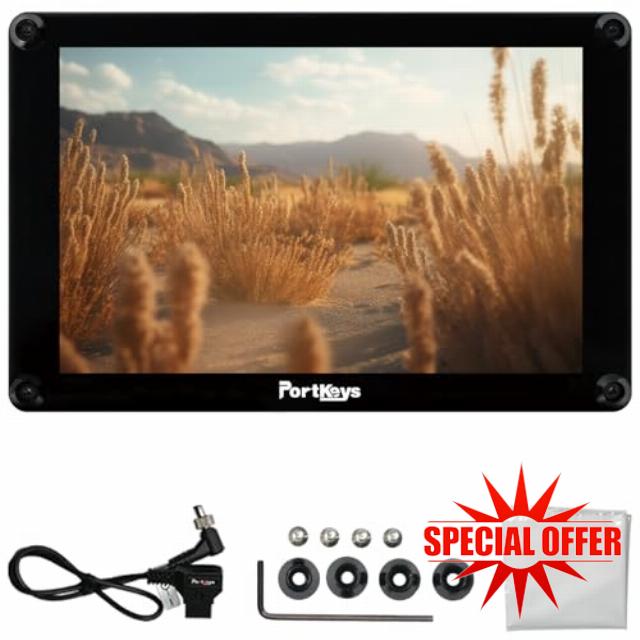

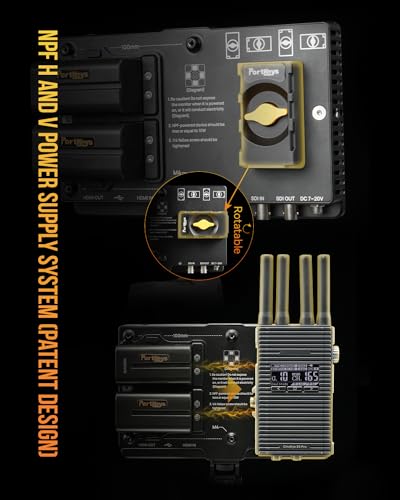

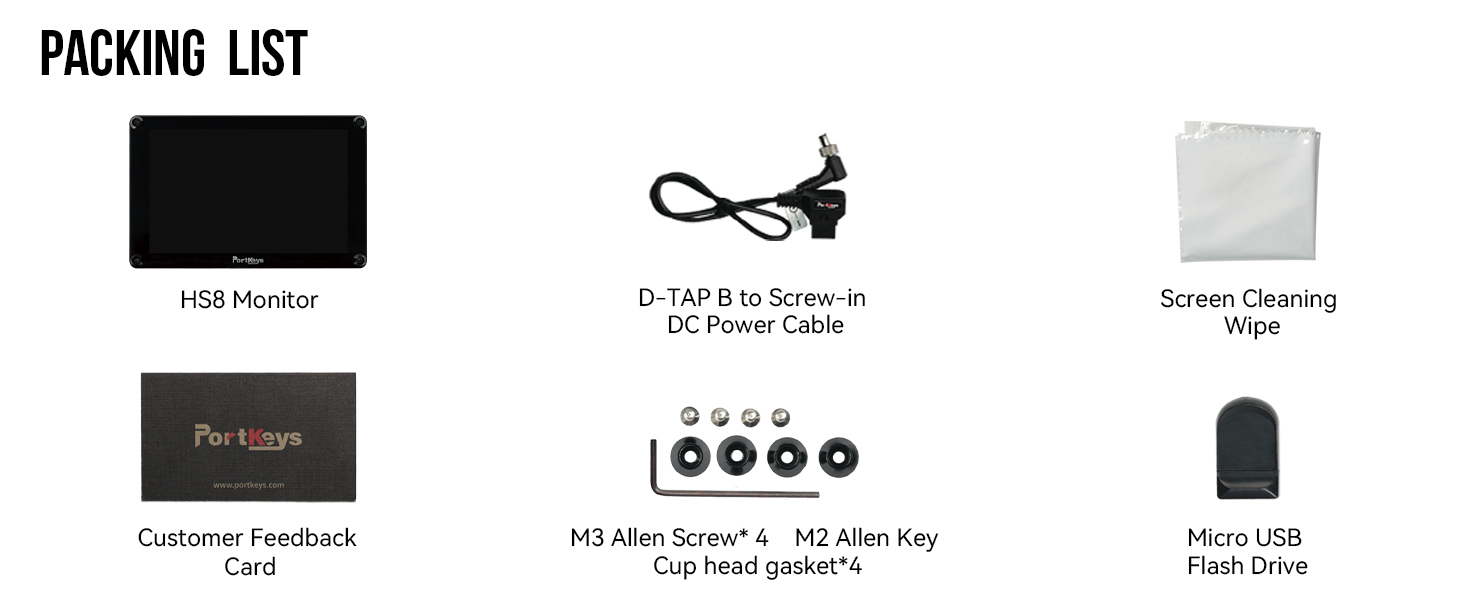

- DC 7-20V 5.5mm barrel connector power input for external power (D-Tap cable included). VESA 100 x 100 mounting points for V-Mount/Gold-Mount batteries. Built-in Sony NP-F dummy battery plate with power passthrough(8V/10W) to attach and power a wireless transmitter at the back of the HS8.

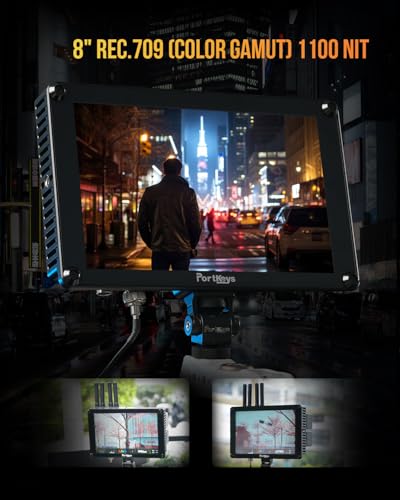

- Rec.709 professional color calibration, precise & accurate monitoring with no color banding.
| SKU: | B0D176SDWM |
| Weight: | 1.48 pounds |
| Dimensions: | 8.27 x 2.17 x 5.31 inches |
| Model: | HS8 |
| Manufacture: | Portkeys |
| Origin: | China |
Product Description
Previous page
Portkeys Camera Field Monitor
 HS8 |  PT5 II |  PT6 |  LH5P II |  LH7P |  LH7H |  BM7 II DS | |
| Customer Reviews | — | 4.0 out of 5 stars 194 | 4.4 out of 5 stars 358 | 4.0 out of 5 stars 146 | 3.7 out of 5 stars 14 | 4.5 out of 5 stars 15 | 4.2 out of 5 stars 76 |
| Price | $399.00 | $99.90 | $119.90 | $399.00 | $349.00 | $249.00 | $899.00 |
| Screen Size | 8″ | 5″ | 5.2″ | 5.5″ | 7″ | 7″ | 7″ |
| Dimension (mm) | 208*134*51 | 136*72*18 | 151*78*19 | 144*90*31 | 176*104*19 | 176*104*19 | 180*107*31 |
| Camera Control | None | None | None | Wired/Wireless | Wireless | None | Wired/Wireless |
| Brightness | 1100 nit | 500 nit | 600 nit | 2200 nit | 1000 nit | 1000 nit | 2200 nit |
| Resolution | 1920*1200 | 1920*1080 | 1920*1080 | 1920*1080 | 1920*1080 | 1920*1080 | 1920*1080 |
| Contrast Ratio | 1000:1 | 1000:1 | 1500:1 | 1000:1 | 1000:1 | 1000:1 | 1000:1 |
| Item Weight | 675g | 150g | 170g | 285g | 245g | 245g | 460g |
| Color Depth | 10bit (8+2FRC) | 10bit (8+2FRC) | 10bit (8+2FRC) | 10bit (8+2FRC) | 10bit (8+2FRC) | 10bit (8+2FRC) | 10bit (8+2FRC) |
| Input Voltage | 7~20V | 7~24V | 7~24V | 7~24V | 7~24V | 7~24V | 7~24V |
| Maximum Power | 20W | 7W | 6W | 13W | 9W | 9W | 15W |
| Signal Input | 3G-SDI, 4K 60p HDMI | 4K 30p HDMI | 4K 30p HDMI | 4K HDMI | 4K 30p HDMI | 4K 30p HDMI | 3G-SDI*2, HDMI |
| Signal Output | 3G-SDI, HDMI | 4K 30p HDMI | 1080p60 HDMI | 4K HDMI | 1080p60 HDMI | 1080p60 HDMI | 3G-SDI, HDMI |
