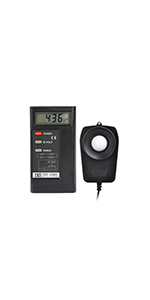

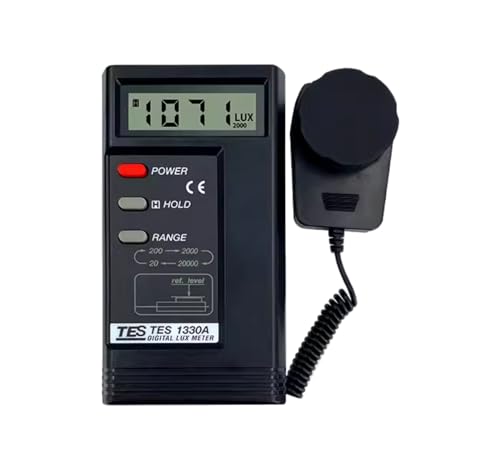

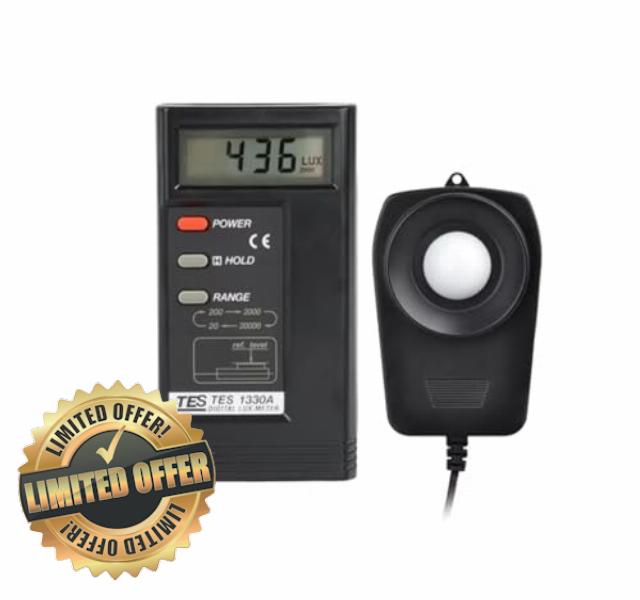

TES-1330A Light Meter TES1330A Digital Lux Meter
TES-1330A Light Meter TES1330A Digital Lux Meter 20/200/2000/20000 Lux
- Measuring Levels Ranging 20/200/2000/20000 Lux
- Accurate and Instant response
- Data Hold function
- Spectral Sensitivity close to CIE photopic Curve
- Cosine Angular corrected
Product Description
Product Features of TES-1330A / TES-1332A / TES-1334A Light Meter
- Measuring Levels Ranging 0.01 Lux to 200,000 Lux
- Accurate and Instant response
- Data Hold function
- Spectral Sensitivity close to CIE photopic Curve
- Cosine Angular corrected
- Analog output jack for recording (TES- 1332A/1334A)
- Peak Hold function for 1334A
Technical Specifications
| Display | 3 1/2 digit LCD |
| Measuring Range | 20/200/2000/20000 Lux (1330A, also Footcandle for 1334A) | 200/2000/20000/200000 Lux (1332A) | 1 Footcandle = 10.76 Lux, 1 Lux = 0.0929 Footcandle |
| Overrange Display | Highest digit of (1) is displayed. |
| Resolution | 0.01 Lux (1330A, 1334A) & 0.1 Lux (1332A) |
| Accuracy | ±3% rdg ±0.5% f.s. (<10,000 Lux) | ±4% rdg ±10 dgt (>10,000 Lux) | (Calibrated to standard incandescent lamp, 2856°Κ) |
| Spectral Response | CIE Photopic. (CIE human eye response curve). |
| Spectral Accuracy | CIE Vλ function f ’1 ≦6% |
| Cosine Response | f ’2 ≦2% |
| Repeatability | ±2% |
| Temperature Characteristics | ±0.1%/°C |
| Measuring Rate | Approximately 2.0 time/sec |
| Photosensor | Silicon photodiodes |
| Operating Temp. & Humidity | 0°C~40°C(32°F~104°F) 0~70% RH |
| Power Source | One 9 Volt battery, NEDA 1604, JIS 006P or IEC 6F22 |
| Battery Life (typical) | 200 hours (Alkaline Battery) |
| Photosensor | Lead Length: 150 cm (approx.) |
| Photosensor Dimensions | 100(L)×60(W)×27(H)mm (3.94”(L)×2.36(W)×1.06(H)) |
| Dimension | 135(L)×72(W)×33(H)mm (5.31”(L)×2.83”(W)×1.3”(H)) |
| Weight | 250g (8.8 oz) |

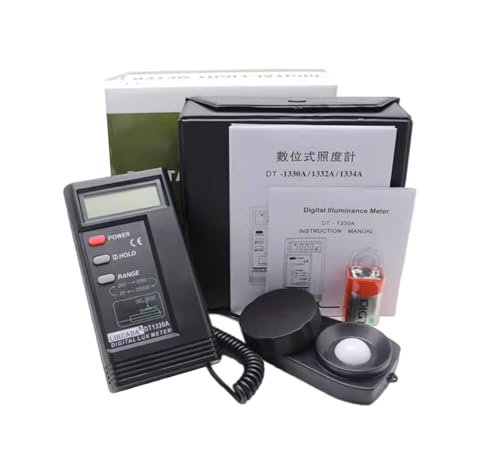

| Accessories | Carrying case, Instruction manual, battery |
