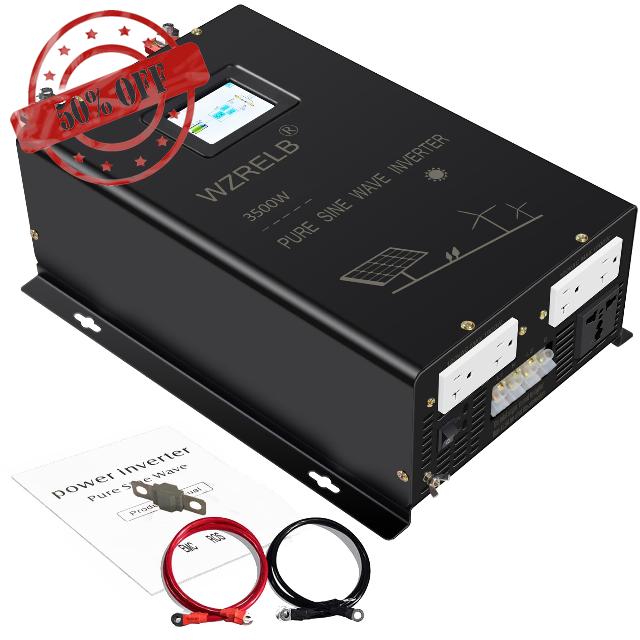

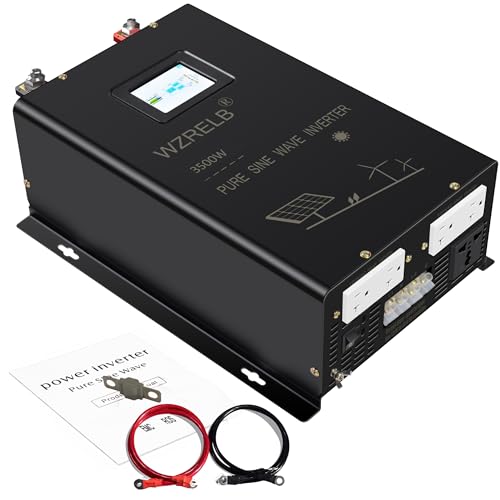

Split Phase Power Inverter 3500W 36V Pure Sine Wave Inverter,Peak 7KW, 36VDC to 120V/240VAC,High Efficiency up to 91.6%,LCD Display, high Frequency Inverter for Off Grid System

• POWERFUL: 3500 watts continuous, 7000 watts peak power, 36 volt DC to 120V 240V AC split phase true sine wave off grid inverter, built-in soft starter, high frequency design with high surge capability to power demanding loads like air conditioner, refrigerator, power tools, and more

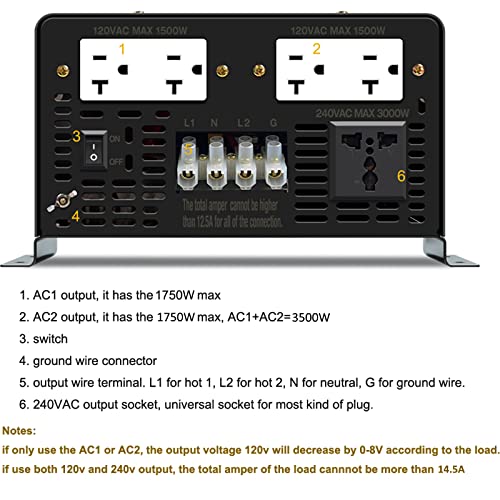

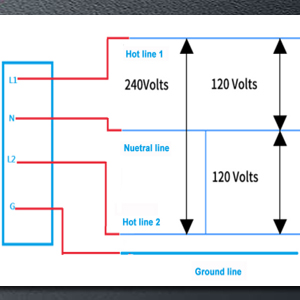

• FEATURES: 2pcs dual 120V outlets with max 1750W each, 1* heavy-duty 240VAC Universal plug with 3500W max and a hardwire terminal(4-wire) with Multi-mode (L1+L2=240V, L1+N=120V, L2+N=120V ),support 120VAC and 240VAC output at the same time,up to 91.6% efficiency
• INTELLIGENT CONTROL: LCD display monitors battery status, working temperature, 120V 240V output voltage status, effective feedback battery, inverter, load working status
• PROTECTIONS: Temperature-controlled cooling fan, low and high voltage alarmutdown,multi-protections against overload, short circuit, over temperature, high voltage, low voltage, internally fused, battery reverse etc
• APPLICATIONS: a must for off-grid live and Power Failure Emergency , compatible with AGM, gel, flooded, lead-acid and lithium-ion batteries, , ideal for home, cabin, mobile business, RV, trailer, semi-truck, boat, and more

Split Phase Power Inverter 3500W 36V Pure Sine Wave Inverter ,Peak 7KW, 36VDC to 120V/240VAC , ,High Efficiency up to 91.6% ,LCD Display, high Frequency inverter for Off Grid System

---

From the manufacturer

Inverter Specification

Rated Continuous power	3500W
Surge output power	7000W
Standby input power	<40W
DC Input Voltage	36V
DC input voltage range	30-45VDC
High battery shut down	45.5V
Low voltage shut down	29.5V-31.5V

AC output voltage (nominal)	120VAC and 240VAC
AC output frequency	60Hz
AC output waveform	Pure sine wave
Conversion efficiency	≧91.6%
Ambient operating temperature	32℉-104℉/0℃-70℃
Cooling method	Intelligent temperature controlled fan or the load power reaches to the half of the inverter power

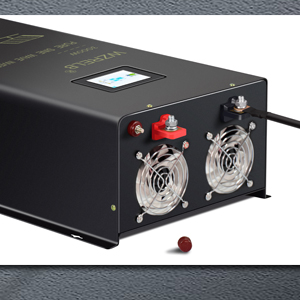

Step 1: Connect Negative Cable

Notice: Connecting cable to battery first! After connecting cable to battery, please connect the other end of black cable to the negative terminal on the DC input side of inverter

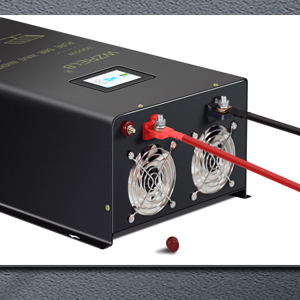

Step 2: Contacting Spark-Proof Terminal

Notice: Connect cable to battery first! Please contact the other side of red cable to the Spark-Proof terminal and wait for 3-5 seconds

Step 1: Connect Negative Cable

Please Connect the red cable to the positive terminal on the DC input side of this inverter to finish wiring
