E1840P Sloppy Stgae 2 Camshaft Cam Springs Seals for 4.8 5.3
E1840P Sloppy Stgae 2 Camshaft Cam Springs Seals for 4.8 5.3 5.7 6.0L LS LS1 LS2 LQ4 LQ9 Engine
- ✅【PACKAGE INCLUDE】Camshaft kit include 1 x stage 2 camshaft, 16 x beehive springs and 16 x valve seals
- ✅【FITMENT】Sloppy stage 2 cam kit fit for 1997-2007 GM Chevy LS L92 L99 5.3L 5.7L 6.0L 6.2L V8
- ✅【CAM SPECS】E1840P engine camshaft: engine type: ls-series∣camshaft type: hydraulic roller∣intake duration: @ .050": 228°∣exhaust duration: @ .050": 230°∣intake valve lift: .585"∣exhaust valve lift: .585"∣lobe separation: 112°∣intake centerline: 108°∣advertised intake duration: 283°∣advertised exhaust duration: 286°
- ✅【SPRING SPECS】1218 drop-in valve springs: outside diameter of outer spring (in): 1.290 in∣coil bind height (in): 1.140 in∣damper spring included: no∣install load: 130lbs∣install height: 1.800"∣open height: 1.175"∣open load: 318 lbs∣spring rate (lbs/in): 313 lbs./in∣inside diameter of outer spring (in): 0.885 in
- ❤️【BUY WITH CONFIDENCE】SUSUCAR offers a 1-year warranty, during the warranty period, if there is any problem with the product you purchased, we will be happy to exchange or refund your money
E1840P camshaft kit fit for 1997-2007 GM Chevy LS L92 L99 5.3L 5.7L 6.0L 6.2L V8 LSx Sloppy Stage 2

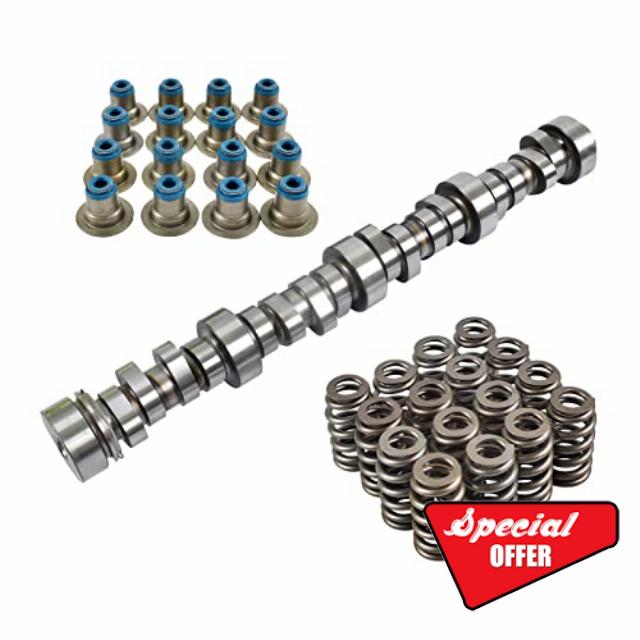

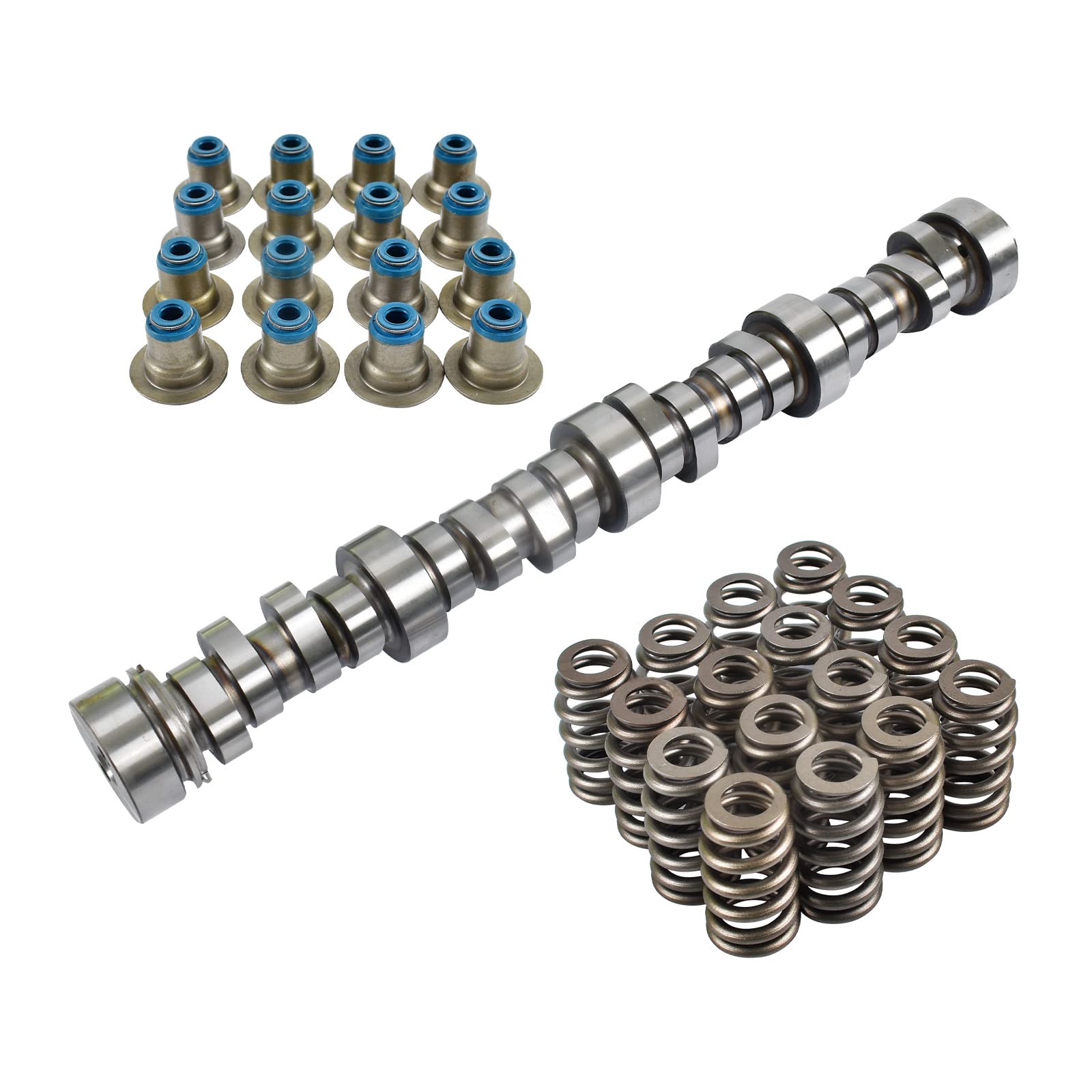

Sloppy Stgae 2 Camshaft Kit Include:
1 x e1840p camshaft
16 x valve springs
16 x valve seals

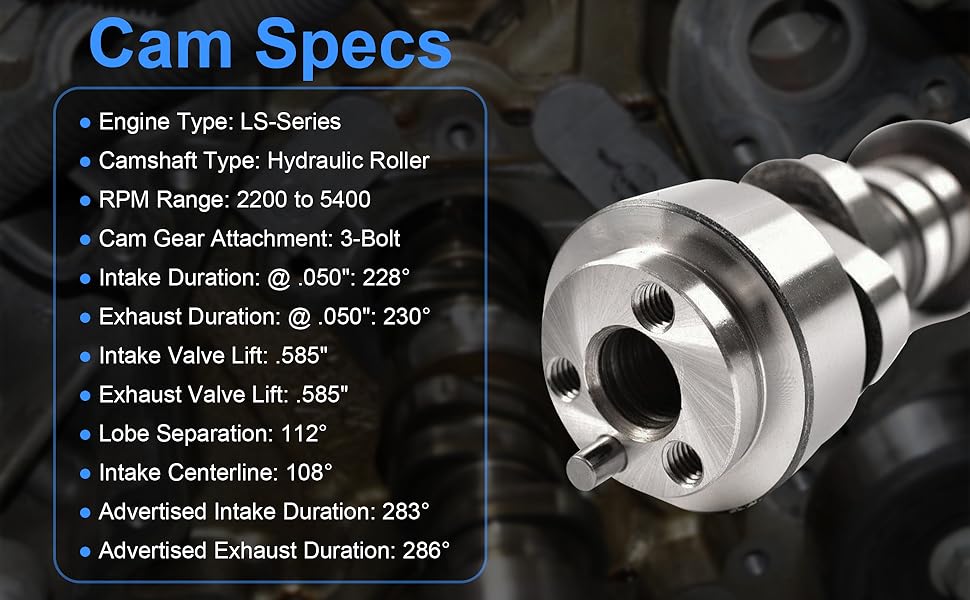

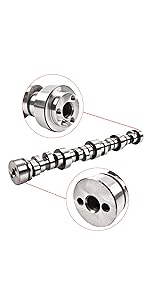

Cam Specs:
- Engine Type: LS-Series
- Camshaft Type: Hydraulic Roller
- RPM Range: 2200 to 5400
- Cam Gear Attachment: 3-Bolt
- Intake Duration: @ .050": 228°
- Exhaust Duration: @ .050": 230°
- Intake Valve Lift: .585"
- Exhaust Valve Lift: .585"
- Lobe Separation: 112°
- Intake Centerline: 108°
- Advertised Intake Duration: 283°
- Advertised Exhaust Duration: 286°

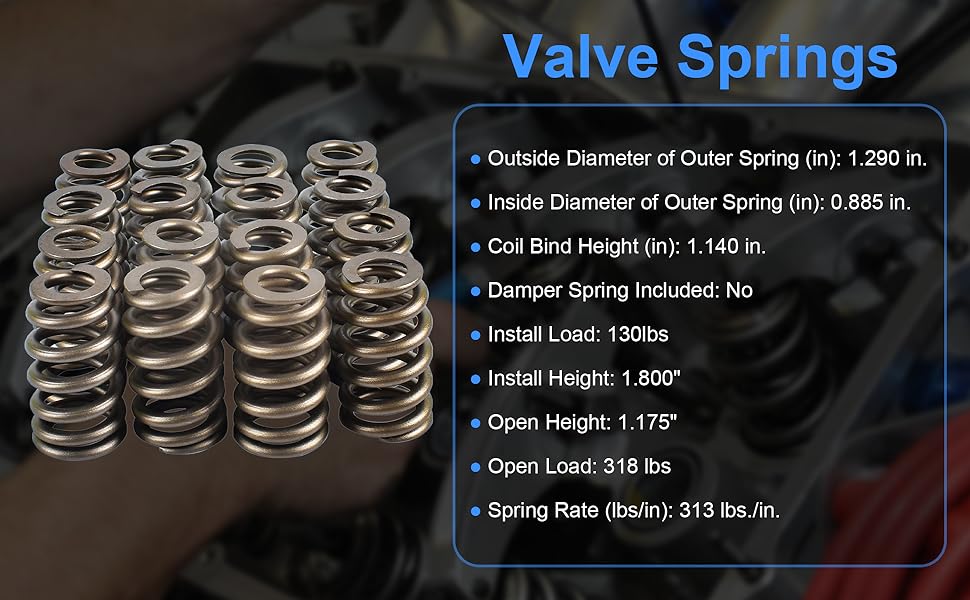

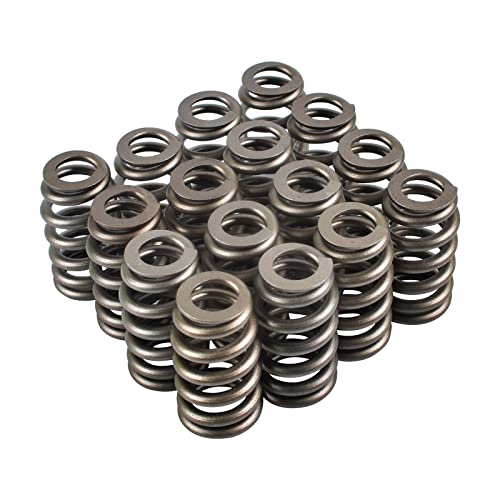

1218 Drop-In Valve Springs:
- Outside Diameter of Outer Spring (in): 1.290 in.
- Coil Bind Height (in): 1.140 in.
- Damper Spring Included: No
- Install Load: 130lbs
- Install Height: 1.800"
- Open Height: 1.175"
- Open Load: 318 lbs
- Spring Rate (lbs/in): 313 lbs./in.
- Inside Diameter of Outer Spring (in): 0.885 in.
| 4.5 out of 5 stars17 | 3.8 out of 5 stars17 | 5.0 out of 5 stars2 | — | 4.4 out of 5 stars8 |
| ✓ | ✓ | ✓ | ✓ | ✓ |
| ✓ | ✓ | ✓ | ||
| ✓ | ✓ | ✓ | ✓ | |
| ✓ | ✓ | |||
| ✓ | ||||
| ✓ | ✓ |
| SKU: | B0D1R7J2P8 |
| Weight: | 14.67 pounds |
| Dimensions: | 23.9 x 11.4 x 5.6 inches |
| Brand: | SUSUCAR |
| Model: | 1840-1218-seal |
| Manufacture: | SUSUCAR |
Product Description
1218 Drop-In Valve Springs:
- Outside Diameter of Outer Spring (in): 1.290 in.
- Coil Bind Height (in): 1.140 in.
- Damper Spring Included: No
- Install Load: 130lbs
- Install Height: 1.800″
- Open Height: 1.175″
- Open Load: 318 lbs
- Spring Rate (lbs/in): 313 lbs./in.
- Inside Diameter of Outer Spring (in): 0.885 in.
 |  |  |  |  | |
|---|---|---|---|---|---|
| E1840P Sloppy Stage 2 Camshaft | E1840P Sloppy Stage 2 Camshaft Kit | E1840P Sloppy Stage 2 Camshaft Kit | E1840P Sloppy Stage 2 Camshaft Kit | E1840P Sloppy Stage 2 Camshaft Kit | |
| Customer Reviews | 4.5 out of 5 stars 17 | 3.8 out of 5 stars 17 | 5.0 out of 5 stars 2 | — | 4.4 out of 5 stars 8 |
| Include Camshaft | ✓ | ✓ | ✓ | ✓ | ✓ |

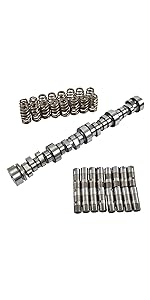

| Include Lifters | ✓ | ✓ | ✓ | ||
| Include Springs | ✓ | ✓ | ✓ | ✓ | |
| Include Seals | ✓ | ✓ | |||
| Include Pushrods | ✓ | ||||

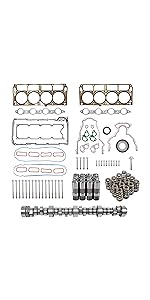

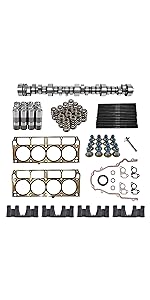

| Include Head Gasket Set | ✓ | ✓ |
