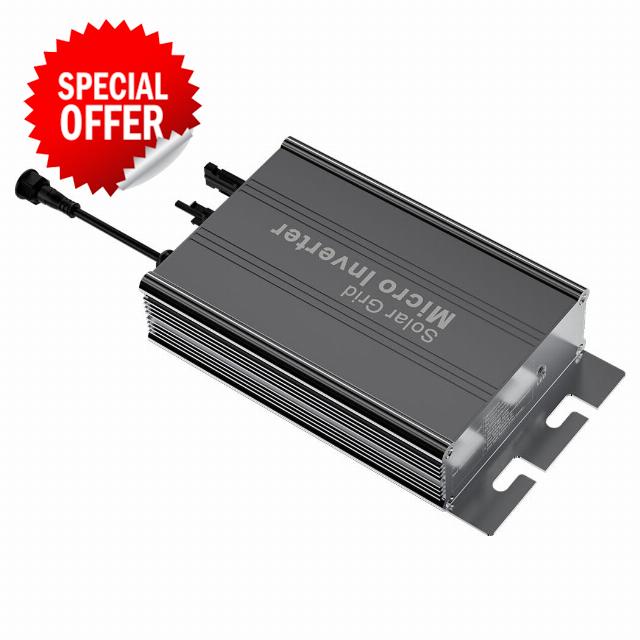

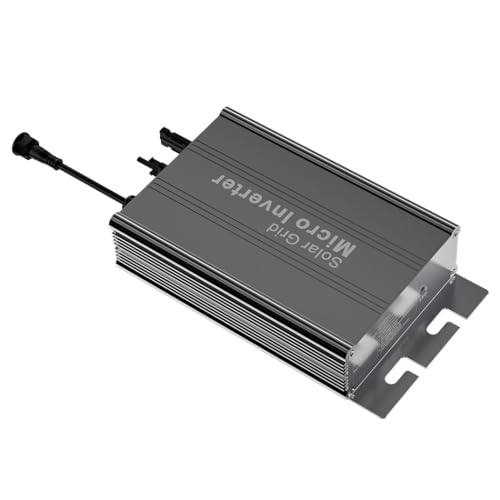

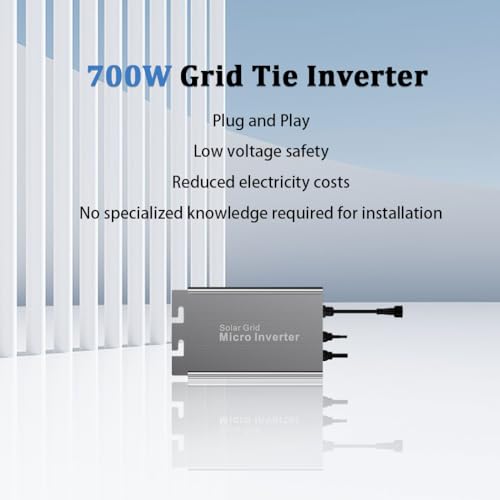

Y&H 700W Grid Tie Micro Inverter Auto AC110V/220V Output
Y&H 700W Grid Tie Micro Inverter Auto AC110V/220V Output, DC26-46V PV Input, MPPT Pure Sine Wave, Suitable for 36V Solar Panel, Ideal for Small Home Solar Power System
The MPPT range of the Grid Tie Inverter is 24-40V, and the solar panel power should not exceed 700W. Its rated output power is 650W.

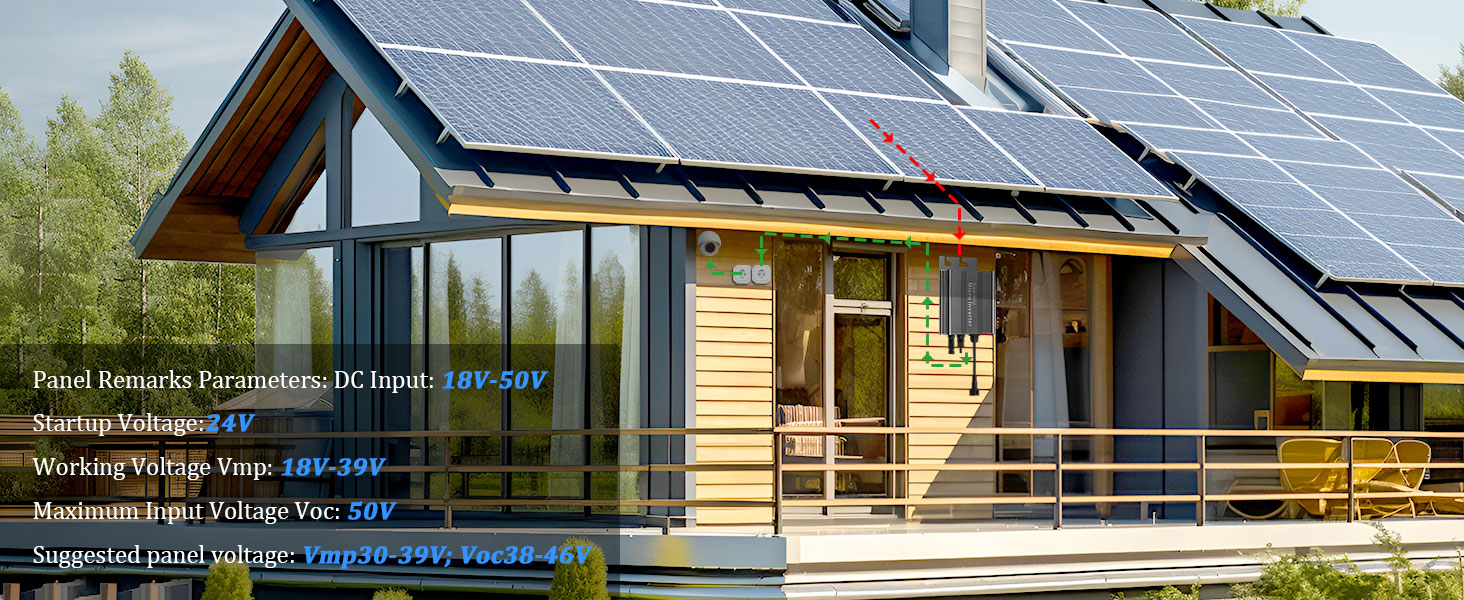

For optimal output efficiency, the operating voltage Vmp (of a solar panel) must fall within the Inverter's MPPT range. We recommend Solar Panel Voltage: Vmp30-39V; Voc38-46V.
The Grid Tie Solar Inverter accommodates PV Panel Voltage: Vmp30-39V; Voc38-46V.
Please note that the power of the solar panel should not exceed 700W.
This Micro Grid Tie Inverter Doesn't work with battery.Only use solar panels as a DC power source. Package Include:1XGrid Tie Inverter.1xAC Cable.

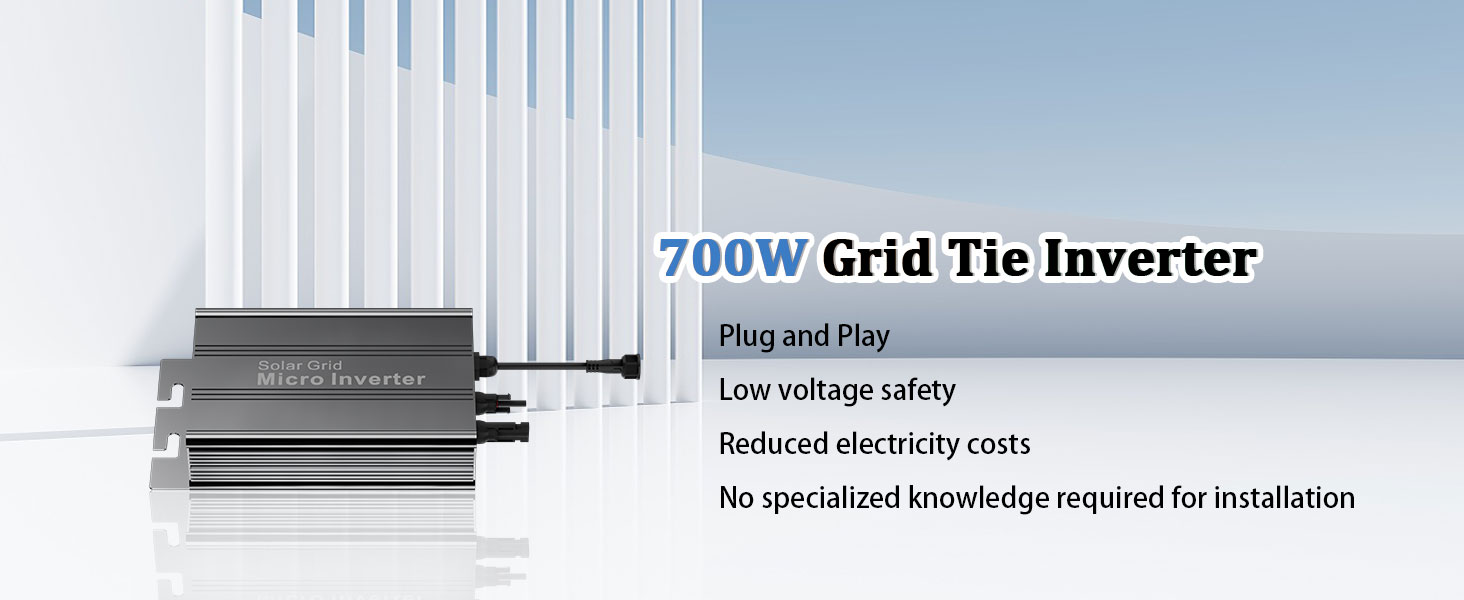

Our 700W Grid Tie Inverter is a compact, efficient unit that converts direct current into alternating current for powering appliances or office equipment, and for connection to the utility grid. The Smart Micro Inverter ensures that its AC output is synchronized and in-phase with the utility grid.
This 700W Micro Grid Tie inverter is a compact unit, which directly converts direct current into alternating current for powering appliances and/or office equipments and connecting to utility grid.
The AC output from Smart Micro inverter is synchronized and in-phase with the utility grid.
User notice:
Use solar panel ONLY connect to this equipment, This equipment is ON-GRID Microinverter,To make it work properly,it must be connected to the power grid correctly,
and the power grid is working properly,When the power grid stopped working,it will also stop generating
Do NOT exceed PV panel(s) voltage over the inverter max input voltage.(Voc＜50V)
Do NOT exceed PV panel(s) power over the inverter max input power.（700W）
The positive and negative poles of the solar panel cannot be reversed.
If you extend the solar panel cable.You need to be careful about this problem
Install away from direct sunlight and direct rain exposure(Ventilated,dry,cool)
