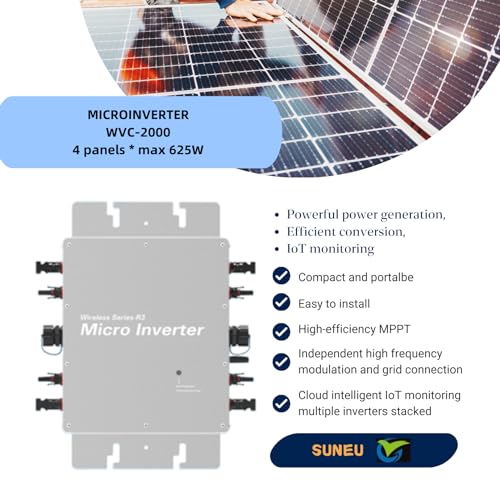

SUNEU 2000W Microinverter, Solar Inverter, Grid Tie, Plug and Play, Peak Output Power 2200W, Recommend use: 4 * 625Watt, Solar Panels

• EASY INSTALLATION: The weight of the microinverter is light, and it can be installed directly behind the module or on a bracket, so maintenance is easy. PURE POSITIVE SINE WAVE: The product uses SPWM to generate a pure positive sine wave with good waveform directly, low distortion, and low noise, making the radio and other communication devices work well.
• POWERFUL MPPT ALGORITHM: The product's built-in MPPT (Max. Power Point Tracking) optimizes power collection from the solar panel and precisely captures and accurately locks the maximum output power point to increase over 25% of the power generation significantly. The user can monitor the power generation efficiency of the power station with the monitoring system and then reduce workforce expenses.
• HIGH PERFORMANCE: The reverse power transmission technology transmits the power in the reverse direction in grid-connected output mode, and meanwhile, it detects the load automatically in the circuit and prioritizes its use so as to greatly improve transmission efficiency.
• HIGH PROTECTIVE AND RELIABLE: The product can independently control each component in parallel, minimizing potential hazards and preventing accidents. IP 65 waterproof design and aluminum alloy material can effectively prevent rainwater erosion on the surface, so can provide electrical isolation. It has many protection functions, such as over-current protection, short circuit protection, low-voltage protection, and high-voltage protection.
• RELIABLE CUSTOMER SERVICE: 36 months warranty is offered. For 90 days after the purchase date, Full Money Back with return shipping for the quality issues of the product. If you have any problems with the product, please feel free to contact us by email. We will get back to you as soon as possible (within 24 hours).

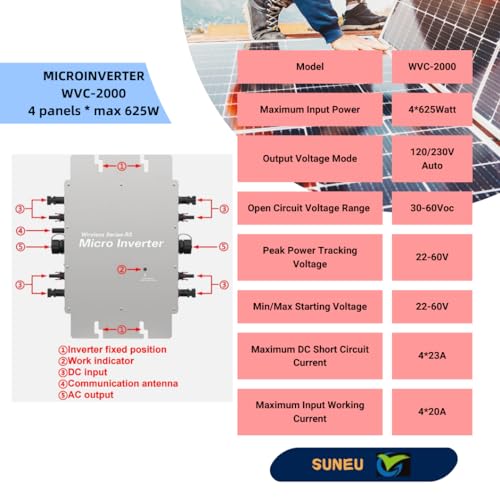

SPECIFICATION:
Item Type: Grid Tie Microinverter
Material: Aluminum Alloy
Model: 2000W
Maximum Input Power: 4*625Watt
Output Voltage Mode: 120/230V automatic adaptation solar panels
Open Circuit Voltage Range: 30-60Voc
Peak Power Tracking Voltage: 22-60V
Min/Max Starting Voltage: 22-60V
Maximum DC Short Circuit Current: 4*23A
Maximum Input Working Current: 4*20A
Operating Temperature Range: -20℃ to +50℃
Waterproof Grade: IP65 Nema4x
Heat Dissipation Mode: Self-cooling
Power Transmission Mode: Reverse transmission, load priority

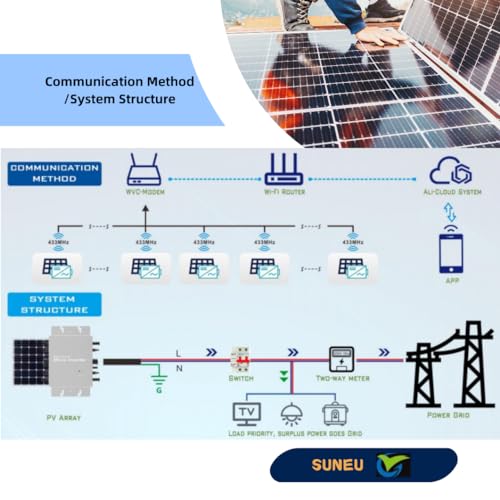

Communication Mode: 433MHz
Monitoring System: APP/PC
Product Size: L*W*H: 14.57*11.81*1.64 inches

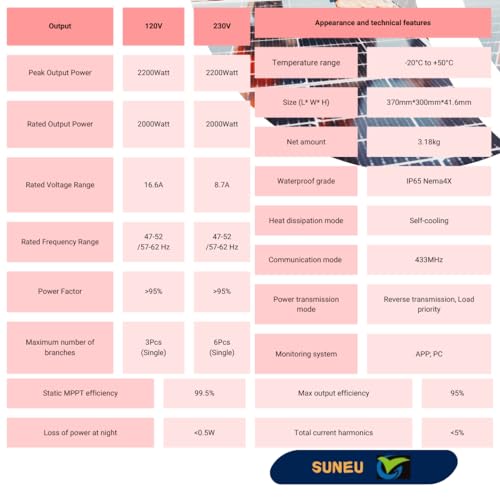

Output Parameter of 120V/230V:
Peak Output Power: 2200W
Rated Output Power: 2000W
Rated Output Current: 16.6A/8.7A
Rated Voltage Range: 85-160V/185-265V
Rated Frequency Range: 47-52Hz/57-62Hz; 47-52Hz/57-62Hz
Power Factor:>95%
Maximum number of branches: 3Pcs(Single) 6Pcs(Single)
Static MPPT Efficiency: 99.50%
Maximum Output Efficiency: 95%

PACKING LIST:

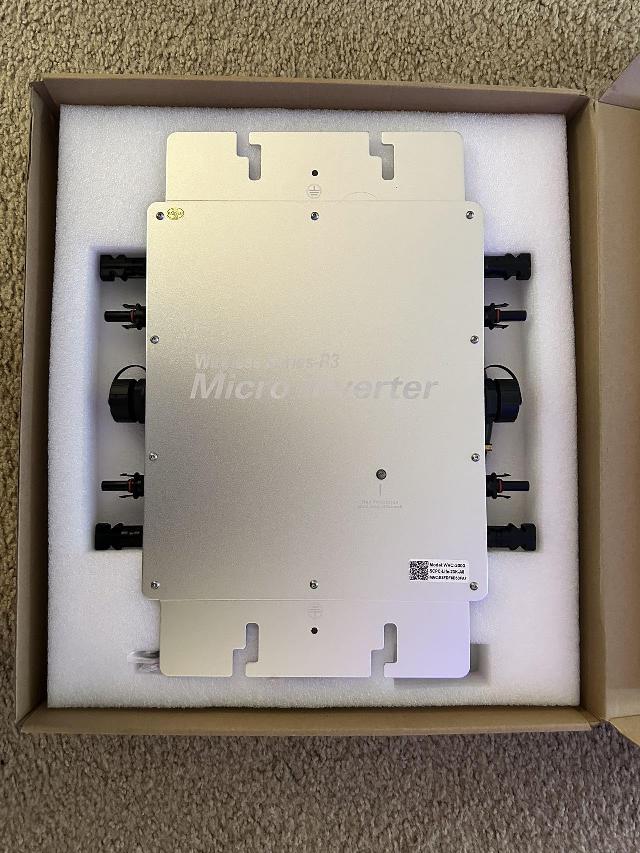

1*Microinverter
1*AC cable
1*Use Manual
1 pack of fixing screws

SERVICE: We are located in CA, USA and happy to offer best after-sale services for our valued customers.
