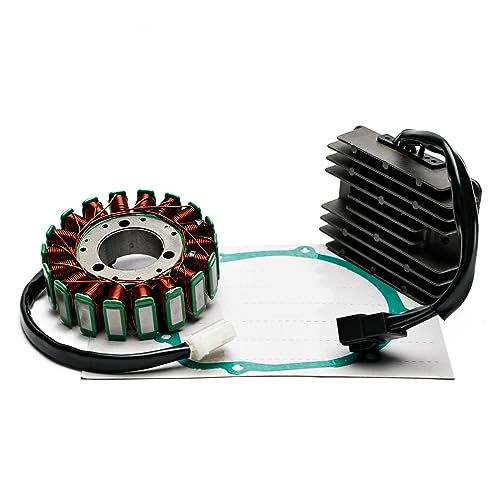

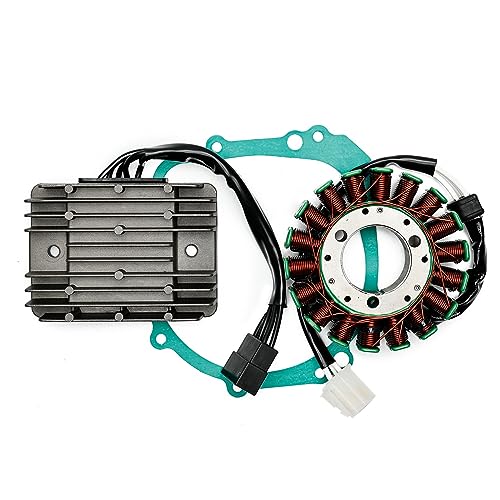

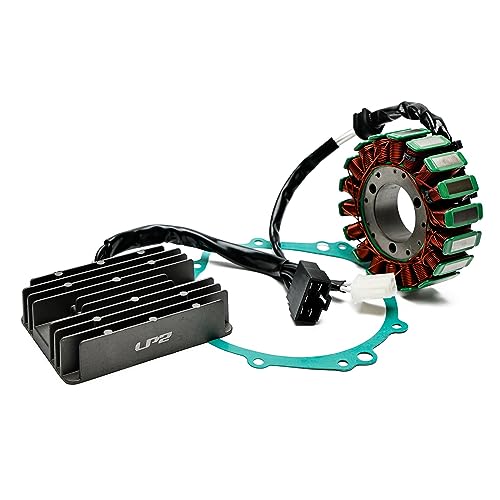

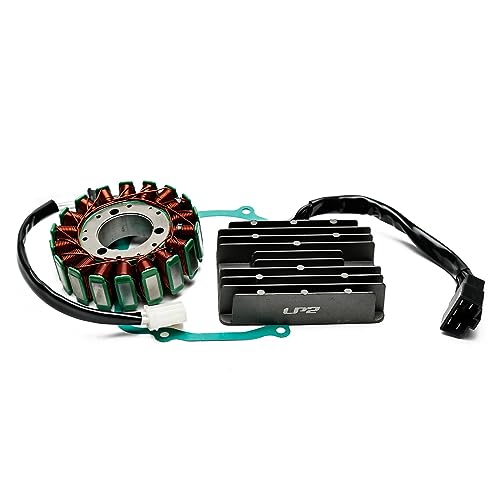

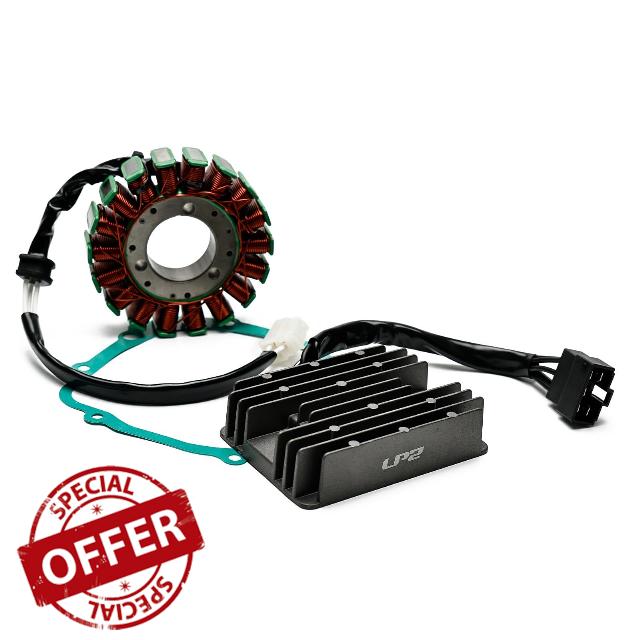

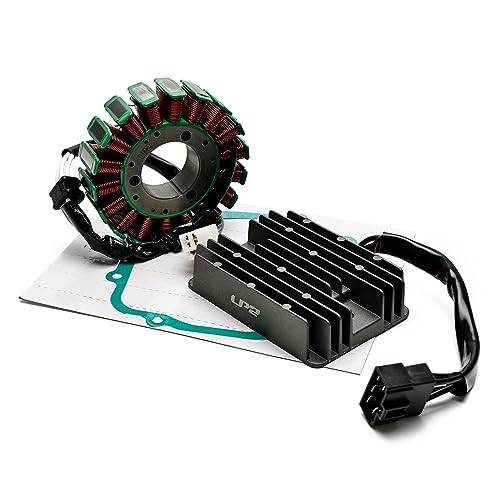

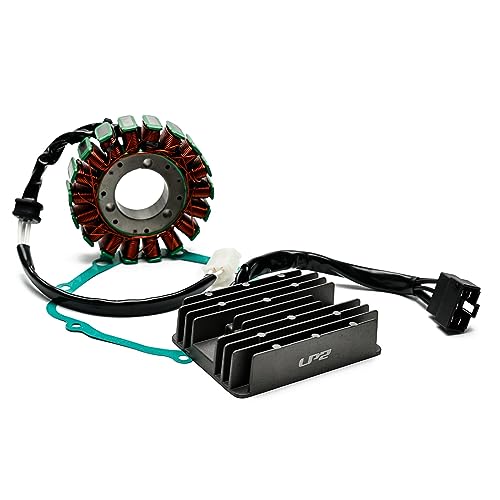

Magneto Coil Stator + Voltage Regulator + Gasket Assy For Suzuki GSXR GSX-R 600 750 1000 2001-2003

Magneto Coil Stator + Voltage Regulator + Gasket Assy For Suzuki GSXR GSX-R 600 750 1000 2001-2003

  • Made of high grade magnetically conductive material to minimize the magnetic losses.Computerized winding to optimize quality of copper wiring.Higher grade of electric components.
  • Dramatically improves reliability and durability comparing to stock units.Improved heat sink and charging capabilities.
  • Rectifier made of highest quality electro-conducting lamination materials.Best quality lead wires with insulation bring both enhanced abrasion and heat resistant.
  • Direct replacement to your original unit.Plug-and-play, direct fit, instruction is NOT Included.
  • Replacement Part Number: Stator Assy: 31401-35F10, 31401-40F00 Rectifier, regulator: 32800-33E10 Gasket, generator cover: 11483-35F00

Type: Stator + Regulator + Gasket

Replacement Part Number:
Stator Assy: 31401-35F10, 31401-40F00
Rectifier, regulator: 32800-33E10
Gasket, generator cover: 11483-35F00

Fits Models:
Fit for Suzuki GSXR600 GSX-R600 2001-2003
Fit for Suzuki GSXR600 GSX-R600U1 2001-2002
Fit for Suzuki GSXR600 GSX-R600U2 2001-2003
Fit for Suzuki GSXR750 GSX-R750 2000-2003
Fit for Suzuki GSXR1000 GSX-R1000 2001-2002

(Compatibility Chart is for reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

Package Includes:
1 x Stator Coil
1 x Regulator Rectifier
1 x Generator Gasket

Note:
Before installing your new stator regulator rectifier;

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors.
Our stator / regulator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

SKU: B0CR3XR4GY
Weight: 3.26 pounds
Dimensions: 12.2 x 8.66 x 3.54 inches
Brand: VIPIH
Manufacture: VIPIH
