Waveshare ESP32-S3 4.3inch Capacitive Touch Display Development Board with 2.4GHz WiFi and BLE 5 Support,32-bit LX7 Dual-core Processor,Integrates High-capacity Flash and PSRAM

• Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency.
• Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with an onboard antenna.
• Built-in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and 8MB Flash.Onboard 4.3inch capacitive touch display, 800×480 resolution, 65K color.

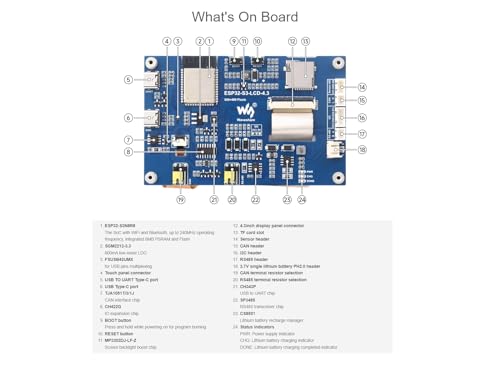

• Onboard CAN, RS485, I2C interface, and TF card slot, integrate full-speed USB port.
• Supports capacitive touch control via I2C interface, 5-point touch with interrupt support.Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios.

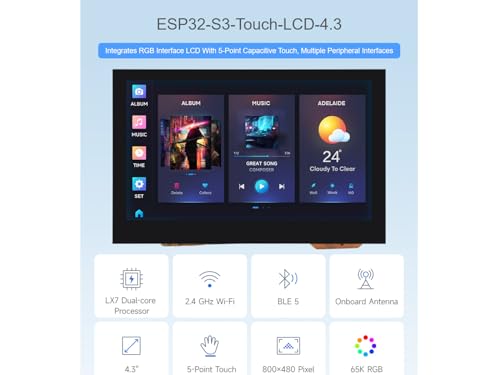

ESP32-S3 4.3inch Capacitive Touch Display Development Board, 800×480, 5-Point Touch, 32-Bit LX7 Dual-Core Processor, Up To 240MHz Frequency, Supports WiFi & Bluetooth, With Onboard Antenna

Features

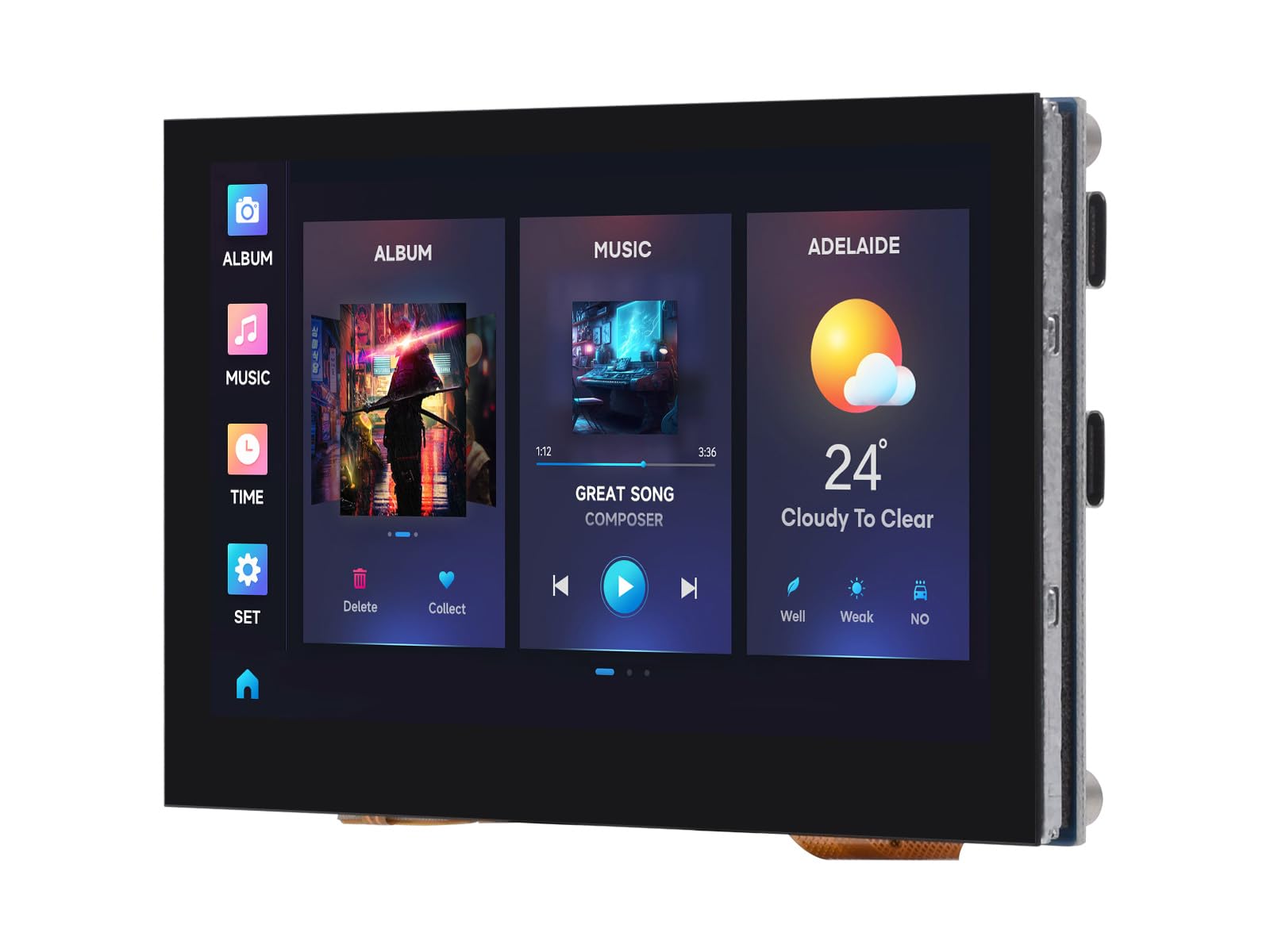

ESP32-S3-Touch-LCD-4.3 is a microcontroller development board with 2.4GHz WiFi and BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard
4.3inch capacitive touch screen can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces, suitable for the
quick development of the HMI and other ESP32-S3 applications

Application Scenarios

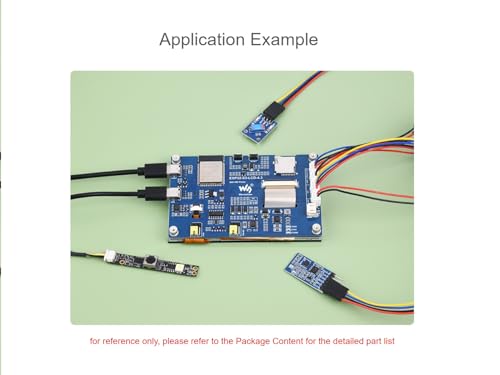

1.Supports Multiple Peripherals
Supports The Expansion Of Multiple Peripherals Via Sensor, CAN, RS485, And I2C Interfaces

Development Resources
https://www.waveshare.com/wiki/ESP32-S3-Touch-LCD-4.3?Amazon

Package Content
ESP32-S3-Touch-LCD-4.3 x1
HY2.0 2P to 2PIN male cable 10cm ×2
HY2.0 2P to 3PIN male cable 10cm ×1
HY2.0 2P to 4PIN male cable 10cm ×1
Standoff pack ×1

Note
Technical Support is provided, please contact with us first if you have any problem .
