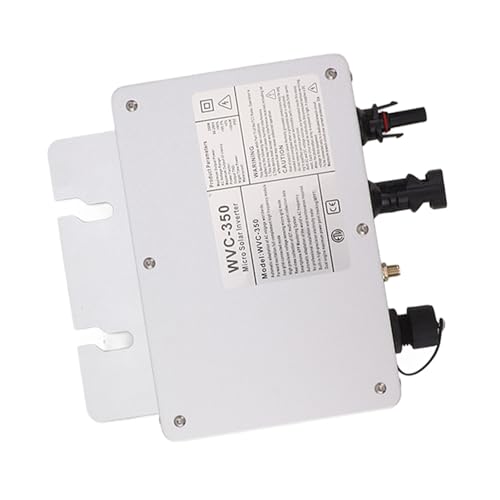

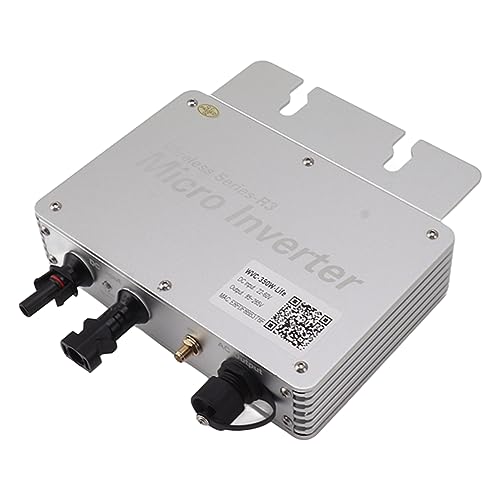

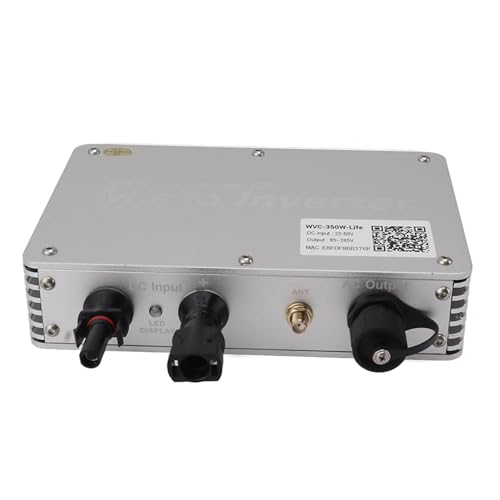

Waterproof Solar Grid Tie Inverter 350W Durable Micro

Waterproof Solar Grid Tie Inverter 350W Durable Micro Inverter Solar Grid Tie Micro Inverter Solar Grid Tie Micro Inverter Solar Household Power Generation System 100V‑240V

• Easy to Use: 350W micro inverter is lightweight and easy to install. Multiple inverters can be stacked arbitrarily, forming a single phase parallel stacking system. Almost no maintenance is required, occasionally cleaning the dust from the photovoltaic panels.
• Sustainable Use: This 350W inverter can convert direct current generated by solar panels into alternating current. Our inverter provides sustainable energy and excellent environmental benefits.

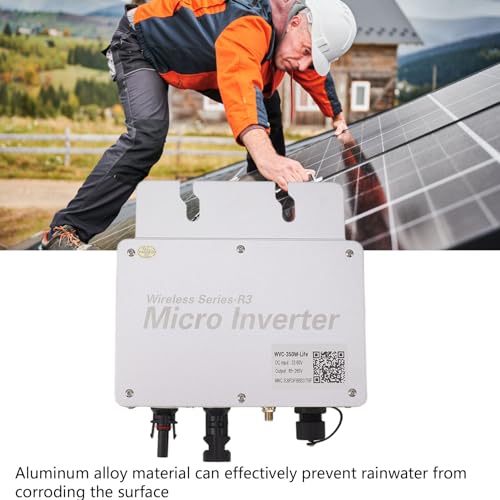

• IP65 Waterproof: 350W grid tie inverter is IP65 waterproof. Aluminum alloy material can effectively prevent rainwater from corroding the surface. Provide electrical insulation for more reliable use.
• Multiple Protection Functions: 350W micro inverter has multiple protection functions such as overcurrent protection, short circuit protection, low voltage protection, overvoltage protection, etc.
• Efficient Conversion: Our inverter utilizes reverse power transmission technology with a transmission rate of up to 99.9%. 350W It features intelligent soft switching technology and high-frequency switching power supply for excellent control precision and output waveform.

1. Easy to Use: 350W micro inverter is lightweight and easy to install. Multiple inverters can be stacked arbitrarily, forming a single phase parallel stacking system. Almost no maintenance is required, occasionally cleaning the dust from the photovoltaic panels.
2. Sustainable Use: This 350W inverter can convert direct current generated by solar panels into alternating current. Our inverter provides sustainable energy and excellent environmental benefits.
3. IP65 Waterproof: 350W grid tie inverter is IP65 waterproof. Aluminum alloy material can effectively prevent rainwater from corroding the surface. Provide electrical insulation for more reliable use.
Specification:
Item Type: WVC 350W Inverter
Product Material: Aluminium Alloy
Weight: Approx. 1057g / 2.3lb
Recommended Component: 435W
Output Voltage Mode: Automatic Adaptation
Solar Panel Open Circuit Voltage Range: 30-54VOC
Peak Power Tracking Voltage: 22-60V
Minimum/Maximum Starting Voltage: 22-60V
Maximum DC Short Circuit Current: 18A
Maximum Input Working Current: 16A
Automatic Identification Of Voltage Frequency:
Output Parameter 110V: Output Peak Power, 350W, Rated Output Current 2.91A, Rated Voltage Range 80-160VAC
Output Parameter 230V: Output Peak Power, 350W, Rated Output Current 1.52A, Rated Voltage Range 180-260VAC
Environmental Temperature Range: -40℃ ~ +65℃
Waterproof Grade: IP65
Heat Dissipation Method: Self Cooling
Communication Mode: WiFi
Power Transmission Mode: Reverse Transmission, Load Priority Use
Monitoring System: Mobile APP
Product Use: Solar Power Generation Equipment

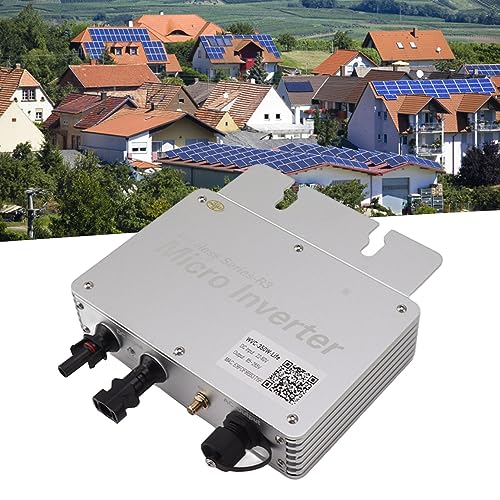

Applicable Scenario: Solar Power Generation System (Rooftop, Outdoor)

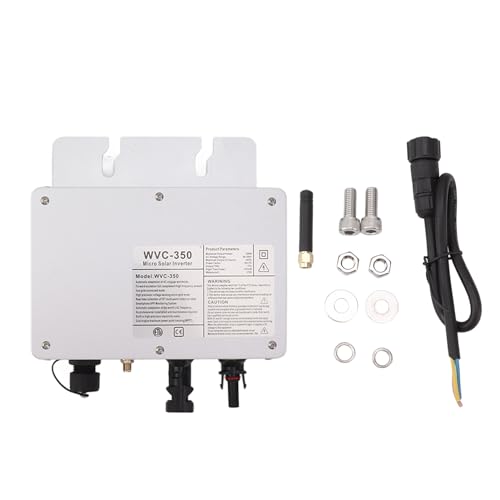

Package List:
1 x Inverter
1 x Connection Line
1 x Manual
1 x Bolt
2 x Screw
2 x Spacer
2 x Washer
2 x Nut

---
