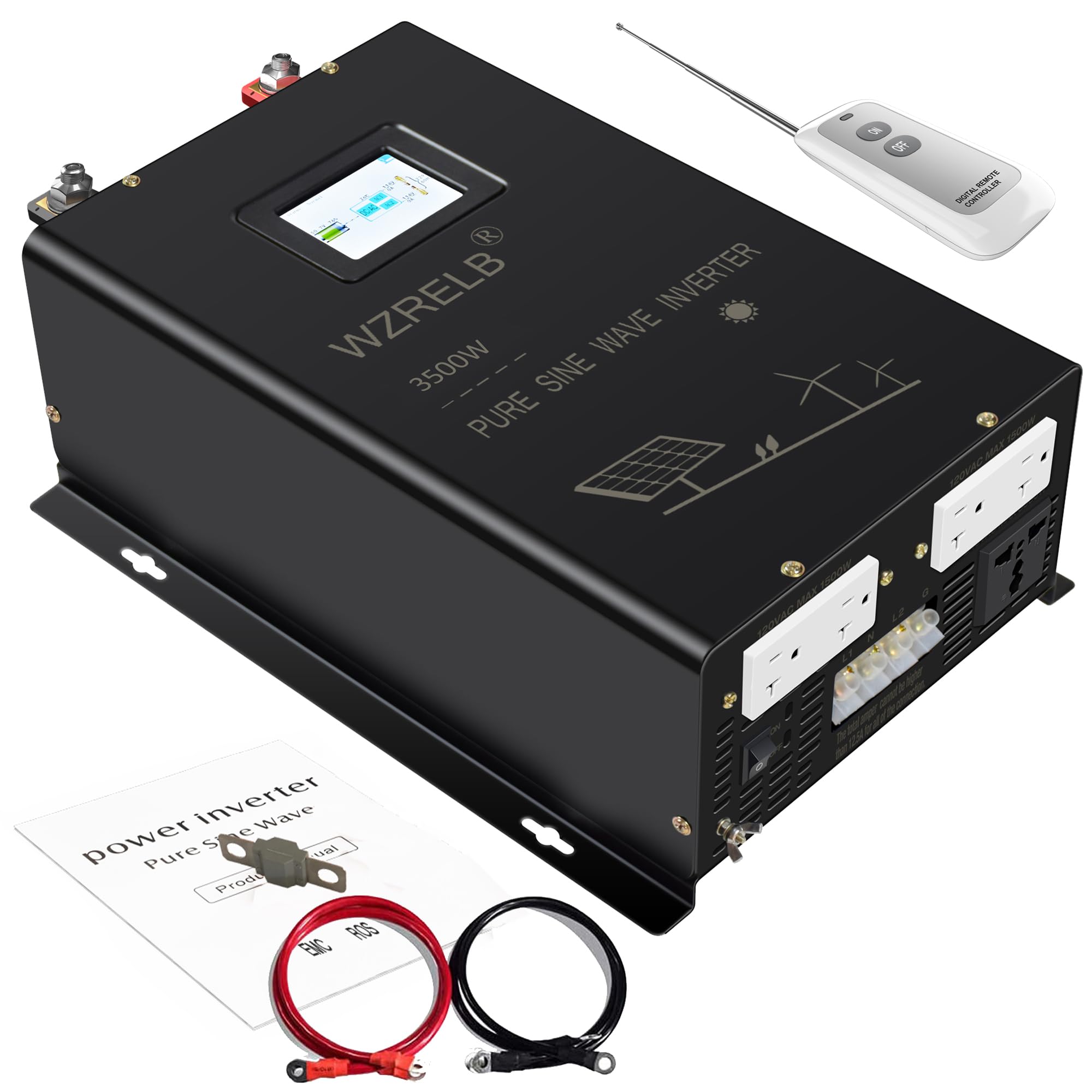

3500W 48V Pure Sine Wave Inverter,48 Volt DC to AC 120V 240V Split Phase Power Inverter,7KW Surge,5 AC Outlets,AC Hardwire Terminal,High Efficiency up to 91.6%,Wireless Remote

• POWERFUL: 3500 watts continuous, 7000 watts peak power, 48 volt DC to 120V 240V AC split phase true sine wave off grid inverter, built-in soft starter, high frequency design with high surge capability to power demanding loads like air conditioner, refrigerator, power tools, and more

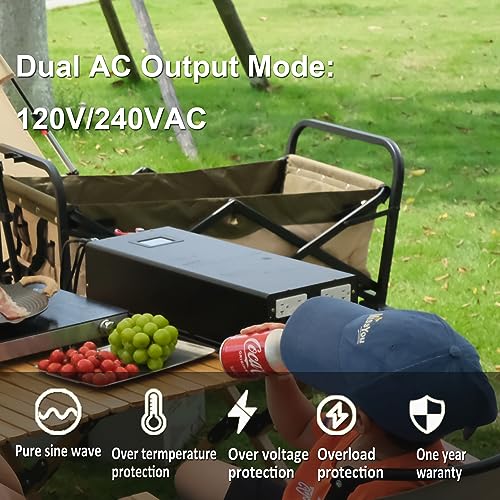

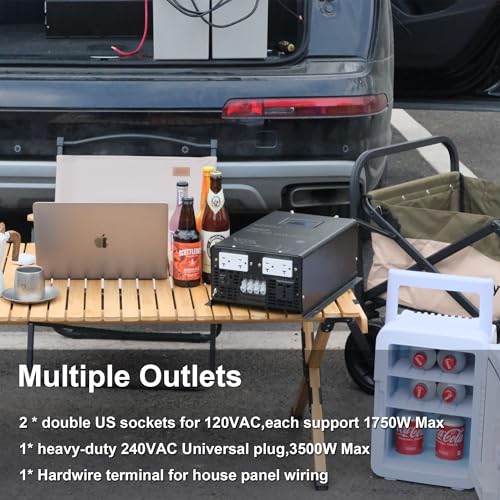

• FEATURES: 2pcs dual 120V outlets with max 1750W each, 1* heavy-duty 240VAC Universal plug with 3500W max and a hardwire terminal(4-wire) with Multi-mode (L1+L2=240V, L1+N=120V, L2+N=120V ),support 120VAC and 240VAC output at the same time,up to 91.6% efficiency

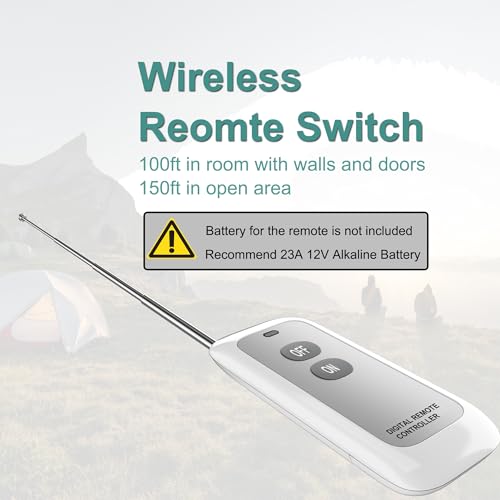

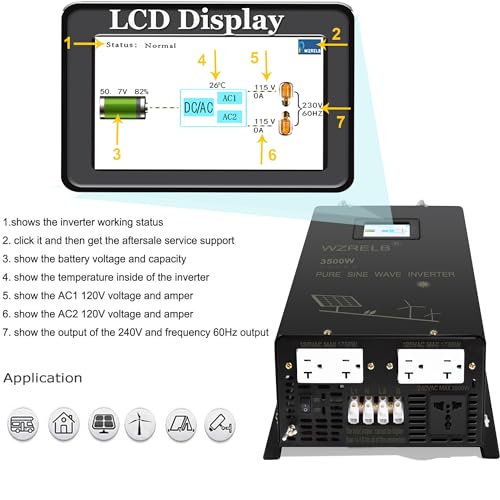

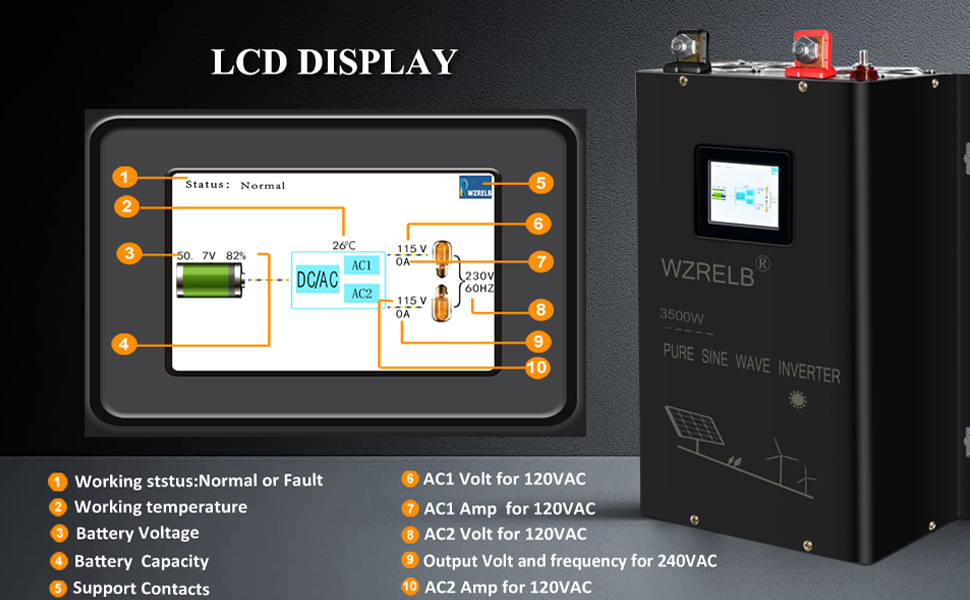

• LCD DISPLAY & REMOTE CONTROLLER: Easily access to running parameters with battery status, working temperature, 120V 240V output voltage status,etc,Keep track of the working stutas in real time ,allow to switch the inverter ON/OFF remotely within 100ft in room and 150ft in open area for distant operation without leaving your cozy zone
• PROTECTIONS: Temperature-controlled cooling fan, low and high voltage alarmutdown,multi-protections against overload, short circuit, over temperature, high voltage, low voltage, internally fused, battery reverse etc
• APPLICATIONS: a must for off-grid live and Power Failure Emergency , compatible with AGM, gel, flooded, lead-acid and lithium-ion batteries, , ideal for home, cabin, mobile business, RV, trailer, semi-truck, boat, and more

3500W 48V Pure Sine Wave Inverter ,48 Volt DC to AC 120V 240V Split Phase Power Inverter,7KW Surge,5 AC Outlets,AC Hardwire Terminal,High Efficiency up to 91.6% ,Wireless Remote

---

From the manufacturer

Inverter Specification

Rated Continuous power	3500W
Surge output power	7000W
Standby input power	<40W
DC Input Voltage	48V
DC input voltage range	42-60VDC
High battery shut down	60V
Low voltage shut down	41V-43VDC

AC output voltage (nominal)	120VAC and 240VAC
AC output frequency	60Hz
AC output waveform	Pure sine wave
Conversion efficiency	≧91.6%
Ambient operating temperature	32℉-104℉/0℃-70℃
Cooling method	Intelligent temperature controlled fan or the load power reaches to the half of the inverter power

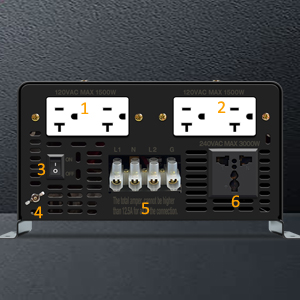

AC Panel

1.AC1 120V output with 1750W Max

2.AC2 120V output with 1750W Max

3.ON/OFF switch

4.Ground wire connector

5.Hardwire terminal for AC output: L1 for live, N for neutral, L2 for live, G for ground

6. Universal Scoket for 240VAC output,3500W MAX

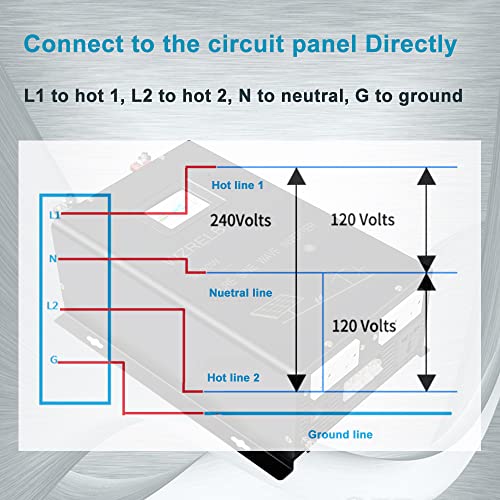

Hardwire terminal

Continuous Output Power: 3500 Watts

AC Output: Pure Sine 120/240V (60Hz)

L1+N=120Vac ( 1750W Max)

L2+N=120Vac ( 1750W Max)

L1+L2=240Vac (3500W Max)

Note:can not L1+N+L2 at the same time !

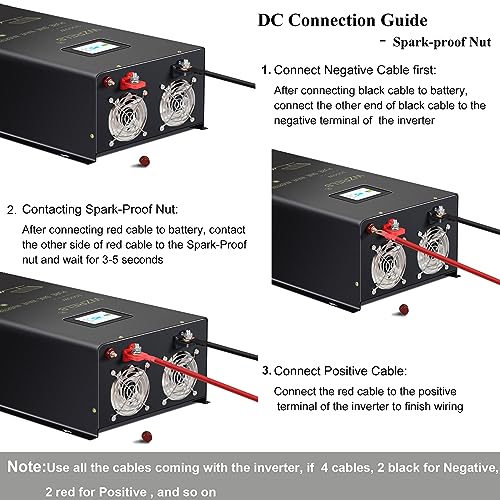

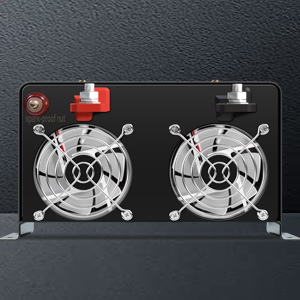

DC Panel

Red binding post for positive, black binding post for the negative

Use the cable we send in the package to connect the battery and inverter, otherwise, the full output power will not be guaranteed
