110V Solar Grid Tie Micro Inverter Digital LCD-Display Microinverter Aluminium Alloy Microinverter Solar Panel Kit DC to AC Inverters (1200W- Silver)

• Durable Material: This inverter is made of aluminum alloy, so it has the excellent performance of not easy to rust, corrosion, durability and long service life
• Work Efficiently: The product comes with reverse power transfer technology that automatically detects and prioritizes loads in the circuit, making the output of the PV application more efficient. It also features maximum power point tracking, which optimizes the power harvesting of the solar panels, accurately capturing and locking the maximum output power point to increase power generation
• Full Digital Control: The product adopts all-digital control technology, which is not easy to be interfered, and it is very practical with fast operation speed, high degree of intelligence and powerful function system
• Safe and Reliable: This product comes with six protection functions: over-temperature protection, under-voltage alarm, under-voltage protection, over-voltage protection, short-circuit protection, overload protection, etc., which greatly improves the safety performance, so you can rest assured that you can use it

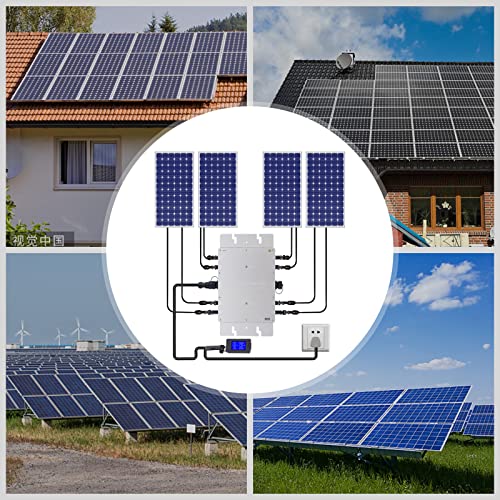

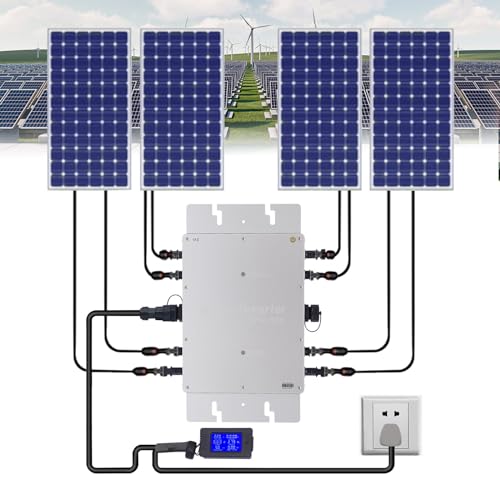

• Application: It converts DC power generated by solar panels into AC power usable for household appliances. Widely used in residential or commercial environments. for 30V or 36V solar panels, 36V batteries

Description

It runs smoothly and works efficiently with digital control, LCD display, six protection functions, etc. to provide you with the best performance

Specification

Model: WVC-1200W

Color: Silver

Material: Aluminium Alloy

Power: 1200W

Voltage: 110V

Plug Type: US Standard

Maximum Input DC Voltage: 54V

Peak Power Tracking Voltage: 22-45V

Operating Voltage Range: 17-50V

Min/Max Start-up Voltage: 22-50VDC

Maximum DC Short Circuit Current: 80A

Maximum Input Operating Current: 54.4A

Peak Power Output: 1200watt

Rated Output Power: 1150watt

Rated Output Current: 9.58A

Rated Voltage Range: 80-160VAC

Rated Frequency Range: 57-62.5Hz

Power Factor: ＞99％

Max Unit Per Branch Circut: 3pcs(Single-phase)

Static MPPT Efficiency: 99.5%

Maximum Output Efficiency: 91.2%

Night Time Power Loss:
