waveshare Universal e-Paper Raw Panel Driver

waveshare Universal e-Paper Raw Panel Driver Shield Compatible with Arduino/NUCLEO, Onboard MX25R6435F Flash Chip, Supports Expanding External RAM, Suitable SPI Interface Raw e-Pape

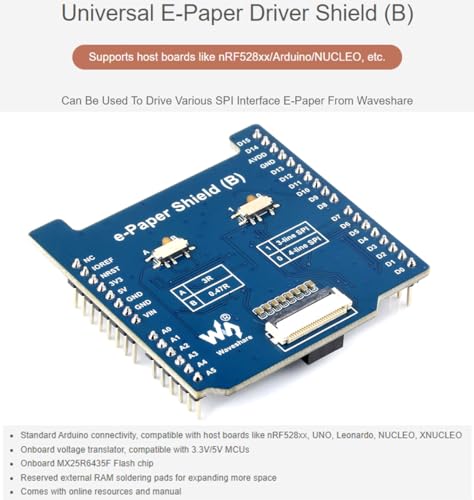

• Universal E-Paper Driver Shield based onArduino connectivity, compatible with host boards like nRF528xx, UNO, Leonardo, NUCLEO, XNUCLEO.

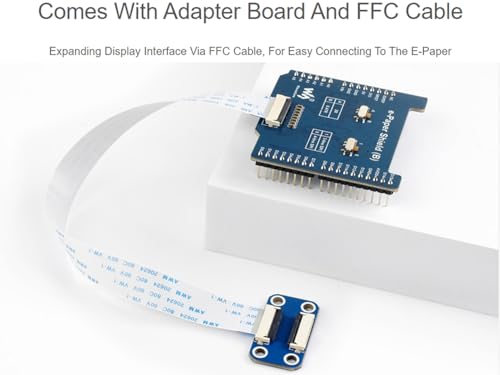

• Comes with adapter board and FFC cable: Expanding display interface via FFC cable, for easy connecting to the e-paper.

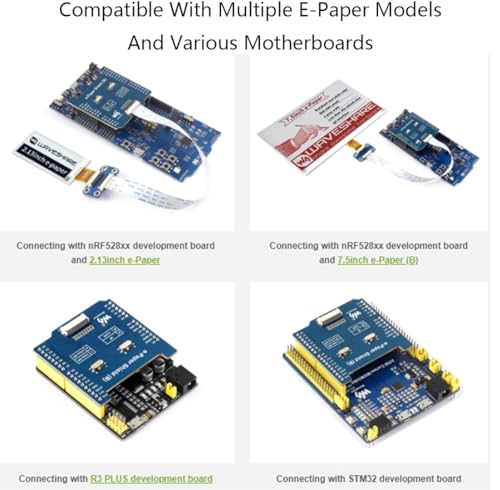

• Compatible with multiple Waveshare e-paper models and various motherboards.
• Onboard voltage translator, compatible with 3.3V/5V MCUs. Onboard MX25R6435F Flash chip.
• Reserved external RAM soldering pads for expanding more space.

Universal e-Paper Raw Panel Driver Shield Compatible with Arduino/NUCLEO, Onboard MX25R6435F Flash chip, Supports expanding external RAM, Suitable for various SPI interface e-Paper from Waveshare

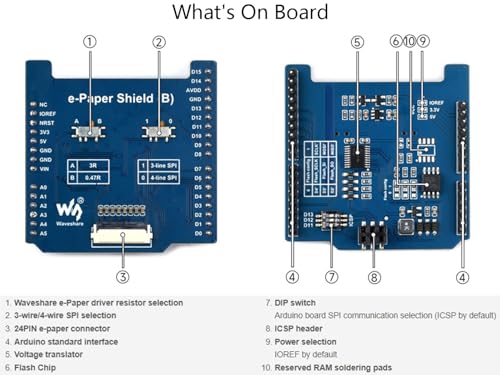

Features
1. Universal E-Paper Driver Shield based onArduino connectivity, compatible with host boards like nRF528xx, UNO, Leonardo, NUCLEO, XNUCLEO.
2. Comes with adapter board and FFC cable: Expanding display interface via FFC cable, for easy connecting to the e-paper.
3. Compatible with multiple Waveshare e-paper models and various motherboards.
4. Onboard voltage translator, compatible with 3.3V/5V MCUs.
5. Onboard MX25R6435F Flash chip.
6. Reserved external RAM soldering pads for expanding more space.
7. Comes with online resources and manual: bit.ly/48NQtDa

Specifications
Operating voltage—3.3V/5V

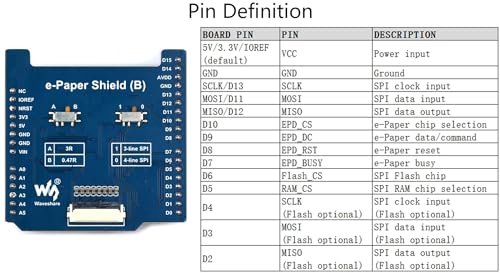

Interface—3-wire SPI, 4-wire SPI
Flash memory size—64M-bit / 8M-byte
Reserved RAM Package —SOIC-8

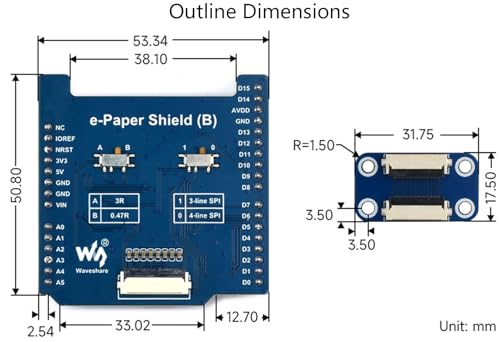

Outline dimensions—53.34 × 53.34mm

Package Content

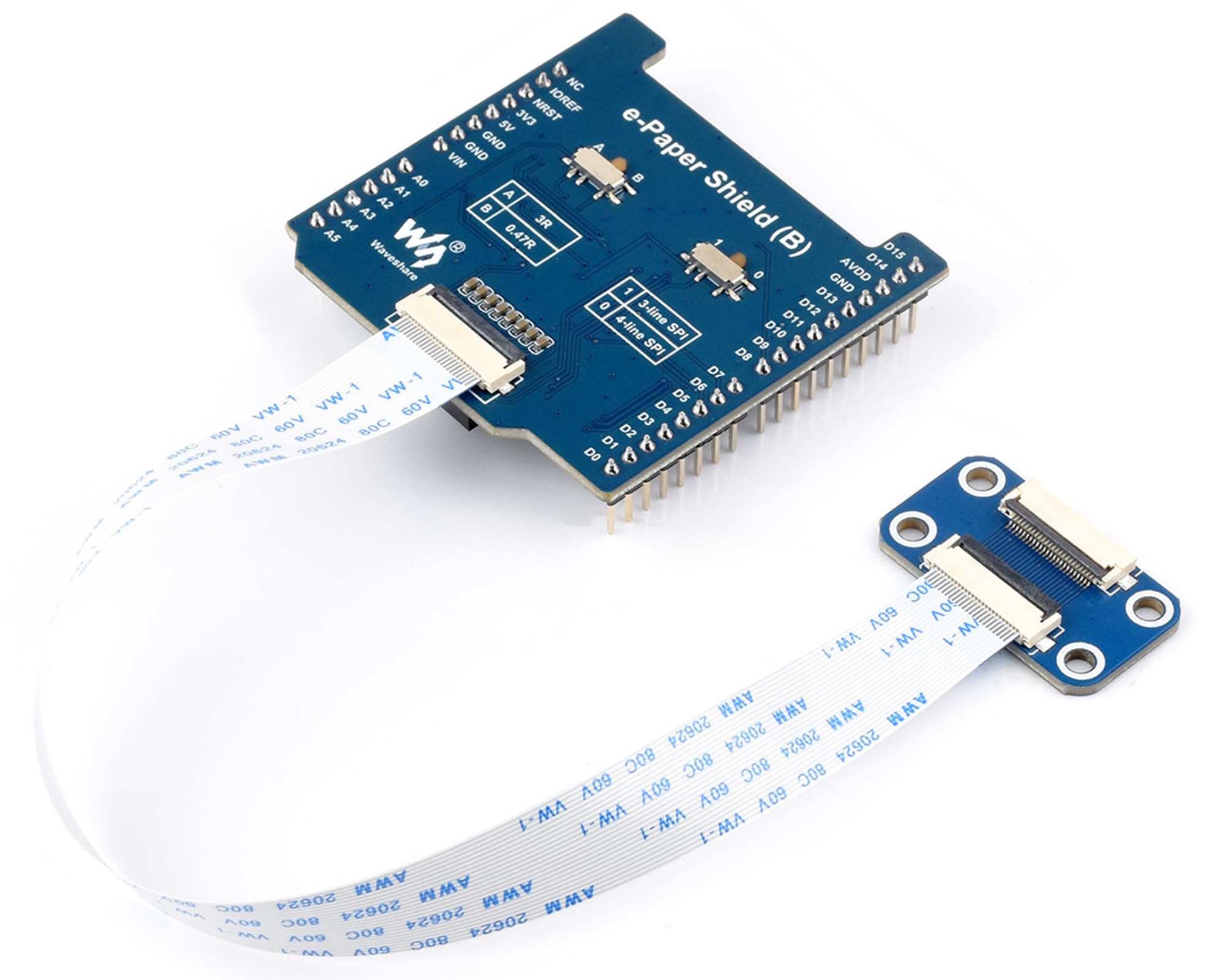

e-Paper Shield (B) x1
e-Paper Adapter with 24PIN FFC cable ~200mm x1
