Waveshare ESP32-S3 Development Board with 1.28inch Round LCD Display,32-bit LX7 Dual-core Processor,Support 2.4 GHz Wi-Fi and Bluetooth 5(LE),Embedded GC9A01 Driver Chip

• Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
• Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (BLE), with onboard antenna.Built in 512KB of SRAM and 384KB ROM, with onboard 2MB PSRAM and an external 16MB Flash memory
• Type-C connector, keeps it up to date, easier to use.Onboard 1.28inch LCD display, round IPS panel, 240×240 resolution, 65K color
• Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture.Onboard 3.7V lithium battery recharge/discharge header and GPIO headers
• Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios.Integrated with USB serial port full-speed controller, GPIO pins allow flexibly configuring pin functions

›

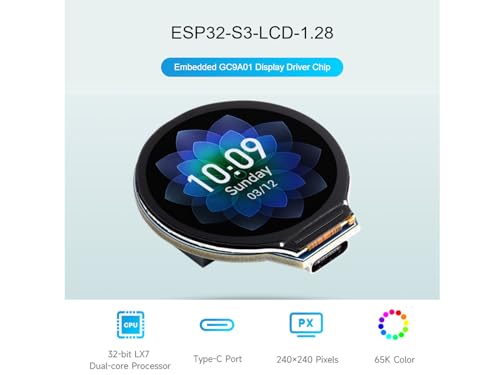

ESP32-S3 Development Board, 32-Bit LX7 Dual-Core Processor, Integrates GC9A01 Display Driver Chip, With 1.28inch IPS Round LCD, 240×240 Resolution,
Supports WiFi/Bluetooth.Embedded GC9A01 Display Driver Chip

Introduction

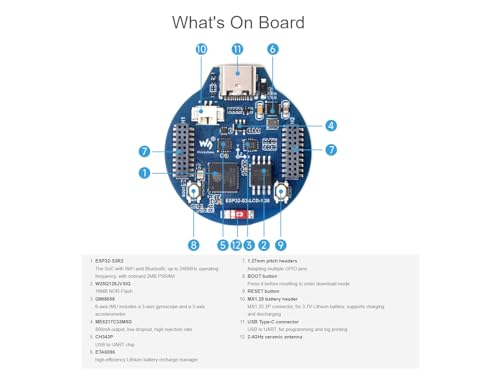

The ESP32-S3-LCD-1.28 (referred to as the development board hereafter) is a low-cost, high-performance microcontroller development board designed by
Waveshare. It features a 1.28-inch LCD screen, a lithium battery charging chip, and peripherals such as a six-axis sensor (three-axis accelerometer and a
three-axis gyroscope). The board utilizes the ESP32-S3R2, an integrated system-on-chip (SoC) with low-power Wi-Fi and BLE5.0 capabilities. Additionally, it
comes with an external 16MB Flash and 2MB PSRAM.

The SoC includes hardware encryption accelerators, RNG (Random Number Generator), HMAC (Hash-based Message Authentication Code), and a Digital
Signature module, meeting the security requirements of the Internet of Things (IoT). Its various low-power operating modes cater to power consumption needs
in IoT, mobile devices, wearable electronics, smart homes, and other application scenarios.

Features
ESP32-S3-LCD-1.28 is a low-cost, high-performance MCU board designed by Waveshare, tiny size, with onboard 1.28inch LCD display, Li-ion battery recharge
manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), and so on, which makes it easy for you to develop and integrate it into
products quickly.

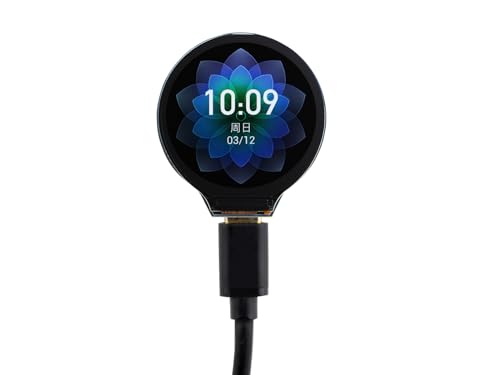

1.Onboard 1.28inch LCD Screen
Round IPS Panel, 240×240 Resolution, 65K Color

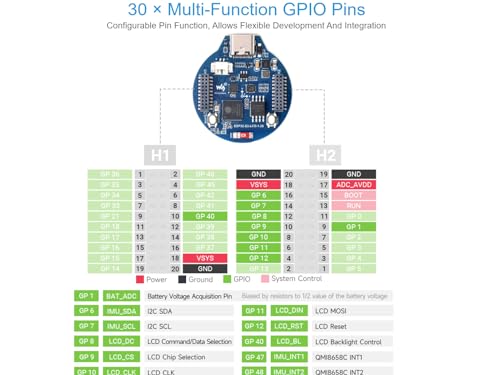

2.30 × Multi-Function GPIO Pins
Configurable Pin Function, Allows Flexible Development And Integration

Development Resources
https://www.waveshare.com/wiki/ESP32-S3-LCD-1.28?Amazon

Package Content
ESP32-S3-LCD-1.28 x1
