RTL-SDR Blog V4 R828D RTL2832U 1PPM TCXO HF Bias Tee SMA Software Defined Radio with Dipole Antenna Ki

• Includes 1x RTL-SDR Blog V4 R828D RTL2832U 1PPM TCXO HF Bias Tee SMA Dongle and 1x Multipurpose Dipole Antenna Kit
• Several improvements over other brands including use of the R828D tuner, built in HF upconverter, improved component tolerances, a 1 PPM temperature compensated oscillator (TCXO), SMA F connector, aluminum shielded case with thermal pad for passive cooling, improved filtering, activatable bias tee circuit and a much improved antenna set.
• Can tune from 500 kHz to 1.7 GHz and has up to 3.2 MHz of instantaneous bandwidth (2.4 MHz stable). Please note RTL-SDR dongles are RX only.
• Comes with our portable VHF/UHF dipole antenna kit. Great for beginners as it allows for terrestrial and satellite reception. Easy to mount outdoors and designed for portable and temporary outside usage. Please do not use outside during poor weather conditions. Not suitable for HF reception.
• NOTE: The RTL-SDR Blog V4 requires custom drivers. Please follow the installations instructions carefully!

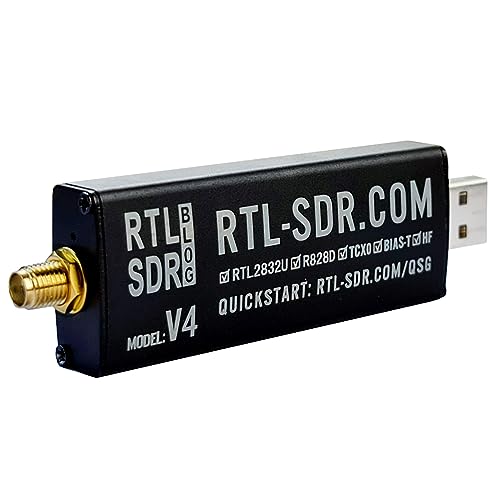

This is an RTL-SDR Blog V4 software defined radio receiver with RTL2832U ADC chip, R828D tuner, 1PPM TCXO, SMA F connector, built in HF upconverter, improved filtering, and aluminium case with passive cooling. Tunes from 500 kHz to 1.766 GHz with up to 3.2 MHz (2.4 MHz stable) of bandwidth. Can be used with free software like SDR#, HDSDR, SDR-Radio, GQRX or SDR Touch on Android. Works on Windows, OSX, Linux, Android and computers like the Raspberry Pi.

This model has several improvements over other brands. It uses the R828D tuner, a 1PPM TCXO, better components, has a built in HF upconverter, a redesigned lower noise PCB, cooling improvements, additional filtering, extra ESD protection and an SMA F connector. It also has a software activatable bias-tee for powering LNA’s and active antennas.

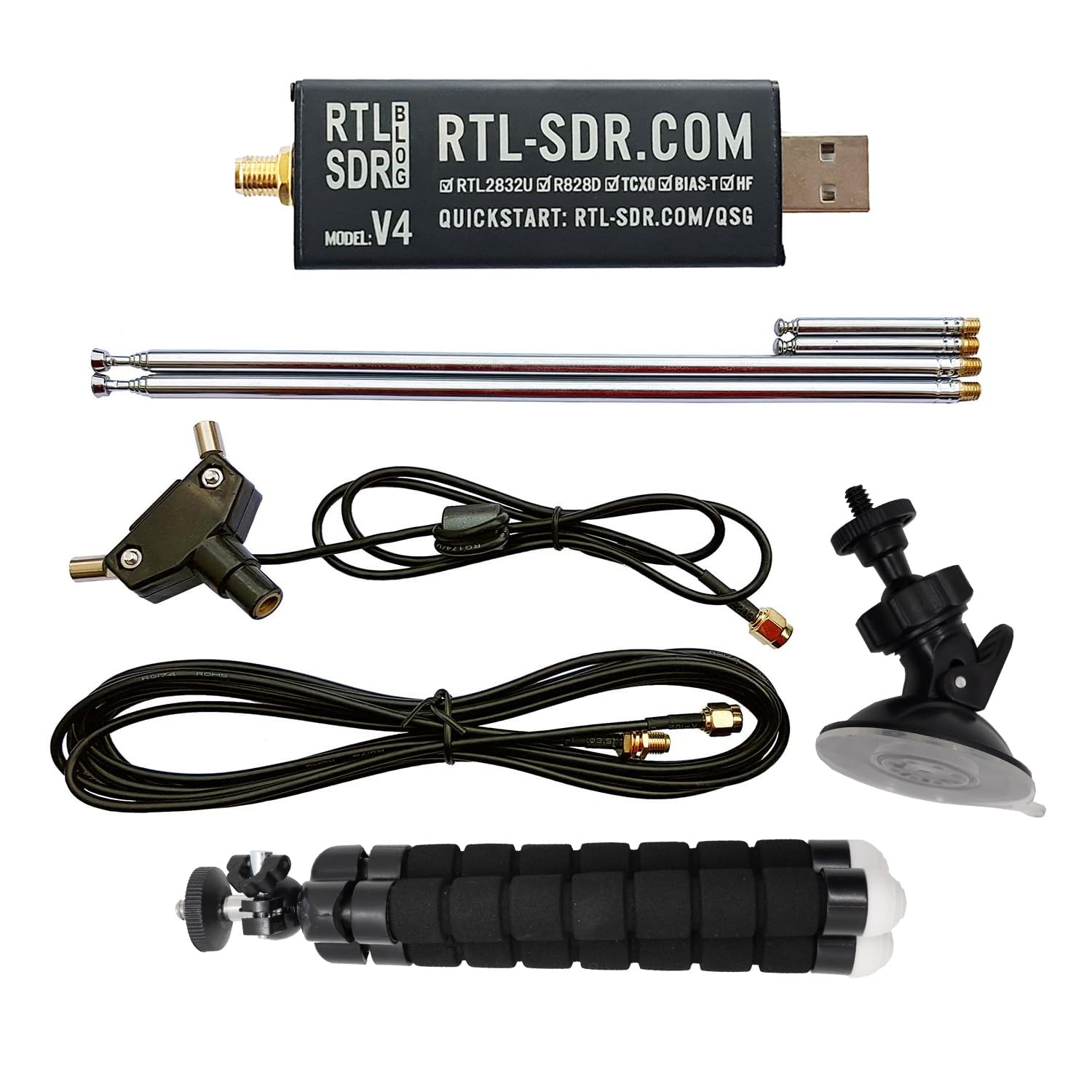

This is a bundle which includes the main dongle and also our multipurpose dipole antenna kit. The antenna kit is great for beginners as it allows for terrestrial and satellite reception. Easy to mount outdoors and designed for portable and temporary outside usage. Please do not use outside during poor weather conditions.
