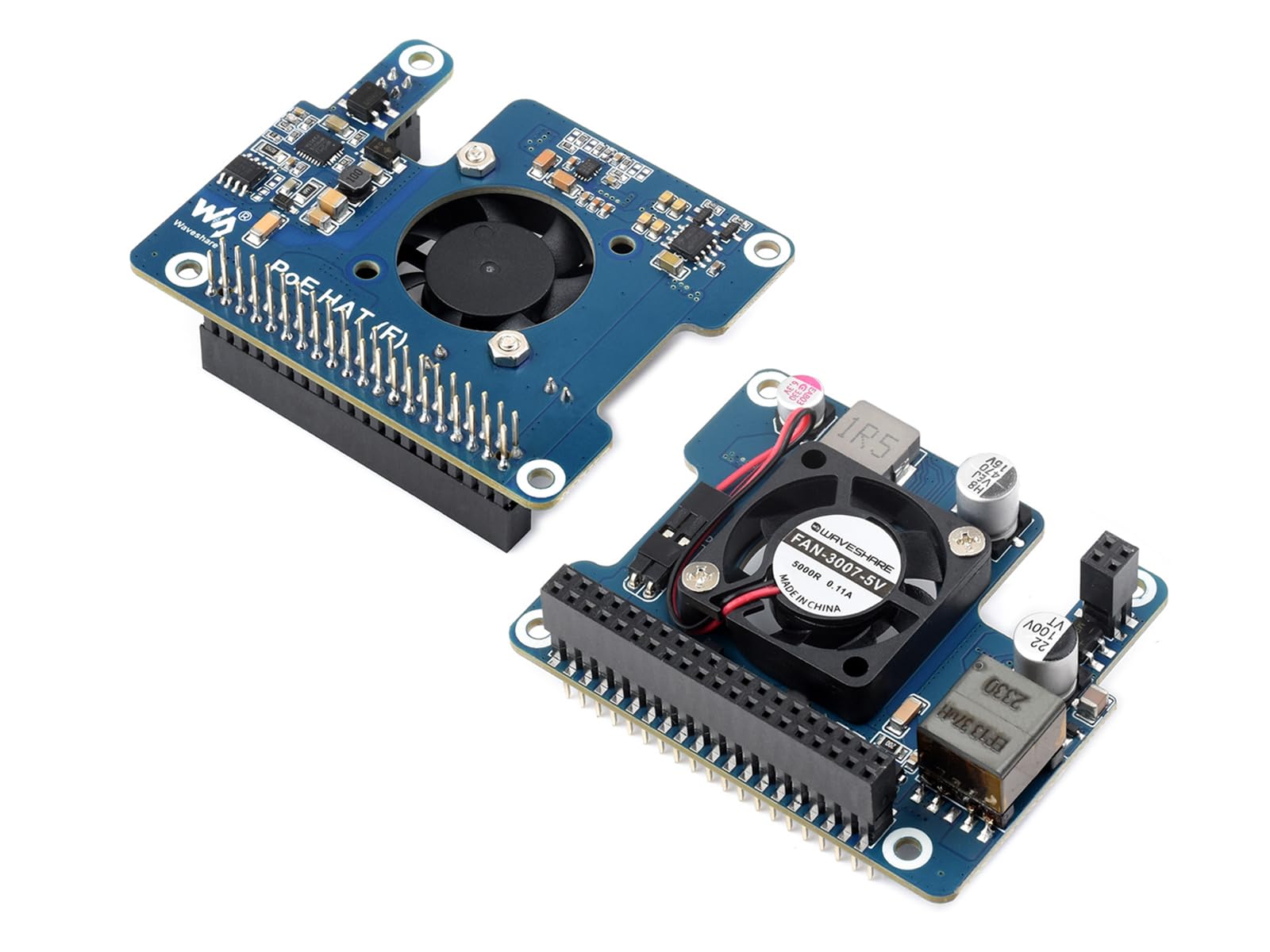

POE Power Over Ethernet HAT for Raspberry Pi 5

POE Power Over Ethernet HAT for Raspberry Pi 5, IEEE 802.3af/at PoE Network Standard, Onboard 5V & 12V Header Outputs, with Cooling Fan and Metal Heatsink

• Power Over Ethernet HAT for Raspberry Pi 5, supports 802.3af/at network standard, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable
• POE HAT with tandard Raspberry Pi 40PIN GPIO stackable header, allows connecting other HATs, suitable for Raspberry Pi 5
• Onboard 5V & 12V header outputs, 5V header provides up to 4.5A output (MAX 25W for 12V + 5V total output power) be able to power extra devices while providing stable power to Raspberry Pi
• Onboard high speed active cooling fan, with metal heatsink, better heat dissipation
• Fully isolated switched-mode power supply (SMPS)

›

Overview

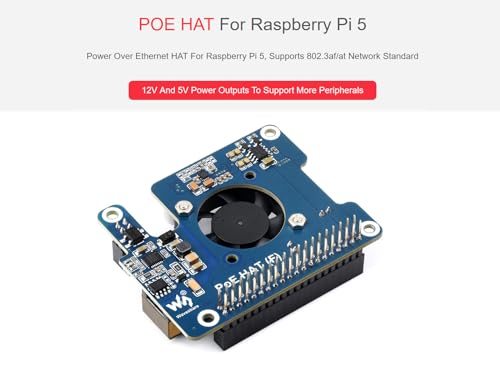

The PoE HAT (F) is a 802.3af/at-compliant Power Over Ethernet accessory for the Raspberry Pi 5. By using this small HAT and some proper 802.3af/at-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable.

Features
–Standard Raspberry Pi 40PIN GPIO header, supports Raspberry Pi 5
–PoE (Power Over Ethernet) capability，IEEE 802.3af/at-compliant
–Fully isolated switched-mode power supply (SMPS)
–Onboard high speed active cooling fan, with metal heatsink, better heat dissipation

Specifications
PoE power input– 37V ~ 57V DC in
Power output:
–GPIO header: 5V 4.5A (MAX)
–2P header: 12V 2A (MAX)

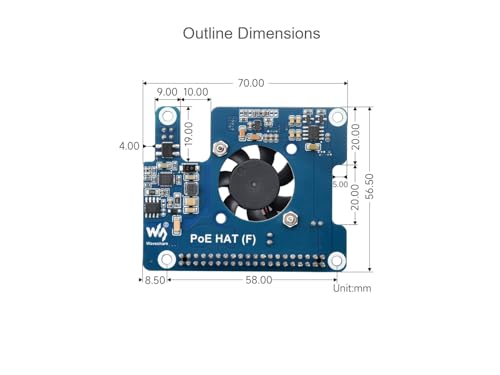

Dimensions–56.5 × 70.0mm
Network standar–IEEE 802.3af/at PoE

Package Content
PoE HAT (F) x1

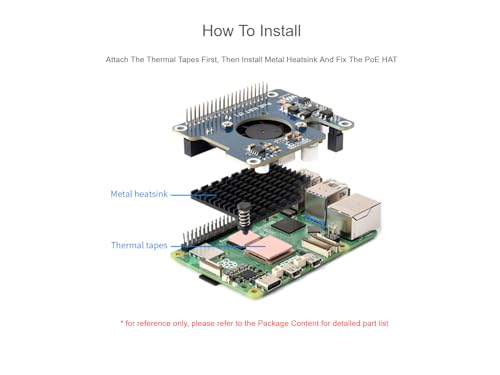

Metal heatsink x1
Thermal tape (3PCS) x1
