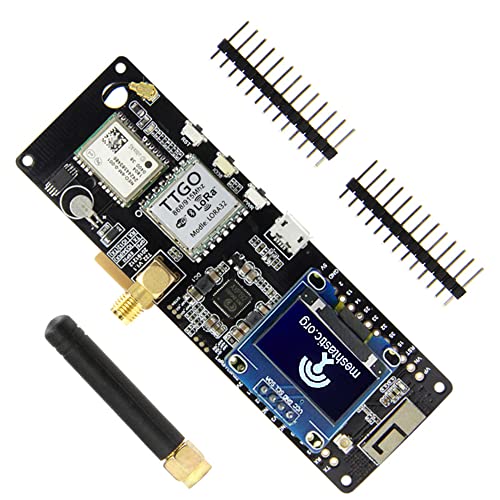

L-//ILY/G-O® TTGO Meshtastic T-Beam V1.1 ESP32

ESP-32 Paxcounter Module SMA Metering Passenger Flows (915MHZ OLED)

L-//ILY/G-O® TTGO Meshtastic T-Beam V1.1 ESP32 433/868/915/923Mhz WiFi BLE Lora Development Board, ESP-32 Paxcounter Module SMA Metering Passenger Flows (868Mhz OLED)

  • MCU: Onboard ESP32 MCU with WiFi Ble [v4.2] transmission function, 4MB flash and 8MB PSRAM, supports daily programming at entry level
  • GPS: GPS NEO-6M module, with RCT watch battery and mini ceramic antenna for daily position determination
  • Antenna: Use 3D WiFi antenna to save space, we also reserved IPEX antenna base for use. [Note that the built-in antenna and external antenna cannot be used together
  • Programming chip: the CH9102 programming chip with serial interface is suitable for daily programming. Before connecting it, you need to make sure the driver is installed on the computer.
  • 【Github】github.com/Xinyuan-L-//ily-GO/L/-ily/GO-T-Beam.

Product Features:
Lastest ESP32 Version: REV1
WIFI & Bluetooth
4MB Flash
3D Antenna
LORA antenna connector is RG316
Working voltage: 1.8~3.7v
Acceptable current:10~14mA
Transmit current: 120mA@+20dBm
Operating frequency: 433/470MHz(433HMz version) /868M/915M(868MHz version)
Transmit power: +20dBm
Receive sensitivity :-139dBm@LoRa &62.5Khz&SF=12&146bps
-136dBm@LoRa &125Khz&SF=12&293bps
-118dBm@LoRa &125Khz&SF=6&9380bps
Frequency error:+/-15KHz
FIFO space :64Byte
Data rate :1.2K~300Kbps@FSK
Modulation Mode :FSK,GFSK,MSK,GMSK,LoRa TM,OOK
Interface form :SPI
Sleep current :0.2uA@SLEEP
Operating temperature :-40℃- +85℃
Digital RSSI function
Automatic frequency correction
Automatic gain control
Low voltage detection
Fast wake-up and frequency hopping
Highly configurable data packet handler
GPS:GPS modules NEO-6M, 3V-5V power supply Universal
Destined module with ceramic antenna, signal super
Save the configuration parameter data EEPROM Down

With data backup battery
There are LED signal indicator
Default Baud Rate: 9600
Power Supply Input: USB 5V/1A
Charging current: 500mA
Battery Input: 3.7-4.2V
Charge IC: AXP192
OLED Description:
1.Size:0.96 inch
2.High resolution:128 * 64
4.Viewing angle:>160 °
5.Driver IC:SSD1306
6.Working temperature:-30 celcius ~ 80 celcius
7.Module volume (generous):27.0MM * 27.0MM * 4.1MM
8.Supports many control chip:Fully compatible with Arduino, 51 series,
MSP430 series,STM32/2, CSR chip, etc.(a lot of routines for reference)
9.Wide voltage support:without any modification, directly supports 3.3V ~ 5V DC
10.Ultra-low power consumption:Normal operation Is 0.04W

Dimensions: 10 x 3.2 x 0.1 cm
Brand: Generic
Manufacture: SHAXUAN
