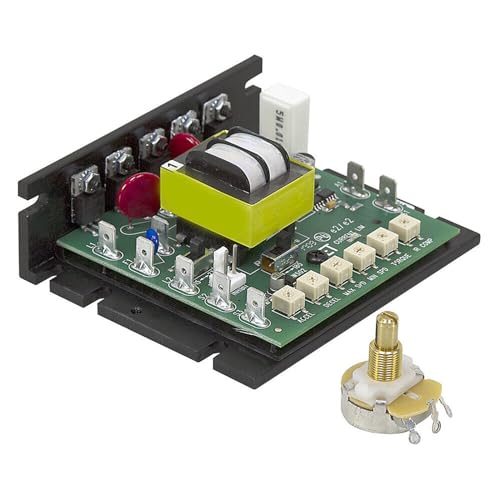

HVACSTAR DC Motor Speed Controller MM23001C 11-2269

HVACSTAR DC Motor Speed Controller MM23001C 11-2269 Compatible with Minarik

• Part Number: MM23001C 11-2269
• Input: 115 or 230 Volt AC, 50/60 Hz
• Armature voltage (115 Volt AC IN): 0-90 VDC, Armature voltage (230 Volt AC IN): 0-180 VDC
• Adjustable SCR speed controller for permanent magnet or shunt wound, brush type motors
• Size: 4-5/16" x 3-19/32" x 1-19/32"

Description:
MM23001C controller adjustable SCR speed controller for permanent magnet or shunt wound, brush type motors.
Ideal for motors in the range of 1/8 HP to 2 HP.

Parameters:
Input: 115 or 230 Volt AC, 50/60 Hz
Armature voltage (115 Volt AC IN): 0-90 VDC
Armature voltage (230 Volt AC IN): 0-180 VDC
5 Amps output, 10 Amps w/heatsink
1/8 HP to 1 HP – 90 Volt DC
1/4 HP to 2 HP – 180 Volt DC
1% regulation over 60:1 speed range
Size: 4-5/16″ x 3-19/32″ x 1-19/32″
