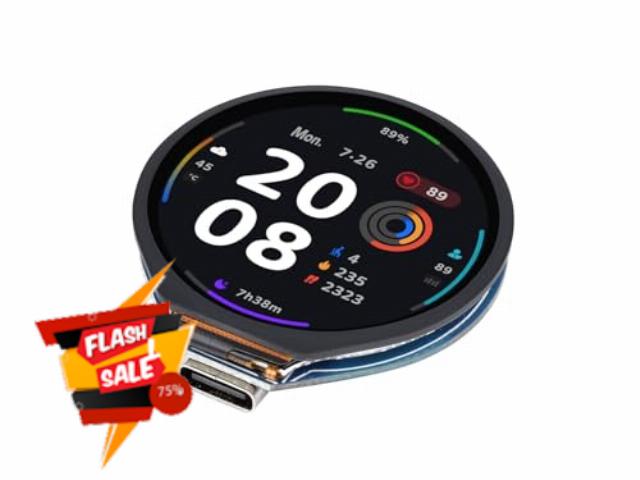

ESP32-S3 MCU Board with Onboard 1.28inch Touch Display and 6-Axis Sensor etc. 32-bit LX7 Dual-core Processor, Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5, Type-C Connecto

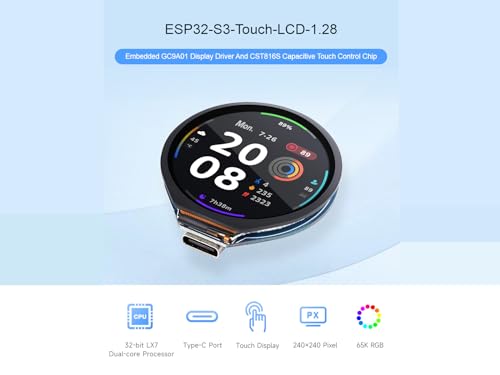

• ESP32-S3 development board with 1.28inch round touch LCD, Li-ion battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope) etc. embedded GC9A01 display driver and CST816S capacitive touch control chip
• Equipped with 32-bit LX7 dual-core processor, up to 240MHz main frequency, supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
• Built in 512KB of SRAM and 384KB ROM, with onboard 2MB PSRAM and an external 16MB Flash memory
• Onboard 1.28inch capacitive touch display, 240×240 resolution, 65K color
• Onboard Type-C connector, keeps it up to date, easier to use

Overview

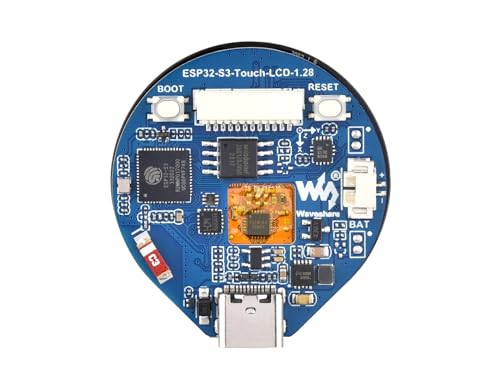

ESP32-S3-Touch-LCD-1.28 is a low-cost, high-performance MCU board designed by Waveshare, tiny size, with onboard 1.28inch capacitive touch display, Li-ion battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), and so on, which makes it easy for you to develop and integrate it into products quickly.

Features
— Equipped with 32-bit LX7 dual-core processor, up to 240MHz main frequency
— Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
— Built in 512KB of SRAM and 384KB ROM, with onboard 2MB PSRAM and an external 16MB Flash memory
— Type-C connector, keeps it up to date, easier to use
— Onboard 1.28inch capacitive touch display, 240×240 resolution, 65K color
— Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture

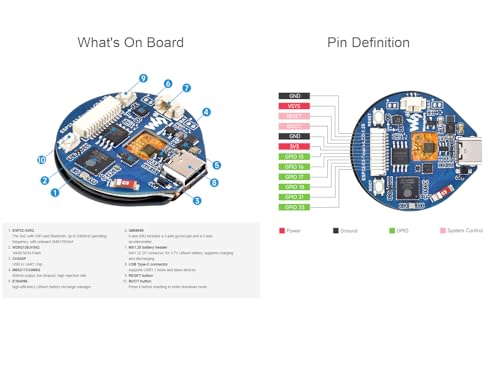

— Onboard 3.7V lithium battery recharge/discharge header and 6 × GPIO pins via SH1.0 connector
— Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
— Integrated with USB serial port full-speed controller, GPIO pins allows flexibly configuring pin functions

Package Content
ESP32-S3-Touch-LCD-1.28 x1

Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
