Waveshare 5G DONGLE Module, Quad Antennas, USB3.1
Waveshare 5G DONGLE Module, Quad Antennas, USB3.1 Port, Aluminum Alloy Heatsink, M.2 Key B Interface, with RM530N-GL 5G Module

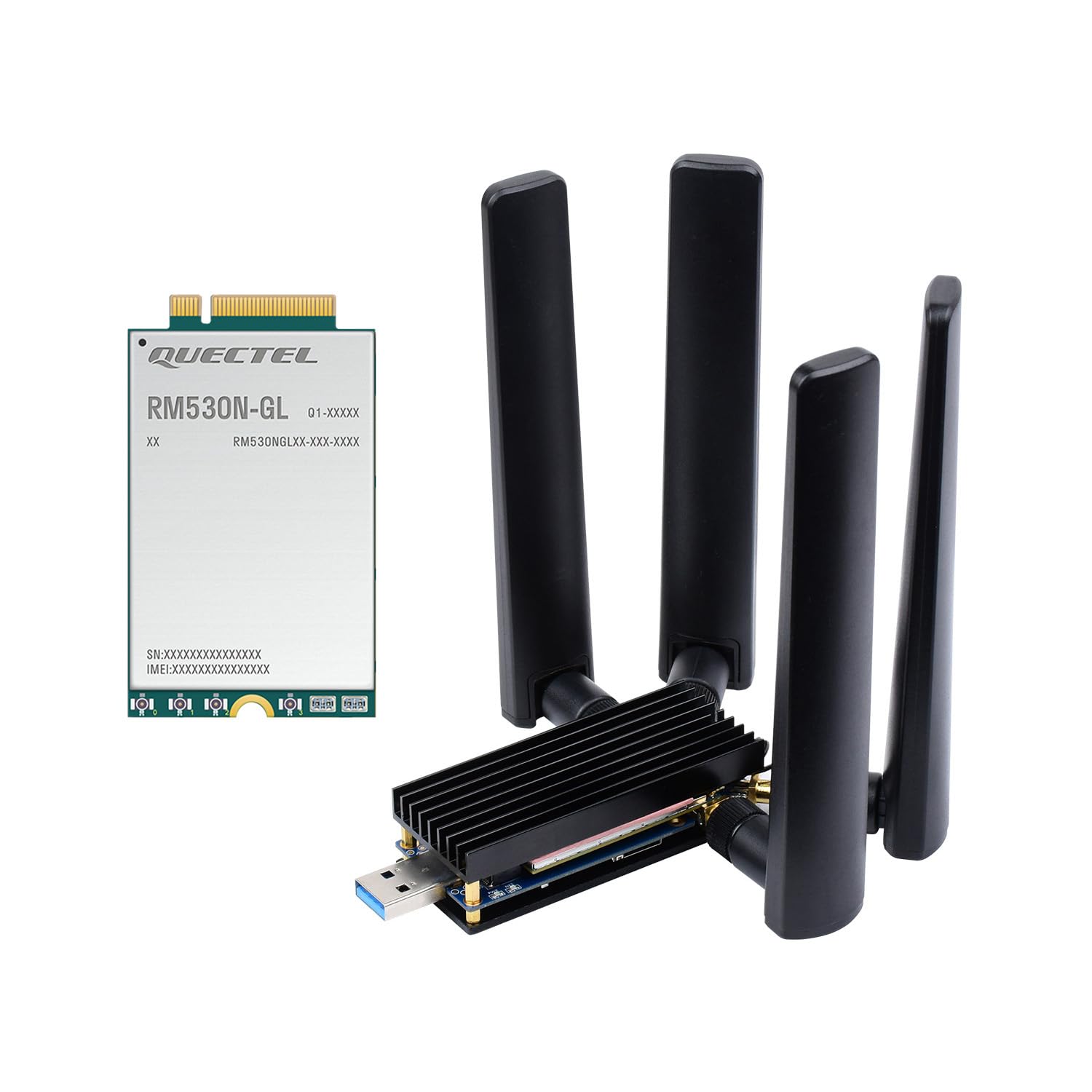

- Comes with Qualcomm global band RM530N-GL 5G Sub-6G & mmWave module for testing and evaluating, supports accessing 5G network via USB3.1 port

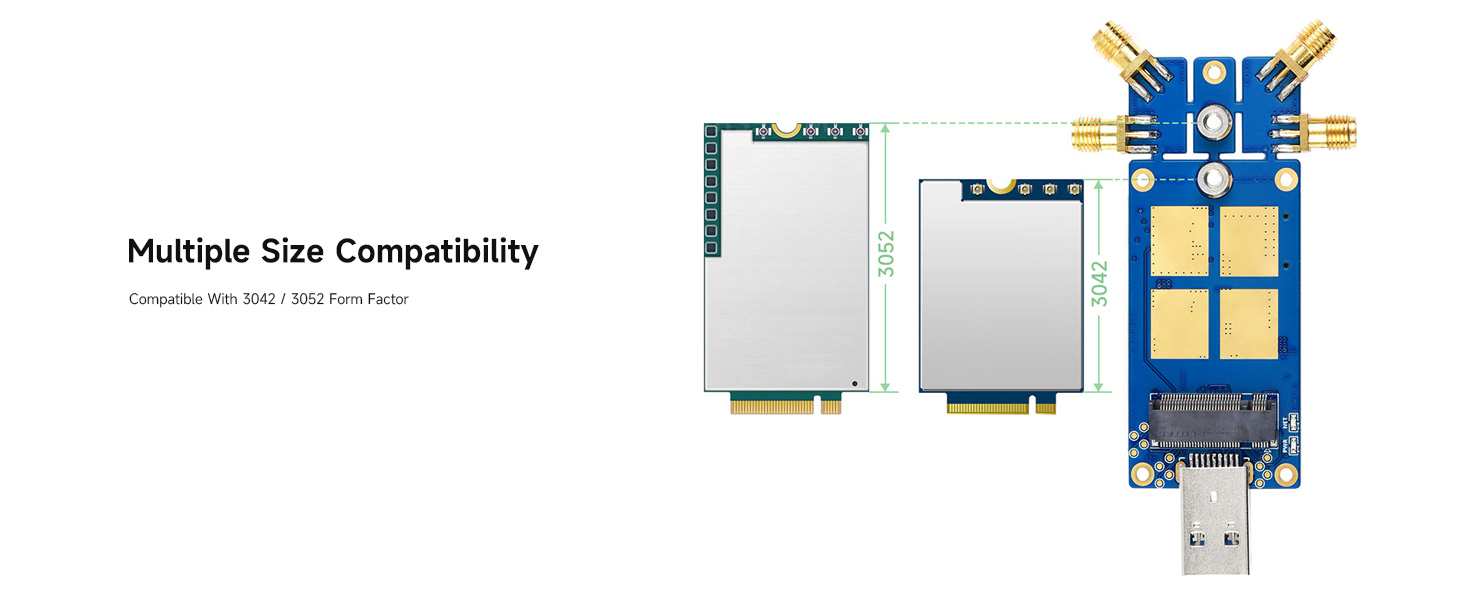

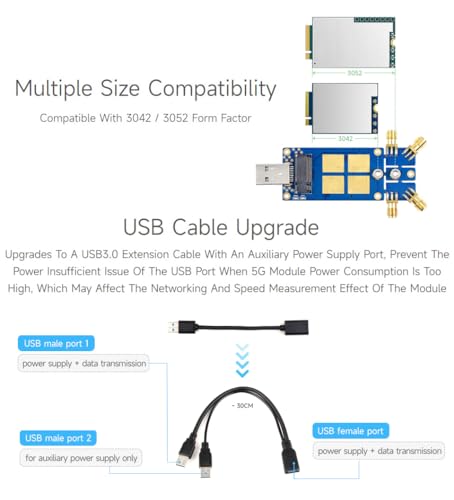

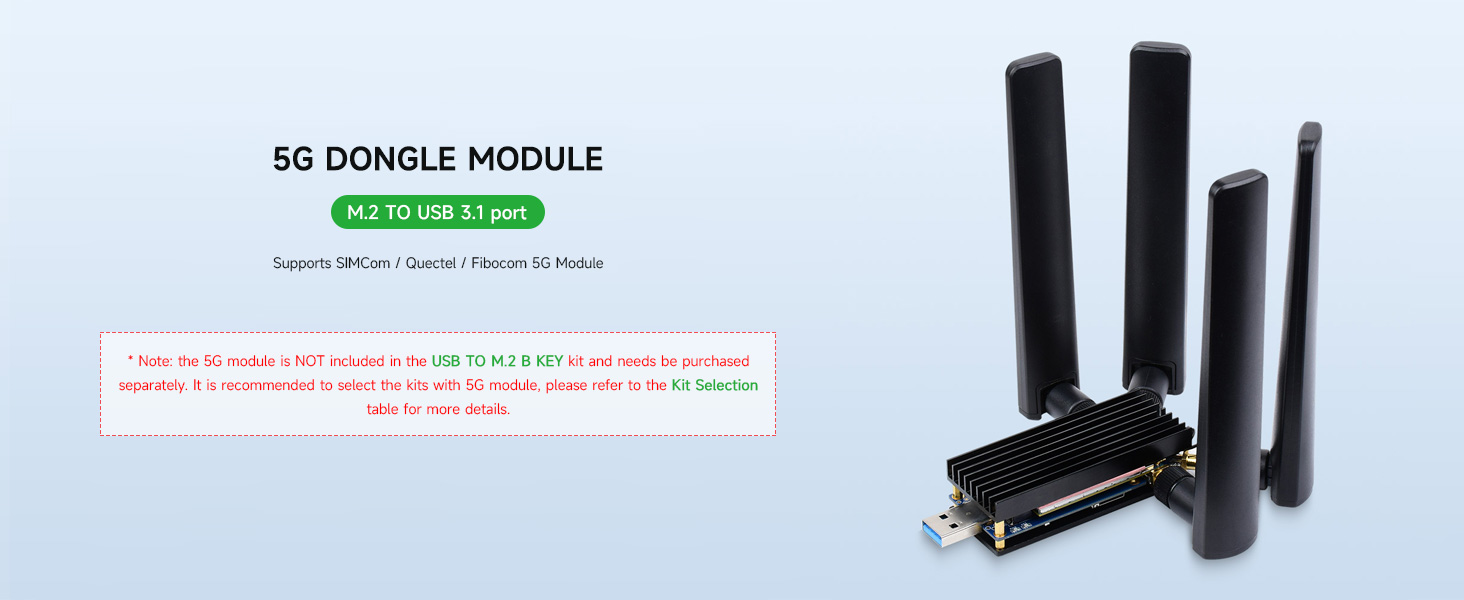

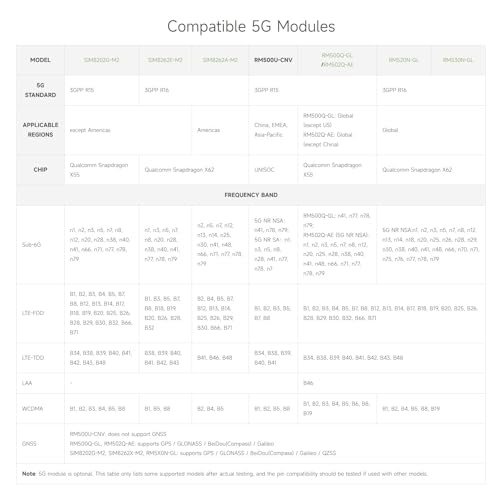

- Support 5G modules with M.2 (NGFF) Key B interface, compatible with SIMCom, Quectel, and Fibocom 5G modules. Support 5G modules with 3042/3052 form factor, such as SIM82XX, and RM50XQ series 5G modules

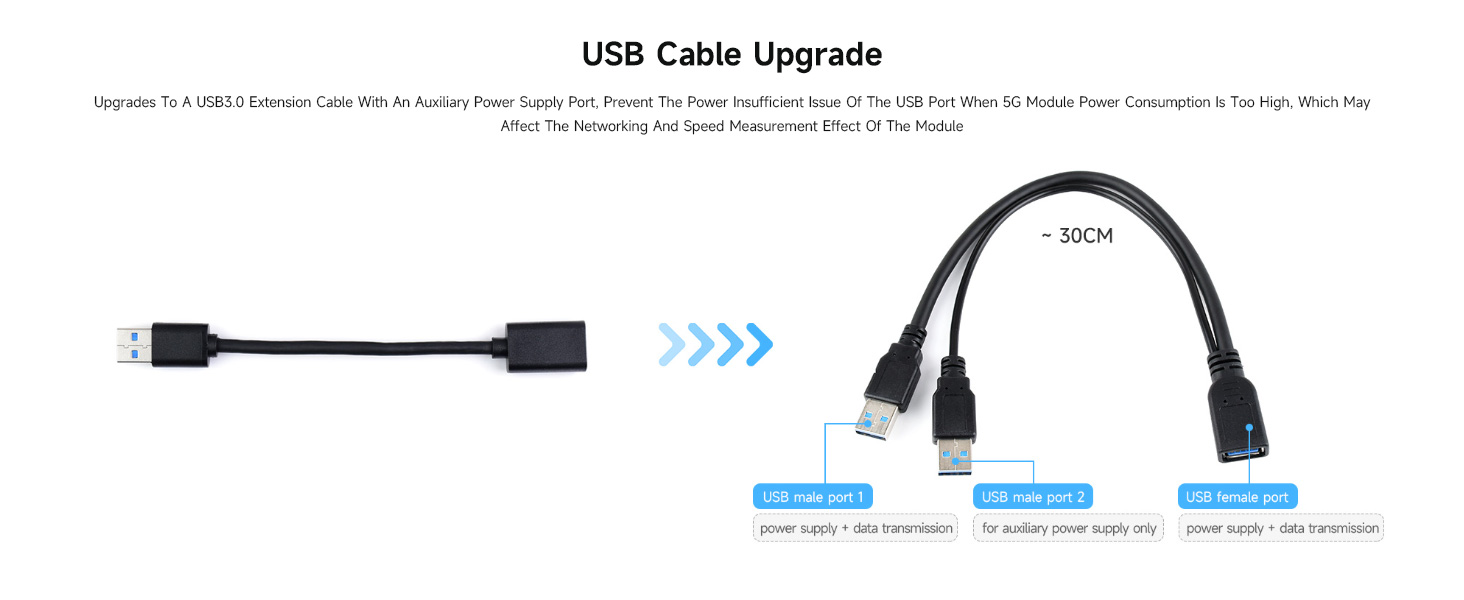

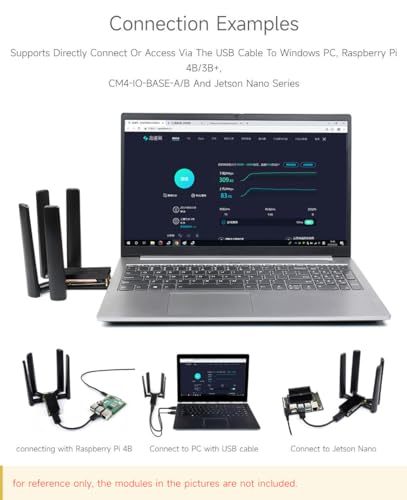

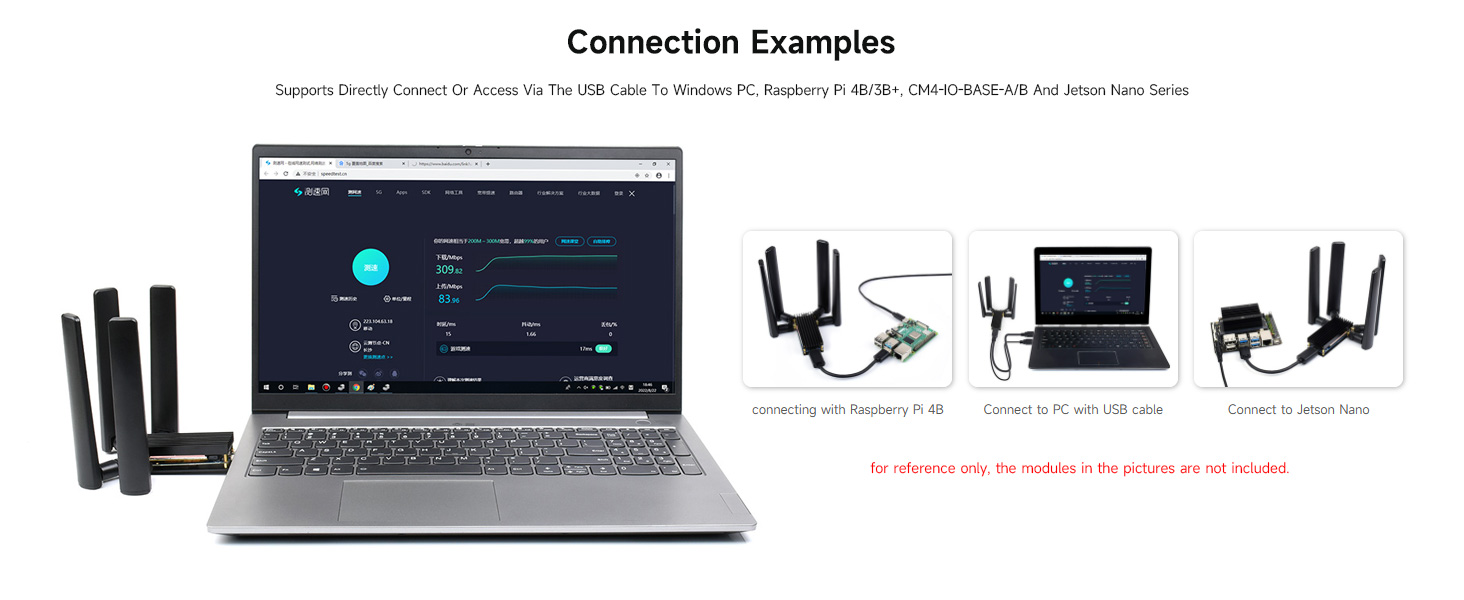

- USB 3.1 Type A port for connecting to PC, Raspberry Pi, or Jetson Nano host board to enable high speed 5G network. 4x SMA antenna connectors, easy to install the antenna
- Onboard SIM card slot for NANO SIM card. Onboard power and network indicators, with multiple reserved pads, for checking module operating status and testing other functions
- PCB ENIG process, reserved multi slots and positioning holes for integration. Comes with customized aluminum alloy heatsink, good heat dissipation, nice-looking, protective and durable
| SKU: | B0CNT6S9RY |
| Weight: | 227 g |
| Dimensions: | 17.78 x 12.7 x 5.08 cm; 226.8 Grams |
| Brand: | Waveshare |
| Manufacture: | Waveshare |
| Reference: | RM530N-GL 5G DONGLE |
Product Description

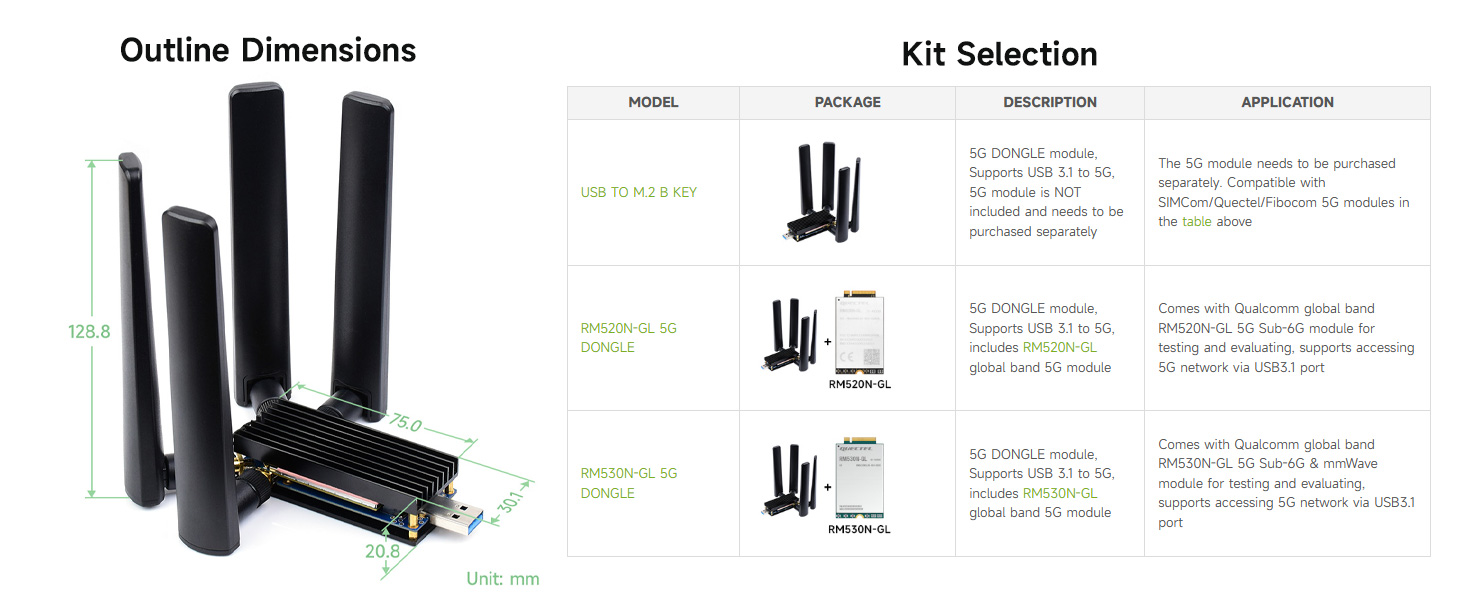

Kit Selection
 USB TO M.2 B Key |  RM520N-GL 5G DONGLE |  RM530N-GL 5G DONGLE | USB TO M.2 B Key | |
| Customer Reviews | 5.0 out of 5 stars 2 | — | 4.0 out of 5 stars 1 | 5.0 out of 5 stars 2 |
| Price | £34.99 | £270.99 | £337.99 | £34.99 |
| 5G module | None | RM520N-GL | RM530N-GL | None |
| APPLICABLE REGIONS | Global | Global | Global | Global |
| System Support | Windows/Linux | Windows/Linux | Windows/Linux | Windows/Linux |
| CHIP | None | Qualcomm Snapdragon X62 | Qualcomm Snapdragon X62 | None |
| 5G STANDARD | None | 3GPP R16 | 3GPP R16 | None |
