WANLUTECH Upgraded 8K IP Camera Tester, CCTV Tester 7 inch

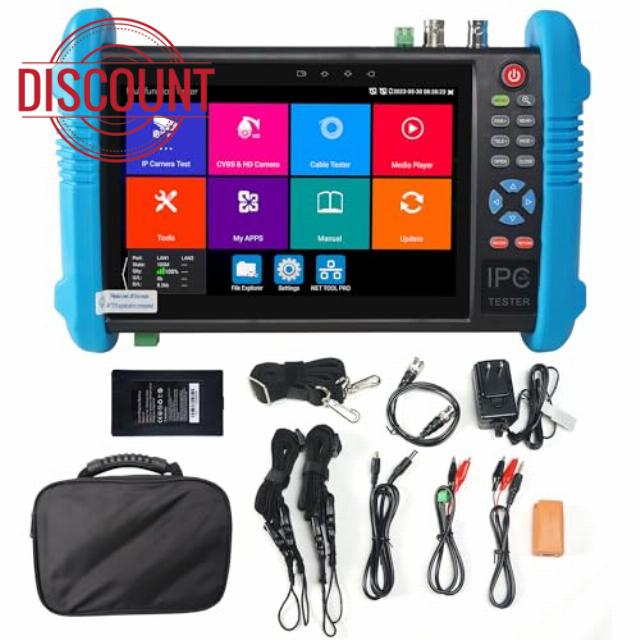

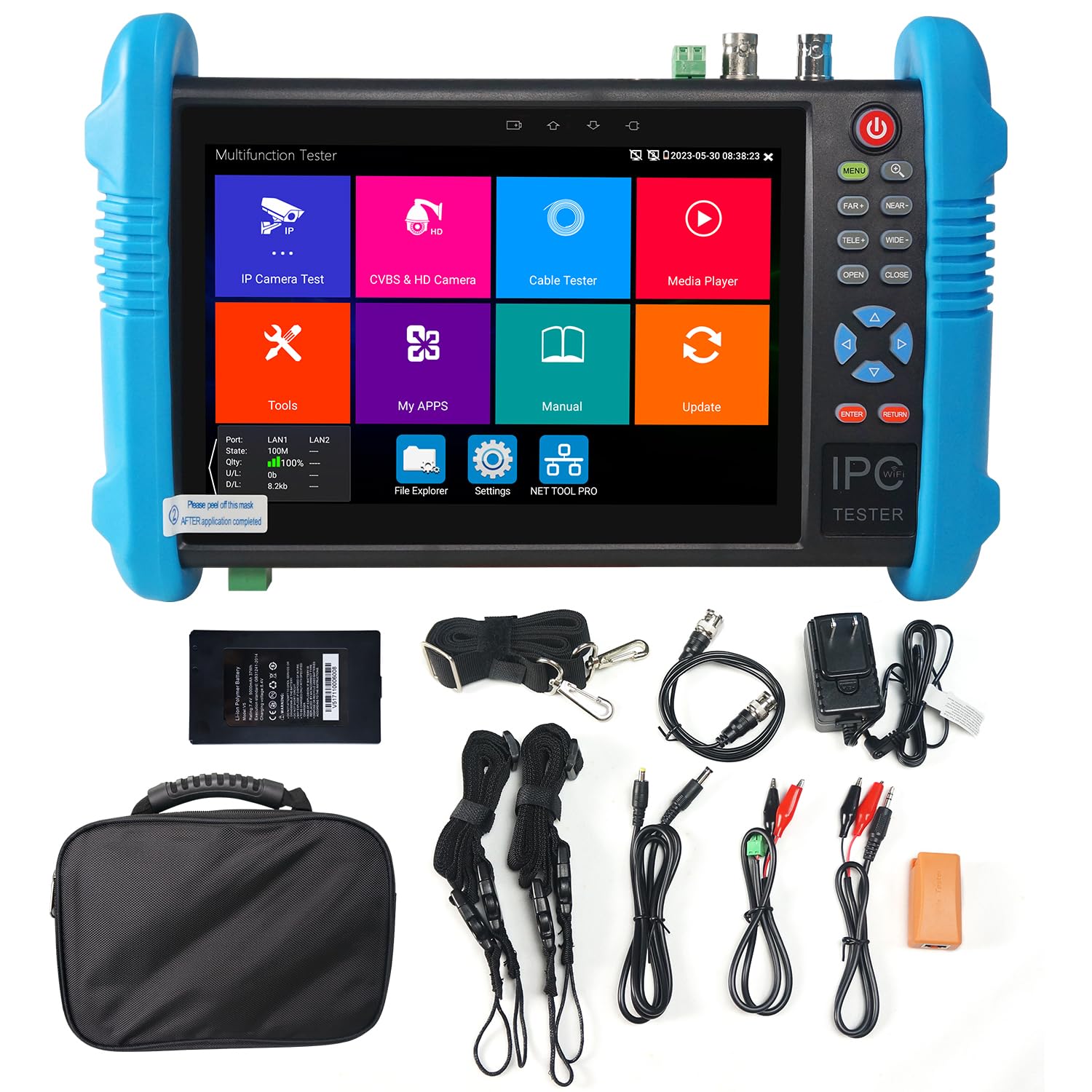

WANLUTECH Upgraded 8K IP Camera Tester, CCTV Tester 7 inch Touchscreen 8MP TVI CVI AHD CVBS Camera Tester RJ45 Cable Tester PoE Network Tools RS485 WiFi HDMI I/O VGA in (IPC-9800ADH Pro)

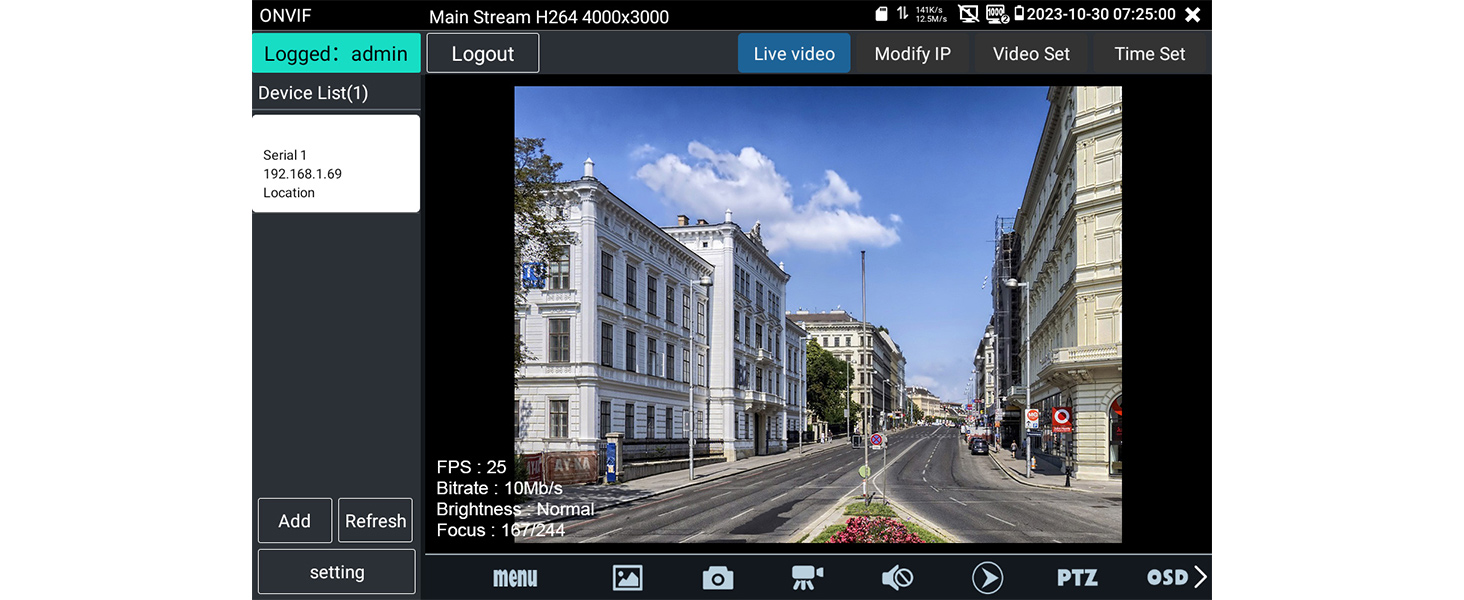

- 【Upgraded IP Analog Camera Tester】WANLUTECH Upgraded 8K IP camera tester has 7'' touchscreen, 1280*800 resolution. It support to test max 8K 32MP 4K 12MP IP cameras, support CVBS analog camera test. The IP camera tester supports batch activation of DH, Hik cameras and modification of IP addresses, passwords, etc. Support IPC TEST (Non-OVIF test) /IP Discovery/Rapid Video/RTSP Play /Quick OVIF/Hik DH test tool/Client APK

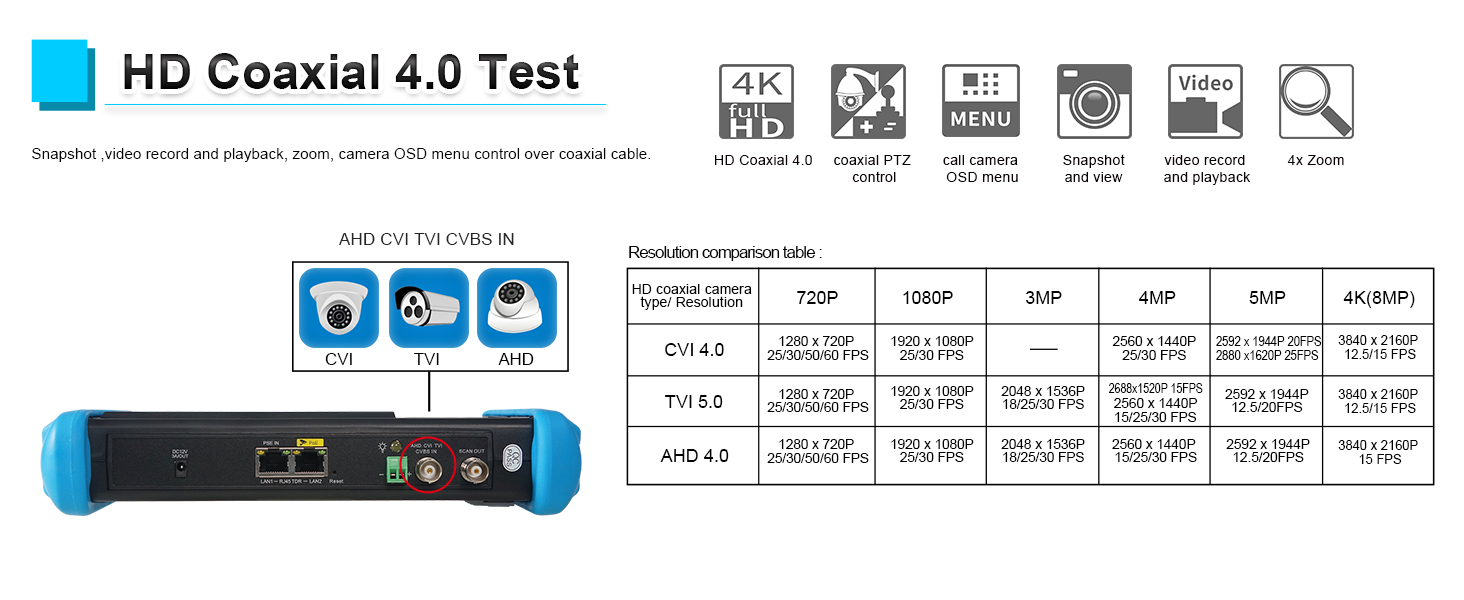

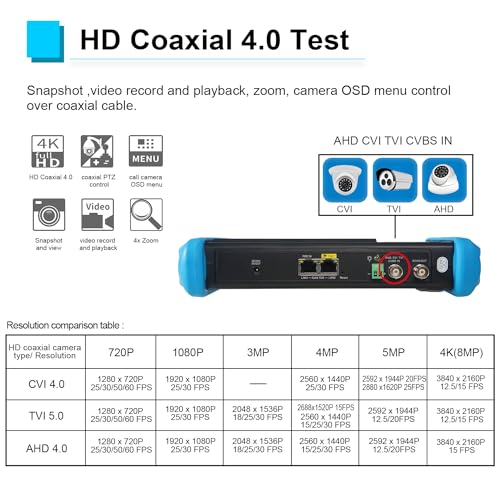

- 【Coaxial Camera Tester】WANLUTECH IP camera tester with poe support to test max 8MP AHD/TVI/CVI/CVBS camera. Using "AUTO HD" app can automatically recognize AHD CVI TVI CVBS cameras and display resolution and frame rate on the screen, supports UTC control & call OSD menu, menu settings, screenshot, video recording, video playback, etc. Support color bar generator.

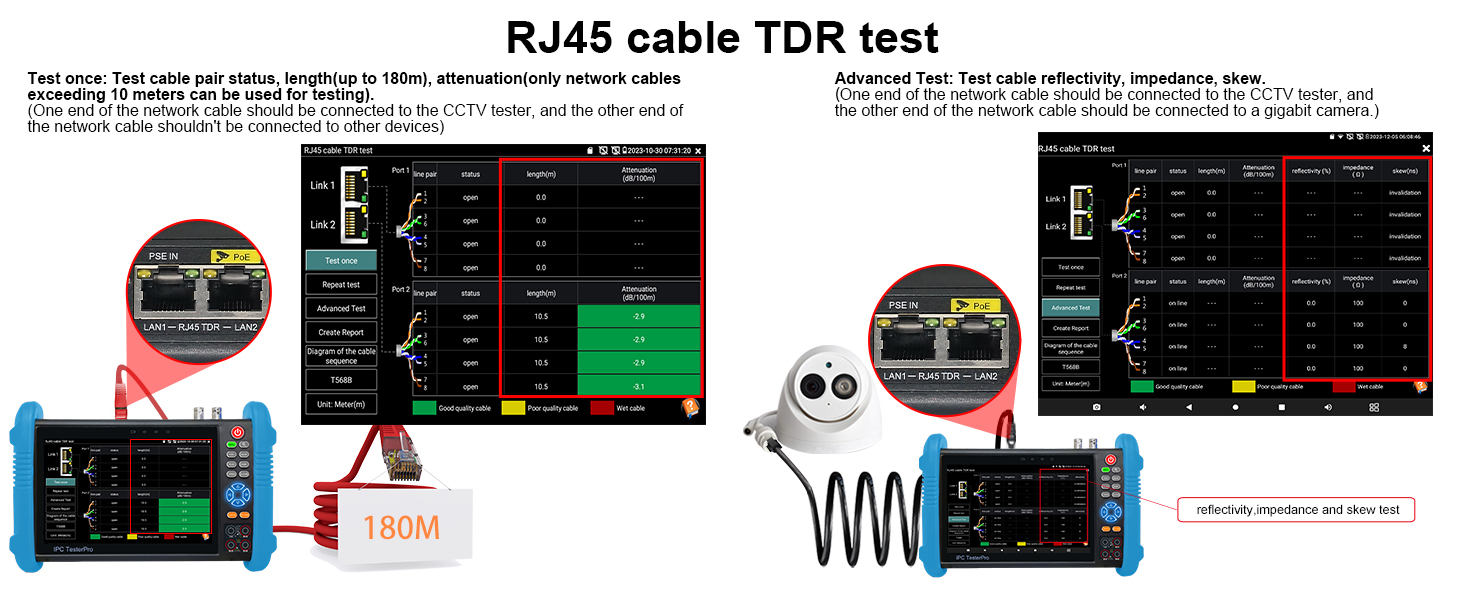

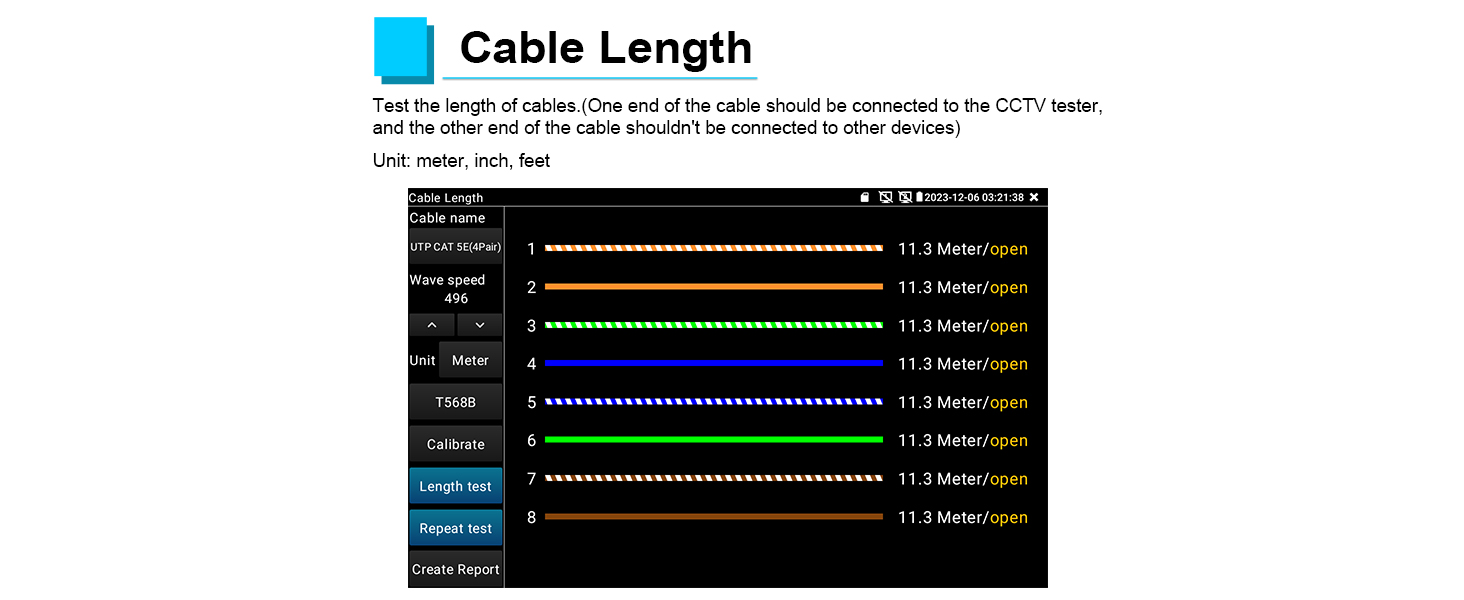

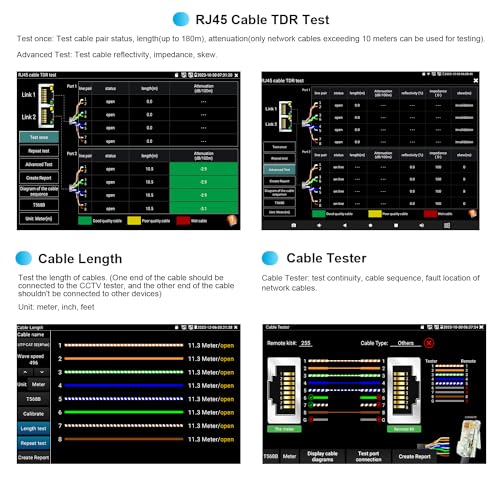

- 【Cable Tester】RJ45 Cable TDR Test: it can test cable pair status, length, attenuation(only network cables exceeding 10 meters can be used for testing), reflectivity, impedance, skew.

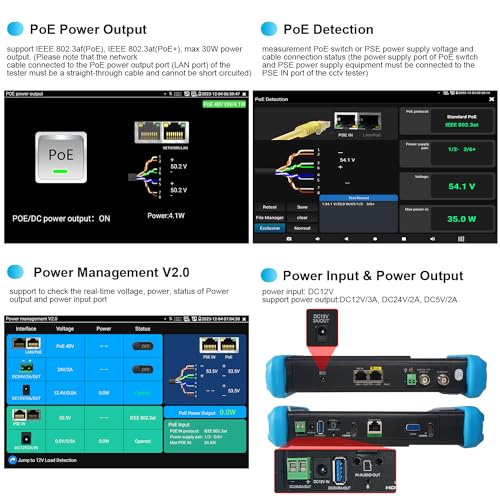

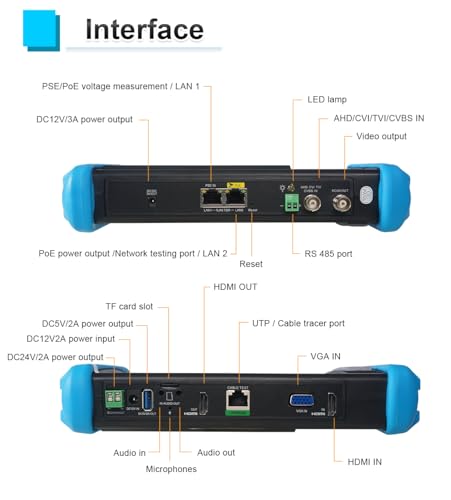

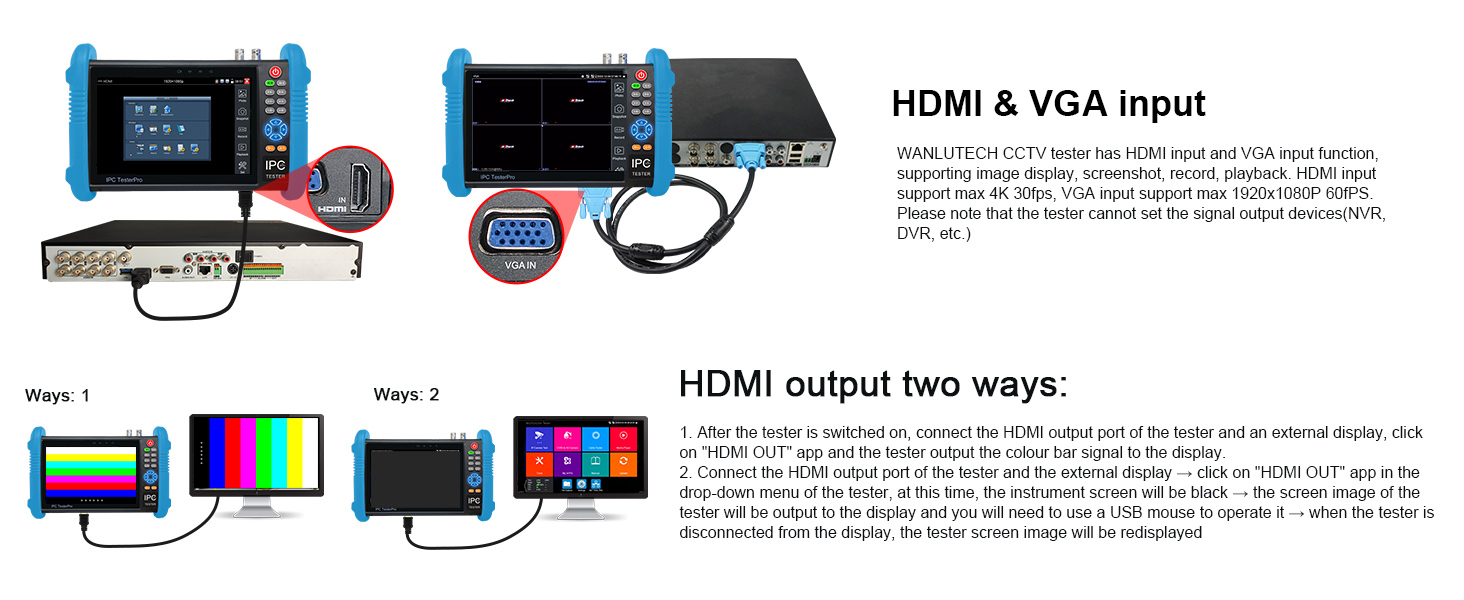

- 【Multifunction CCTV Monitor Tester】48V PoE( IEEE802.3af/at, max 30W ) power output, RJ45 Dual Gigabit Ethernet ports, 10/100/1000Mbps adaptive, HDMI I/O, VGA in, Audio I/O, RS485, WiFi analyzer. Network Tools: IP scan, PING test, PPPOE, trace route, link monitor, DHCP server, port flashing. Measurement POE switch or PSE power supply voltage and cable connection status. power input:DC12V 2A, power output:DC12V/3A, DC24V/2A, DC5V/2A.
- 【Customer Service】We are the manufacturer, so you don't have to worry about technical support and after-sales service. If you have any questions, please let us know. You will hear back from us within 12 hours.
| SKU: | B0CN943DJR |
| Weight: | 4.4 pounds |
| Dimensions: | 12.6 x 11.42 x 3.54 inches |
| Batteries Included: | 1 Lithium Ion batteries required. (included) |
| Manufacture: | GUANGZHOU WANGLU TECHNOLOGY CO.,LTD |
| Origin: | China |
Product Description
1 IP Camera Test 2 IP Discovery 3 AHD/CVI/TVI Test 4 Quick ONVF 5 HIK DH Camera Test
We are CCTV TESTER manufacturer, so you don’t have to worry about after-sales service. We would like to address any issues or concerns you have.
WARM TIP: You can find the user manual on the detailed page and download it to learn more details and how to c-o-n-t-a-c-t our after-sales service team.

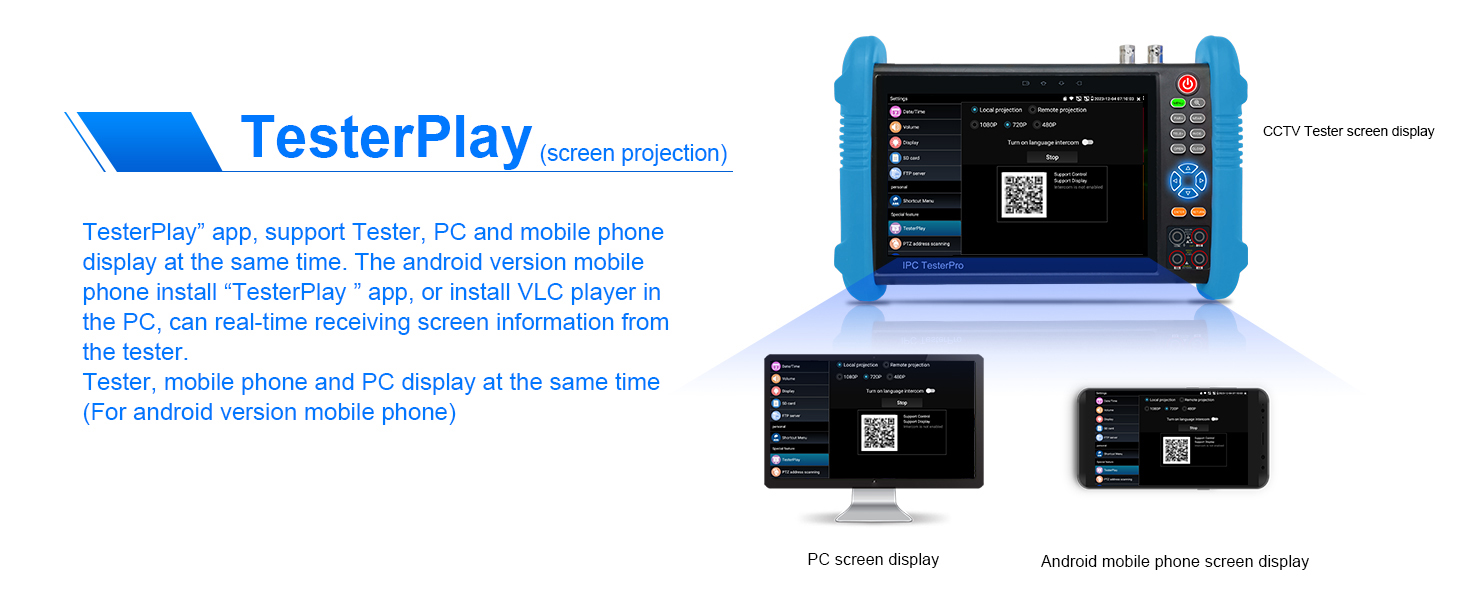

1 HDMI I/O & VGA IN 2 WI-FI Analyzer 3 TesterPlay 4 Online Update 5 Network Tools
WANLUTECH CCTV Tester 9800 series
 IPC-9800CLMOVTADHS Pro |  IPC-9800CADH Pro |  IPC-9800ADHS Pro |  IPC-9800ADH Pro | |
| Customer Reviews | 4.4 out of 5 stars 6 | 4.4 out of 5 stars 6 | 4.4 out of 5 stars 6 | 4.4 out of 5 stars 6 |
| Price | $649.99 | $395.99 | $399.99 | $370.99 |
| IP and Analog Camera Test | ✔ | ✔ | ✔ | ✔ |
| 8MP TVI/CVI/AHD Camera Test | ✔ | ✔ | ✔ | ✔ |
| 8MP SDI Camera Test | ✔ | N/A | ✔ | N/A |
| Cable tracer | ✔ | ✔ | N/A | N/A |
| Video level meter | ✔ | N/A | N/A | N/A |
| Digital multimeter | ✔ | N/A | N/A | N/A |
| Optical power meter | ✔ | N/A | N/A | N/A |
| Visual fault locator | ✔ | N/A | N/A | N/A |
| TDR cable breakpoint test | ✔ | N/A | N/A | N/A |
| HDMI in/HDMI out/VGA in | ✔ | ✔ | ✔ | ✔ |
| RJ45 cable tester | ✔ | ✔ | ✔ | ✔ |
WANLUTECH ALL in ONE CCTV Tester
 X9-MOVTADHS Pro |  K15-CLMOVTADHSEFG | IPC-9800CLMOVTADHS Pro |  IPC-5200C Plus | |
| Customer Reviews | 4.4 out of 5 stars 6 | — | 4.4 out of 5 stars 6 | 4.4 out of 5 stars 6 |
| Price | $765.99 | $660.99 | $649.99 | $329.99 |
| Screen Size | 8” touch screen | 7” touch screen | 7” touch screen | 5.4” touch screen |
| Resolution | 2048*1536P | 1920*1200P | 1280*800P | 1920x1152P |
| CPU/RAM/ROM | 1.8GHz, 4 core CPU/2GB/16GB | 1.8GHz, 4 core CPU/2GB/16GB | 1.2GHz, 4 core CPU/1GB/8GB | 1.2GHz, 4 core CPU/1GB/8GB |
| 8K IP camera test | ✔ | ✔ | ✔ | 4K IP camera test |
| 8MP AHD/CVI/TVI camera test | ✔ | ✔ | ✔ | ✔ |
| 8MP SDI camera test | ✔ | ✔ | ✔ | ✔ |
| Cable tracer | ✔ | ✔ | ✔ | ✔ |
| DMM,VFL,OPM | ✔ | ✔ | ✔ | N/A |
| HDMI IN/HDMI Out/VGA IN | HDMI IN/HDMI Out | ✔ | ✔ | HDMI IN/VGA IN |
| Distance measurement | N/A | ✔ | N/A | N/A |
| SFP optical module port | N/A | ✔ | N/A | N/A |
| PoE power output | IEEE 802.3 af/at/bt, Max 90W | IEEE 802.3 af/at,max 30W | IEEE 802.3 af/at,max 30W | IEEE 802.3 af/at,max 30W |
