WANLUTECH Upgraded 8K IP Camera Tester, All in One CCTV

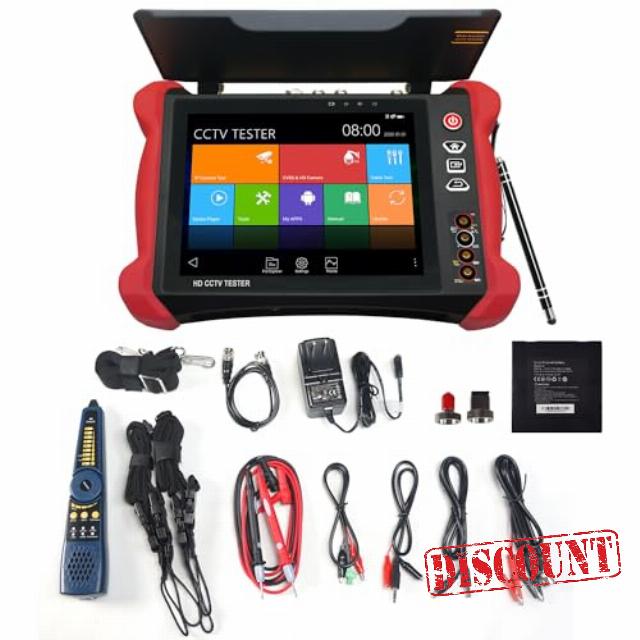

WANLUTECH Upgraded 8K IP Camera Tester, All in One CCTV Tester 8 inch Touchscreen 8MP TVI CVI AHD SDI CVBS Camera Tester PoE++ DMM OPM VFL TDR Cable Tester Network Tools HDMI in/Out(X9-MOVTADHS Pro)

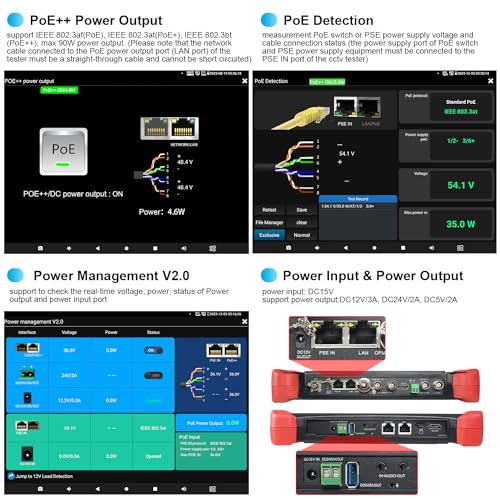

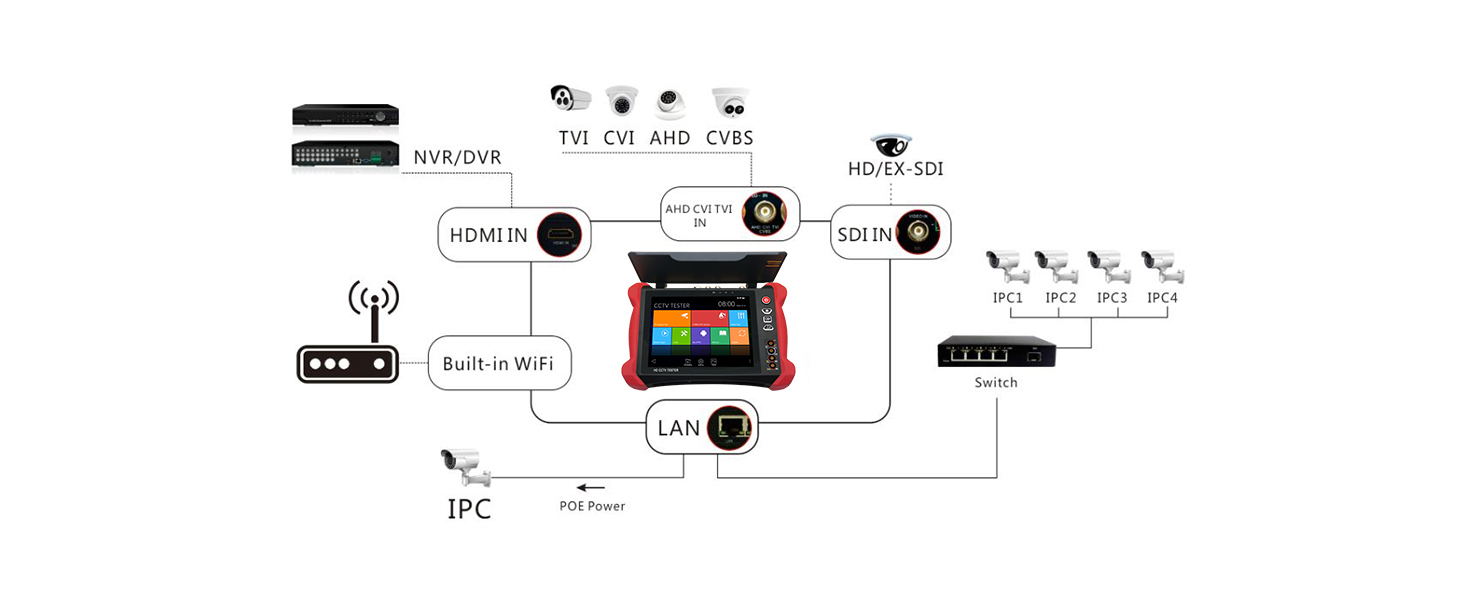

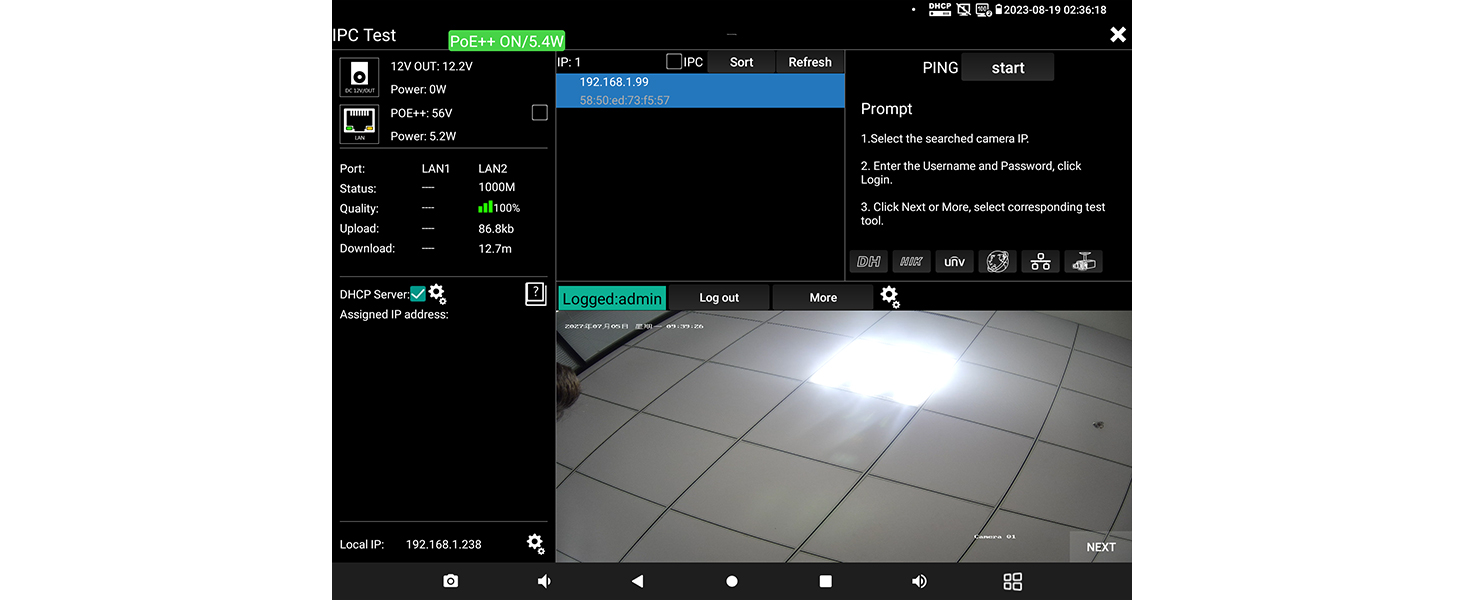

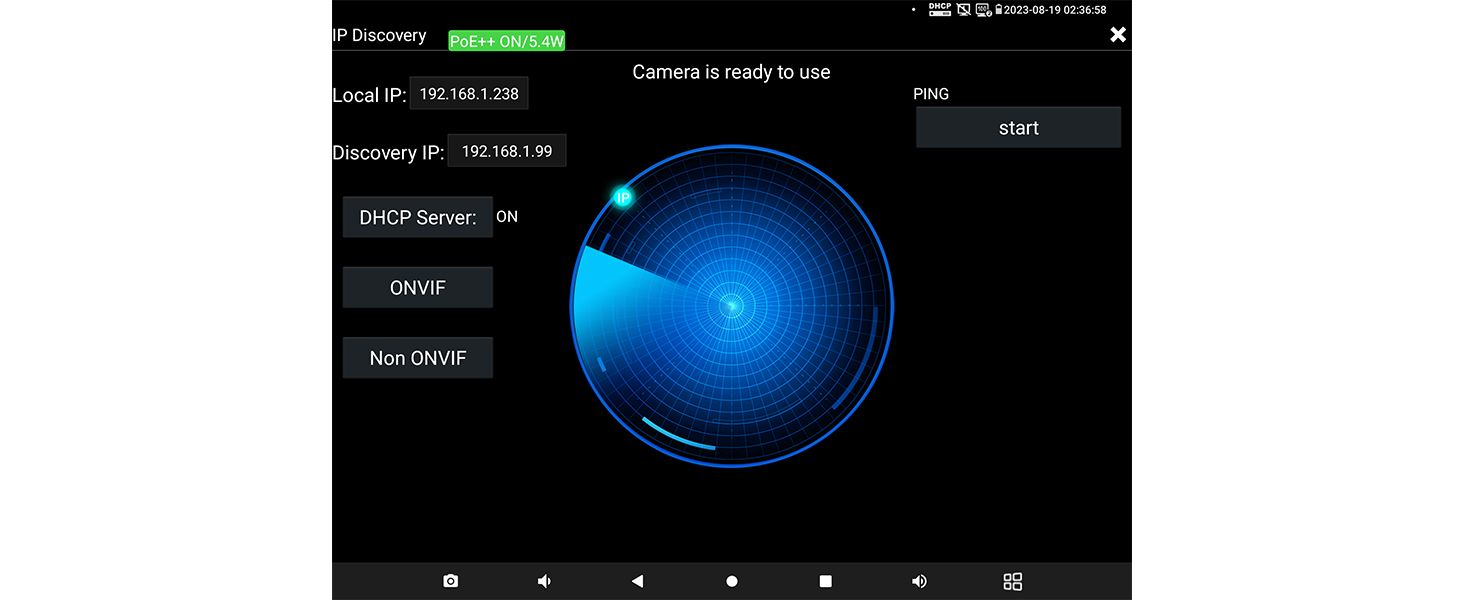

- 【Professional CCTV Camera Tester】Upgraded 8K IP camera tester (Model:X9-MOVTADHS Pro) 8 inch touchscreen 2048*1536P resolution. It has a new function–PoE++ power output. It support IEEE 802.3 af/at/bt, max 90W power output, and it can power PTZ camera.It support max 8K 32MP 4K 12MP IP Camera test, support IPC TEST (Non-OVIF test) /IP Discovery/Rapid Video/RTSP Play /Quick OVIF/Hik DH test tool.

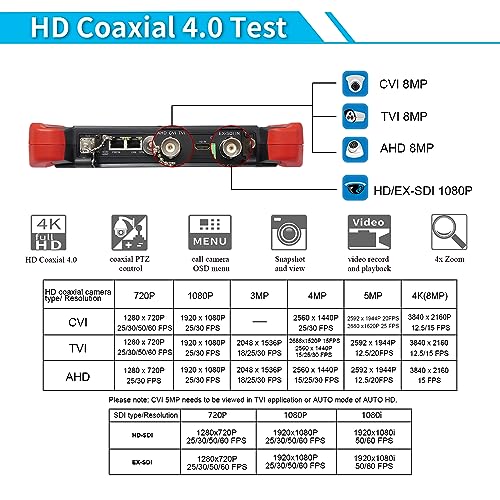

- 【AHD CVI TVI SDI Coaxial Camera Tester】WANLUTECH IP camera tester with poe support to test max 8MP(3840 x 2160P) AHD/TVI/CVI/SDI/CVBS camera. Using "AUTO HD" app can automatically recognize AHD/CVI/TVI cameras and display resolution and frame rate on the screen, supports UTC control & call OSD menu, menu settings, screenshot, video recording, video playback, etc. Support to measure video signal level(peak level, SYNC level, burst level). Support color bar generator.

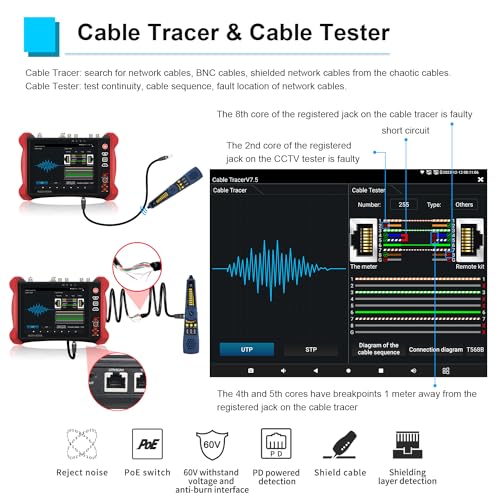

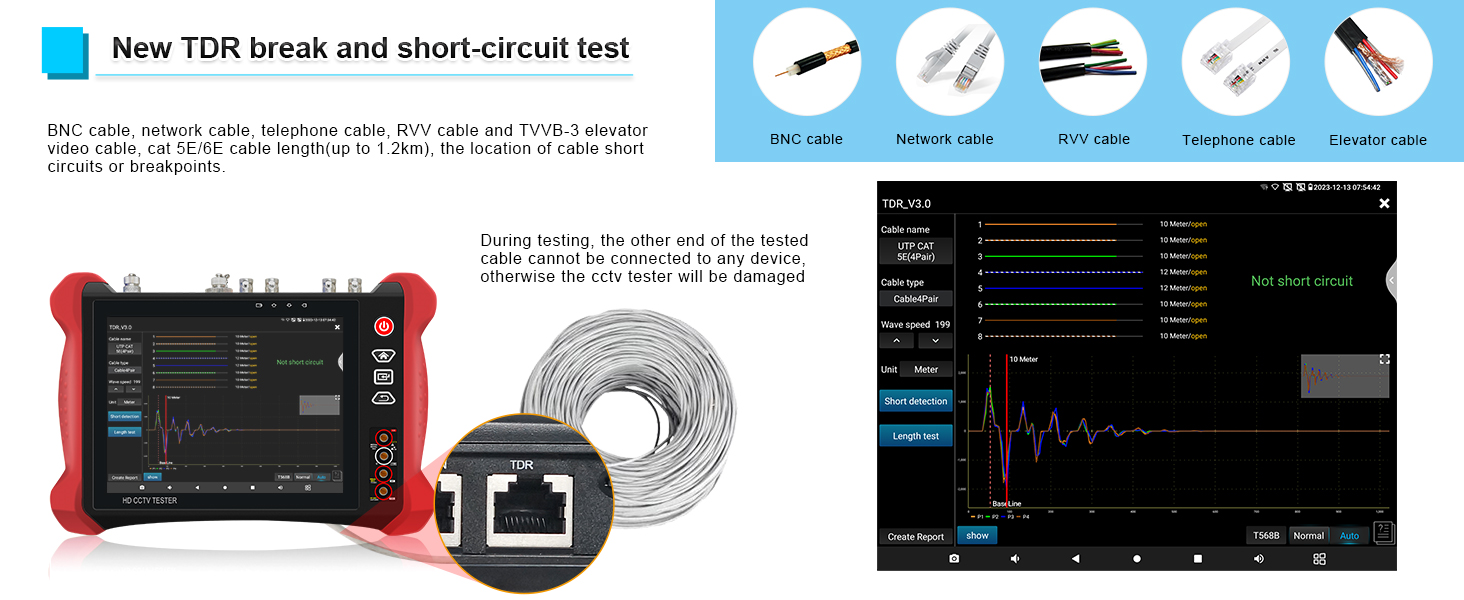

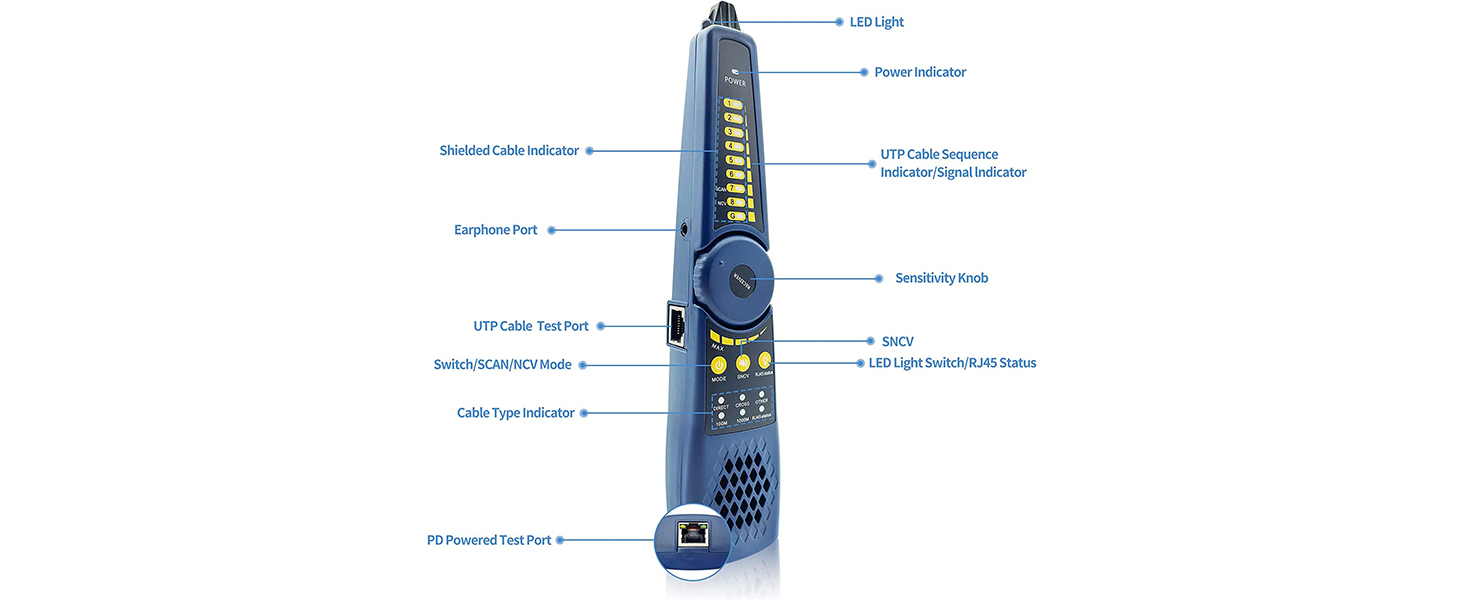

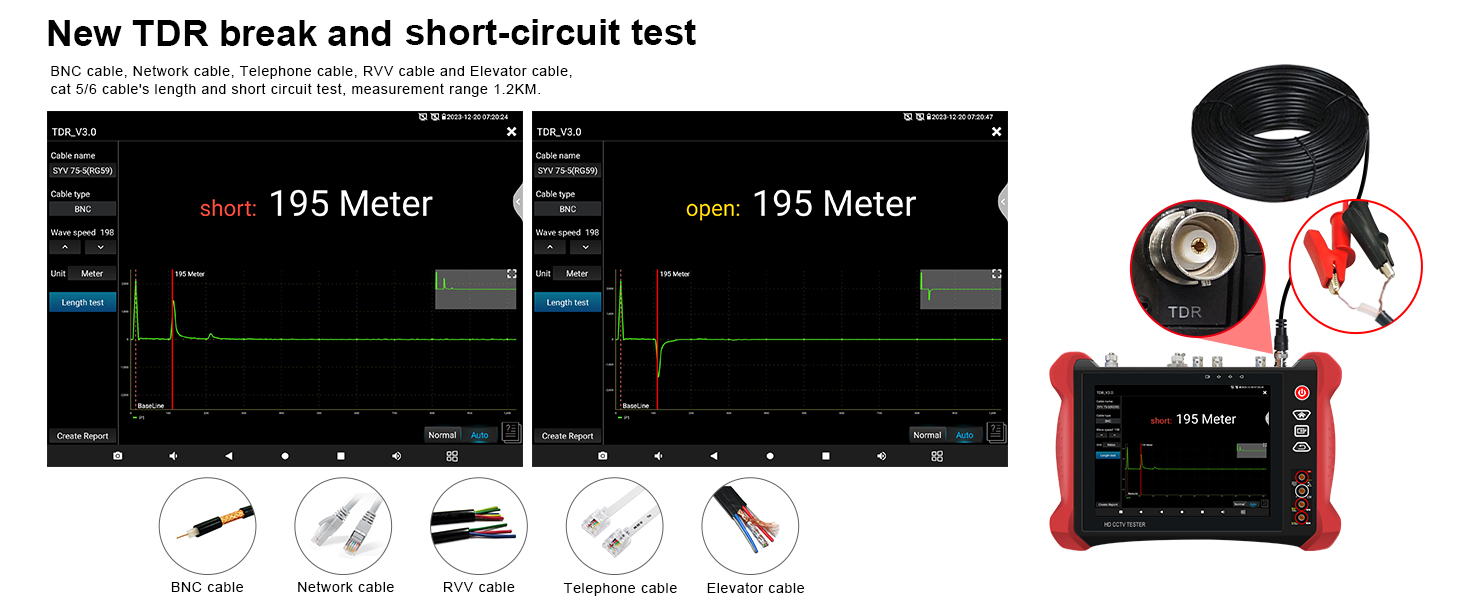

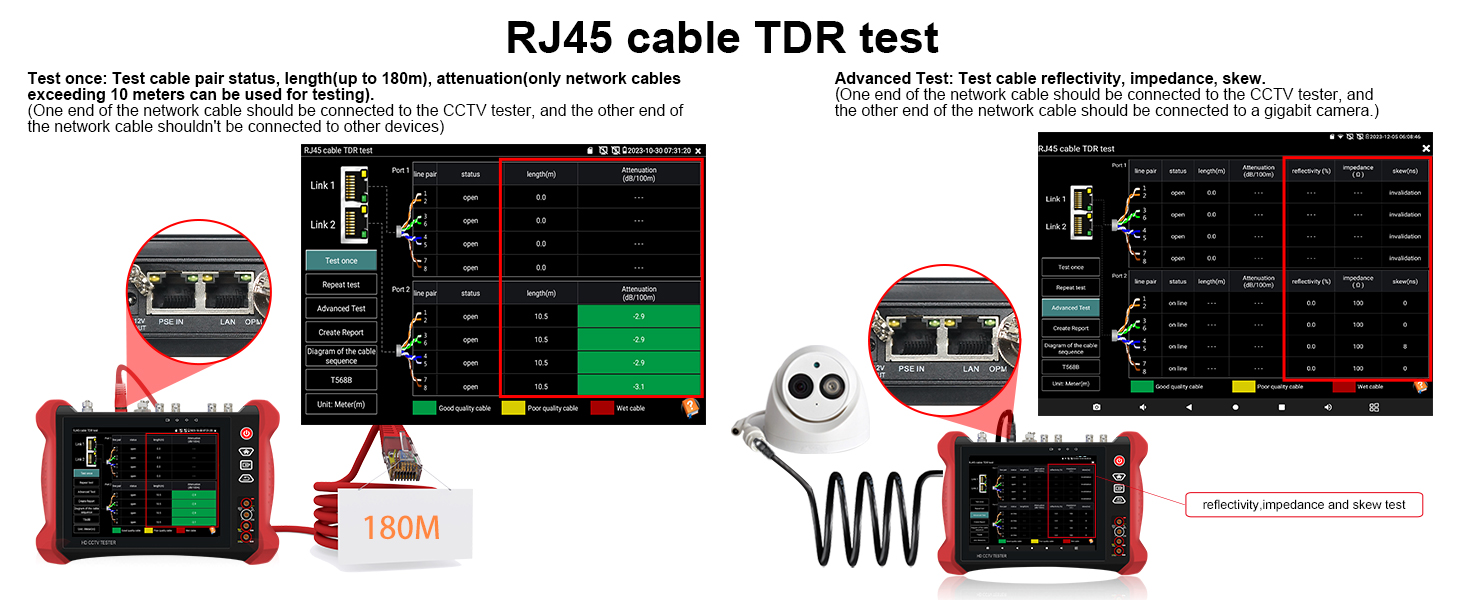

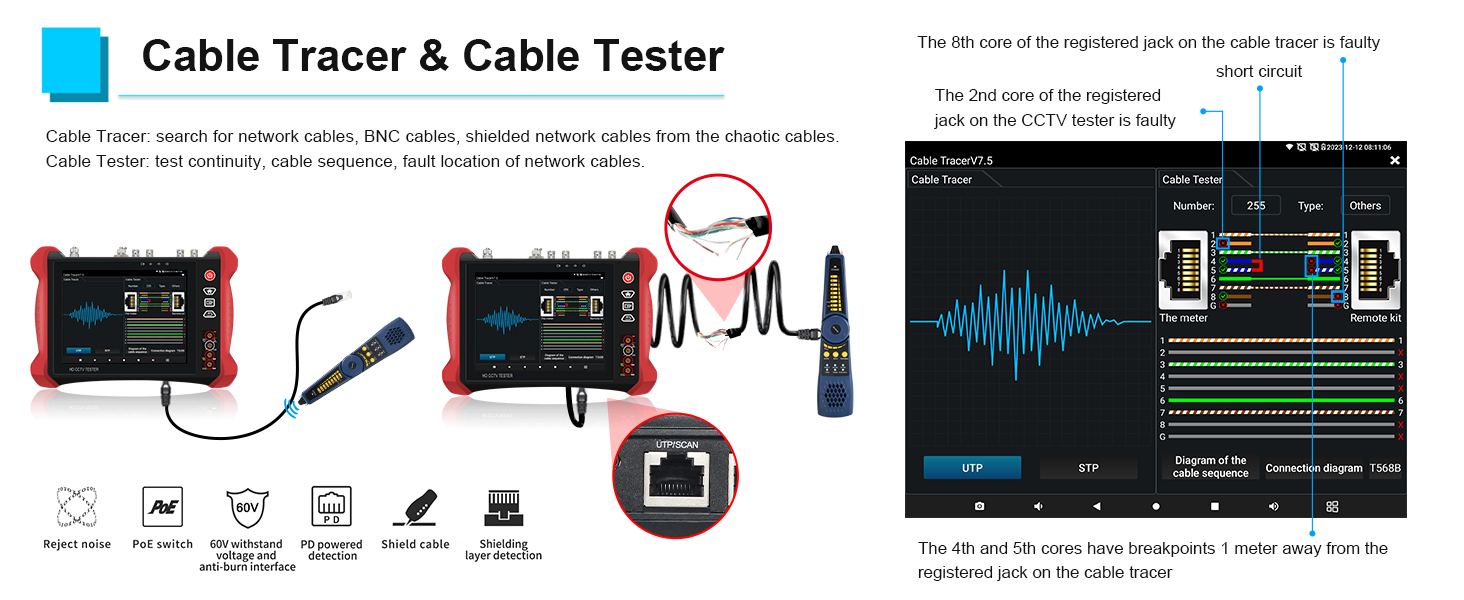

- 【Cable Tester】Cable Tracer: Searching for BNC cable, network cable and telephone cable from cluttered cables,also can search shield cables. RJ45 Cable TDR Test: it can test cable pair status, length, attenuation, reflectivity, impedance, skew. TDR Cable Breakpoint Short Circuit Test: BNC cable, network cable, telephone cable, RVV cable and TVVB elevator cable, cat 5/6 cable’s length(up to1.2KM ) and short circuit.

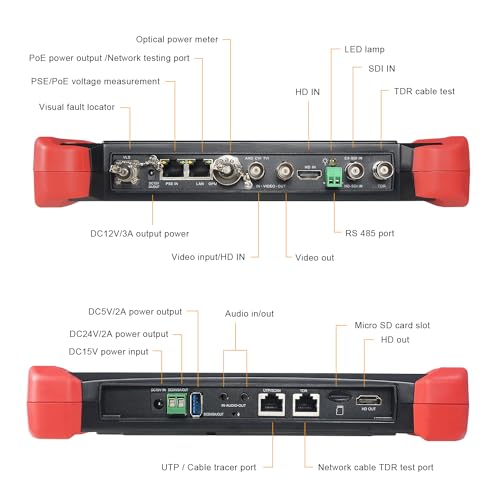

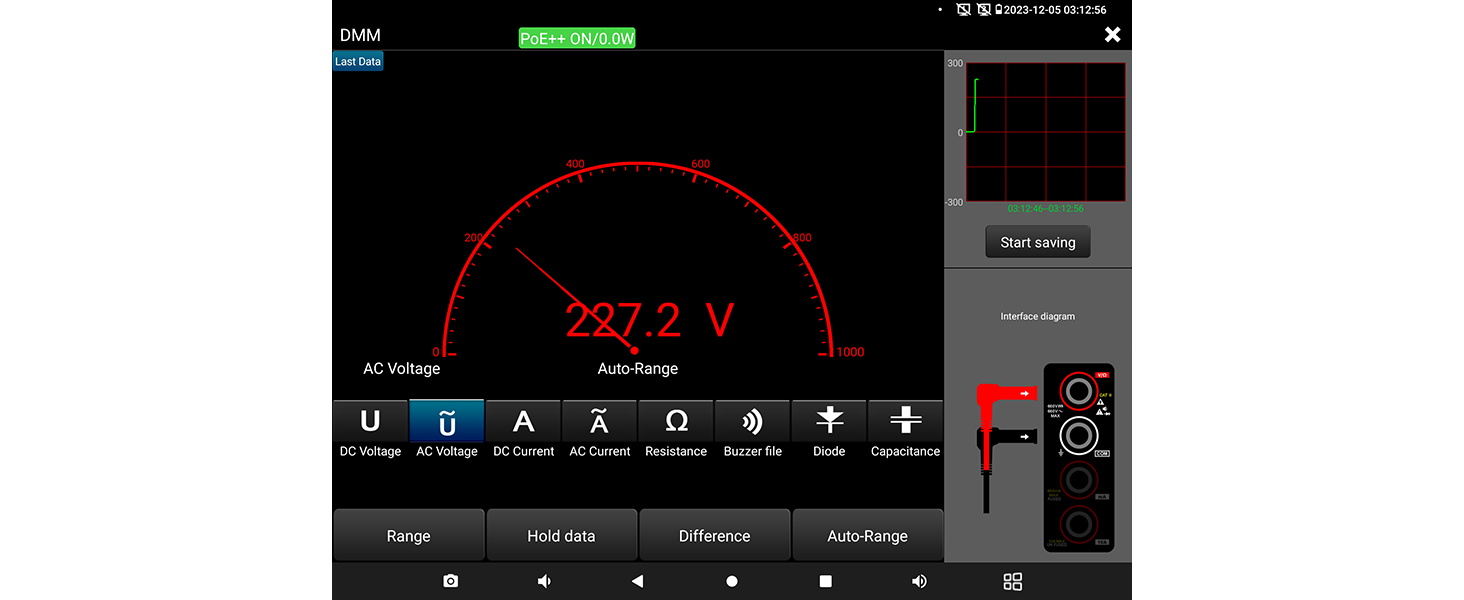

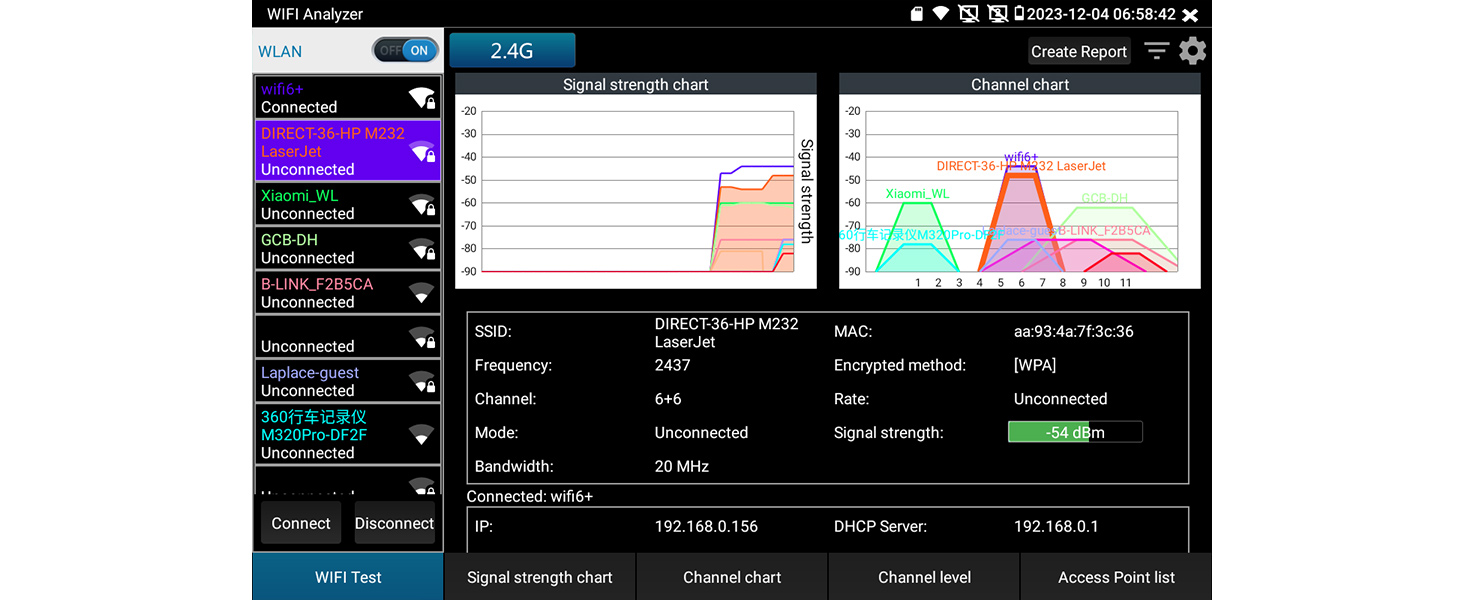

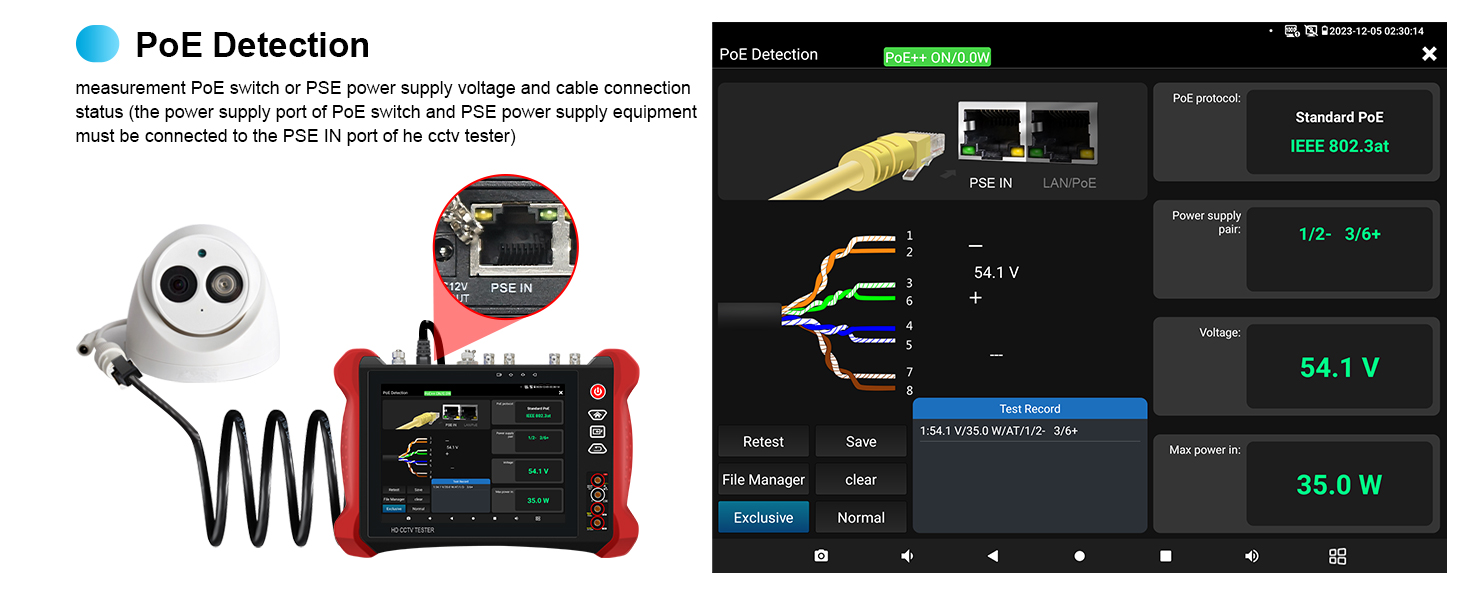

- 【Multifunction CCTV Monitor Tester】Digital Multi-meter, Optical Power Meter, Visible Red Light Source, Dual Gigabit Ethernet Ports, HDMI IN/OUT, Audio I/O, RS485, WiFi analyzer. Network Tools: IP scan, PING test, PPPOE, trace route, link monitor, DHCP server, port flashing. Measurement POE switch or PSE power supply voltage and cable connection status. Built-in 3350mAh battery, power input:DC15V, power output:DC12V/3A, DC24V/2A, DC5V/2A.
- 【Customer Service】We are the manufacturer, so you don't have to worry about technical support and after-sales service. If you have any questions, please let us know. You will hear back from us within 12 hours.
| SKU: | B0CN96S3P9 |
| Weight: | 5.5 pounds |
| Dimensions: | 13.39 x 11.81 x 3.94 inches |
| Batteries Included: | 1 Lithium Ion batteries required. (included) |
| Manufacture: | GUANGZHOU WANGLU TECHNOLOGY CO.,LTD |
| Origin: | China |
Product Description
We are CCTV TESTER manufacturer, so you don’t have to worry about after-sales service. We would like to address any issues or concerns you have.
WARM TIP: You can find the user manual on the detailed page and download it to learn more details and how to c-o-n-t-a-c-t our after-sales service team

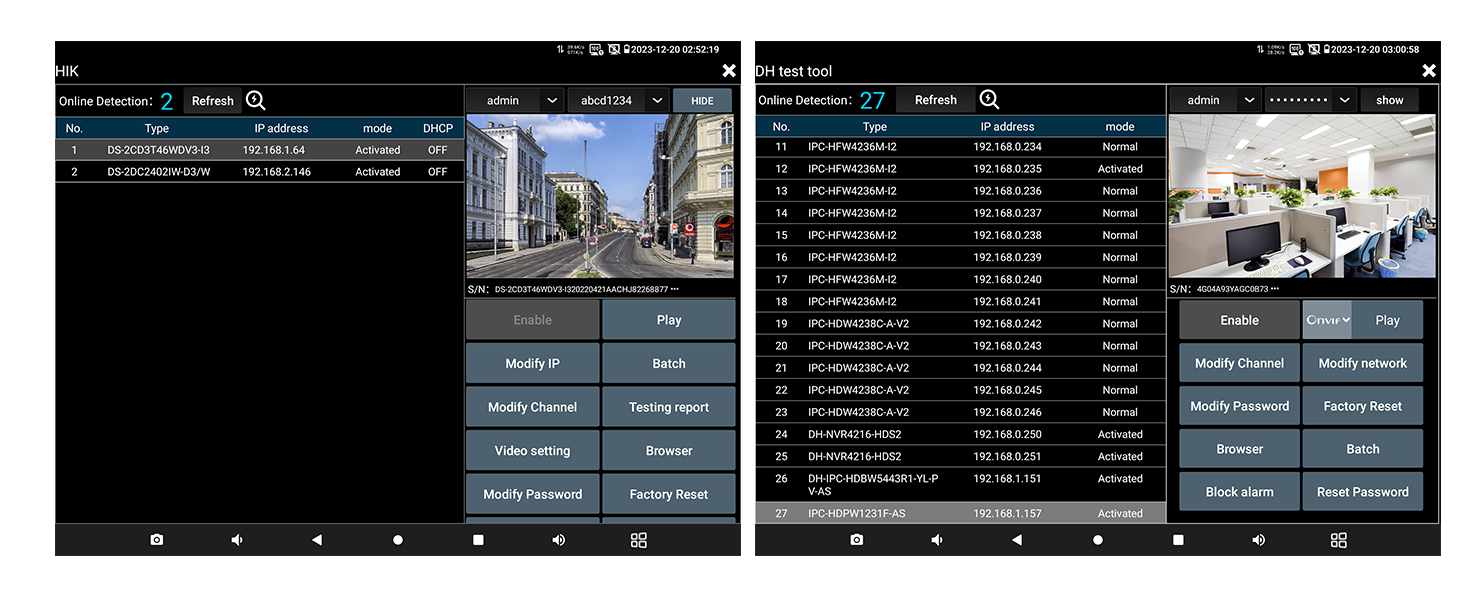

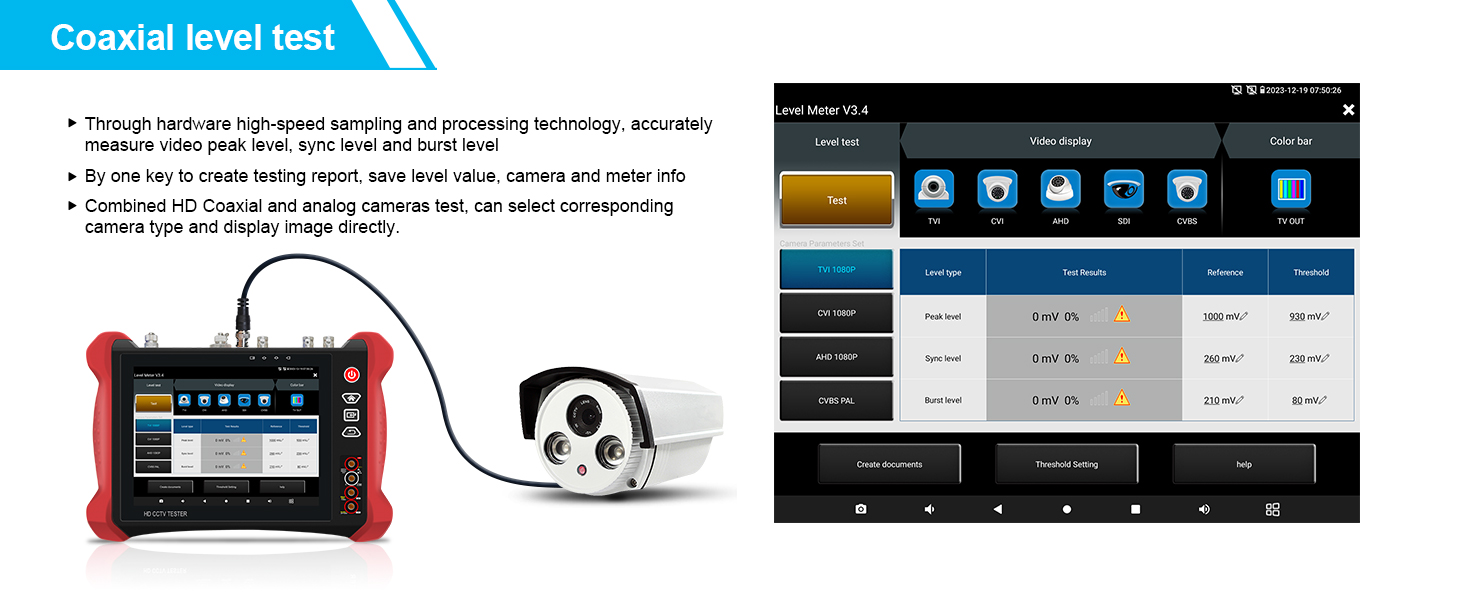

1 IP Camera Test 2 IPC Test 3 IP Discovery 4 HIK DH Camera Test 5 Coaxial Level Test

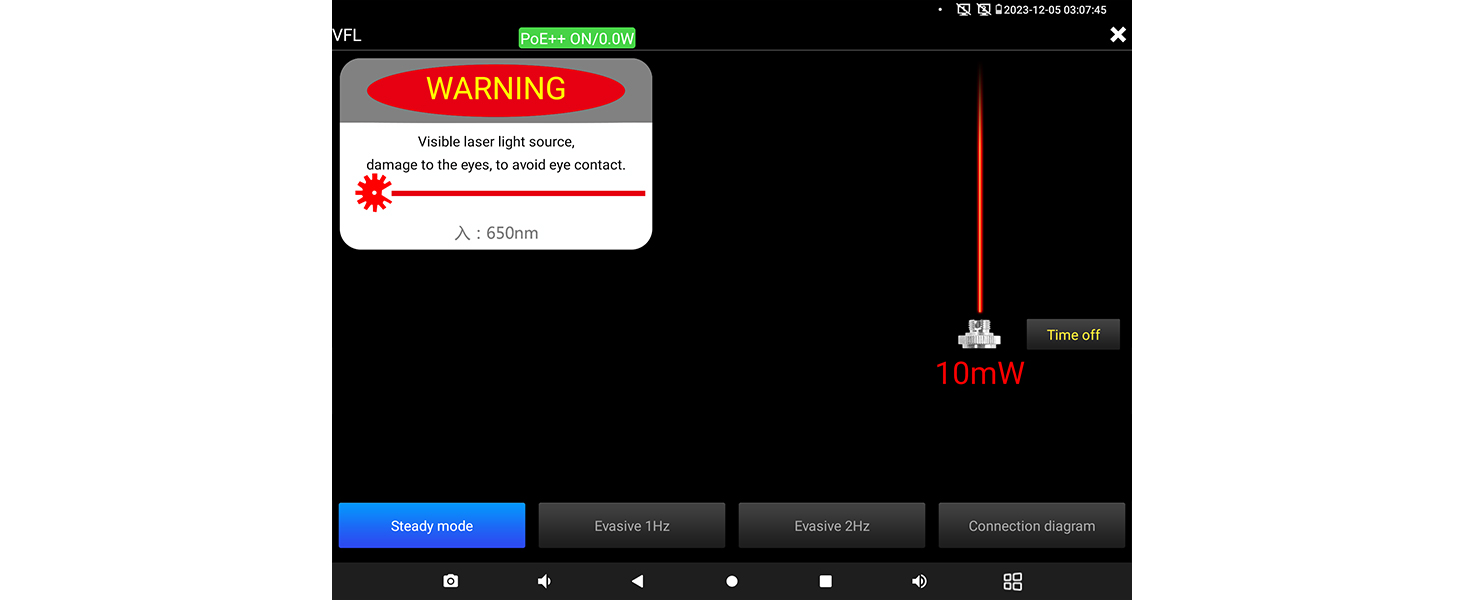

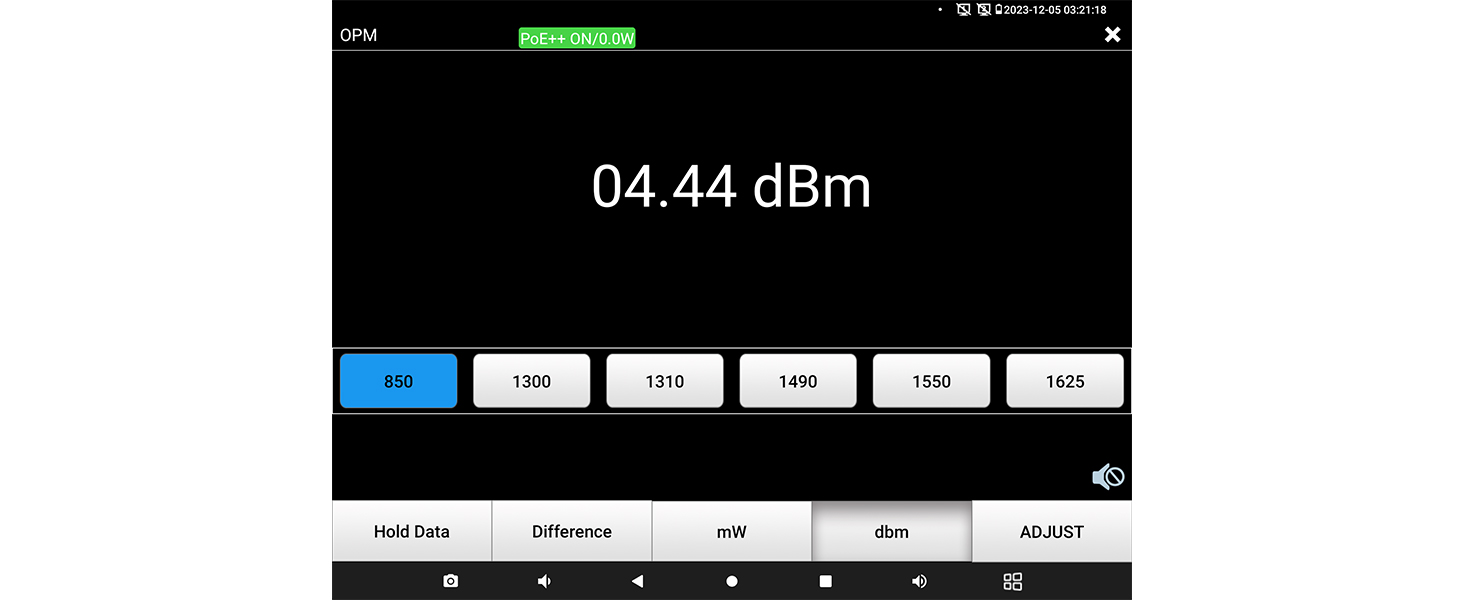

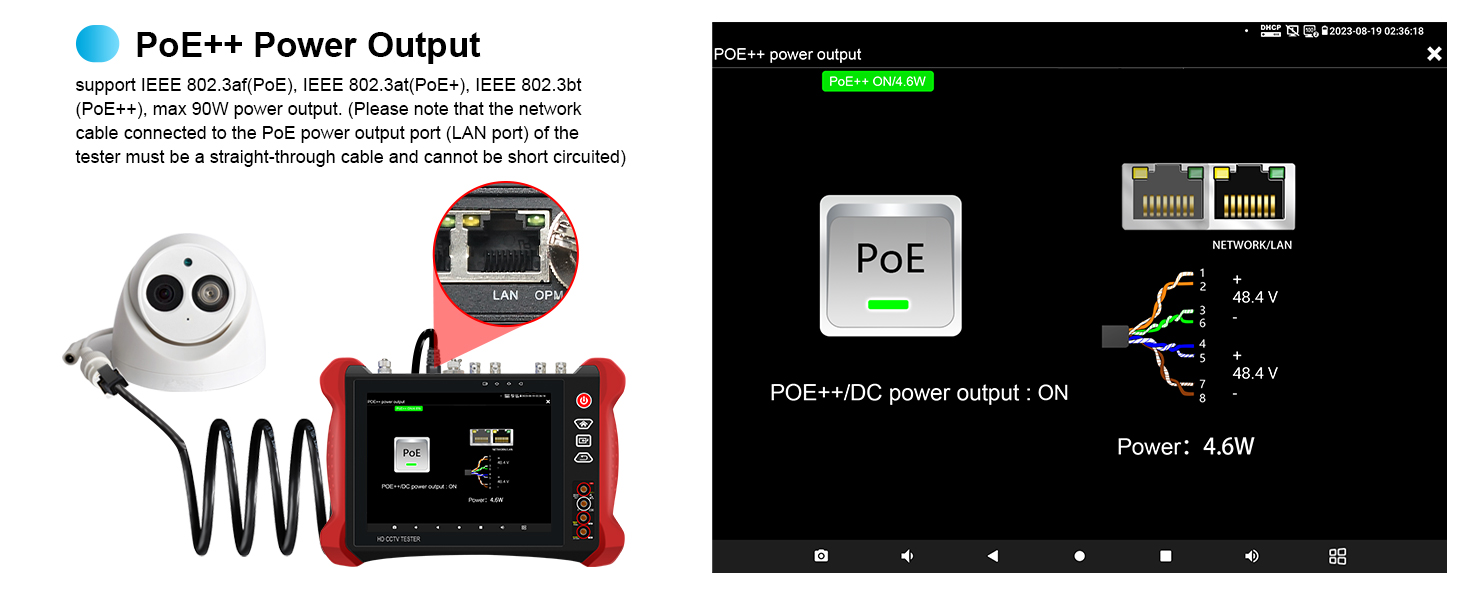

1 PoE++ Power output 2 PoE Detection 3 Digital Multi-meter 4 VFL 5 Optical Power Meter

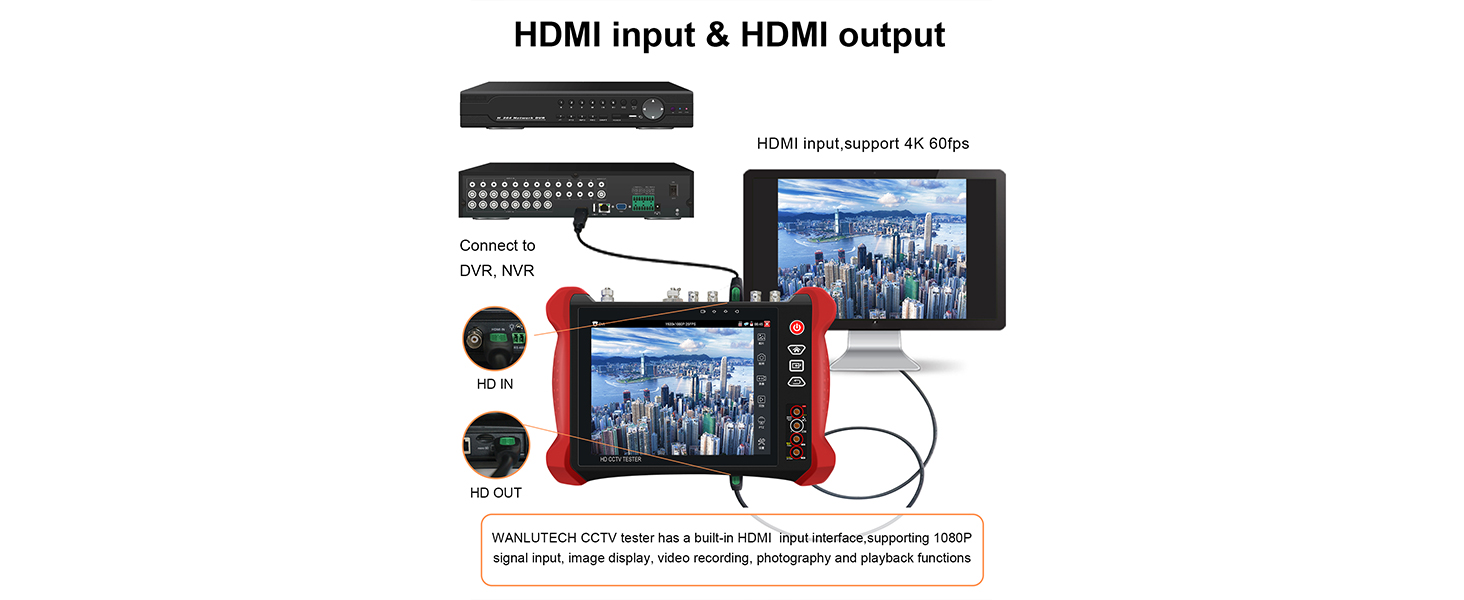

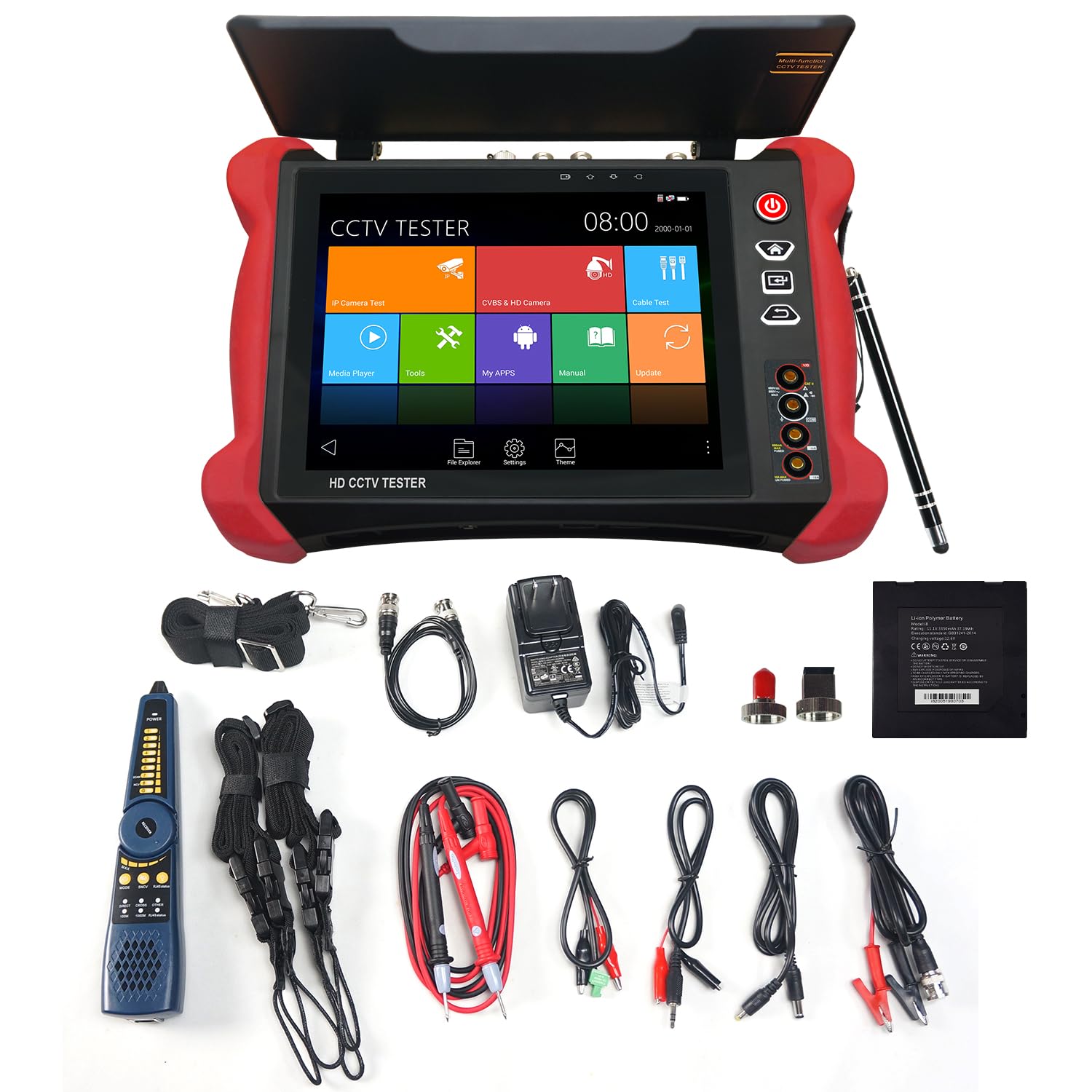

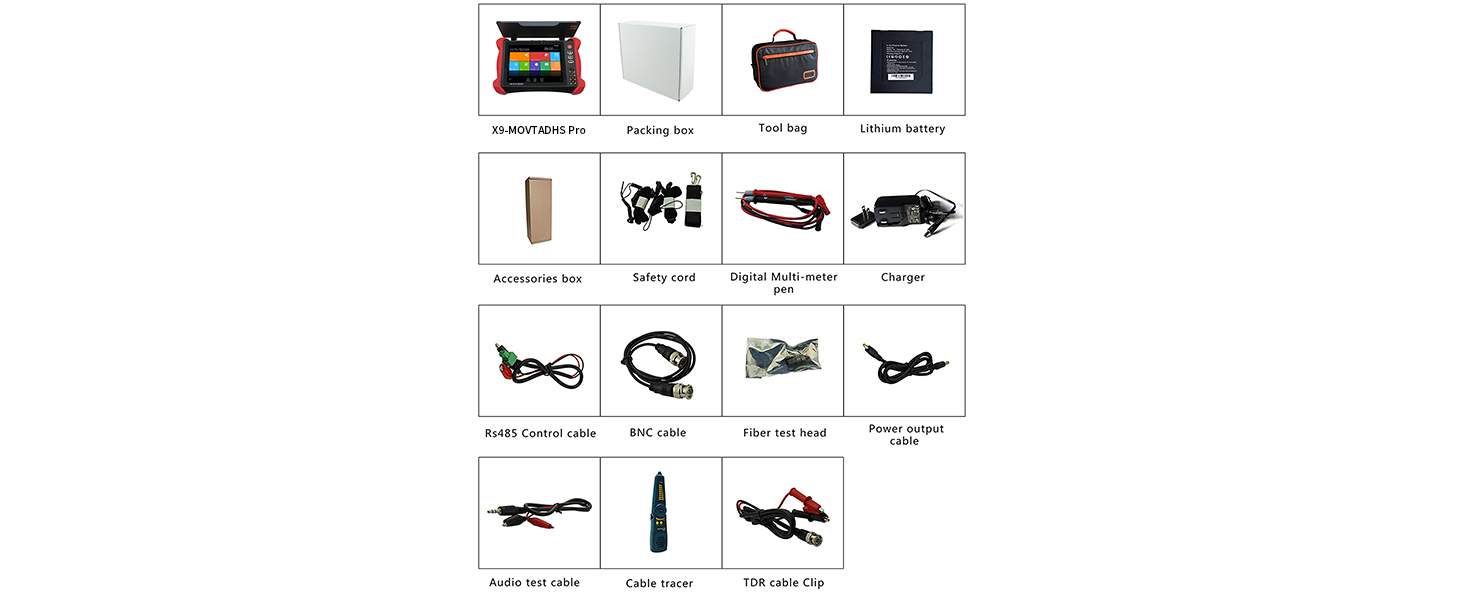

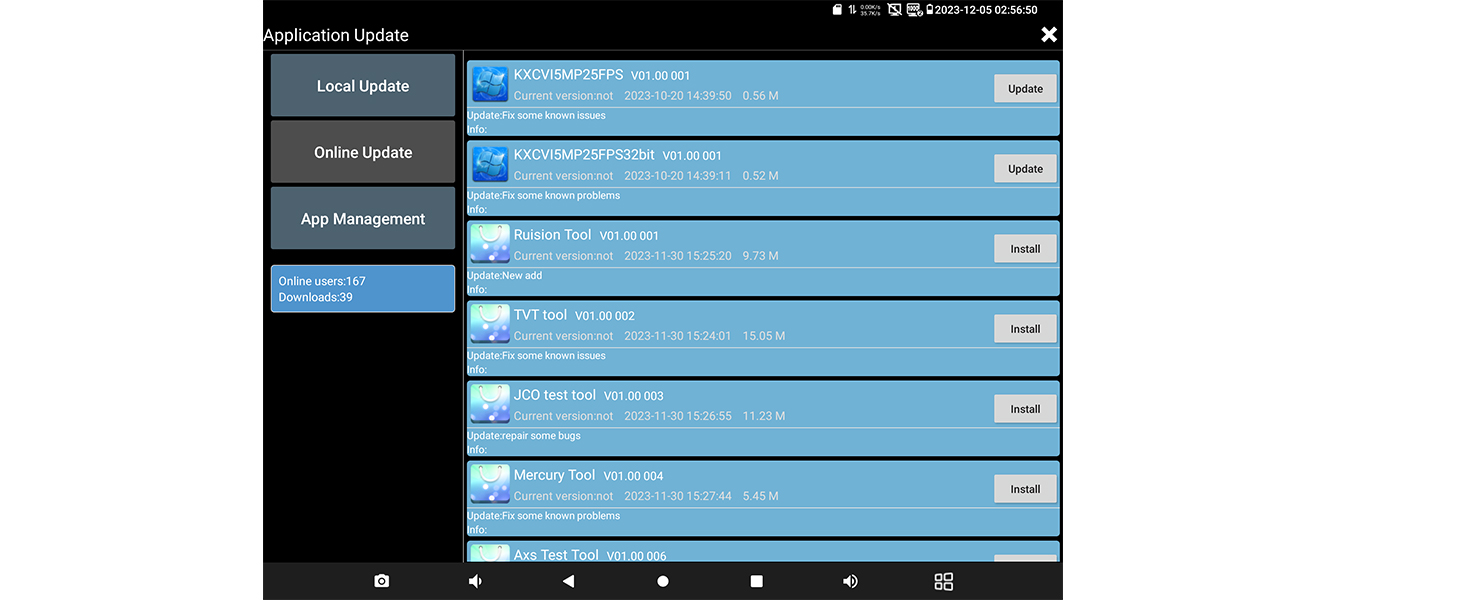

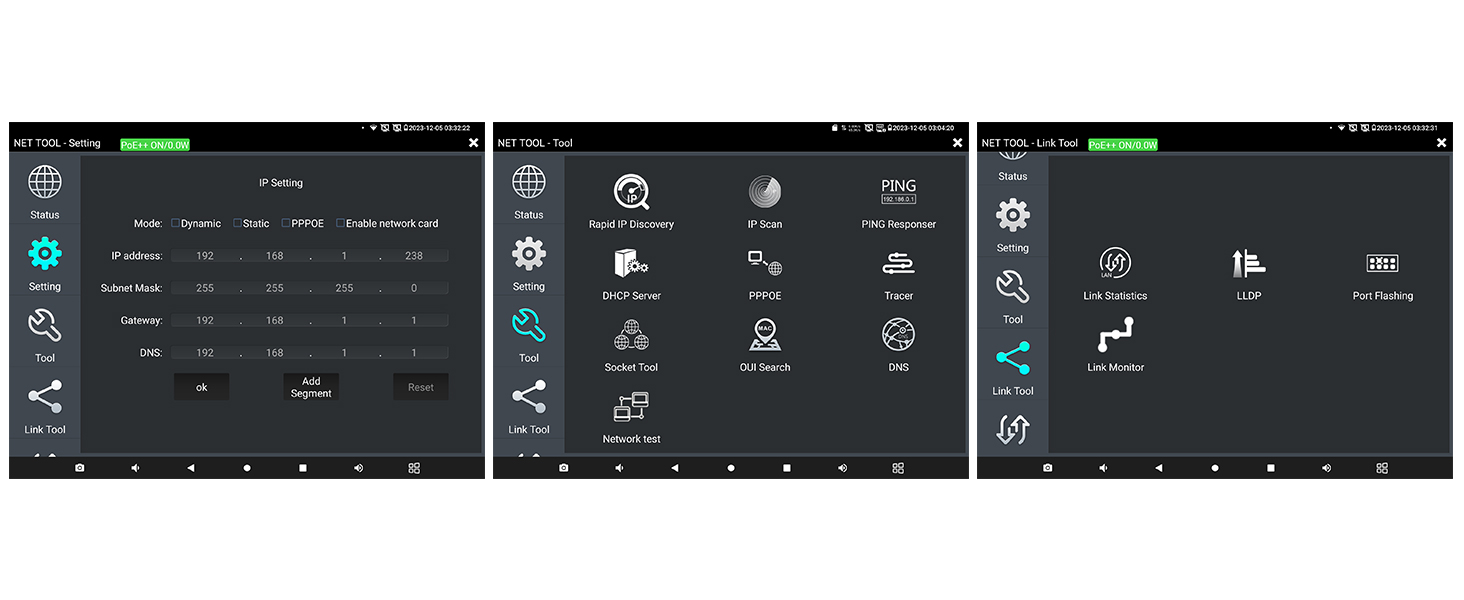

1 Network Tools 2 Packing List 3 WI-FI Analyzer 4 HDMI input/output 5 Online Update
WANLUTECH Camera Tester
 X9-MOVTADHS Pro |  K15-CLMOVTADHSEFG |  IPC-5200C Plus |  IPC-1910C Plus | |
| Customer Reviews | 4.4 out of 5 stars 6 | — | 4.4 out of 5 stars 6 | 3.5 out of 5 stars 2 |
| Price | $765.99 | $660.99 | $329.99 | $259.99 |
| Screen Size | 8” touch screen | 7” touch screen | 5.4” touch screen | 4” touch screen |
| Resolution | 2048*1536P | 1920*1200P | 1920x1152P | 960*640P |
| CPU/RAM/ROM | 1.8GHz, 4 core CPU/2GB/16GB | 1.8GHz, 4 core CPU/2GB/16GB | 1.2GHz, 4 core CPU/1GB/8GB | 1.2GHz, 4 core CPU/1GB/8GB |
| 8K IP camera test | ✔ | ✔ | 4K IP camera test | ✔ |
| 8MP AHD/CVI/TVI camera test | ✔ | ✔ | ✔ | ✔ |
| 8MP SDI camera test | ✔ | ✔ | ✔ | ✘ |
| PoE power output | IEEE 802.3 af/at/bt, Max 90W | IEEE 802.3 af/at,max 30W | IEEE 802.3 af/at,max 30W | IEEE 802.3 af/at,max 30W |
| Cable tracer | ✔ | ✔ | ✔ | ✔ |
| SFP optical module port | ✘ | ✔ | ✘ | ✘ |
| DMM,VFL,OPM | ✔ | ✔ | ✘ | ✘ |
| Distance measurement | ✘ | ✔ | ✘ | ✘ |
| HDMI I/O & VGA IN | HDMI IN/HDMI OUT | ✔ | HDMI IN/VGA IN | N/A |
