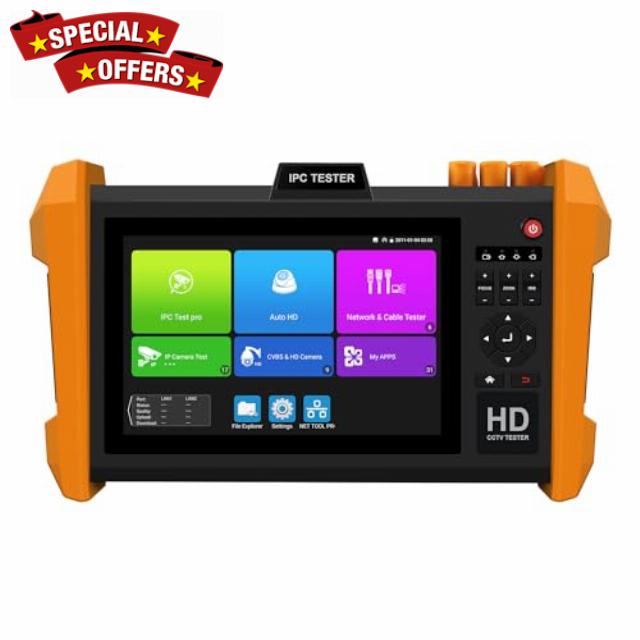

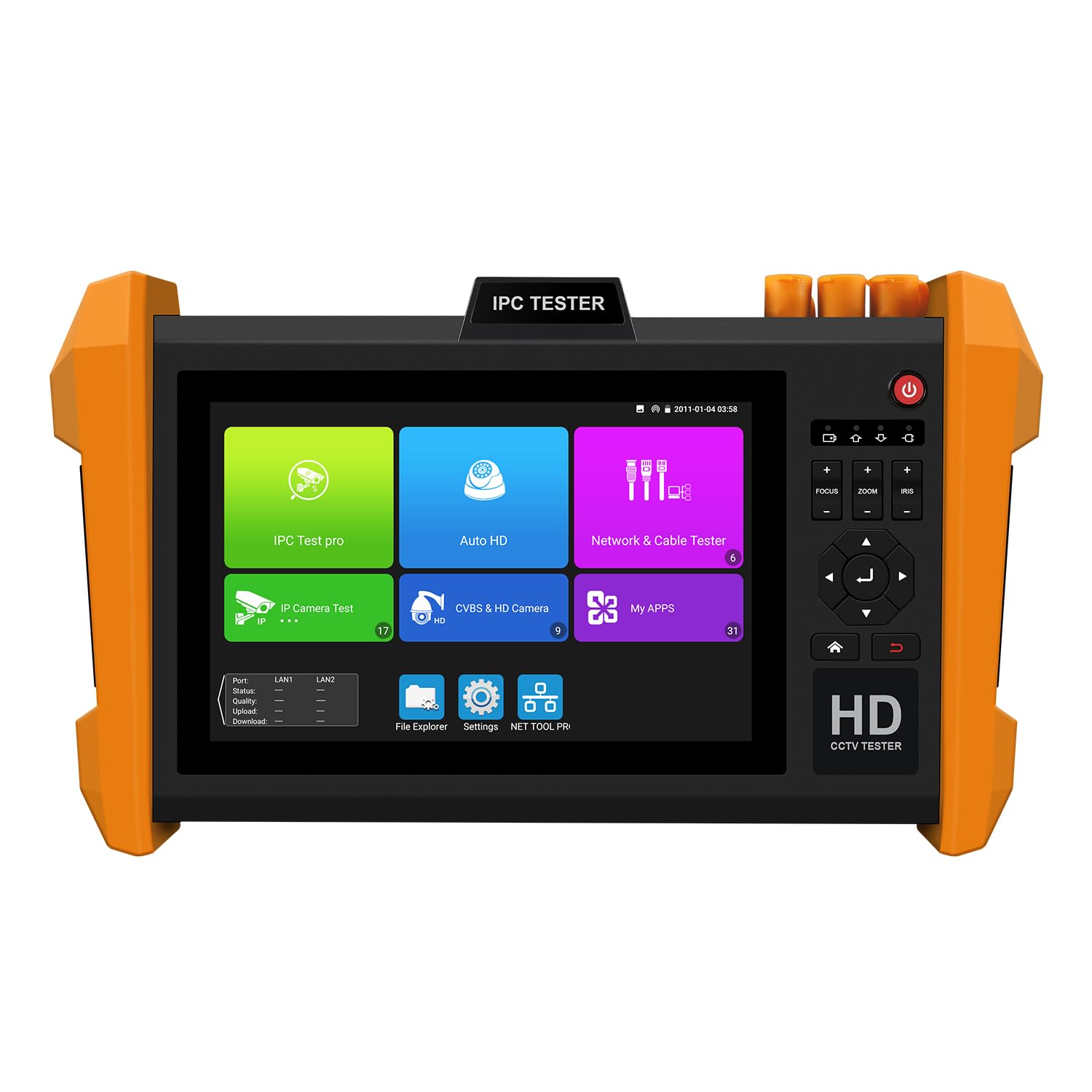

WANLUTECH 8K IP Camera Tester, CCTV Tester Support 8MP SDI
WANLUTECH 8K IP Camera Tester, CCTV Tester Support 8MP SDI AHD CVI TVI CVBS 8K IP Camera Test HDMI & VGA Input 7 inch IPS Touch Screen SFP Optical Module Port (K15-ADHS)

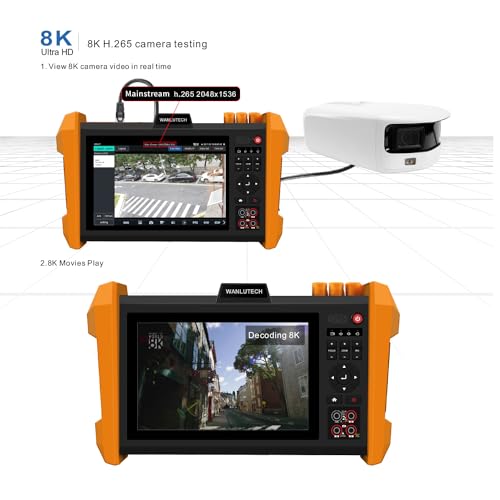

- ✅【8K Camera Tester 】WANLUTECH upgraded CCTV tester has 7'' IPS touch screen, 1920*1200 resolution. It support to test 8K H.265 IP cameras, CVBS analog cameras, HD coaxial cameras(max 8MP TVI / AHD / CVI / SDI camera test), and support UTC PTZ control and call OSD menu.The IPC tester supports batch activation of DH, Hik cameras and modification of IP addresses, passwords, etc.Rapid OVIF, support face recognition and create test report.

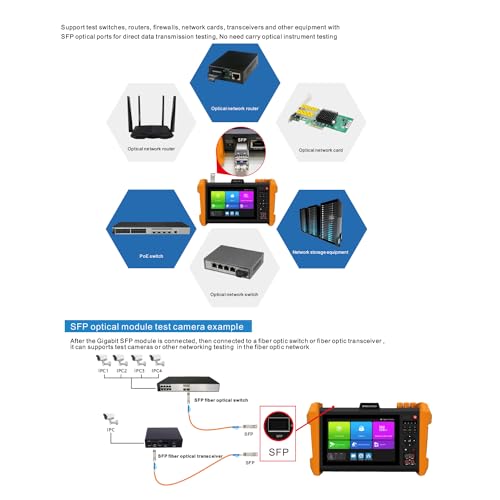

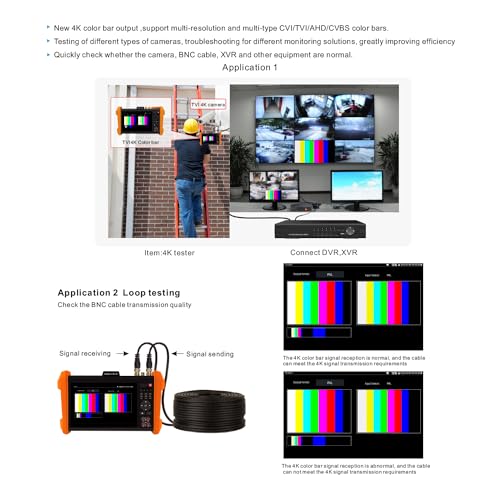

- ✅【Multifunction Test Tool】WANLUTECH IP camera tester has SFP optical module port. It supports to insert SFP optical fiber module, for optical fiber network testing and support testing of devices with SFP optical ports for direct data transmission testing.4K color bar generator, send CVI/TVI/AHD/CVBS color bar video signal for testing monitor or video cable, support 4K resolution

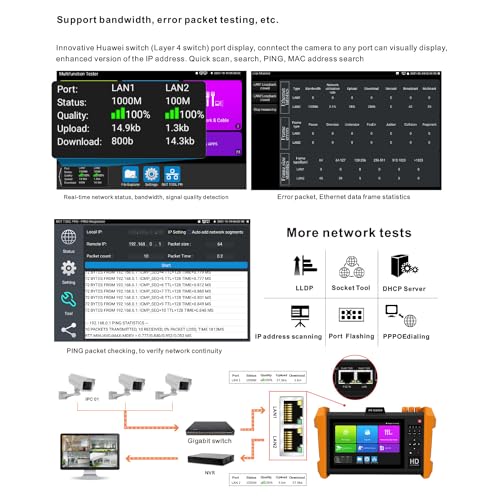

- ✅【Cable Tester】RJ45 cable TDR test: it tests cable pair status, length, attenuation, reflectivity, impedance, skew etc. Test UTP cable connection status and display on the screen. Read the number on the screen,and detect near-end, mid-end and far-end fault test of RJ45 cable plug.

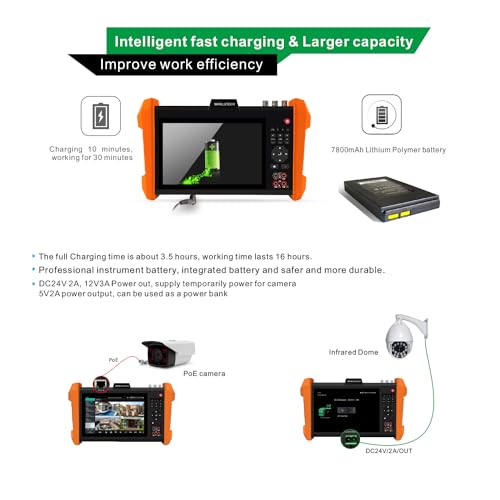

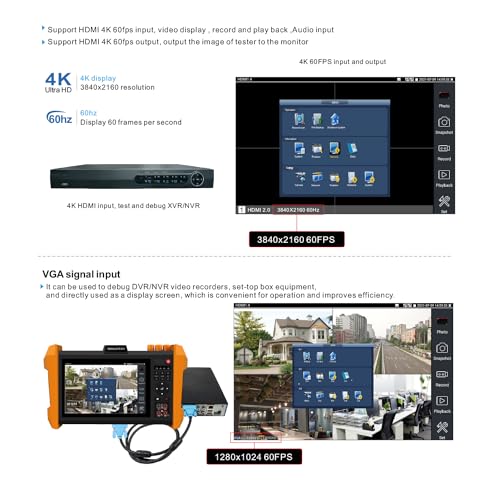

- ✅【Professional CCTV Monitor Tester】HDMI input & output + VGA input. WANLUTECH CCTV tester has WIFI analysis function and it support 2.4G/5G frequency band, and detect the surrounding WIFI signal and signal strength. Support POE48V, USB5V 2A, DC12V 3A, 24V 2A power output. 7.6 V /7800mAh Lithium Ion Polymer Battery, 3.5 hours of charging, up to 16 hours of use. 8GB TF card included.
- ✅【Customer Service】We are the manufacturer, so you don't have to worry about technical support and after-sales service. If you have any questions, please let us know. You will hear back from us within 12 hours.
| SKU: | B0CLJ53CQ5 |
| Weight: | 5.94 pounds |
| Dimensions: | 13.39 x 11.81 x 3.9 inches |
| Model: | K15-ADHS |
| Batteries Included: | 1 Lithium Ion batteries required. (included) |
| Manufacture: | GUANGZHOU WANGLU TECHNOLOGY CO.,LTD. |
| Origin: | China |
