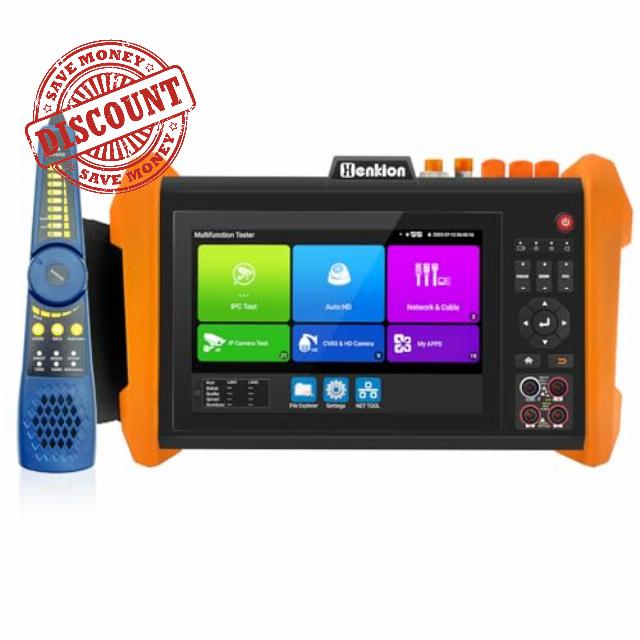

Henkion CCTV Tester 8K 32MP 4K 12MP IP Camera Tester, 8MP AHD CVI/TVI/SDI/CVBS Coaxial Camera Test, SFP Ports, All fearutes OPM VFL DMM TDR Cable tester Network test POE VGA HDMI WIFI (K15-CLMOVTADHS)

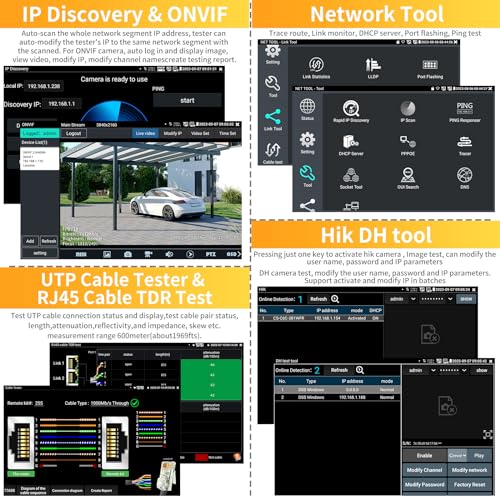

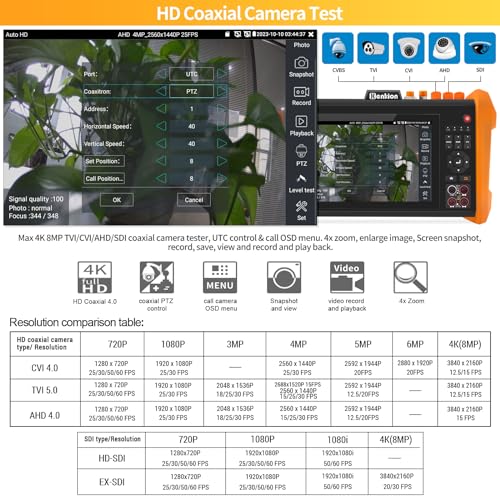

• 【8K IP Camera Tester 4K HD Coaxial Camera】 CCTV tester supports max 8K 32MP 8160*3616P 4K 12MP 4000*3000P IP camera test, IP discovery/Quick ONVIF/IPC test /RTSP play /Client APK. IPC Tester has built-in Hik DH and other 3rd camera test tools, which can be compatible with most existing cameras. Automatically recognize max 8MP 3840*2160P TVI/CVI/AHD/SDI coaxial camera. Support UTC control & call OSD menu. CVBS Analog video level meter and 4K HD color bar test.

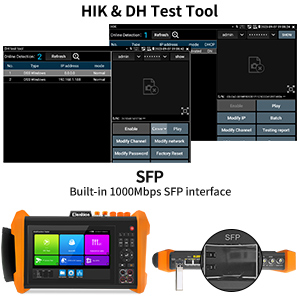

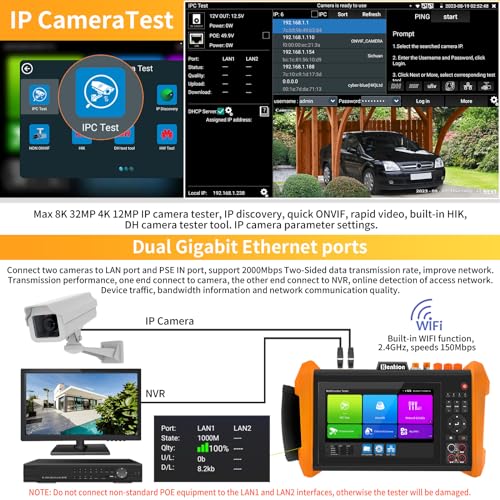

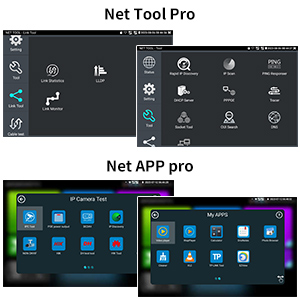

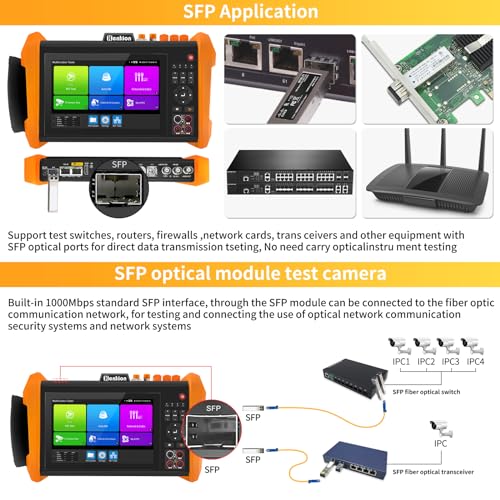

• 【SFP & POE & Network】Network camera tester with 7 inch IPS touch screen with 1920*1200 resolution. The SFP optical module interface supports plugging in SFP fiber module for fiber optic network testing and network camera testing. POE protocol detection. Standard IEEE802.3af/at, DC48V, max power 30W, which can power supply for POE camera.Dual Ethernet port 10/100/1000Mbps. Built in WIFI, Wifi analyzer. Network tools Trace route, Link monitor, DHCP server, port flashing, Ping test.

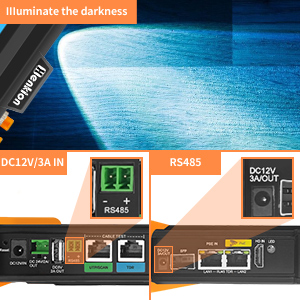

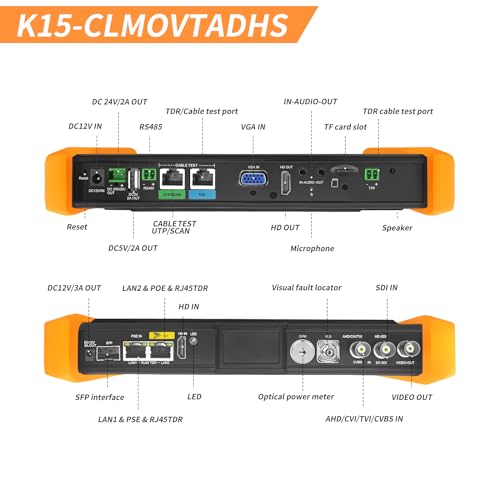

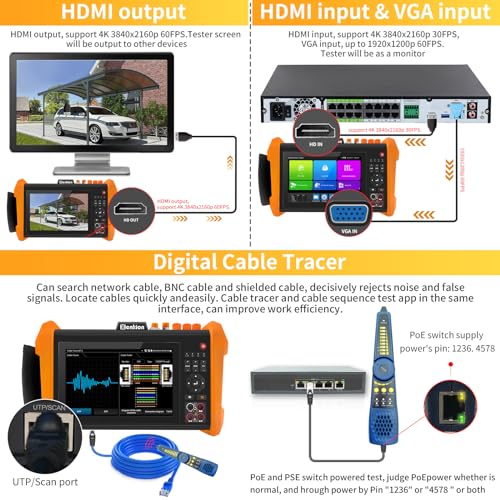

• 【Network Cable Tester & HDMI & VGA】UTP Cable tester can detect near-end, mid-end and far-end fault test of RJ45 cable plug. RJ45 cable TDR test: can test cable pair status,length,attenuation,reflectivity, impedance, skew, etc.Digital cable tracer can quickly search for target cable from the mess cables and also support PD power test, non-contact AC voltage detect. Built-in HDMI input/output and VGA input interfaces as a CCTV tester monitor. DC output:24V/2A,12V/3A,5V/2A. Audio input/output.

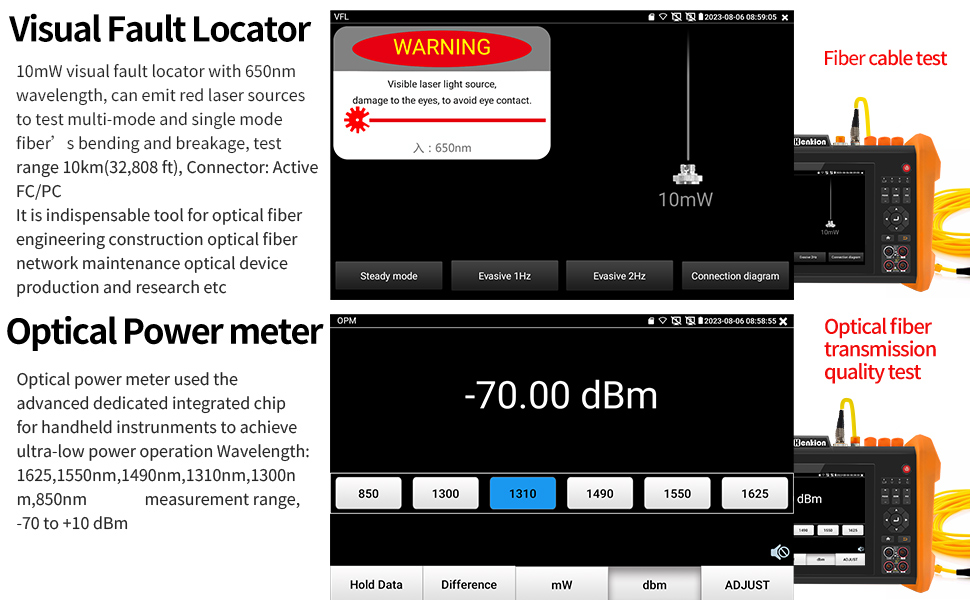

• 【DMM & OPM & VFL & TDR】 Digital Multimeter–Measurement tool for AC and DC voltage, AC and DC current, resistance, capacitance, data hold, relative measurement, continuity testing. Optical power meter–It is used for signal power test and insertion loss test of various equipment and photoelectric components. Visual fault locator–the position of optical fiber fault point can be easily and accurately determined. TDR cable test–masure cable’s length and short circuit. Measurement range 1200meter(
• 【Battery More Models & Warranty】 cctv camera tester power by 7.6V/7800mAh/59.28W Lithium polymer battery. K-15 series models included K-15CADH(B0CKYVF7J3), K-15ADHS(B0CC1BZG2X), K-15CMADHS(B0CKYTWRPY), K-15CLMOVTADHS(B0CKYT39TF). If you are interested in any of the models, you can copy the ASIN code to browse product information.We offer 24h technical support and 1 year warranty. If you have any questions while using tester, please feel free to contact us.

---
