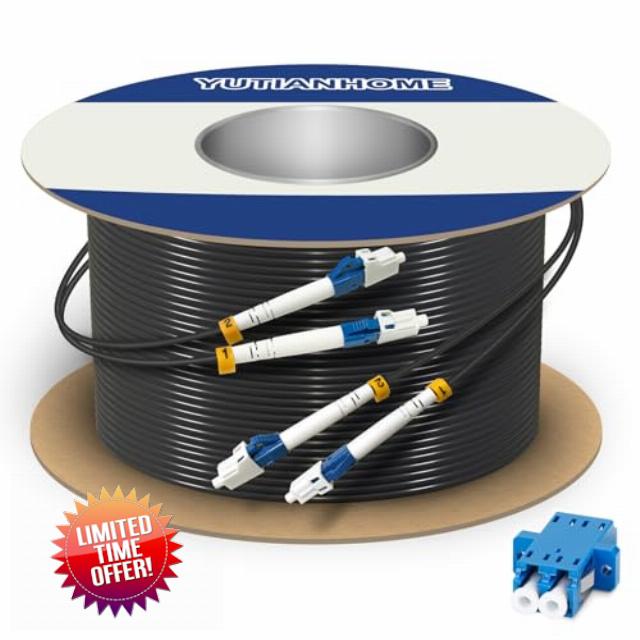

YUTIANHOME 500ft/150m LC to LC Armored Outdoor Fiber Optic
YUTIANHOME 500ft/150m LC to LC Armored Outdoor Fiber Optic Cable, Single Mode Duplex Fiber Patch Cable, 9/125um LC Fiber Jumper, (OS1/OS2 Compatible), Low Friction LSZH, Black

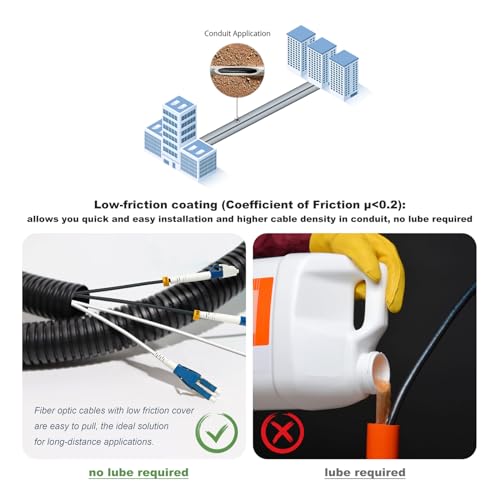

- Single Mode Outdoor Fiber Optic Cable with Low Friction LSZH jacket: Made of Ultra Low Friction flame retardant LSZH jacket (Coefficient of Friction μ<0.2), which allows you quick and easy installation and higher cable density in conduit.

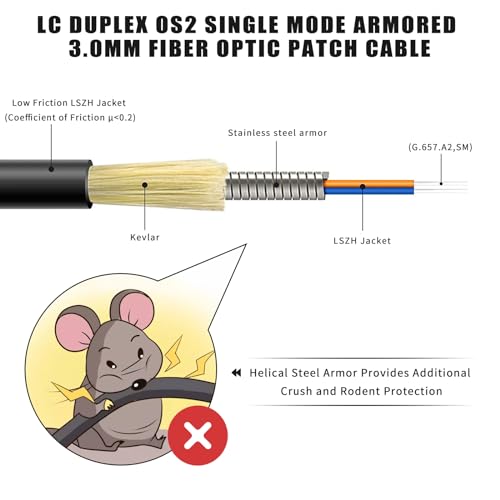

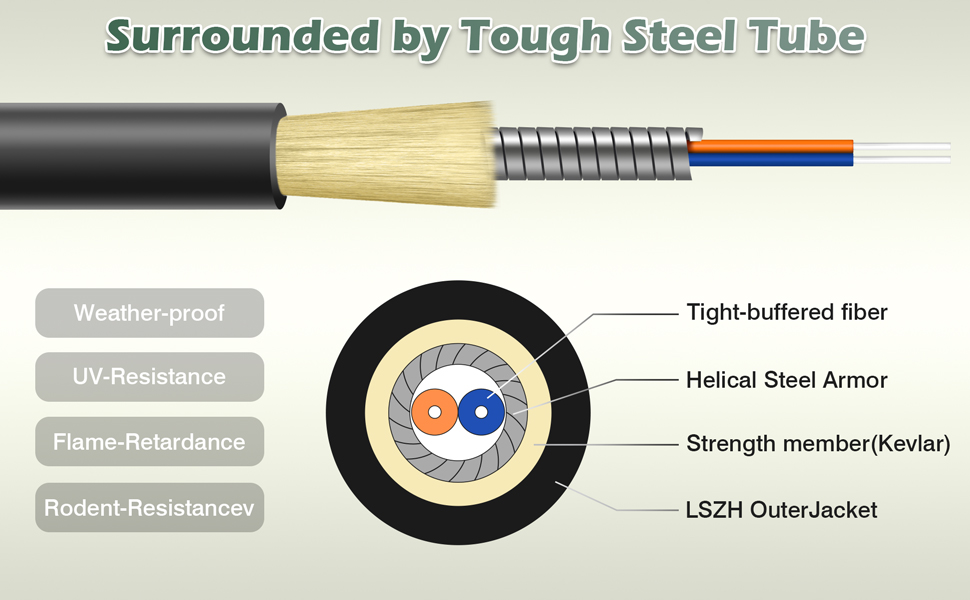

- Rugged OS2 Duplex Armored Fiber Cable: Built-in Helical Steel Armor, provides additional crush and rodent protection
- Min. Bend Radius (Fiber Core): 7.5mm, Cable Diameter: 3.0mm
- Terminated with Foxconn precision ceramic ferrule connectors ensure low signal loss

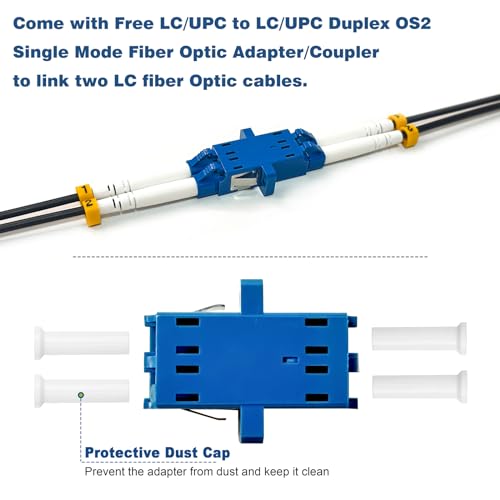

- Come with Free Coupler: You get a LC Single Mode Fiber Optic Adapter for easy extension
| SKU: | B0CFMDDBYK |
Product Description
LC Duplex OS2 Single Mode Armored 3.0mm Fiber Optic Patch Cable
| Connector Type | LC UPC to LC UPC |
| Fiber Mode | OS2 9/125μm (compatible with OS1) |
| Fiber Count | Duplex |
| Fiber Grade | G.657.A2 (compatible with G.652.D) |
| Minimum Bend Radius | 20/10D (Dynamic/Static) |
| Cable Diameter | 3.0mm |
| Cable Jacket | LSZH |

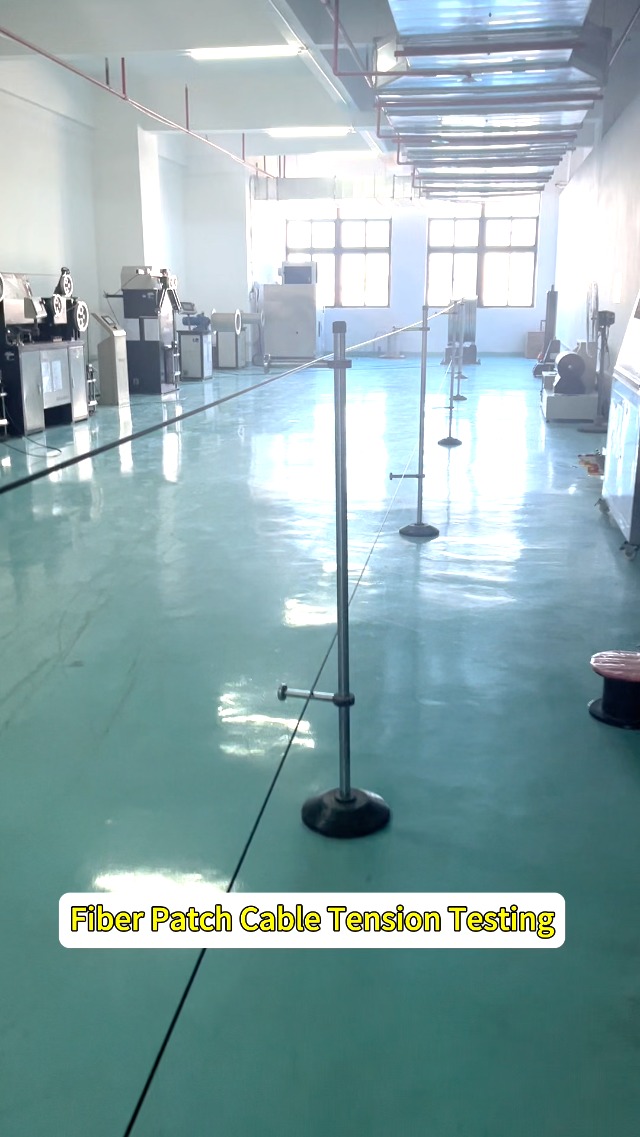

| Tensile Resistance | 200/600N (Long/Short Term) |
| Cable Color | Black |
| Wavelength | 1310/1550nm |
| Insertion Loss | ≤0.15dB |
| Return Loss | ≥55dB |
| Operating Temperature | -25~70°C |
| Storage Temperature | -25~70°C |
YUTIANHOME FIBER, a trusted and leading provider of comprehensive communication and high-speed network system solutions for customers in the networking, data center, and telecom industries.
For Business customers, our factory also accept custom orders and can manufacture products according to your specifications
 |  |  |  | |
|---|---|---|---|---|

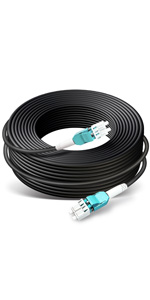

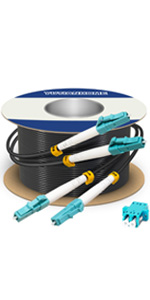

| Industrial OM3 Cables | (Separate ends) Armored OM3 Cables | Standard Armored OM3 Cables | Uniboot Armored OM3 Cables | |
| Cable Diameter | 5.0mm | 3.0mm | 3.0mm | 3.0mm |
| Fiber Count | 2 Fibers | 2 Fibers | 2 Fibers | 2 Fibers |
| Fiber Grade | Bend Insensitive | Bend Insensitive | Bend Insensitive | Bend Insensitive |
| Jacket | TPU | LSZH | LSZH | LSZH |
| Armored | ✓ | ✓ | ✓ | ✓ |
| Available Length | 5-300m | 1-300m | 1-300m | 1-300m |
| Operating Temperature | -40 to 80°C (-40 to 176℉) | -25~70°C (-13 to 158℉) | -25~70°C (-13 to 158℉) | -25~70°C (-13 to 158℉) |
| Application | Outdoor, Harsh Environment | Indoor or underground with conduit | Indoor or underground with conduit | Indoor or underground with conduit |
 |  |  | |
|---|---|---|---|

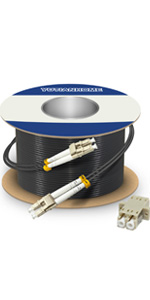

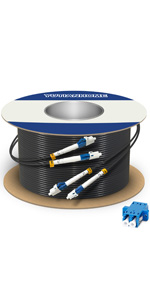

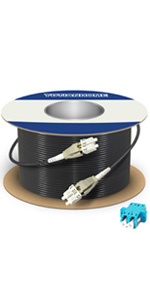

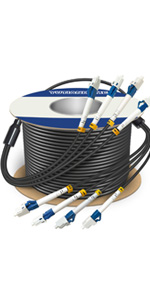

| Industrial OS2 Cables | 3.0mm Armored OS2 Cables | 4 Fibers Industrial OS2 Cables | |
| Cable Diameter | 5.0mm | 3.0mm | 3.0mm |
| Fiber Count | 2 Fibers | 2 Fibers | 2 Fibers |
| Fiber Grade | G.657.A2 | G.657.A2 | G.657.A2 |
| Jacket | TPU | LSZH | TPU |
| Armored | ✓ | ✓ | ✓ |
| Available Length | 5m-10kilometer | 1m-10kilometer | 50-150m |
| Operating Temperature | -40 to 80°C (-40 to 176℉) | -25~70°C (-13 to 158℉) | -40 to 80°C (-40 to 176℉) |
| Application | Outdoor, Harsh Environment | Indoor or underground with conduit | Outdoor, Harsh Environment |
