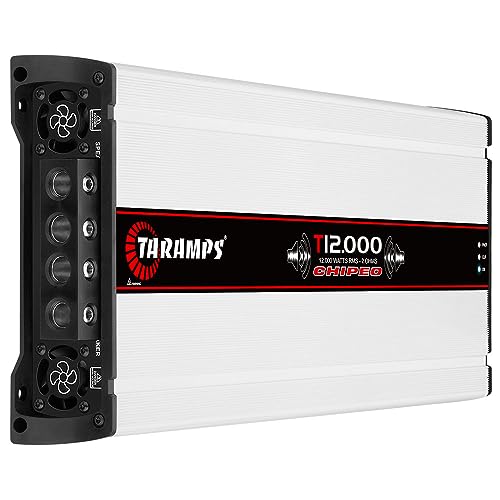

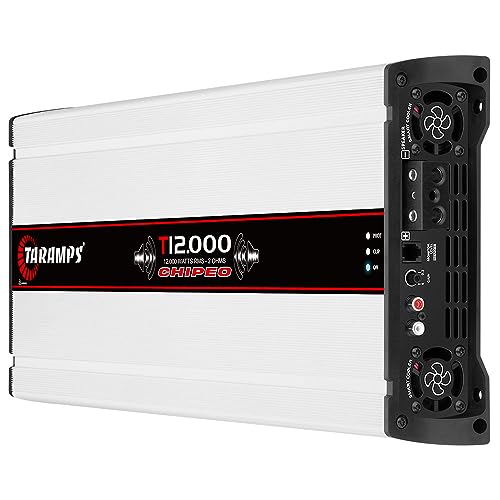

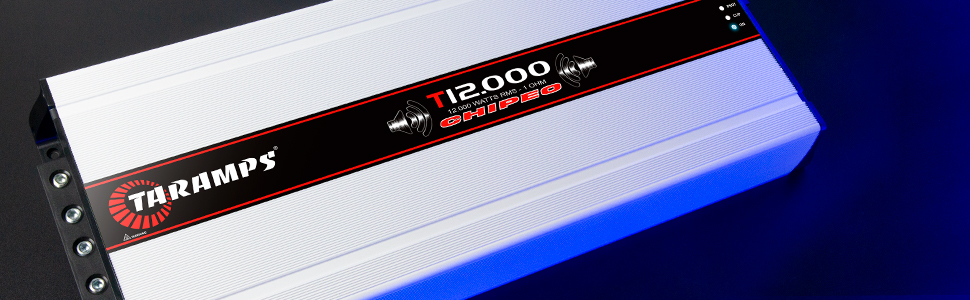

Taramps T 12.000 Chipeo 12000W RMS 2 Ohms High Performance
Taramps T 12.000 Chipeo 12000W RMS 2 Ohms High Performance, 1 Channel Car Audio, High Power Amp, Class D, Output Power 12.6~14.4VDC, Monoblock Amplifier, White
- This amplifier T 12.000 Chipeo in 2 Ohms with 12000 watts RMS it is not a high voltage amplifier.
- The T 12.000 Chipeo gives you 12300W RMS at 12.6VDC and can reach an incredible 13300W RMS operating at 14.4VDC

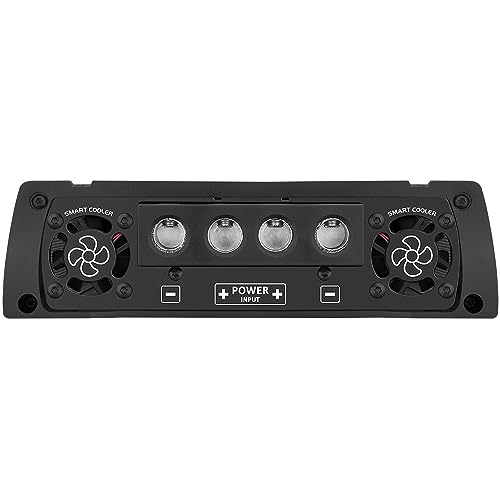

- The Positive/Negative power supply cable is 2x 2/0 AWG. The output cables wire gauge is 7 AWG and the remote cable is 18 AWG. For Protection fuse or circuit breaker please use 600A.

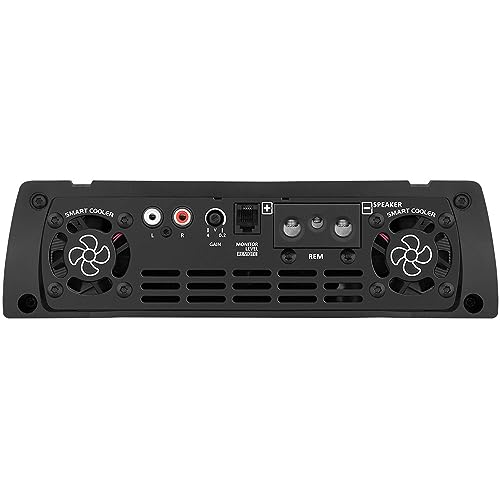

- This amplifier does not contain crossover and is compatible with Taramps Monitor Level Remote.
- Protection System: Short-Circuit to output, short on output compared to GND, low impedance at output, High/Low supply voltage and thermal protection
| SKU: | B0CF3SSB1W |
Product Description
Taramps T 12.000 Chipeo 2 Ohms Technical Information
| Input Sensitivity: | 220mV ~ 4V Rms |
| Signal- to-noise Ratio: | >90dB |
| Frequency Response | 5Hz ~ 5KHz (-3dB)** |
| Efficiency | 86% |
| Input Impedance: | 10K Ohms |
| Minimum Supply Voltage | 9VDC |
| Maximum Supply Voltage | 17VDC |
| Idle Consumption: | 5.60A |
| Musical Consumption @12.6VDC: | 554A |
| Rated Power Consumption: | 1108A |
| Dimensions (W x H x L) | 8.98″ x 2.52″ x 20.94″ |
| Weigth | 16.72lb |
 |  |  | | |
|---|---|---|---|---|

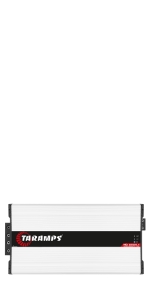

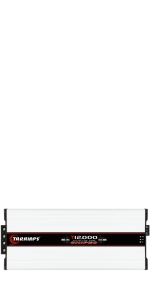

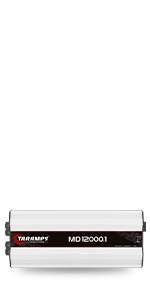

| T 12.000 Chipeo 1 Ohm | MD 12000.1 O.5 Ohm | MD 8000.1 1 Ohm | MD 8000.1 2 Ohms | |
| Operation Class | D | D | D | D |
| Number of Channels | 1 | 1 | 1 | 1 |
| Input Impedance | 10K Ohms | 15K ohms | 10K Ohms | 10K Ohms |
| Crossover High Pass (HPF) | – | 10 Hz ~90 Hz (-12dB/8th) Variable | 10Hz ~ 90Hz (-12dB/8ª) Variable | 10Hz ~ 90Hz (-12dB/8ª) Variable |
| Crossover Low Pass (LPF) | – | 90 Hz ~5 kHz (-12dB/8th) Variable | 90Hz ~ 10KHz (-12dB/8ª) Variable | 90Hz ~ 10KHz (-12dB/8ª) Variable |
| Efficiency | 81% | 79% | 82% | 82% |
| Frequency Response | 5Hz ~ 5KHz (-3dB)** | 10 Hz ~5 kHz (-3dB) | 10Hz ~ 8KHz (-3dB) | 10Hz ~ 8KHz (-3dB) |
| Maximum Music Consumption | 588A | 602.5A | 387A | 387A |
