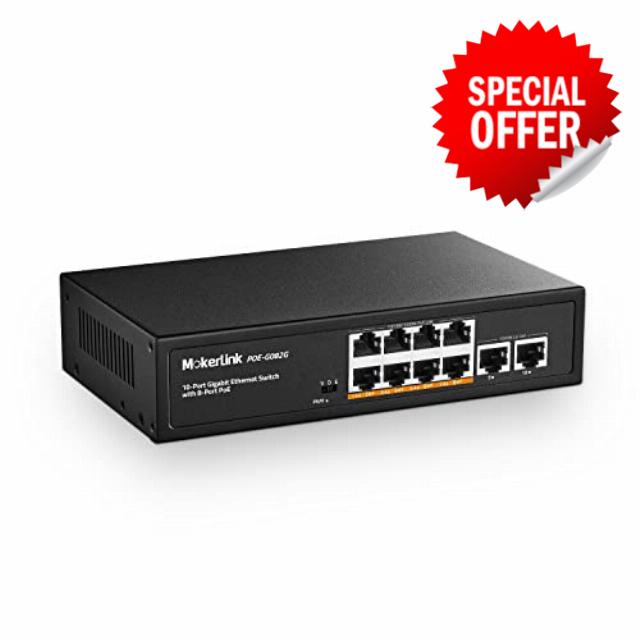

MokerLink 10 Port Gigabit PoE Switch, 8 GE PoE+, 2 GE

MokerLink 10 Port Gigabit PoE Switch, 8 GE PoE+, 2 GE Uplink, 10/100/1000Mbps, 120W 802.3af/at PoE, Fanless Plug & Play Ethernet Switch

• 10 Gigabit Ports: Includes 8 Gigabit POE+ ports, 2 Gigabit UpLink, 10/100/1000Mbps automatic adaptation, with higher transmission rate. The 2 gigabit uplink can be connected to different networks or devices, such as routers, NVRs, etc.

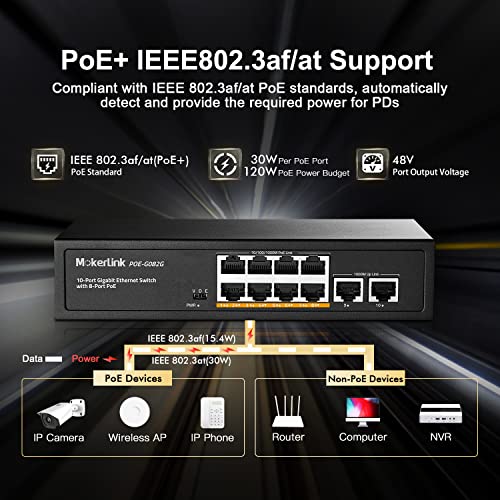

• High POE Power: Maximum support 120W high output power, built-in power supply makes installation easier. Support IEEE 802.3af/at, each port max power supply reached 30W. *Please note: not support passive 24V PoE.*
• Unmanaged Plug & Play: Support Power Detection function, automatically detect devices, can be compatible with non-POE devices to provide data link. Plug and Play, just plug in the power cord, connect the ethernet cable directly to the device, can be used without configuration.
• Vlan & Extend: When turn on the extend mode, the POE port can be extended to 250 meter distances and 10Mbps speed; Support Vlan isolation, ports are isolated from each other, only communicate with the uplink port, improve the network safety.
• Widely Used: Small and compact size design. Durable Metal housing. LED indicator lights. Widely used in IP cameras, Wireless Access Point, Computer Networks devices, etc. 100% Satisfaction – 30-day Money-Back Guarantee with 1 Year Warranty

---

Product Description

POE-G082G is an unmanaged desktop PoE switch with 8 Gigabit PoE ports. The product is equipped with three types of transmission modes (default/extender/Vlan). The PoE port supports IEEE802.3af/at standards. The maximum power consumption is 120 W.

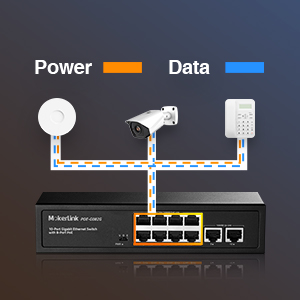

Intelligent PoE+ The IEEE802.3af/at standard compatible PoE switch determines and delivers the exact power supply for PoE devices.	Full Gigabit Connector The PoE switch features a non-blocking wire-speed architecture with a switching capacity of 20 Gbps for maximum data throughput.	Link extension to 250 m By selecting or activating the expansion mode (E) on the front, the transmission distance of a PoE port can be 7-8 up to 250 m, reducing the bandwidth to 10 Mbps.

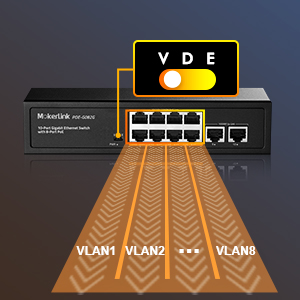

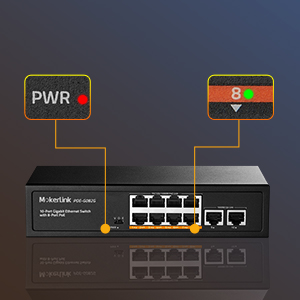

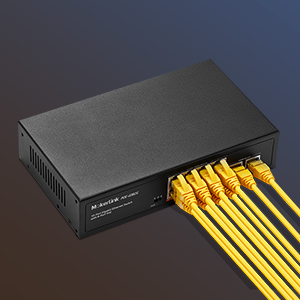

Port-based VLAN When you activate Vlan mode (V) with the DIP switch, ports 1 to 8 will be isolated and communicate with the upstream interface.	Unique LED display design With the Power/PoE/Extend display, you can quickly check the working status and fix errors on the ports.	Plug and play Plug and play, no configuration required. Auto MDI/MDI-X crossover on all ports eliminates the need for crossover cables or uplink connectors.

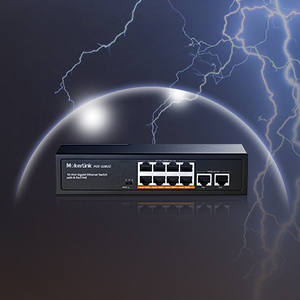

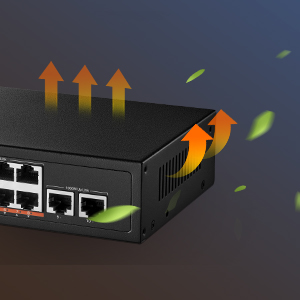

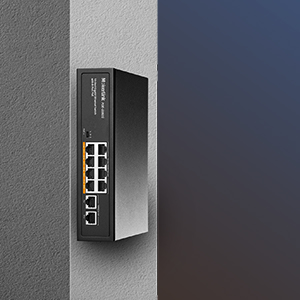

Fanless and silent operation The PoE switch features a metal housing and a fanless design that ensures silent operation and higher reliability.	Protection of lighting The Poe Switch has built-in mine-safe circuits that effectively reduce the impact of thunderstorms on network systems.	Wall mountable You can mount the switch on the wall or on the desk, the perfect solution for a variety of environments.

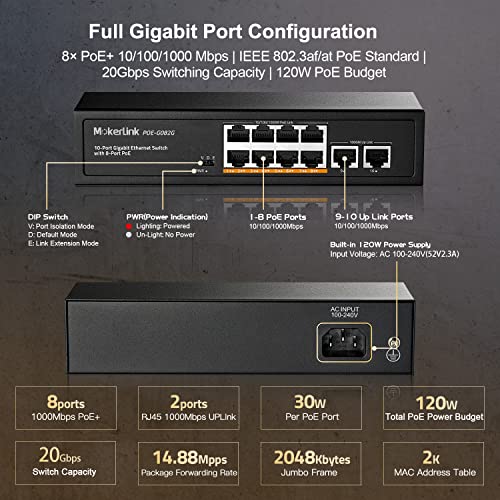

Product specifications:

Model	POE-G082G
ethernet	8 x Gigabit PoE Ethernet ports + 2 x Gigabit Uplink Ethernet port
Bandwidth	20 Gbps
Pack forward rate	14.88 Mpps
Memory cache	448K
MAC address	2K
Jumbo Frame	2048bytes
Network Protocol	IEEE802.3 (10Base-T), IEEE802.3u (100Base-TX), IEEE802.3ab (1000Base-TX), IEEE802.3x (Flow control)

PoE protocol	IEEE802.3af (15.4W), IEEE802.3at (30W)
Network Medium	10Base-T: Cat3, 4, 5 or above UTP (≤100m), 100Base-TX : Cat5 or above UTP (≤100m), 1000Base-TX : Cat5 or above UTP (≤100m)
Working Environment	Working Temperature: -10~50°C, Storage Temperature: -40~70°C Working Humidity: 10%~90%, non-condensing, storage temperature: 5%~90%, non-condensing
indicator	PWR (Power), 1-10 Green Light (Link & Data), PWR On: Powered on, off: Powered off. 1-10 Green Light (Link & Data) On: Link normal, off: Link blocked, flashing: Data transmitting
DIP Mode	VLAN(V): Insulation mode. Ports 1 to 8 are isolated and communicate with the upstream interface. Default (D): Normal mode, all interfaces can communicate with each other, the transmission distance is less than 100 meters, the transmission rate is 10/100/1000M adaptive; The port AI mode is disabled. Extend (E): Link extension mode, 7-8 ports force 10M, transmission distance extend to 250M.
Structure Size	Product size: 200*118*44mm, Package size: 245*190*60mm, Net weight: 0.71 kg, Gross weight: 0.99 kg
Power Voltage	Input voltage: AC100-240V, Power supply: 52 V 2.3 A (120 W)
Packing list	Switch 1 PC, Power cord 1 PC, User manual 1 PC
