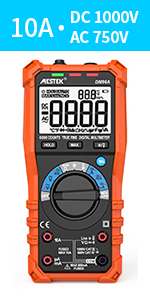

Digital Multimeter MESTEK Voltmeter Multi Tester AC DC Current Meter Auto Ranging Ture-RMS Measures Voltage Amp Ohm Diode Resistance Frequency Capacitance Continuity Temperature NCV with Backlight

• 【High Precision & Versatile】6000 counts, Auto-range digital multimeter capable of measuring: 600mV-1000V AC/DC voltage, 6000uA~10A AC/DC current, Ture RMS, temperature testing, resistance, capacitance, frequency, diode, continuity testing, battery testing, live wire identification, NCV testing, full range process overload protection, and other multifunctional functions. It can be used as a high-precision Voltmeter, Ammeter, ohmmeter and automobile battery tester.
• 【Multi functional】Large LCD digital display screen with flashlight and backlight function, low battery indicator, automatic shutdown function (it can be cancelled), MAX-value locking, data retention function, over range display of "OL", environmental temperature testing, temperature ℃/℉ switching and other practical functions. The NCV detection function can easily and quickly determine the presence of voltage.
• By using a thermocouple probe, it can measure the temperature of liquids and also measure the high-temperature parts of appliances that generate heat, such as televisions, air conditioners, and refrigerators.
• 【High security performance】A large backlit screen that is easy to read and has good visibility in dim environments. A practical LED flashlight illuminates dimly lit areas, so you can see readings when working in low light conditions, such as electrical cabinets and other enclosed spaces. The detachable thick rubber cover protective cover is made of a non slip, slightly soft plastic to help prevent falls and minor impacts. Built in bracket: can be held in hand or standing on a desktop.
• 【Widely used】 Built-in fuse for anti ignition, used to safely and accurately eliminate various electrical problems in cars and homes. Widely used in scenarios such as car maintenance, home, school, laboratory, home, and factory, suitable for drivers, beginners, professional electricians, maintenance personnel, and electrical installers. An ideal Thanksgiving and Christmas gift for family and friends, safe and practical!
• 【Quality worry free】You will get: 1 x professional DM96A digital multimeter, 1 x red/black measuring lead, 2 x 1.5 V AA battery, 1 x screwdriver, 1 x temperature probe, 1 x user manual. The multimeter has overload protection in all areas, dual fuse anti ignition, to maximize your safety during use. We provide 2 years of after-sales service and technical support, as well as 7/24 service.
• If it is damaged within 24 months after your purchase (even if the Amazon return deadline has passed), please contact us and we will replace it for free!

---

Product Description

MESTEK has always been committed to providing customers with high-quality and professional products, pursuing more stable product performance, simpler operation, and richer functions, which is our research and development mission.

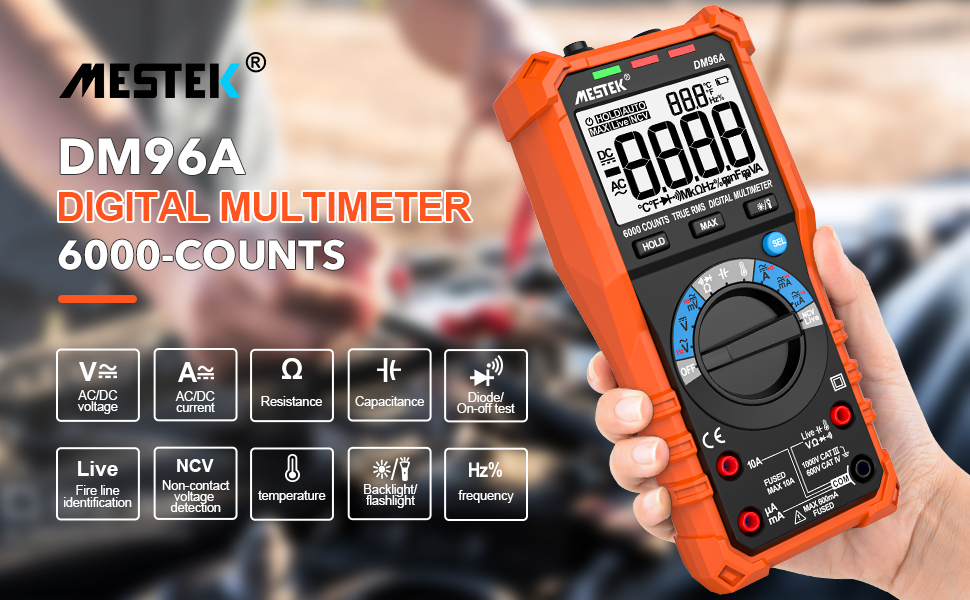

The digital multimeter-DM96A has a wide range voltage measurement range of 0~1000V, which can meet the needs of professional electronic maintenance, support industrial high voltage testing, and also support household commonly used circuit measurement. The product has automatic range, data retention, temperature measurement, automatic shutdown, backlight, full range overload protection, and battery undervoltage indication. Whether used by professionals, factories, schools, instrument enthusiasts, or families, it is an ideal multifunctional product. Can be used as a voltmeter, battery tester, voltage tester, ammeter, and current tester.

The functions that DM96A can support:

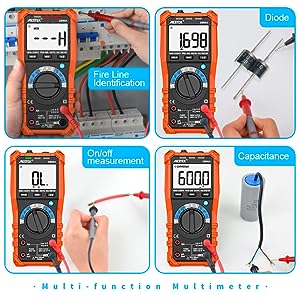

AC/DC voltage measurement, AC/DC current measurement, 6000 counts, resistance measurement, temperature measurement, capacitance measurement, on/off test, continuity test, diode test, Non-contact AC voltage detection (NCV function), live wire LIVE recognition function, data retention, maximum value test, low battery reminder function, automatic shutdown function, backlight function, flashlight function, etc.

√ LCD color display

Adopting a traditional black digital display screen and adding backlight function can ensure that users can use it in bright/dim scenes.

√ Convenient and safe use

The Non Contact Voltage Function (NCV) can detect voltage without touching wires. The full range has overload protection, and the multimeter meets the IEC-61010 standard.

√ Anti slip and wear-resistant

The outer layer is wrapped in a colored rubber soft shell, which is anti slip and wear-resistant. Made of ABS material with a dual protective body design, it is sturdy and durable, and can prevent falls and falls. Suitable for complex industrial and maintenance sites!

√ Intelligent and simple

Using automatic range, the buttons are simple and easy to understand, making it very suitable for beginners to use.

√ Prepare everything for you

We have prepared pens, test wires, batteries, and screwdrivers for each customer's measurement needs. After receiving the product, you can immediately put it into use.

6000 counts/Ture RMS/Auto-Range:

DC voltage: 600mV/6V/60V/600V/1000V

AC voltage: 600mV/6V/60V/600V/750V

DC current: 6000uA/600mA/10A

AC current: 6000uA/600mA/10A

Resistance: 600 Ω/6k Ω/60k Ω/600k Ω/6M Ω/60M Ω

Capacitance: 60nF/600nF/6 μ F/60 μ F/600 μ F/6mF/60mF

Diode: 0.1V-3V

On-off test: 600 Ω

Temperature test: -20 ℃ -1000 ℃/-4 ℉ -1832 ℉

Voltage and current test By connecting red and black lead wires to the corresponding testing interface, AC current, AC voltage, DC current, and DC voltage can be quickly measured.	Auto Range Current/voltage/resistance/capacitance are all automatic range measurements, displaying measured values with optimal resolution. Just switch the dial pointer to the corresponding gear.	Maximum value test By pressing the MAX key, the maximum current voltage or resistance value is captured during the testing process and recorded.	Safety tube Equipped with dual fuses, it can effectively protect the multimeter. Overload protection for all areas. mA range fuse (FF600mA/1000V); 10A range fuse (FF10A/1000V).

Data retention With the HOLD key, you can record the measurement values of any current gear in a timely manner, making it easy to record!	Backlight/Flashlight The display and lighting flashlight can be turned on in dark environments for reliable reading and use.	Automatic shutdown After about 20 minutes of inactivity, the machine will automatically shut down. Press the SEL key in automatic shutdown mode to restart the machine. The automatic shutdown function can be cancelled!	Environmental temperature & probe temperature Two temperature measurement modes: ambient temperature and probe temperature measurement. The temperature can be switched to display ℉/℃.

Digital multimeter

MESTEK-tools

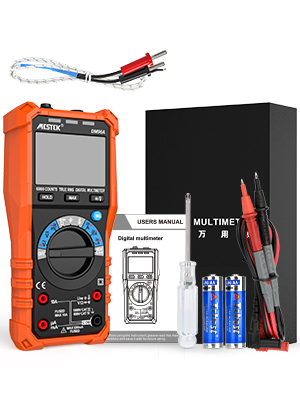

• 1 x DM96A digital multimeter
• 1 x Red/Black measuring lead
• 2 x 1.5 V AA Battery
• 1 x Screwdriver
• 1 x Temperature probe
• 1 x User manual

Professional multifunctional digital multimeter for measuring AC/DC current and voltage

Precautions:

In the mV range of AC voltage, due to environmental electromagnetic interference, even if the probe is not inserted, the instrument will still display numerical values, which is a normal phenomenon of a multimeter.

Unable to switch gears during the measurement process. Before changing the measurement function, the probe should be removed from the circuit being tested.

When the battery level is low, please replace the battery immediately to avoid incorrect readings or danger.

• Automatic range: √
• Over range display: OL or – OL
• Automatic shutdown: 20min
• Power supply: 2×1.5VAA
• Working temperature: 0~50 °C
• Storage temperature: -20~60 °C
• Size: 184x88x50mm
• Weight: About 300g

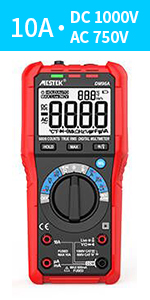

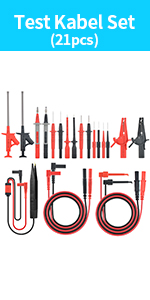

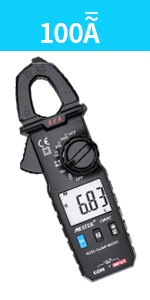

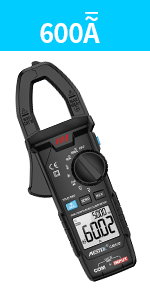

	Orange – Digital Multimeter	Red – Digital Multimeter	Multifunctional clamp meter	High precision clamp meter	Test lead kit-21 pcs
DC voltage	600mV/6V/60V/600V/1000V	600mV/6V/60V/600V/1000V	600mV/6V/60V/600V	200 mV/2 V/20 V/200 V/600 V
AC voltage	600mV/6V/60V/600V/750V	600mV/6V/60V/600V/750V	6V/60V/600V	2 V/20 V/200 V/600 V
DC current	6000uA/600mA/10A	6000uA/600mA/10A	60A/600A	2A/ 20A/ 100A
AC current	6000uA/600mA/10A	6000uA/600mA/10A	60A/600A	2A/ 20A/ 100A
Temperature	-20℃~1000℃	-20℃~1000℃	-20℃~1000℃	-20℃~1000℃
Resistance	600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ	600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ	600Ω/6KΩ/60KΩ/600KΩ/6mΩ/60mΩ	200Ω/2kΩ/20kQ/200kΩ/2MΩ/20MΩ
Capacitance	60nF/600nF/6μF/60μF/600μF/6mF/60mF	60nF/600nF/6μF/60μF/600μF/6mF/60mF	600nF/6uF/60uF/600uF/6mF/60mF	200nF/2uF/20uF/200uF/2000uF
Storage bag			✓	✓
Battery	✓	✓	✓	✓
NCV function	✓	✓	✓	✓
