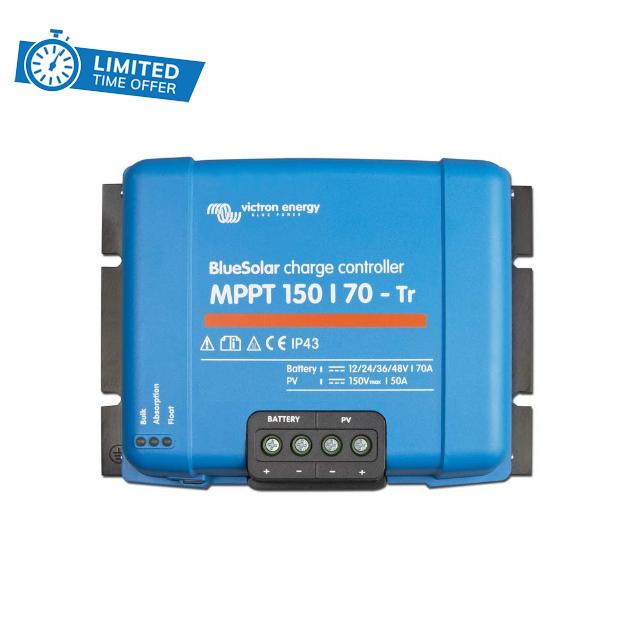

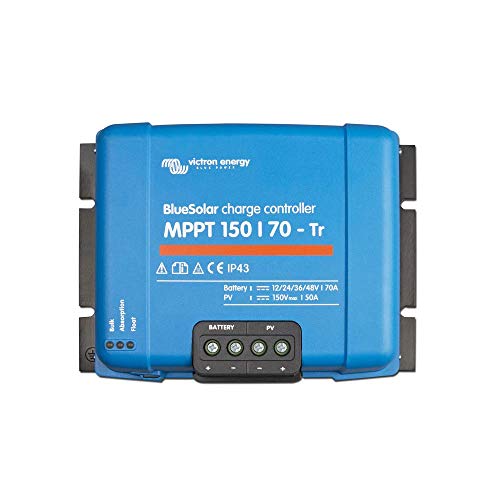

Victron Energy BlueSolar MPPT TR 150 V/70

Victron Energy BlueSolar MPPT TR 150 V/70 A/12/24/36/48 V Solar Charge Controlle

• Victron Energy BlueSolar MPPT MC4 150 V 60 A, battery voltage: 12/24/48 V. Auto Select (software tool required to select 36 V): The solar charge controller keeps the battery healthy and extends its life.
• A solar charge controller collects energy from your solar panels and stores it in your batteries. By utilising the latest and fastest technology, BlueSolar maximises this energy harvesting.
• MPPT solar charge controller: By constantly monitoring the voltage and current of your solar panels (PV), MPPT technology ensures that every drop of available power is flushed out of your panels and used for storage.
• Control and monitor the extensive functions of your BlueSolar MPPT solar charge controller remotely by attaching a Bluetooth dongle and pairing it with your smartphone or another device via VictronConnect.
• Improper installation can be dangerous. Please consult an approved professional and follow all applicable electrical regulations during installation.

Ultra-fast maximum power point tracking (MPPT). Especially when the sky is overcast and the light intensity is constantly changing, an extremely fast MPPT controller improves the energy yield by up to 30% compared to pulse width modulation (PWM) charge controllers and by up to 10% compared to slower MPPT controllers. Load output: overloading the battery can be prevented by connecting all loads to the load output. The load output separates the loads when the battery has been discharged to a specified voltage value. Alternatively, you can also choose an algorithm for intelligent battery management: see BatteryLife. The load output is short-circuit protected. Some loads (especially inverters) are best connected directly to the battery. The inverter remote control is best connected to the load output. Under certain circumstances, a special interface cable is required. Please refer to the manual (English language not guaranteed). BatteryLife: intelligent battery management. If the solar charge controller is unable to recharge the battery to full capacity within one day, the status of the battery will continually cycle between “partially charged” and “discharge finished”. This operating mode (no regular full charging) will damage a lead-acid battery within a few weeks or months. The BatteryLife algorithm monitors the charging level of the battery and, if required, raises the threshold for disconnecting the load day by day (i.e. the load is disconnected earlier), until the energy gained is enough to recharge the battery up to almost 100%. From this point, the threshold value for the load shutdown is modulated, so an almost 100% charge will be achieved about once a week.
