SolaMr 1000W PWM Wind Solar Hybrid Charge

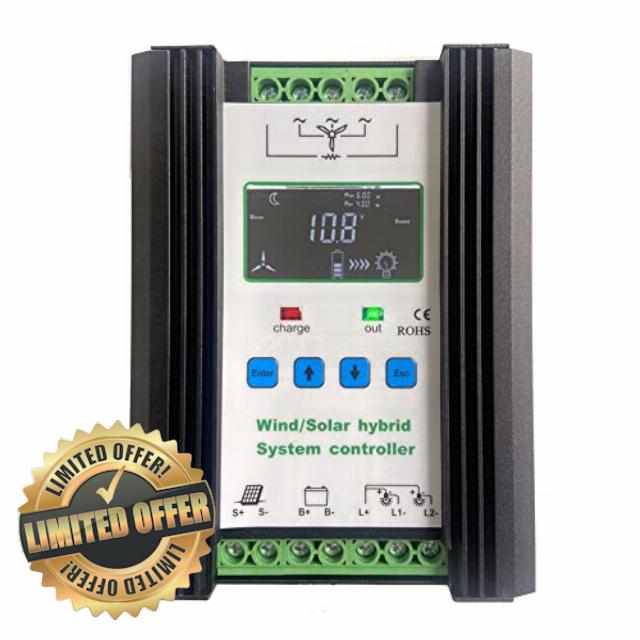

SolaMr 1000W PWM Wind Solar Hybrid Charge Controller 400W Solar and 600W Wind Hybrid Charge Controller 12V/24V Auto Identification System Voltage
- Intelligent design, simple structure, powerful control function, stable performance, safe and reliable products.
- Use high-quality imported components to ensure superior performance and stability.
- Using PWM stepless unloading method to control fans and solar cells to intelligently charge batteries.

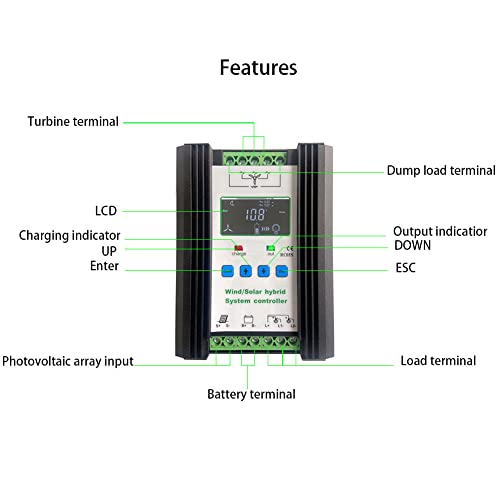

- LCD Display: LCD display battery voltage and charging current, all parameters are visible when the user is using.
- Multiple Protection: Reverse solar charge protection, Battery open circuit protection, Battery reverse protection, Over-wind speed and Overvoltage, Lightning protection, Overload protection, etc.
| SKU: | B07SFV5VR7 |
| Weight: | 2.45 kg |

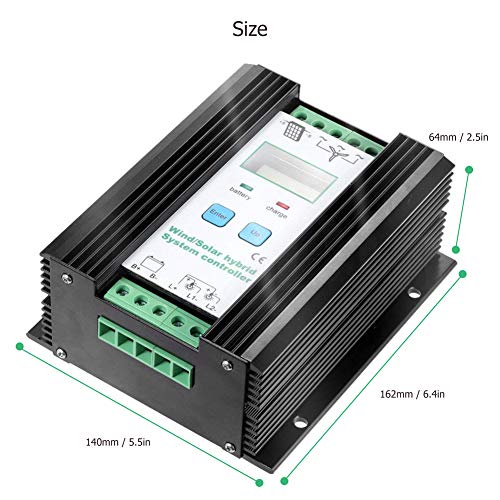

| Dimensions: | 35.1 x 29.9 x 11.1 cm; 2.45 Kilograms |
| Part: | TR057L |
| Colour: | PWM |
| Batteries Required: | No |
| Batteries Included: | No |
| Manufacture: | SolaMr |
| Colour: | PWM |
| Reference: | TR057L |
Product Description
- While wiring the controller do not close the circuit breaker of fuse and make sure that the leads of “+” and “-” poles are connected correctly.
- A fuse which current is 1.25 to 2 times the rated current of the controller, must be installed on the battery side with a distance from the battery not greater than 150 mm.
- If the controller is to be used in an area with frequent lightning strikes or unattended area, it must be installed an external surge arrester.
- If an inverter is to be connected to the system, connect the inverter directly to the battery, not to the load side of the controller.
Package List:
- 1 x Wind and Solar Hybrid Charge Controller
- 1 x User Manua
 |  |  | | | | |
|---|---|---|---|---|---|---|
| Nominal System Voltage | 12/24VDC Auto | 12/24VDC Auto | 12/24VDC Auto | 12/24VDC Auto | 12/24VDC Auto | 12/24VDC Auto |
| Product Type | PWM | MPPT | MPPT | MPPT | MPPT | MPPT |
| Max. Input Power | 400W / Solar + 600W / Wind | 400W / Solar + 600W / Wind | 390W (12V)/780W (24V) | 520W (12V)/1040W (24V) | 650W (12V)/1300W (24V) | 780W (12V)/1560W (24V) |
| Battery Type | Sealed;LiFePO4;LiNiCoMn;Custom | Sealed;LiFePO4;LiNiCoMn;Custom | Lead-acid batteries, lithium iron phosphate batteries, ternary lithium batteries | Lead-acid batteries, lithium iron phosphate batteries, ternary lithium batteries | Lead-acid batteries, lithium iron phosphate batteries, ternary lithium batteries | Lead-acid batteries, lithium iron phosphate batteries, ternary lithium batteries |
| Wind turbine | ✓ | ✓ |
