SolaMr 1000W MPPT Wind Solar Hybrid Charge

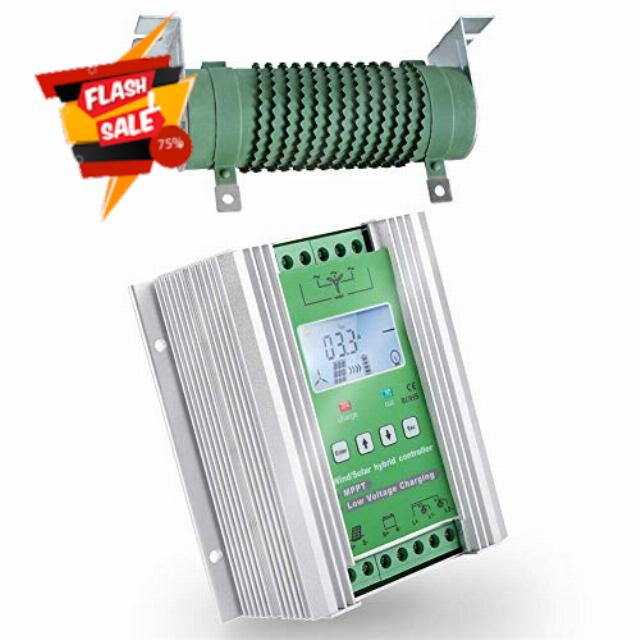

SolaMr 1000W MPPT Wind Solar Hybrid Charge Controller 400W Solar and 600W Wind Hybrid Charge Regulator 12V/24V Auto Identification System Voltage
- Intelligent design, simple structure, powerful control function, stable performance, safe and reliable products.
- Multiple output state setting functions, full power / half power / minute time and other custom features, the user can set the combination according to the requirements.
- LCD Display: LCD display battery voltage and charging current, all parameters are visible when the user is using.
- Multiple Protection: Reverse solar charge protection, Battery open circuit protection, Battery reverse protection, Over-wind speed and Overvoltage, Lightning protection, etc.
- Independent Use: The wind charging part and the solar charging part of this wind solar hybrid controller are independent of each other, can be used independently as a wind controller or a solar controller.
| SKU: | B07SFD85MF |
| Weight: | 2.52 kg |
| Dimensions: | 35.4 x 29.2 x 11.2 cm; 2.52 Kilograms |
| Part: | TR056L |
| Colour: | MPPT |
| Batteries Required: | No |
| Batteries Included: | No |
| Manufacture: | SolaMr |
| Colour: | MPPT |
| Reference: | TR056L |
Product Description

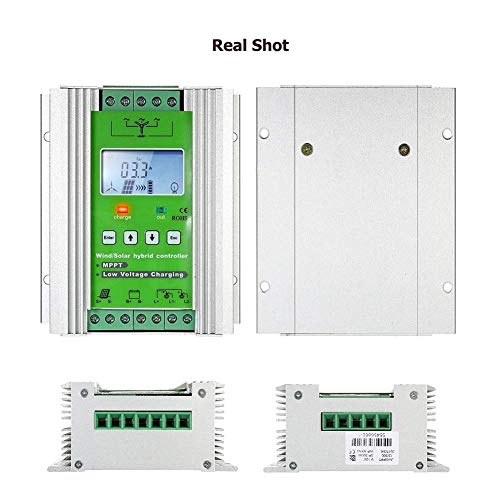

Controller appearance

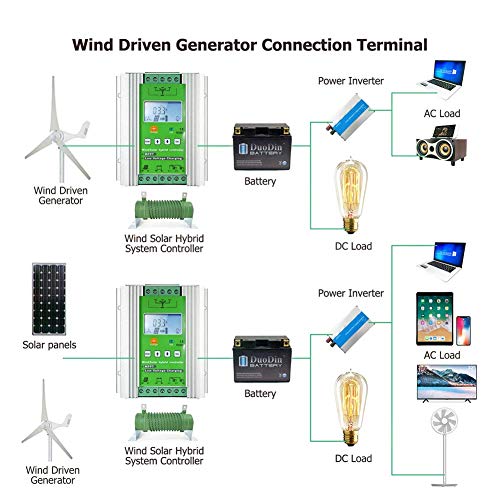

The product has wiring ports at the upper and lower ends. The upper end is connected to the fan (the terminal of the fan can be selected from two terminals, regardless of positive and negative poles), and the lower end is connected to the battery and solar panel.
Fan unloading conditions (economic option)
1. When the charging current of the fan is greater than 1.2 times of the rated current, the unloading starts;
2. When the battery voltage is greater than the current BCV+0.1V, it starts to unload;
3. When the battery voltage is greater than the current Float+0.1V, it starts to unload;
4. Unloading starts when the fan voltage is greater than the fan unloading voltage;
Controller installation
Install the controller on the equipment platform or cabinet support through the installation hole on both sides of the bottom shell of the controller, and reserve enough ventilation and heat dissipation space around the installation.
 |  |  | | | | |
|---|---|---|---|---|---|---|
| Nominal System Voltage | 12/24VDC Auto | 12/24VDC Auto | 12/24VDC Auto | 12/24VDC Auto | 12/24VDC Auto | 12/24VDC Auto |
| Product Type | MPPT | PWM | MPPT | MPPT | MPPT | MPPT |
| Max. Input Power | 400W / Solar + 600W / Wind | 400W / Solar + 600W / Wind | 390W (12V)/780W (24V) | 520W (12V)/1040W (24V) | 650W (12V)/1300W (24V) | 780W (12V)/1560W (24V) |
| Battery Type | Sealed;LiFePO4;LiNiCoMn;Custom | Sealed;LiFePO4;LiNiCoMn;Custom | Lead-acid batteries, lithium iron phosphate batteries, ternary lithium batteries | Lead-acid batteries, lithium iron phosphate batteries, ternary lithium batteries | Lead-acid batteries, lithium iron phosphate batteries, ternary lithium batteries | Lead-acid batteries, lithium iron phosphate batteries, ternary lithium batteries |
| Wind turbine | ✓ | ✓ |
