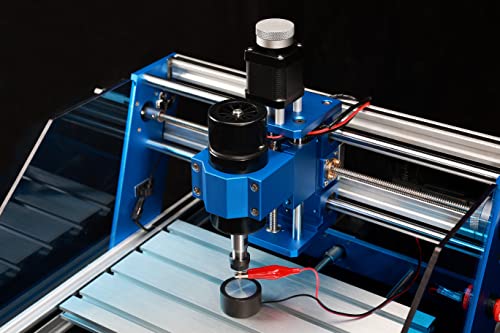

CNC 3018 PRO MAX,All Metal Frame,200w Spindle

CNC 3018 PRO MAX,All Metal Frame,200w Spindle 12000RPM,Upgrade Stepper Motor,CNC Engraving Machine with GRBL Control and Offline Control, with Limit Switches,Emergency-Stop and Z-Probe

• 【Efficient pre-assembly】CNC 3018 Pro Max pre-installed base, gantry and small parts (limit switch, emergency stop, sealing strips, etc.) shorten the installation time to about 30 minutes, save a lot of complicated installation steps, and reduce the likelihood of installation errors that will save your precious time and energy, especially for CNC machine beginners.
• 【Multiple protection】 Mostics CNC 3018 Pro max added precise positioning of the hand wheel, does not have to debug repeatedly in Candle. The limit switch is sensitive to lock the machine in time. The emergency stop switch can interrupt the abnormal state of the CNC milling in time. The 5 mm thick acrylic deflectors on both sides of the fuselage effectively prevent dust and debris from swirling during engraving, thus protecting the operator’s safety
• 【Upgraded structure】 CNC 3018 Pro Max is made of newly updated high hardness and strength and thickened aluminium alloy body and spindle holder, with non-slip rubber feet on the base to ensure that the CNC machine is stable and reduce vibration. The CNC router machine has a high-power 200 W spindle (maximum: 500 W), it can easily treat a variety of non-metals (wood, plastic, PVC, etc.) and soft metals (copper, aluminium) engraving
• 【Widely Application】CNC 3018 Pro Max have two operating modes: PC and offline control. It can be widely used in Windows/Linux systems, and it can also use CAD, Easel, Inkscape, ArtCAM to draw G code to make NC files. It has equipped with the latest version of GRBL 1.1.7 motherboard, free open source software: Candle, the easy operation and the CNC router can adapt to a variety of engraving needs, friendly to beginners
• 【Attentive service】one-year warranty and lifetime service. Multiple contact information has been provided and a large amount of different materials related to the practical CNC operation have been summarised and sorted to ensure that all customer requests can be processed quickly and conveniently via the CNC machine and operation. For example: candle, ArtCAM, Easel, Fusion360 etc.

【NOTE】Following materials can be cut or engraved with our machine, others needs testing.

[Non-metal] paper, wood, bamboo, leather, etc.

[metal] copper, aluminum and other soft metal

Cutters: can cut 0.5mm-2mm per time, for copper, aluminum and other soft metal, plastic, wood, acrylic, pvc, pcb, etc;



Specifications :

Software: GRBL1.1.7 control systems

Supported System: Windows XP / Win 7 / Win 8 / Win 10

Effective Engraving Area: 300 x 155 x 52 mm

Frame Size: 450 x 405 x 320 mm

Frame Material: All Aluminum

Spindle: 200W spindle , 24V, 12000 RPM;

Step Motor: 1.3A, 12V, 0.45 Nm torque (length: 48mm)

Knobs: Accurate to 0.1mm works for X,Y,Z axis adjustment.

Limit Switches: Included,  installed on X,Y,Z axis

Emergency Stop: Included 1pcs

Drill bits: 10 pcs router bits, tip 0.1mm, 30 degrees, diameter 3.175mm

Clamps: 4 pcs, Hold the thickness of 0-30mm, size: 50 * 20 * 3 (length * width * thick), the inner slot width 6mm



Products include:

1 x CNC 3018 PRO MAX DIY Router Kit(include 200W spindle)

1 x Offline Controller

1 x Z Probe

1 x Extension Rod with ER11 Collet(1xER11 3.175mm and 1xER11 4mm)

4 x Plate Clamp

6 x Limit Switches

10 x CNC Router Bits

1 x U disk (free software, user manual, test engraving files)
